Agilent Technologies AssayMAP Bravo Platform Bedienungsanleitung

AssayMAP Bravo Platform

Error Recovery Guide

Original Instructions

Notices

Manual Part Number

D0021233 Revision A

October 2022

No part of this manual may be reproduced

in any form or by any means (including

electronic storage and retrieval or

translation into a foreign language) without

prior agreement and written consent from

Agilent Technologies, Inc. as governed by

United States and international copyright

laws.

Contact Information

Agilent Technologies Inc.

Automation Solutions

5301 Stevens Creek Blvd.

Santa Clara, CA 95051

USA

Web:

https://www.agilent.com

Contact page:

https://www.agilent.com/en/contact-

us/page

Documentation feedback:

documentation.automation@agilent.co

Acknowledgements

Microsoft® and Windows® are either

registered trademarks or trademarks of the

Microsoft Corporation in the United States

and other countries.

Warranty

The material contained in this document is

provided “as is,” and is subject to being

changed, without notice, in future editions.

Further, to the maximum extent permitted

by applicable law, Agilent disclaims all war-

ranties, either express or implied, with

regard to this manual and any information

contained herein, including but not limited

to the implied warranties of merchantability

and fitness for a particular purpose. Agilent

shall not be liable for errors or for incidental

or consequential damages in connection

with the furnishing, use, or performance of

this document or of any information con-

tained herein. Should Agilent and the user

have a separate written agreement with

warranty terms covering the material in this

document that conflict with these terms,

the warranty terms in the separate agree-

ment shall control.

Technology Licenses

The hardware and/or software described in

this document are furnished under a license

and may be used or copied only in

accordance with the terms of such license.

Restricted Rights Legend

If software is for use in the performance of

a U.S. Government prime contract or

subcontract, Software is delivered and

licensed as “Commercial computer

software” as defined in DFAR 252.227-7014

(June 1995), or as a “commercial item” as

defined in FAR 2.101(a) or as “Restricted

computer software” as defined in FAR

52.227-19 (June 1987) or any equivalent

agency regulation or contract clause. Use,

duplication or disclosure of Software is

subject to Agilent Technologies’ standard

commercial license terms, and non-DOD

Departments and Agencies of the U.S.

Government will receive no greater than

Restricted Rights as defined in FAR 52.227-

19(c)(1-2) (June 1987). U.S. Government

users will receive no greater than Limited

Rights as defined in FAR 52.227-14

(June1987) or DFAR 252.227-7015 (b)(2)

(November 1995), as applicable in any

technical data.

Safety Notices

A WARNING notice denotes a haz-

ard. It calls attention to an operating

procedure, practice, or the like that, if

not correctly performed or adhered

to, could result in personal injury or

death. Do not proceed beyond a

WARNING notice until the indicated

conditions are fully understood and

met.

A CAUTION notice denotes a hazard.

It calls attention to an operating proce-

dure, practice, or the like that, if not

correctly performed or adhered to,

could result in damage to the product

or loss of important data. Do not pro-

ceed beyond a CAUTION notice until

the indicated conditions are fully

understood and met.

WARNING

CAUTION

iiiAssayMAP Bravo Platform Labware Reference Guide

Contents

Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . v

About this guide. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . vi

Reporting problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . viii

2. Common startup error messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Unable to communicate with the device. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

There appears to be a plate present . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Verify that it is safe to home the W-axis . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Accessory startup errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

3. Common AssayMAP Bravo error messages. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Could not dock gripper and other communication errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Robot disable is active messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

W-axis was commanded to an invalid destination . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

4. Miscellaneous errors and recovery techniques. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

W-axis is not homed error message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Using Bravo Diagnostics to reclaim reagents from syringes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Pausing and continuing a run in the workbench . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Contents

iviv AssayMAP Bravo Platform Labware Reference Guide

This page is intentionally blank.

Preface

This guide provides a reference for how to resolve error messages that can occur

when using the Agilent Protein Sample Prep Workbench.

This section contains the following topics:

•“About this guide” on page vi

•“Reporting problems” on page viii

Preface

About this guide

vi AssayMAP Bravo Platform Error Recovery Guide

About this guide

Overview

This guide provides a reference to common error messages you may encounter when

using the AssayMAP Bravo Platform.

Software version

This guide documents the following software versions:

•Protein Sample Prep Workbench 4.0

•VWorks Automation Control 14.1.1

What is new in this revision

Item See...

Added a section on error

messages that occur during

startup.

“Common startup error messages” on page 1

Updated the topics for

Workbench 4.0.

“Pausing and continuing a run in the workbench”

on page 23.

vii

Preface

About this guide

AssayMAP Bravo Platform Error Recovery Guide

Accessing the user guides

You can find the user guides for the AssayMAP applications and utilities in the Protein

Sample Prep Workbench.

The Literature Library provides links to the user guides.

The app quick start guides are available in the App Library and additional utility guides

are available in the Utilities Library.

Preface

Reporting problems

viii AssayMAP Bravo Platform Error Recovery Guide

Reporting problems

If you find a problem with the AssayMAP Bravo Platform, contact Agilent Technical

Support. For contact information, go to https://www.agilent.com/en/contact-us/page.

To report problems with… Have the following information ready

Hardware •Instrument serial number from the Bravo serial

number label

•Short description of the problem

Software •Instrument serial number from the Bravo serial

number label

•Short description of the problem

•Relevant software version number (for example,

automation control software, diagnostics software,

and firmware)

•Error message text (or screen capture of the error

message dialog box)

•Relevant files, such as log files

AssayMAP Cartridges •Cartridge type

•Lot number

•Short description of the problem

2 Common startup error messages

This chapter describes error messages that you may encounter when starting up

the AssayMAP Bravo Platform.

The error messages are:

•“Unable to communicate with the device” on page 2

•“There appears to be a plate present” on page 4

•“Verify that it is safe to home the W-axis” on page 5

•“Accessory startup errors” on page 6

If you cannot resolve an error message using the following procedures, see

“Reporting problems” on page viii.

IMPORTANT

Always use the System Startup utility when you first start up the AssayMAP Bravo

Platform and before you run an application or utility after running the System

Shutdown protocol.

2 Common startup error messages

Unable to communicate with the device

2AssayMAP Bravo Platform Error Recovery Guide

Unable to communicate with the device

Startup error message

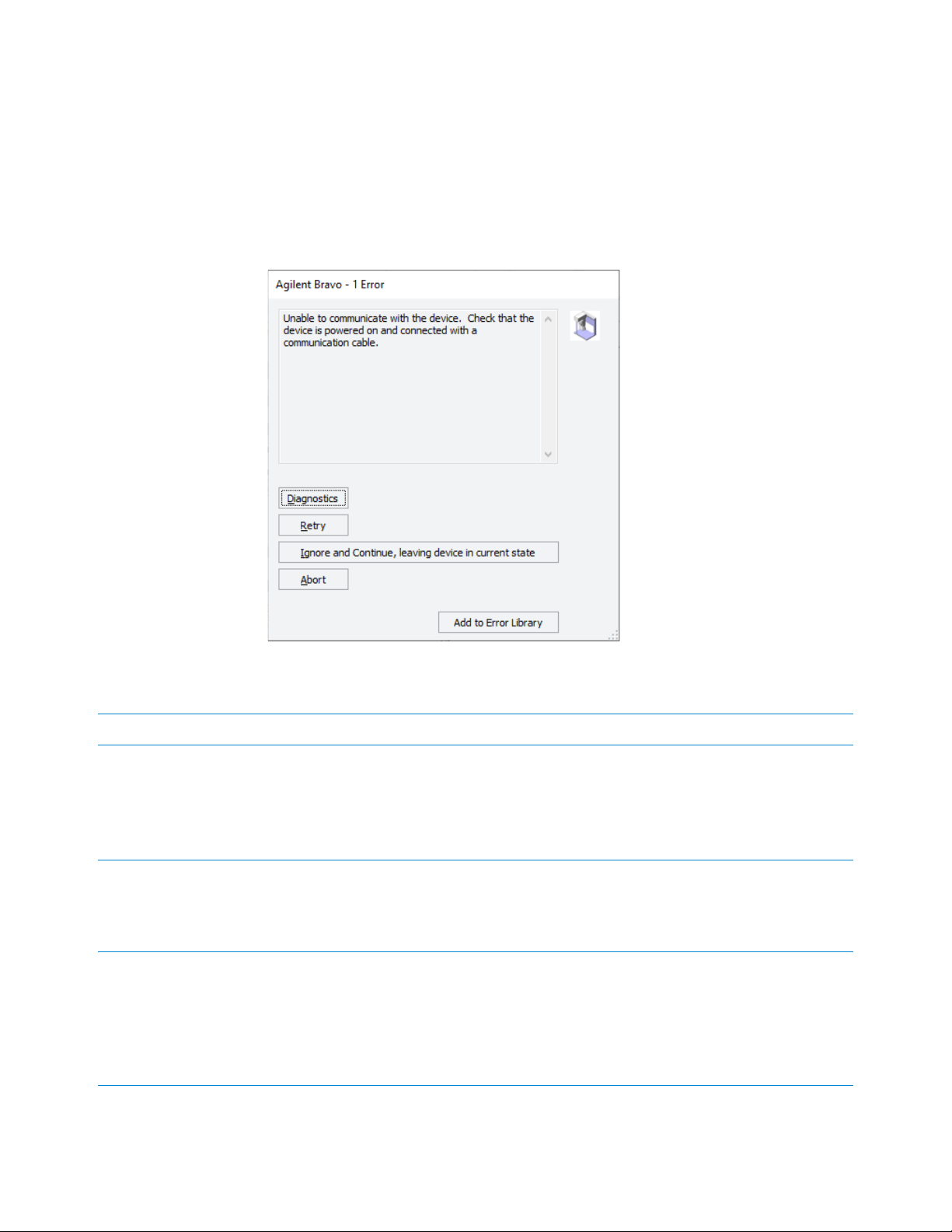

The Unable to communicate with the device message or similar message may appear

when you attempt to initialize the AssayMAP Bravo Platform.

Resolving the error

Possible causes Recommended actions

The Bravo device is not

turned on.

1If the AssayMAP Bravo is not turned on (indicator light in not on), turn on

the AssayMAP Bravo power switch and turn on all the accessories.

Note: If the AssayMAP Bravo device does not turn on, see the

troubleshooting section of the Bravo Platform User Guide.

2Click Retry.

The communication cable is

damaged or not connected

properly.

1Verify that the Ethernet cable is in good condition. If necessary, reconnect

the Ethernet cable at the computer and the AssayMAP Bravo device.

2At the computer connection, check that the link light next to the Ethernet

cable connector is lit green, and then click Retry.

The LAN connection is

interrupted.

1Click Abort. Close the Protein Sample Prep Workbench and the VWorks

software.

2Power cycle the AssayMAP Bravo device by turning it off and turning it on

again.

3Open the Protein Sample Prep Workbench and run the System Startup

utility again.
