A

User’s Guide

Publication number E5382-97002

December 2005

For Safety information and Regulatory information, see the pages at the back of

this guide.

E5382A Single-ended Flying Lead

Probe Set (for analyzers with 90-pin pod connectors)

In This Book

This guide provides user and service information for the E5382A Single-ended

Flying Lead Probe Set.

Chapter 1 gives you general information such as inspection, accessories

supplied, and characteristics of the probe.

Chapter 2 shows you how to operate the probe and gives you information about

some important aspects of probing and how to get the best results with your

probe.

Contents

1General Information

To inspect the probe 7

Accessories 8

Characteristics and Specifications 9

General Characteristics 10

To connect and set up the probe set 11

2Operating the Probe

130 ohm Resistive Signal Pin (orange) and Solder-down Ground Lead

Input Impedance 17

Time domain transmission (TDT) 18

Step inputs 21

Eye opening 24

5 cm Resistive Signal Lead and Solder-down Ground Lead 27

Input Impedance 28

Time domain transmission (TDT) 30

Step input 33

Eye opening 36

Flying Lead and Ground Extender 39

Input Impedance 40

Time domain transmission (TDT) 41

Step input 44

Eye opening 47

Grabber Clip and Right-angle Ground Lead 50

Input Impedance 51

Time domain transmission (TDT) 52

Step input 55

Eye opening 58

Connecting to coaxial connectors 61

Combining grounds 63

Contents

General Information

E5382A Single-ended Flying Lead Probe Set

The E5382A is a 17-channel single-ended flying lead probe set,

compatible with the Agilent 16753A, 16754A, 16755A, 16756A, 16760A,

and 16950A logic analysis modules. The E5382A enables you to acquire

signals from randomly located points in your target system.

Two E5382As are required to support all 34 channels on one 16760A.

Four E5382As are required to support all 68 channels of one 16753/54/

55/56A or 16950A.

A variety of accessories are supplied with the E5382A to allow you to

access signals on various types of components on your PC board.

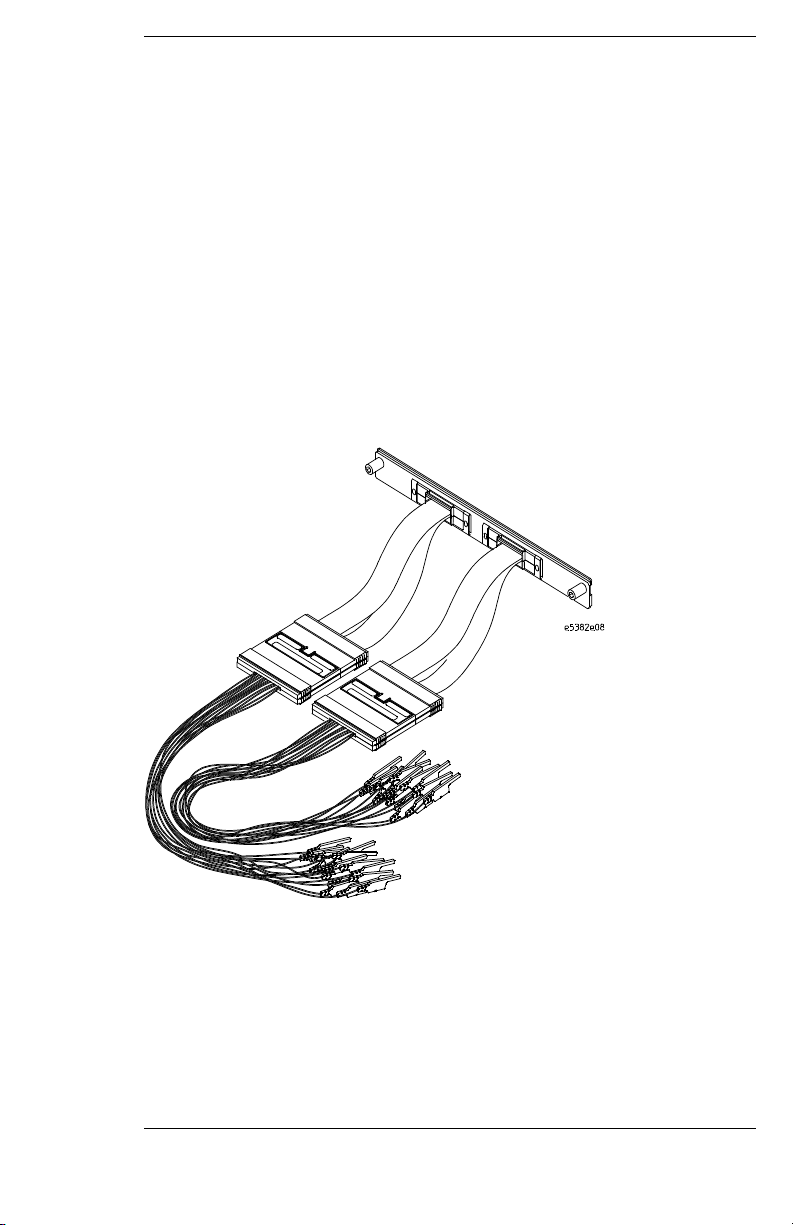

Single-ended flying lead probe set and an Agilent 16760A logic analysis module.

General Information

To inspect the probe

❏Inspect the shipping container for damage.

Keep a damaged shipping container or cushioning material until the contents of

the shipment have been checked for completeness and the instrument has been

checked mechanically and electrically.

❏Check the accessories.

Accessories supplied with the instrument are listed in "Accessories Supplied" in

table later in this chapter.

• If the contents are incomplete or damaged notify your Agilent

Technologies Sales Office.

❏Inspect the probe.

• If there is mechanical damage or defect, or if the probe does not

operate properly or pass performance tests, notify your Agilent

Technologies Sales Office.

• If the shipping container is damaged, or the cushioning materials show

signs of stress, notify the carrier as well as your Agilent Technologies

Sales Office. Keep the shipping materials for the carrier’s inspection.

The Agilent Technologies Office will arrange for repair or replacement

at Agilent Technologies’ option without waiting for claim settlement.

Probe case contents

General Information

Accessories

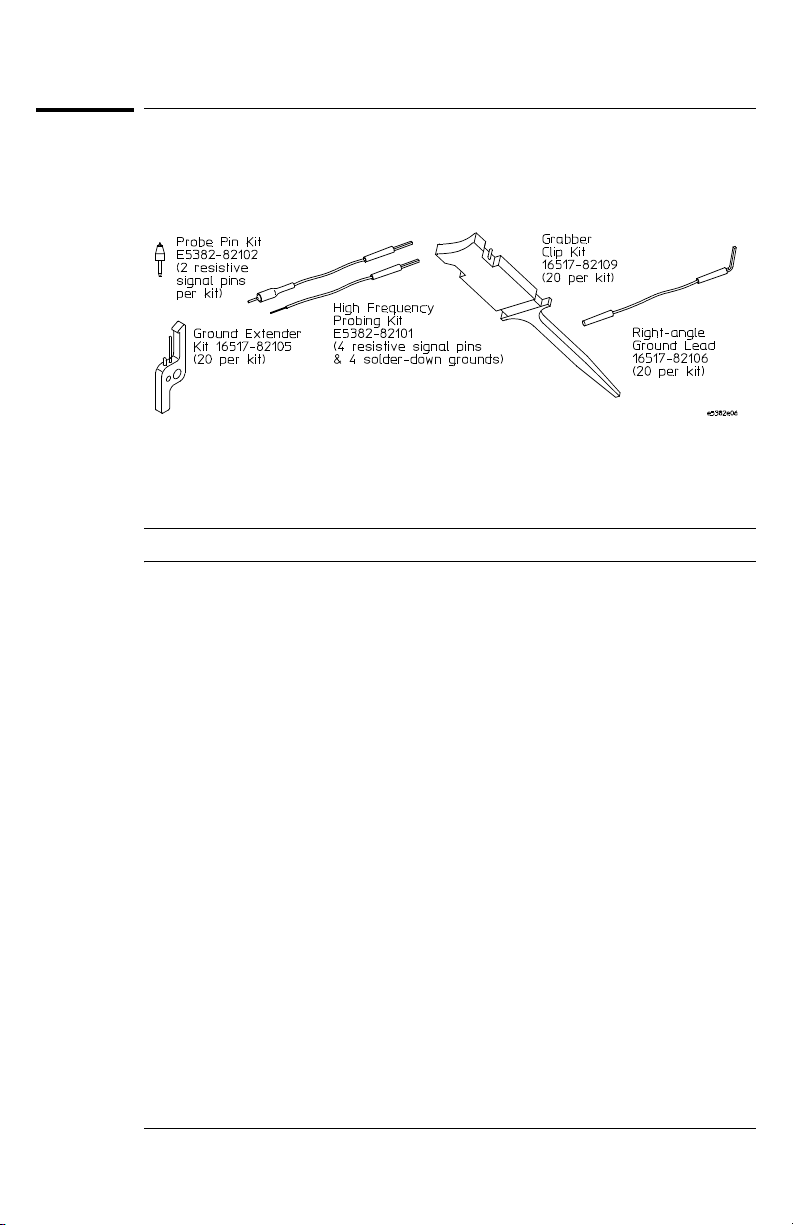

The following figure shows the accessories supplied with the E5382A Single-

ended Flying Lead Probe Set.

Accessories supplied

The following table shows the part numbers for ordering replacement parts and

additional accessories.

Replaceable Parts and Additional Accessories

Description Qty Agilent Part Number

Probe Pin Kit 2E5382-82102

High Frequency Probing Kit (4 resistive signal

pins & 4 solder-down grounds)

8E5382-82101

Ground Extender Kit 20 16517-82105

Grabber Clip Kit 20 16517-82109

Right-angle Ground Lead Kit 20 16517-82106

Cable - Main 1E5382-61601

Probe Tip to BNC Adapter 1E9638A

General Information

Characteristics and Specifications

The following characteristics are typical for the probe set.

Characteristics

(1) refer to specifications on specific modes of operation for details on how inputs can be used

(2) if using the clock as single-ended, the unused clock input must be grounded

and the minimum voltage swing for single-ended clock operation is 250mV p-p

Input Resistance 20 kΩ

Input Capacitance 1.3 pF (accessory-specific, see accessories)

Maximum Recommended State

Data Rate

1.5 Gb/s (accessory-specific, see accessories)

Minimum Data Voltage Swing 250 mV p-p

Minimum Diff. Clock Voltage

Swing

100 mV p-p each side

Input Dynamic Range -3 Vdc to +5 Vdc

Threshold Accuracy

±(30 mV +2% of setting)

Threshold Range -3.0 V to +5.0 V

Maximum Nondestructive Input

Voltage

±40 Vdc, CAT 1 (mains isolated)

Maximum Input Slew Rate 5 V/ns

Clock Input differential (2)

Number of Inputs (1) 17 (1 clock and 16 data)

General Information

General Characteristics

The following general characteristics apply to the probe set.

Environmental Conditions

E5382A Single-ended Flying Lead Probe Set Dimensions

Operating Non-operating

Temperature 0 °C to +55 °C−40 °C to +70 °C

Humidity up to 95% relative humidity

(non-condensing) at +40 °C

up to 90% relative humidity at +65 °C

Weight approximately 0.69 kg

Dimensions Refer to the figure below.

Pollution degree 2 Normally only non-conductive pollution occurs. Occasionally, however, a

temporary conductivity caused by condensation must be expected.

Indoor use
