Agilent Technology EM Pumps 1

P600-20-300

Issue D

Amendment for

A652-01-880

RV ROTARY VANE PUMPS FOR AGILENT TECHNOLOGY

1INTRODUCTION

1.1 Scope of this amendment

This amendment describes the installation, operation and maintenance for the RV

rotary vane pumps for Agilent Technology (referred to as Agilent RV pumps in the

rest of this amendment). Unless specified in this amendment, all information in the

instruction manual also applies to the Agilent RV pumps. Read this amendment

before you use the pump.

The Item Numbers for the Agilent RV pumps are as follows:

Pump Item Number

Agilent RV3 Rotary Vane Pump, 110-120/220-240 V,

50/60 Hz, single-phase A652-02-903 or -906

Agilent RV5 Rotary Vane Pump, 110-120/220-240 V,

50/60 Hz, single-phase A653-02-903 or -906

Agilent RV8 Rotary Vane Pump, 110-120/220-240 V,

50/60 Hz, single-phase A654-02-903 or -906

Agilent RV12 Rotary Vane Pump, 110-120/220-240 V,

50/60 Hz, single-phase A655-02-903 or -906

Agilent RV3 Rotary Vane Pump, 100/200 V, 50/60 Hz, single-phase A652-02-904

Agilent RV5 Rotary Vane Pump, 100/200 V, 50/60 Hz, single-phase A653-02-904

Agilent RV8 Rotary Vane Pump, 100/200 V, 50/60 Hz, single-phase A654-02/22-904

Agilent RV8 Rotary Vane Pump, 110-120/220-240 V, 50/60 Hz, single phase A654-22-903

Agilent RV12 Rotary Vane Pump, 100/200 V, 50/60 Hz, single-phase A655-02-904

Note that the Declaration of Conformity for the Agilent RV pumps is shown on page

7 of this amendment.

1.2 Description

The Agilent RV pumps differ from the standard RV pumps as follows:

The Agilent RV pumps are supplied with single-phase motors only, not with

three-phase motors.

The Agilent RV pumps are supplied with the pump configured for a specific

electrical supply voltage. A label over the electrical inlet-connector identifies this

voltage.

The Agilent RV pumps are filled with Edwards 45 oil and have a label next to the

oil filler-plugs which states that you should only use Edwards 45 oil in the pump.

2 Agilent Technology EM Pumps

The Agilent RV pumps are supplied with an oil-drain extension fitted to the oil

drain-port.

The Agilent RV pumps may be supplied with a transit-plug fitted to the outlet-

port of the pump to prevent the spillage of oil during transit. You will remove

the transit-plug and fit a nozzle (supplied) to the outlet-port.

The Agilent RV8 and RV12 pumps are fitted with a special lifting bracket (see

Figure 2).

The Agilent RV pump is supplied with the mode selector set to the High Vacuum

position.

The pump shown in Figure 1 of the instruction manual is therefore incorrect; the

correct Figure 1 is shown below.

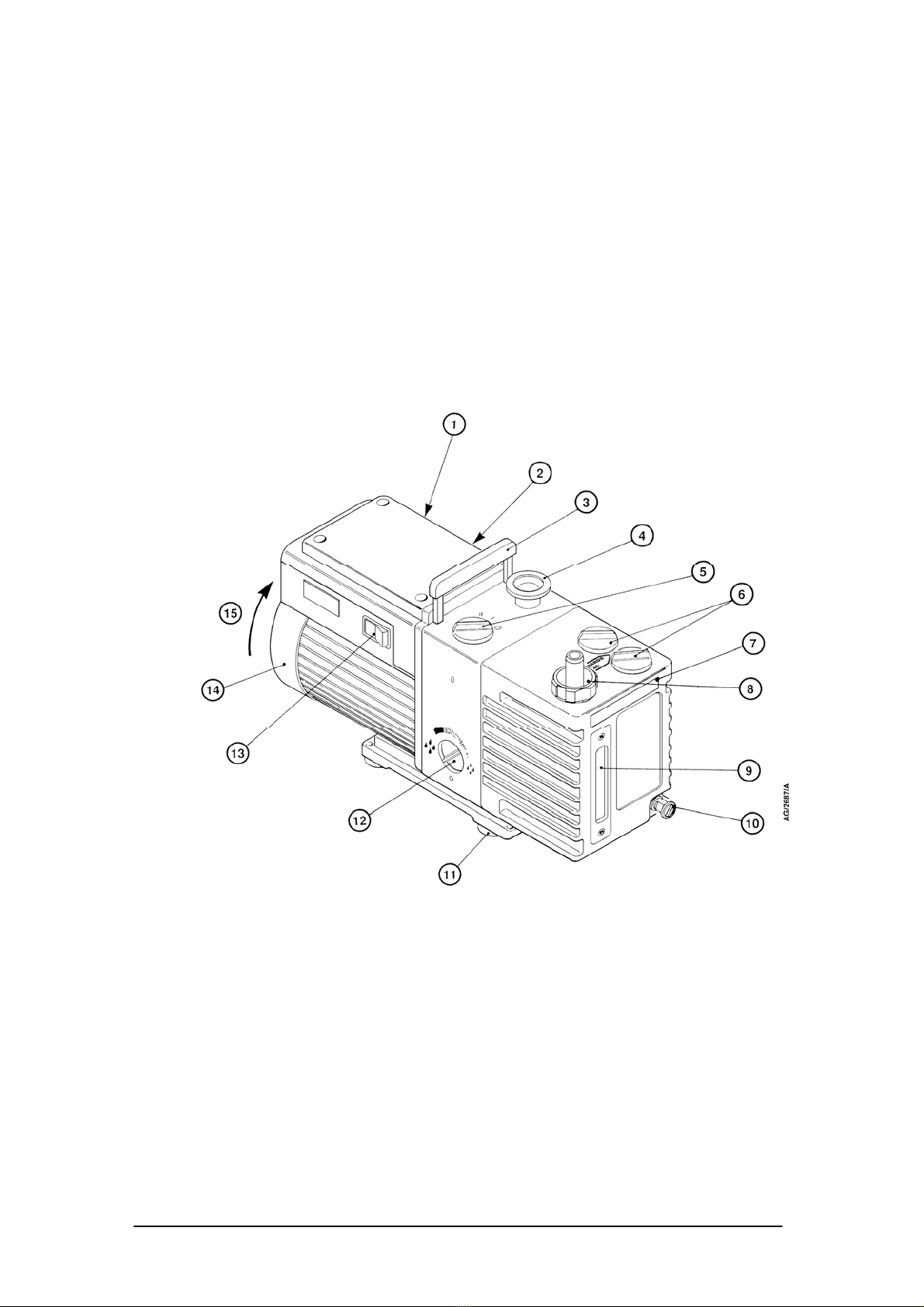

1. Electrical inlet-connector 6. Oil-filler plug 11. Rubber feet (4 off)

2. Voltage indicator 7. Identification plate* 12. Mode selector

3. Lifting handle (lifting bracket 8. Outlet-nozzle 13. On/off switch

on Agilent RV8 & RV12 pumps) 9. Oil-level sight-glass 14. Motor fan-cover

4. NW25 inlet-port 10. Oil drain-plug 15. Correct direction of rotation

5. Gas-ballast control

* The plate shows the Agilent and Edwards part numbers

Figure 1 – The Agilent RV Pump (Agilent RV3 or Agilent RV5 shown)

Agilent Technology EM Pumps 3

2TECHNICAL DATA

The Agilent RV pumps have only single-phase motors; ignore all of the data

which applies to three-phase motors and electrical supplies in Section 2 of the

instruction manual.

You must use Edwards 45 oil and not Edwards Ultragrade 19 as recommended in

Section 2.6 of the instruction manual.

Figure 3 in the instruction manual is now incorrect. Figure 2 of this amendment

shows the correct dimensions for the Agilent RV pumps.

3INSTALLATION

3.1 Introduction

Unless otherwise specified in the following sections of this amendment, you must use

the procedures in Section 3 of the instruction manual to install the Agilent RV pump.

Ignore all of the procedures in Section 3 which apply to three-phase pumps.

3.2 Unpack and Inspect

When you unpack and inspect the Agilent RV pump, take note of the following:

There is no protective cover on the outlet-port. The pump may be supplied with

a red transit-plug fitted to the outlet-port (refer to Section 3.6 of this amendment).

An outlet nozzle is suppled separately.

3.3 Locate the Pump

WARNING

Use suitable lifting equipment to move the

Agilent RV8 or Agilent RV12 pump.

The mass of the Agilent RV8 and

Agilent RV12 pumps is approximately 26 kg.

Locate the pump as described in Section 3.4 of the instruction manual. Note however

that the Agilent RV8 and Agilent RV12 pumps have a special lifting bracket, suitable

for use with your lifting equipment.

3.4 Fill the Pump With Oil

You will need to fill the pump with Edwards 45 oil, using the funnel provided. Then

follow the instructions as described in Section 3.5 of the instruction manual.

4 Agilent Technology EM Pumps

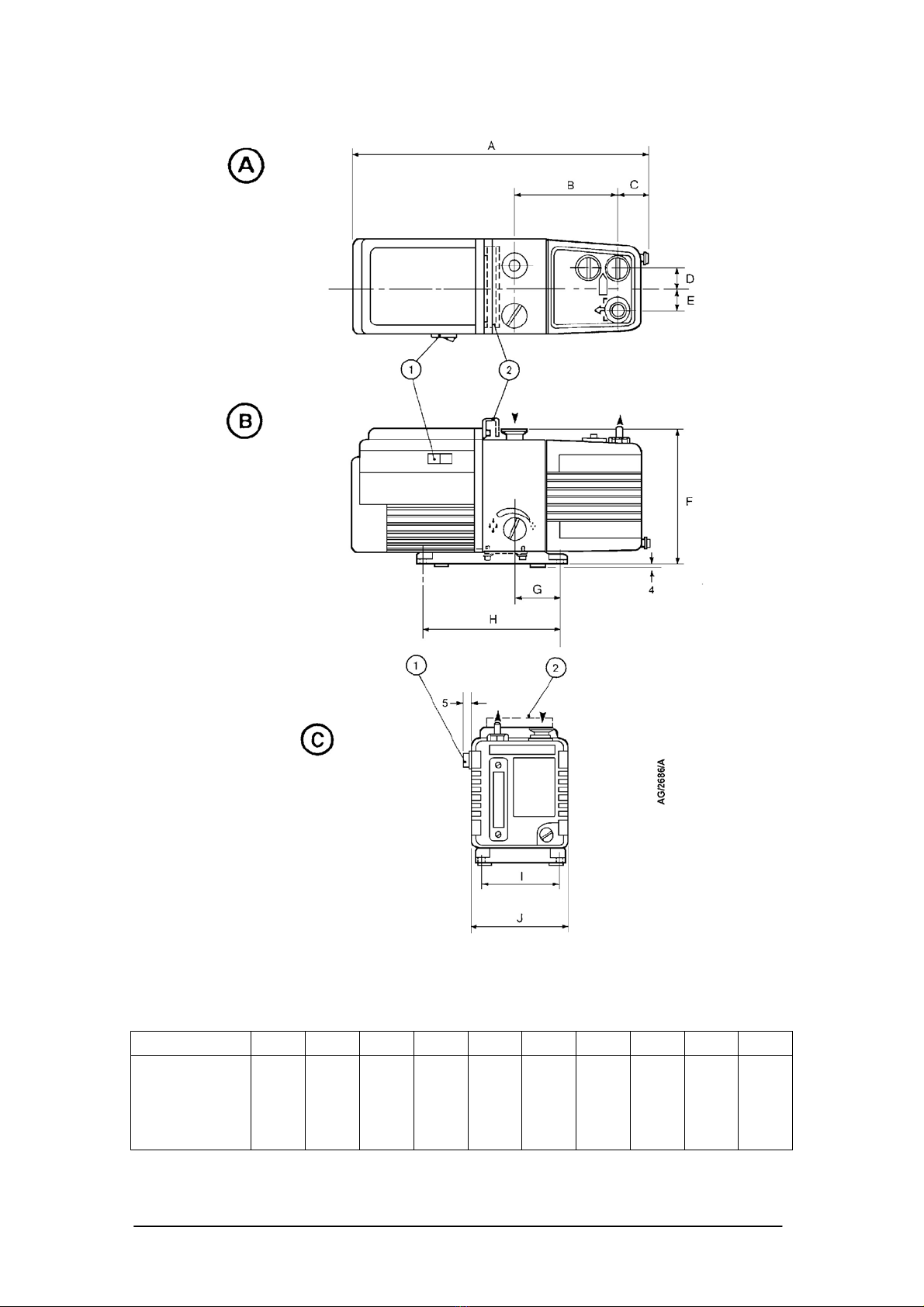

1. On/off switch A Top view

2. Lifting bracket (Agilent RV8 and RV12 pumps only) B Side view

C Front view

Pump A B C D E F G H I J

Agilent RV3 429 127 57 37 32 225 78 230 120 158

Agilent RV5 429 127 57 37 32 225 78 230 120 158

Agilent RV8 469 161 63 37 32 225 78 230 120 158

Agilent RV12 489 181 63 37 32 225 78 230 120 158

Figure 2 – Dimensions (mm)

Agilent Technology EM Pumps 5

3.5 Check and Configure The Motor

The Agilent RV pump is supplied with a label fixed over the electrical inlet-connector

on the pump motor; this label specifies which electrical supply voltage the pump is

configured for.

1. Before you remove the label, check that the voltage specified on the label is

suitable for use with your electrical supply.

2. If the voltage is not suitable for use with your electrical supply, reconfigure the

motor as described in Section 3.6.1 of the instruction manual.

3. Remove the label before you connect the pump to your electrical supply.

3.6 Fit the outlet nozzle

CAUTION

You must remove the red transit-plug before you operate the pump. If you do not,

the oil box will become pressurised and may fracture.

Note: The red transit-plug fitted to the outlet-port has a label attached. The label (shown in

Figure 3 of this amendment) reminds you that you must remove the transit-plug and

fit the outlet nozzle before you switch on and use the pump.

The pump may be supplied with a red transit-plug fitted to the outlet-port of the

pump. Before you operate the pump, unscrew the transit-plug from the 3/4 inch BSP

threaded outlet-port and screw the outlet nozzle (supplied) into the outlet-port.

3.7 Outlet Connection

You cannot use NW25 fittings to connect to the outlet, as described in Section 3.8 of

the instruction manual. The outlet nozzle supplied is suitable for use with 10 mm

bore vacuum hose or 12 mm bore plastic hose.

4OPERATION

Operate the pump as described in Section 4 of the instruction manual. Note that the

Agilent RV pump is supplied with the mode selector (Figure 1, item 12) in the High

Vacuum mode position.

5MAINTENANCE

You must only use Edwards 45 oil:

When you check the oil-level and need to add more oil (Section 5.3 of the

instruction manual).

When you replace the oil in the pump (Section 5.4 of the instruction manual).

6 Agilent Technology EM Pumps

Figure 3 – Label attached to the transit-plug in the outlet port.

Intentionally left blank
