Amana ASD2526VES00 Fehlerbehebungshandbuch

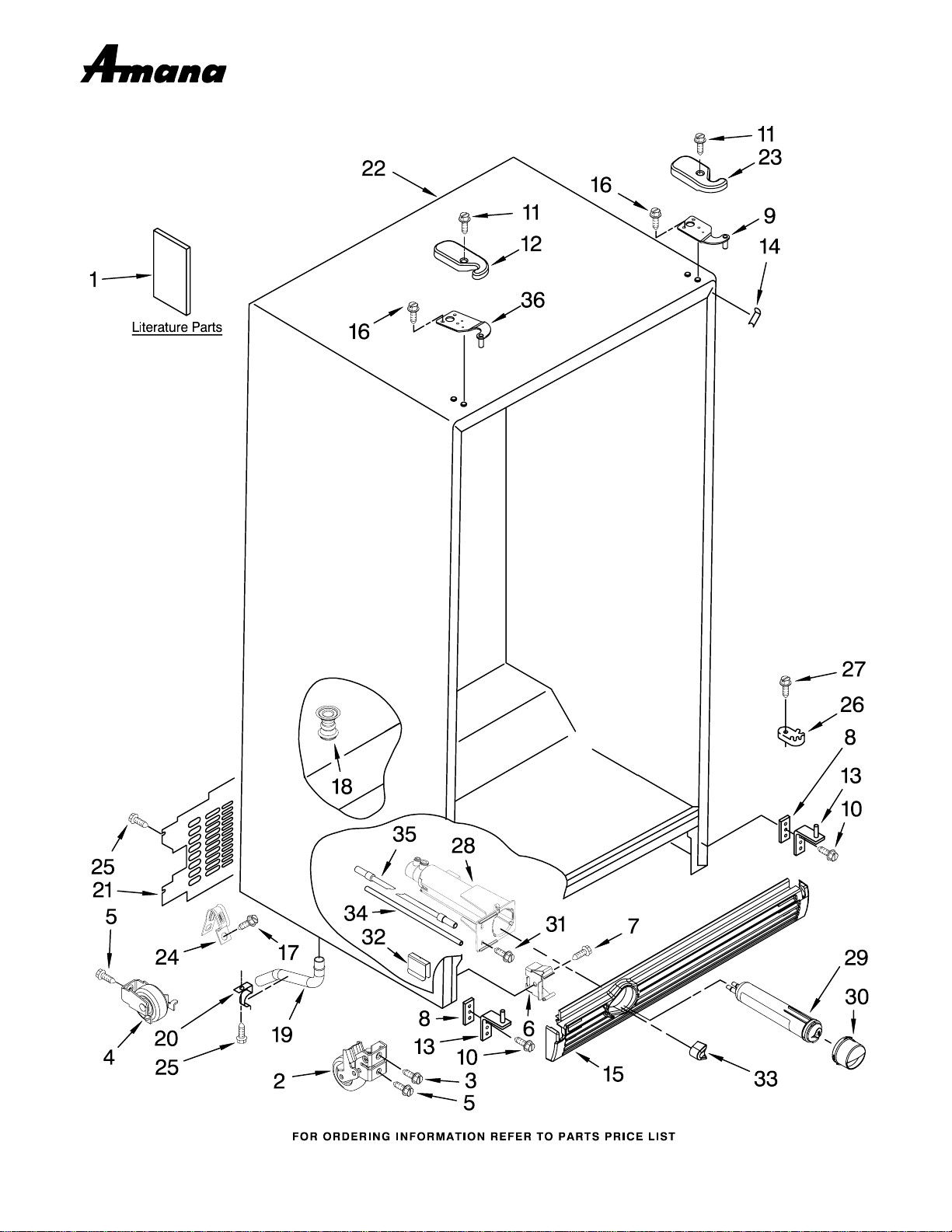

CABINET PARTS

For Models: ASD2526VES00

(Stainless Steel)

05−08 Printed In U.S.A. (jdc)(bay) Part No. W10208141 Rev. A

REFRIGERATOR

CABINET PARTS

For Models: ASD2526VES00

(Stainless Steel)

W10208141

Illus. Part

No. No. DESCRIPTION Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10194140

Energy Guide

W10162456

Owner’s Manual

W10180856

Service & Wiring

Sheet

628370 Modular Icemaker

Service Sheet

W10168294

Instruction Sheet

(Door Removal)

2 2174748 Front Roller (2)

3 3400517 Screw

4 2196236 Rear Roller (2)

5 489427 Screw

6 2155013 Clip, Grille

7 489478 Screw

8 2156056 Shim

9 2203771 Hinge Top (RC)

10 3400113 Screw

11 8281227 Screw

12 Hinge Cover (FC)

W10138584

Apollo Grey

13 Hinge Bottom

W10138965

2303141 FC

14 Filler, Wrapper

W10143043

Apollo Grey

15 Grille

W10184890

Apollo Grey

16 489497 Screw

17 489464 Screw

18 2304888 Drain Fitting

19 2304937 Extension Tube

20 1108439 Clip, Drain Tube

21 2188739 Cover, Unit

22 Cabinet (Not A

Serviceable Part)

23 Hinge Cover (RC)

W10138579

Apollo Grey

24 549193 Clamp, Service

Cord

25 489084 Screw

26 Door Closer

2155311 RC

2223751 FC

27 489483 Screw

28 2260507 Housing, Water

Filter

29 4396841 Water Filter

30 Cap, Water

Filter

2260502MG

Midnight Grey

31 489500 Screw

32 2260519 Block, Housing

Support

33 Button, Water

Filter

2260503MG

Midnight Grey

34 2255012 Tube, Filter

Outlet

35 2319867 Tube, Filter

Inlet

36 2203770 Hinge Top (FC)

REFRIGERATOR LINER PARTS

For Models: ASD2526VES00

(Stainless Steel)

W10208141

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Serviceable Part)

W10175967

Escutcheon, Meat

Pan Control

3 2182757 Slide Meat

Pan Control

4 2257741 Louver

5 2256035 Bracket,

Dual Crisper

Light

6 2311637 Wire Harness,

Dual Crisper

7 2319866 Shelf Ladder

8 489478 Screw

W10004810

Screw (2)

10 2256085 Bracket Retainer

11 489290 Screw

W10151374

Air Diffuser

Assembly

13 2152019 Air Diffuser

Cover

14 2150331 Cover, Wiring

15 2162085 Socket

16 2307107 Reservoir

17 2255743 Light Bulb

18 2209769 Light Lens

19 488280 Screw

REFRIGERATOR SHELF PARTS

For Models: ASD2526VES00

(Stainless Steel)

W10208141

Illus. Part

No. No. DESCRIPTION

1 2196485 Stud Assembly

2 2188655 Snack Bin

3 2209698 Cover, Crisper

4 3400894 Screw

5 2196483 Stud Assembly

6 2179259 Glass, Meat Cover

W10141752

Glass, Cover

8 2311726 Cover, Meat Pan

9 8281158 Screw

10 2188652 Crisper Pan

11 2179343 Body, Humidity

Control

12 2179342 Slide, Humidity

Control

13 2255593 Trim, Handle

14 2188654 Meat Pan

15 2179350 Deflector

16 2255592 Trim, Handle

W10141750

Shelf, Snack Bin

18 2179243 Trim, Handle

W10141749

Shelf Assembly,

Spillguard (2)

FREEZER LINER PARTS

For Models: ASD2526VES00

(Stainless Steel)

W10208141

FREEZER LINER PARTS

For Models: ASD2526VES00

(Stainless Steel)

W10208141

Illus. Part

No. No. DESCRIPTION

1 Liner (Not A

Seviceable Part)

2 2171714K Shelf, Slide Out

Upper

3 Track, Basket−Dual

2261449 Right

2261448 Left

4 2174268K Shelf, Slide Out

5 2182971 Freezer Bin

6 3400893 Screw

W10004810

Screw (8)

10 842534 Clip, Air Duct (2)

11 1115373 Switch, Rocker Arm

12 2171713K Door, Ice Comp

13 Slide, Ice Maker

Mounting

1119293 Right Side

1119237 Left Side

14 489478 Screw

16 2162085 Light Socket

17 2255743 Light Bulb

18 2171705 Light Lens

MOTOR AND ICE CONTAINER PARTS

For Models: ASD2526VES00

(Stainless Steel)

W10208141

MOTOR AND ICE CONTAINER PARTS

For Models: ASD2526VES00

(Stainless Steel)

W10208141

Illus. Part

No. No. DESCRIPTION

1 2254587 Bracket, Motor

W10181208

Motor, Dispenser

3 2152713 Solenoid Assy

4 2149100 Guide, Solenoid

5 1115374 Clip, Wiring

6 2206501 Wire Assy, Disp

7 489399 Screw

W10140958

Coupling, Mtr

9 489478 Screw

10 2162085 Socket, Light

11 2196091 Container, Ice

12 1119005 Spacer, Step (2)

13 1119007 Spacer, Flat (4)

14 2257022 Blade, Rotary

15 2257023 Blade, Rotary

16 2257024 Blade, Rotary

17 489235 Washer, Plain

18 1119009 Blade, Fixed (2)

19 2157405 Block, Blade

20 489229 Roll Pin

21 2196295 Auger

22 2305377 Drum

23 2171682 Baffle, Floating

24 1119018 Nut, Bearing

25 2155231 Control Arm

26 1119020 Spring, Return

27 1119021 Retainer Clip, Rod

28 488886 Screw

29 2180348 Housing, Crusher

30 1119017 Deflector, Ice

31 489234 Washer, Plain

32 489236 Retainer Ring

33 2204321 Cover, Ice Cont’r

34 2255743 Bulb, Light

35 2171706 Lens, Light

REFRIGERATOR DOOR PARTS

For Models: ASD2526VES00

(Stainless Steel)

W10208141

REFRIGERATOR DOOR PARTS

For Models: ASD2526VES00

(Stainless Steel)

W10208141

Illus. Part

No. No. DESCRIPTION

1 Refrigerator Door

(Includes Item #6)

2319737SAP

Stainless Steel

2 2256101 Compartment Door

3 2304235K Shelf Bin (3)

4 3400012 Screw

5 488208 Screw

6 Door Gasket,

Magnetic

2326338 Apollo Grey

7 2156022 Shelf Bin

8 Handle, Assy

W10136871

Stainless Steel

10 2182178 Door Closer,

Upper Cam

11 489420 Screw

12 Bracket, Door Stop

2206629 Chrome

13 2308091 Thimble−Top

14 12528501 Nameplate

15 2326259 Stud, Mounting
