Ameriwood HOME 4778339COM Bedienungsanleitung

4778339COM

Coffee Table

B344778339COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

WARNING

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

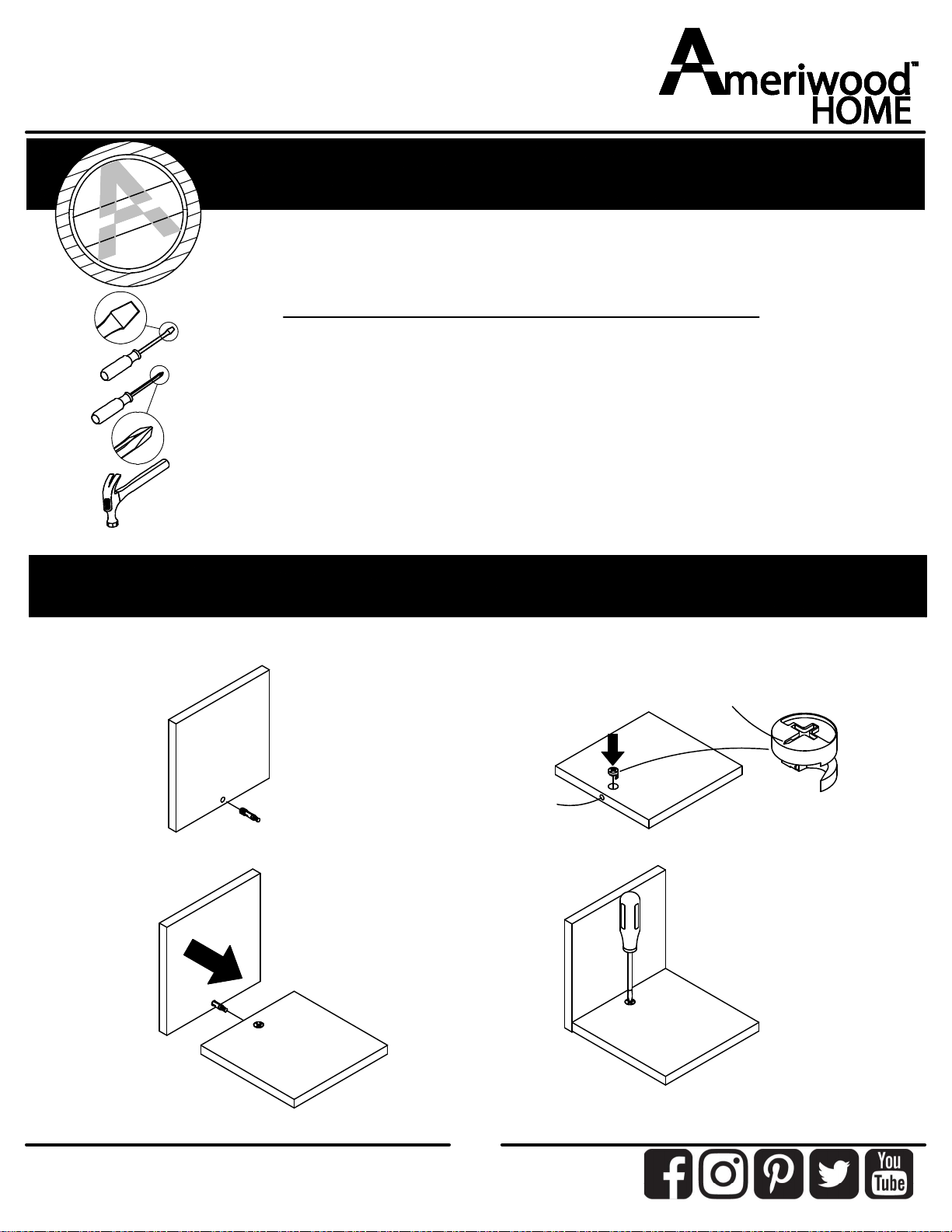

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Press parts together so CAM BOLT inserts

into edge hole.

Press CAM BOLT into hole. Press CAM LOCK into hole.

End hole

Using a screwdriver, turn the CAM LOCK clockwise to

lock the CAM LOCK and CAM BOLT into their holes

and fastening parts together.

Arrow to point towards end

hole in edge of part.

ameriwoodhome.com

Before You Start

Quick

Assembly

Tip

Please Note:

You may need to lightly tap the wood dowels into the holes during

your assembly process.

ameriwoodhome.com

Board Identification

Not actual size

Left Panel

34778339010 Right Panel

34778339020 Top

34778339030

Partition

34778339050

Bottom

34778339040

Left Front Leg

34778339070

Right Front Leg

34778339090

Left Rear Leg

34778339080

Right Rear Leg

34778339100

DFG

Back

34778339150

Door

34778339140

Base Side Rail (x2)

34778339120

Brace

34778000060

Base Rail (x2)

34778339110

Shelf Rail

34778339130

MNO

ameriwoodhome.com

Board Identification

Not actual size

Hammer Block

(Piece of wood to use

to attach legs)

ameriwoodhome.com

Part List

Actual Size

Not Actual Size

(x10)

#A22700

cam lock

(x10)

#A22710

cam bolt

(x18)

#A21670

wood dowel

(x8)

#A22795

locking sleeve

(x3)

#A21960

hidden fastener

(x8)

#A22760

quicklock

(x8)

#A22790

locking bolt

(x6)

#A23030

confirmat

(x4)

#A12820

1" flat head

(x2)

#A71880

upper guide

(x2)

#A71870

roller guide

(x1)

#A50385

handle

(x1)

#A82840

track

(x2)

#A17400

7/8" bolt

(x10)

#A12110

#8x7/16" screw

ameriwoodhome.com

STEP1

(x8)

ameriwoodhome.com

STEP2

(x4)

Press locking sleeves (10) into edge holes as shown.

ameriwoodhome.com

STEP3

(x1)

end view

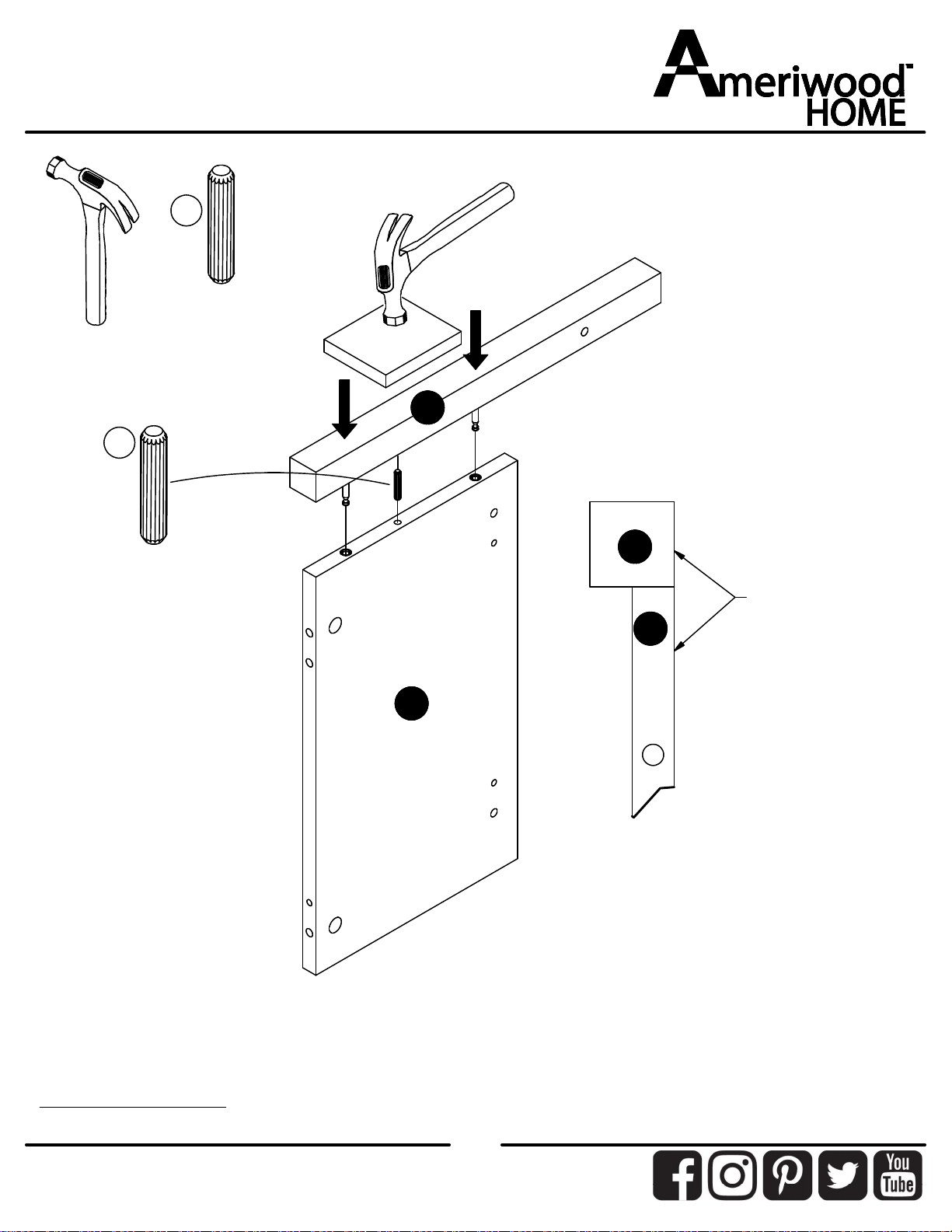

Position and insert the locking bolts (9) of left rear leg (H) into edge holes of left panel (A) as shown.

Be sure both parts are positioned as shown. Place the hammer block on top of leg in each of the 2

locking bolt locations and give a firm strike to lock together. The locking bolt (9) will snap into the

locking sleeve (10).

IMPORTANT NOTICE: Once locked together, parts cannot be separated.

Note: A rubber mallet can be used in place of a hammer and hammer block.

HOLES ON

THIS SURFACE

Hammer Block
