Ameriwood HOME 5393500COM Bedienungsanleitung

5393500COM

Nightstand

- Unit can tip over causing severe injury or death.

- Anchor unit to stud in wall (if instructed to).

- Do Not allow children to climb on unit.

- Put heavy items on lower shelves or drawers.

B345393500COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

WARNING

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 1 HOUR

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

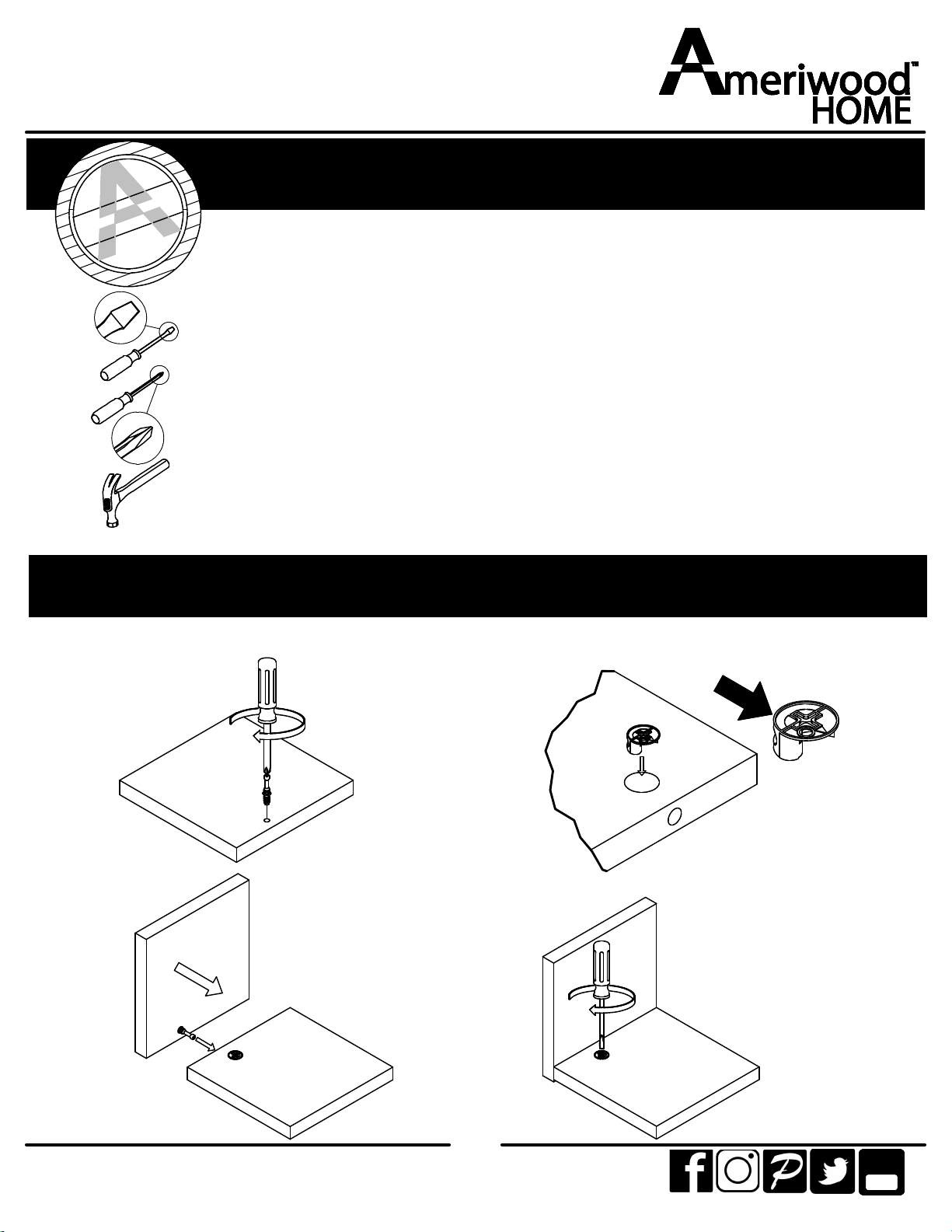

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

ameriwoodhome.com

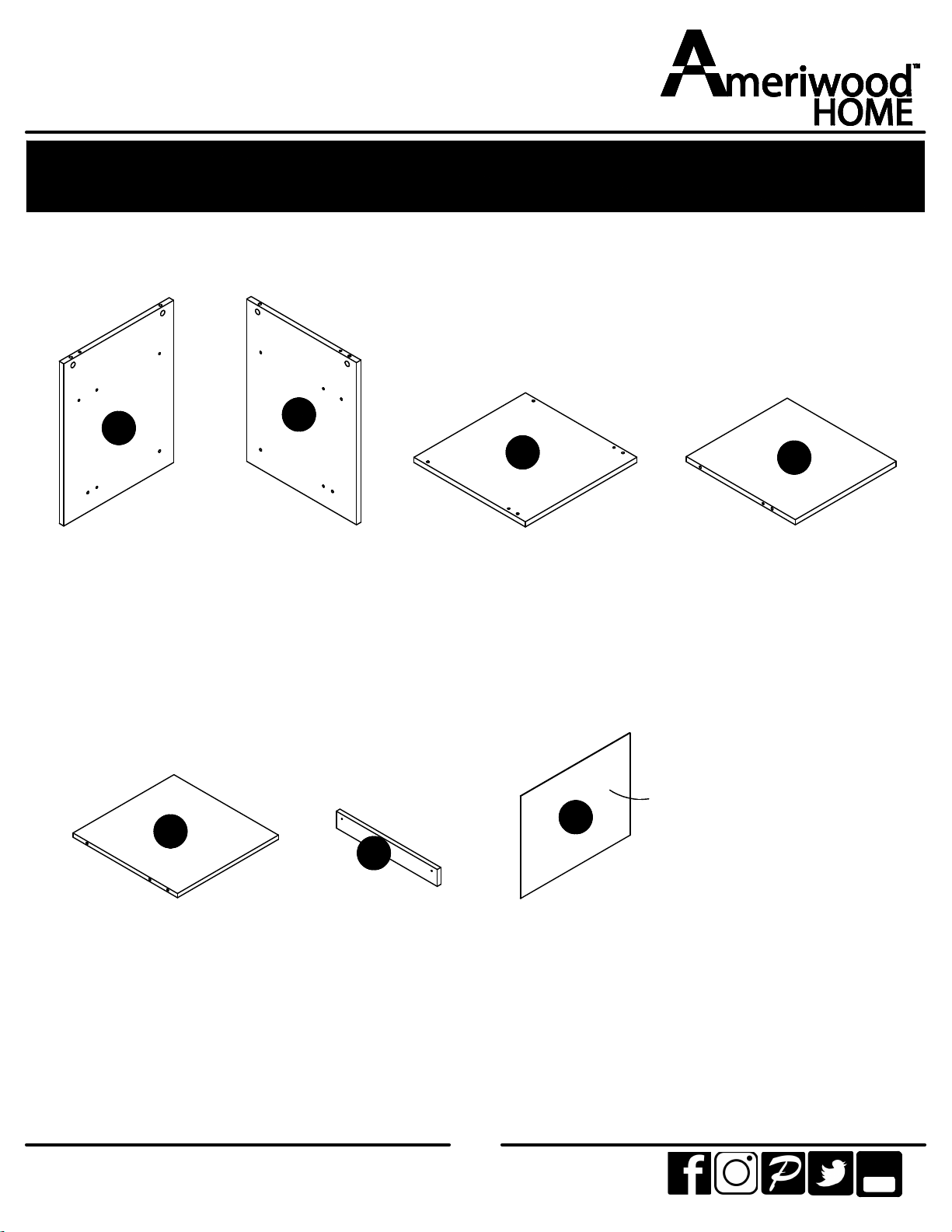

Board Identification

Not actual size

Tube

You

Left Panel

35393015010

Right Panel

35393015020

Top

35997015030

Bottom

35393015040

Shelf

35393103050

Kick Panel

35997015060

Back Panel

K539310300

This piece is of paperboard

construction. It is not made

from wood, but is required

for the assembly of your

unit.

ameriwoodhome.com

Board Identification

Not actual size

Tube

You

ameriwoodhome.com

Part List

Actual Size

Tube

You

(x8)

#A22610

cam bolt

(x8)

#A22620

cam lock

(x4)

#A12105

7/16" pan screw

(x2)

#A53600

angle bracket

(x20)

#A21110

nail

(x10)

#A21660

wood dowel

123

ameriwoodhome.com

STEP1

Tube

You

(x2)

#A22620

(x2)

#A22610

(x1)

#A21660

Screw two cam bolts into the left panel (A).

Insert two cam locks and a wood dowel into the left panel (A).

* raw edges are shaded

Proper orientation of CAM LOCK

Tip

Assembly

Quick

ameriwoodhome.com

STEP2

Tube

You

(x1)

#A21660

(x2)

#A22620

(x2)

#A22610

Screw two cam bolts into the right panel (B).

Insert two cam locks and a wood dowel into the right panel (B).

* raw edges are shaded

Proper orientation of CAM LOCK

Tip

Assembly

Quick

ameriwoodhome.com

STEP3

Tube

You

(x4)

#A22610

Screw four cam bolts into the top (C).

ameriwoodhome.com

STEP4

Tube

You

(x6)

#A21660

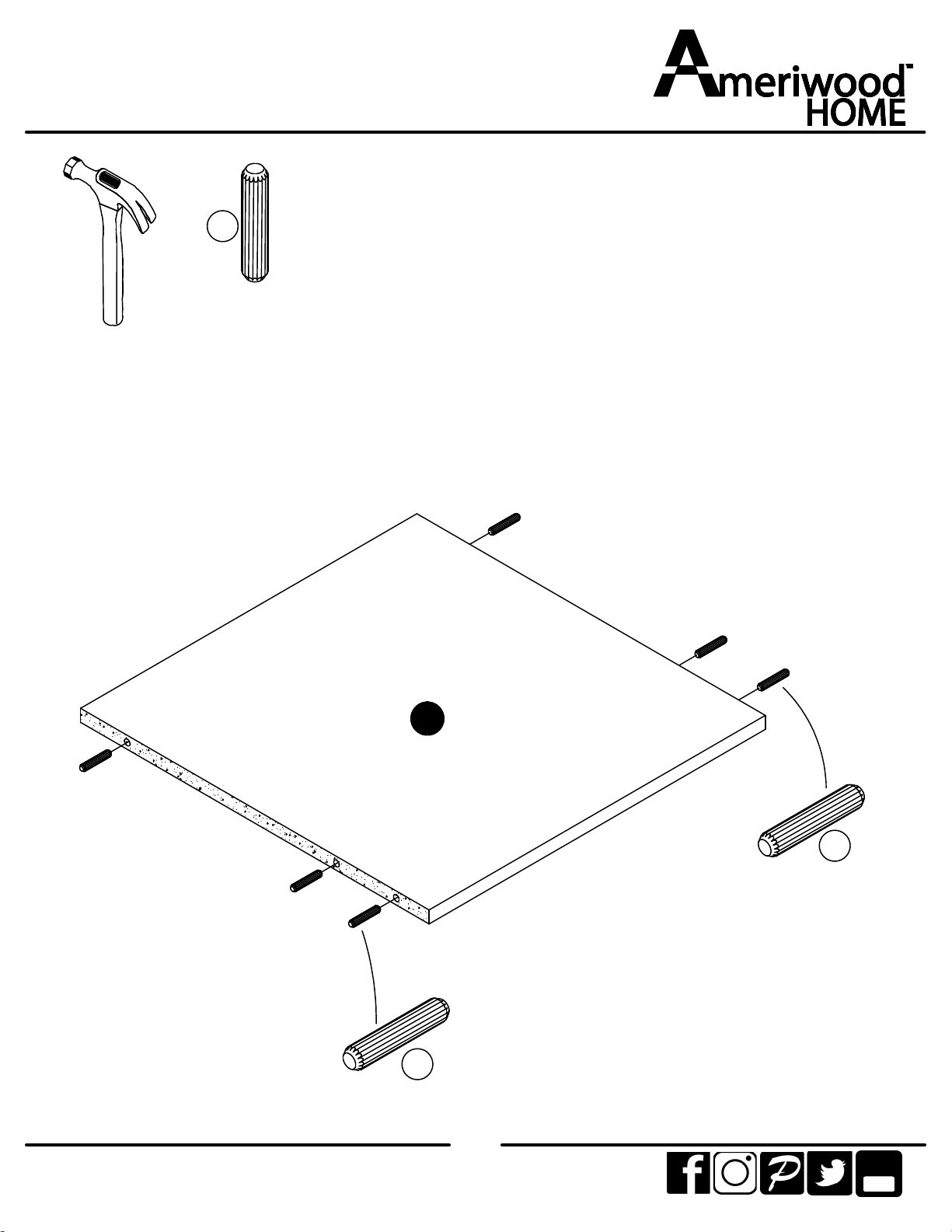

Insert six wood dowels into the shelf (E).

* raw edges are shaded
