Atdec AD-TVC-70A Bedienungsanleitung
Installation Guide
AD-TVC-70A
AD-TVC-70A Page 1 of 8
AV Cart 70

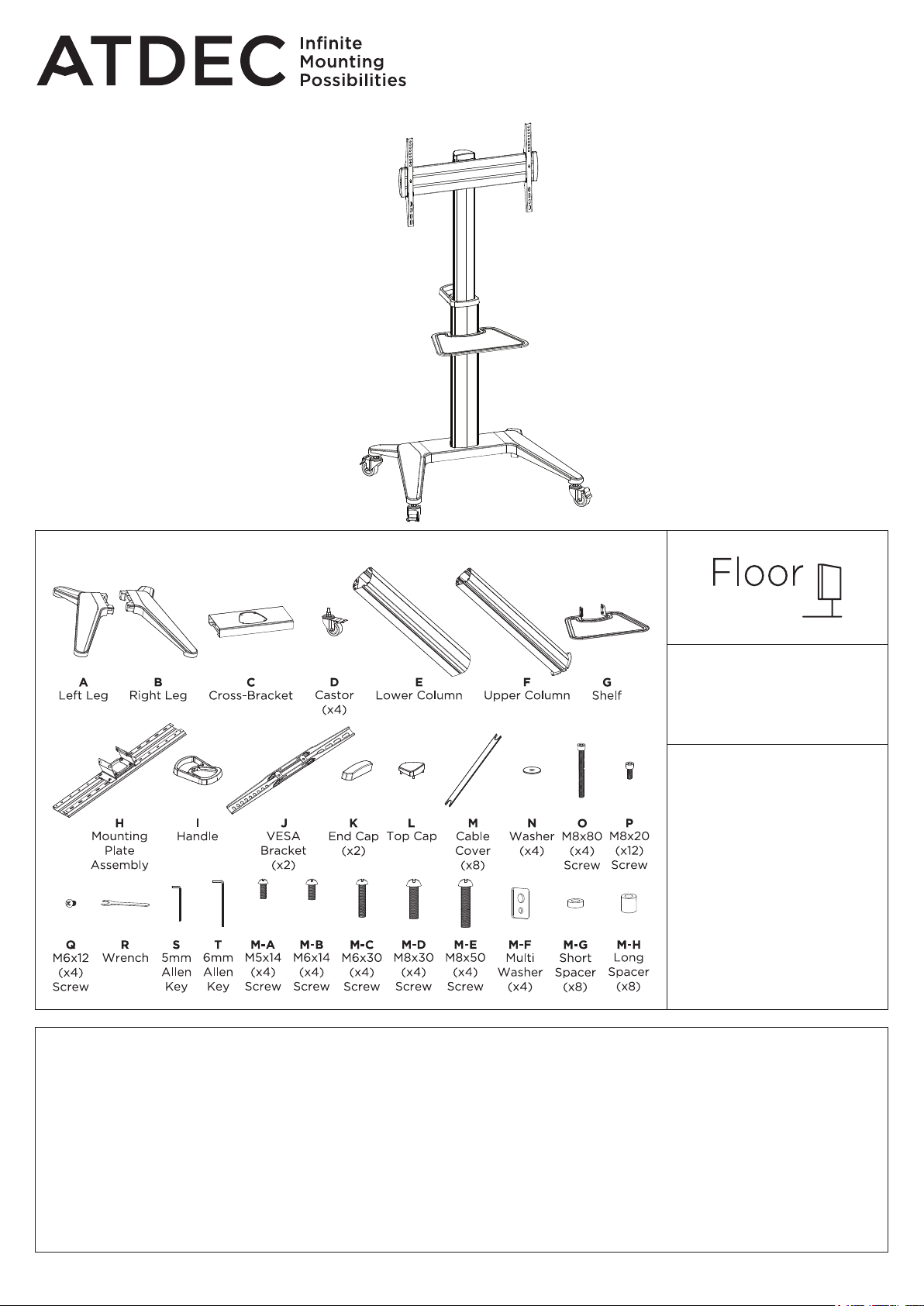

COMPONENT CHECKLIST
REQUIRED TOOLS
• Phillips Head
Screwdriver
DISPLAY SIZE
40” - 70”
DISPLAY WEIGHT
0 - 70kg
(0 - 154lbs)
SHELF WEIGHT
0 - 5kg
(0 - 11lbs)
CAPACITY
IMPORTANT INFORMATION
! Please ensure this product is installed as per these installation instructions.
! The manufacturer accepts no responsibility for incorrect installation.
! Failure to assemble this product correctly may cause serious injury/death during or following installation.
! This product should only be installed by professional installers of good mechanical aptitude, who fully understand these instructions and the
consequences of incorrect installation.
! Do not over tighten screws.
! Two person installation is recommended.
! Product not suitable for use outdoors.
! After installation is complete check to verify that AV Cart is secure and safe for use.
! Curved monitors, deep devices (such as all-in-one PCs), VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA
locations exert additional leverage that can exceed the capacity of the mount even though the monitor weight may be within the stated range.
Please contact Atdec if you would like further information.
! WARNING! Death or serious injury may occur when children climb on audio and/or video equipment furniture. A remote control or toys placed on
the cart may encourage a child to climb on the cart and as a result the cart may tip over on to the child.
WARNING!
! DO NOT ALLOW CHILDREN UNDER 16 TO PLAY WITH OR MOVE CART
! MOVE CART SLOWLY
! USE WITH DISPLAYS HEAVIER AND/OR LARGER THAN SPECIFIED MAY RESULT IN INSTABILITY, TIP
OVER AND RISK OF DEATH OR SERIOUS INJURY
DO NOT APPLY FORCE
AT TOP
DO NOT APPLY MOVING
FORCE ON FRONT OR
BACK
ONLY ADULTS SHOULD
MOVE THIS CART
UNLOCK
BRAKES BEFORE
MOVING
LOCK
BRAKES WHEN
STATIONARY
APPLY
FORCE ON NARROW SIDES
PUSH NEAR MIDDLE
DO NOT PULL
AD-TVC-70A Page 2 of 8

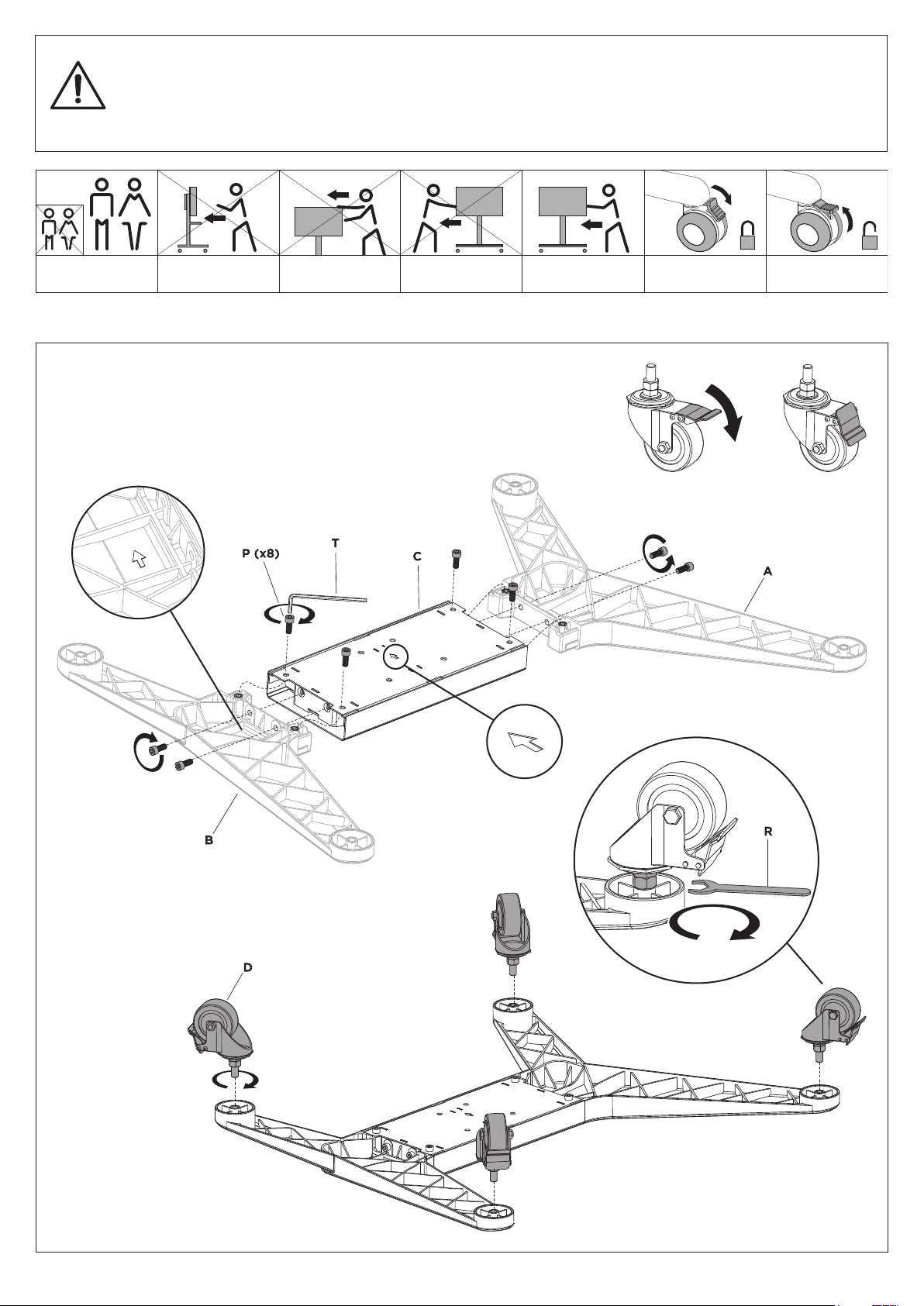

1. Assemble the Base
NOTE: Lock the brakes on the
castors to avoid any sudden
movements during installation.
AD-TVC-70A Page 3 of 8
3.1. 3.2.
3.3. 3.4.
3. Attach Shelf

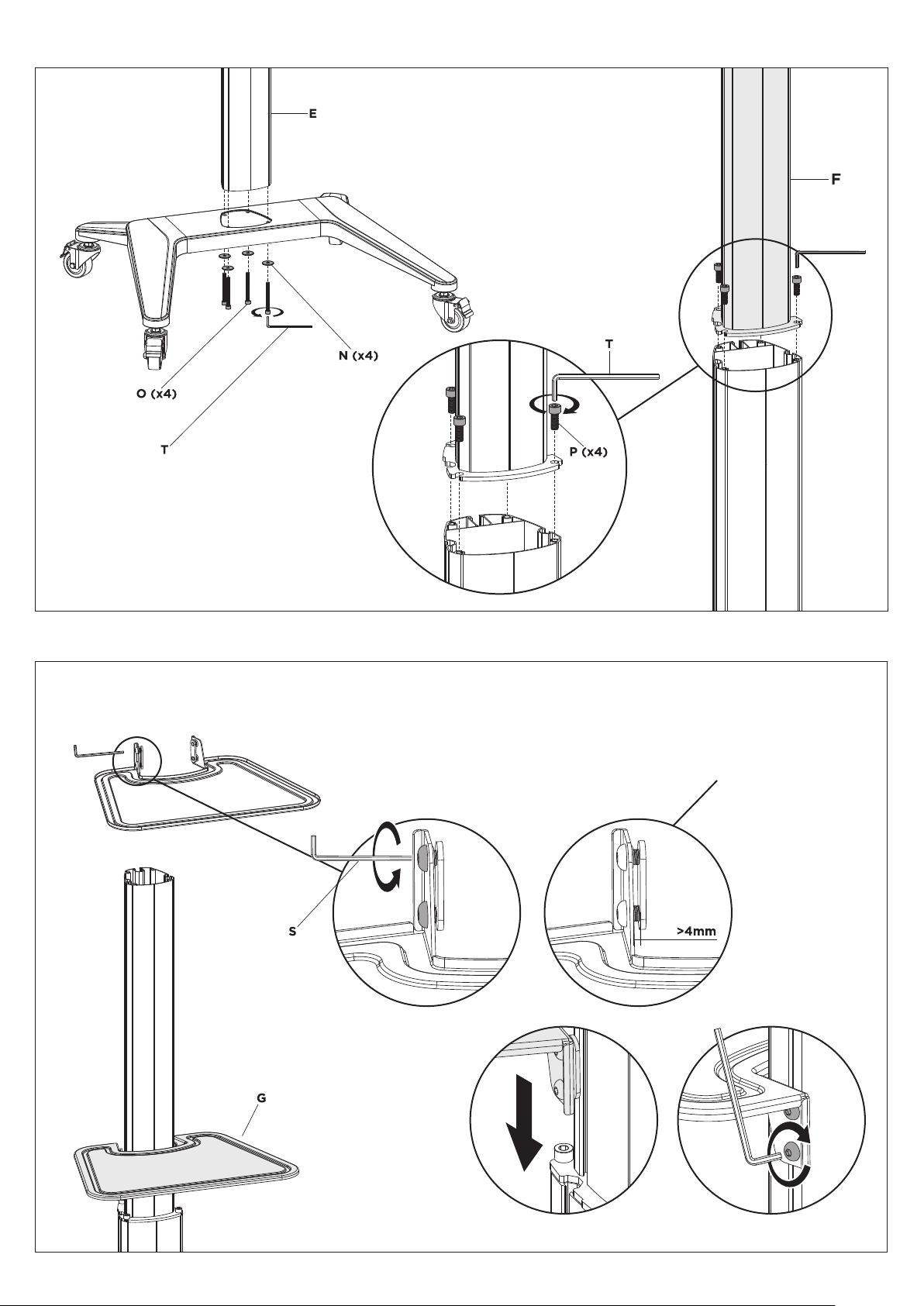

2. Assemble the Column
Attach column (part Eand part F) to base assembly
with corresponding screws (part N, Oand P).
Loosen the hex screws for the shelf’s silver mounting plates and slide the shelf assembly through
the left and right channels of the lower column. Tighten the hex screws with the 5mm Allen Key
at the desired height.
NOTE: Ensure there is a
>4mm gap between the
shelf and the mounting
plate before attempting
to slide the shelf onto
the lower column.
AD-TVC-70A Page 4 of 8
5.1. Unscrew the bracket
assembly from the
display rail.
5.2. Loosen the hex
screws for the silver
mounting plates.
5.3. Slide the mounting
plates through the left
and right channels of
the upper column.
5.4. Firmly tighten the
hex screws to secure the
bracket at the desired
height for the display.
NOTE: Ensure there
is a >4mm gap
before attempting to
slide the shelf onto
the upper column.

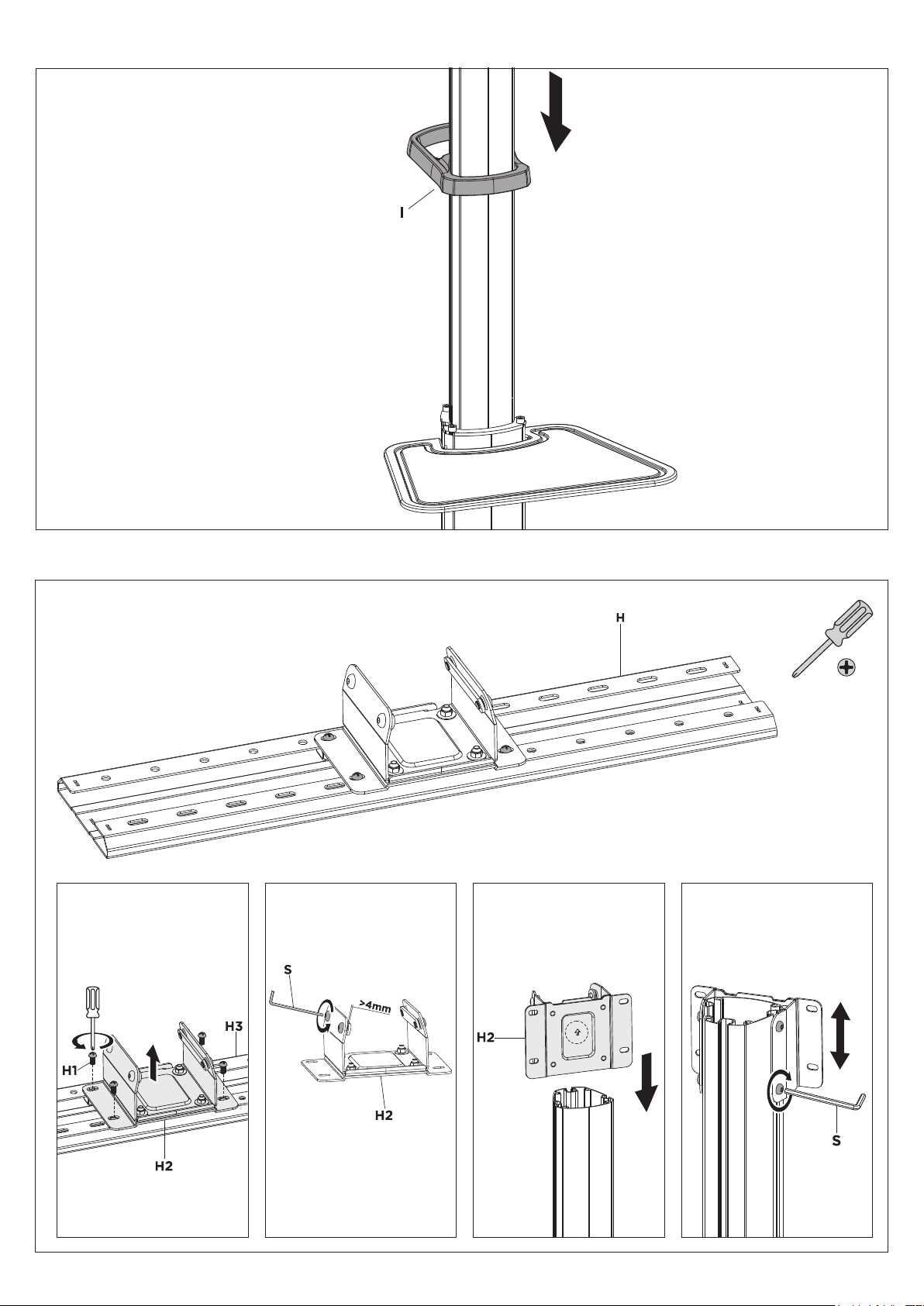

5. Attaching the bracket to the column
4. Secure Handle
Slide handle (part I) over column
and secure at part Eand Fby
gently pulling the handle apart to
allow it to snap in place.
AD-TVC-70A Page 5 of 8

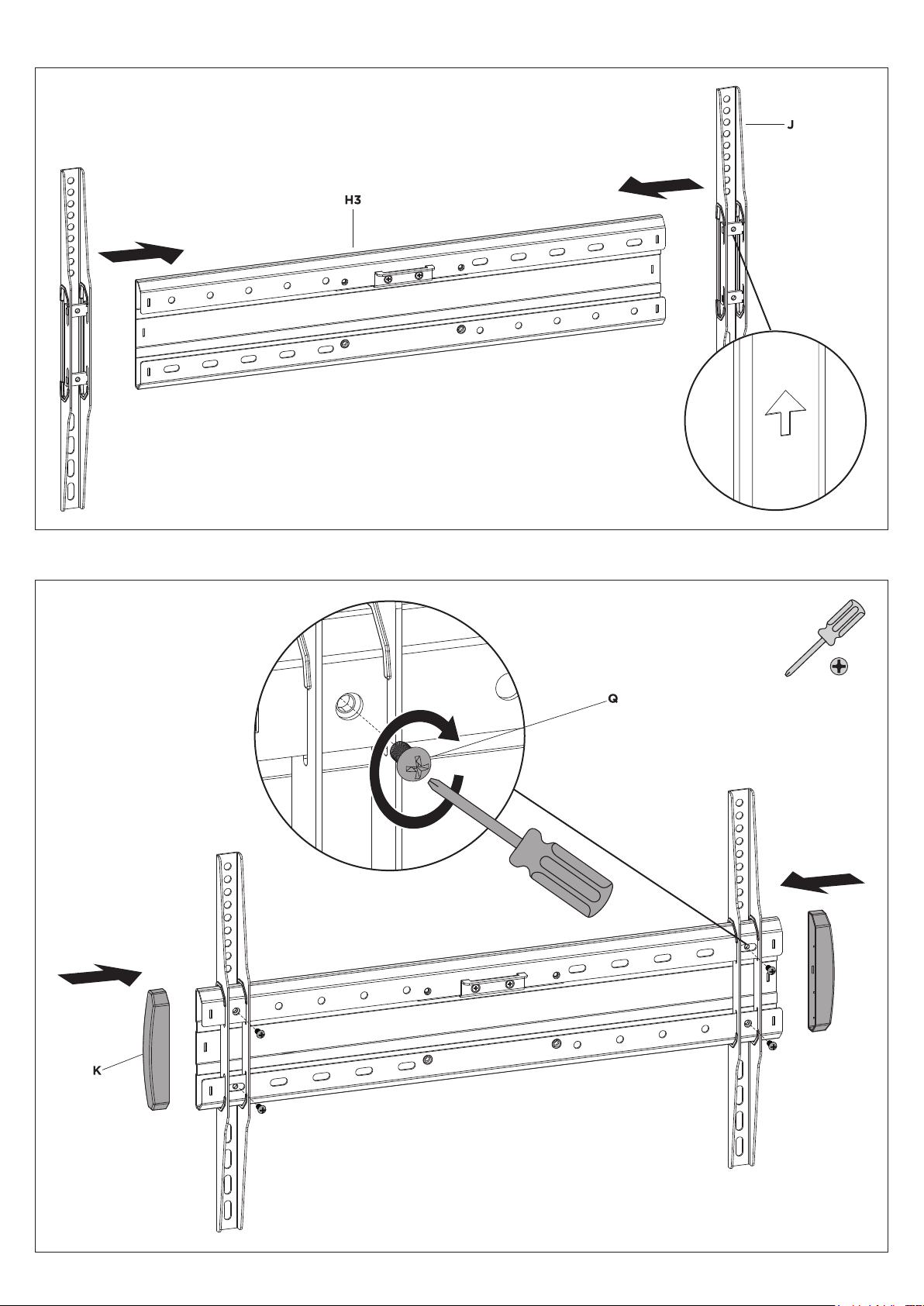

7. Attaching End Caps to mounting plate
6. Position VESA Brackets on mounting plate
Secure brackets with screws (part Q)
and attach end caps (part K).
Slide the VESA brackets onto the display rail and position at
the required width for the display. NOTE: Brackets should be
positioned an equal distance about the centre of the rail.
NOTE: Ensure the arrows
are pointing upwards.
AD-TVC-70A Page 6 of 8

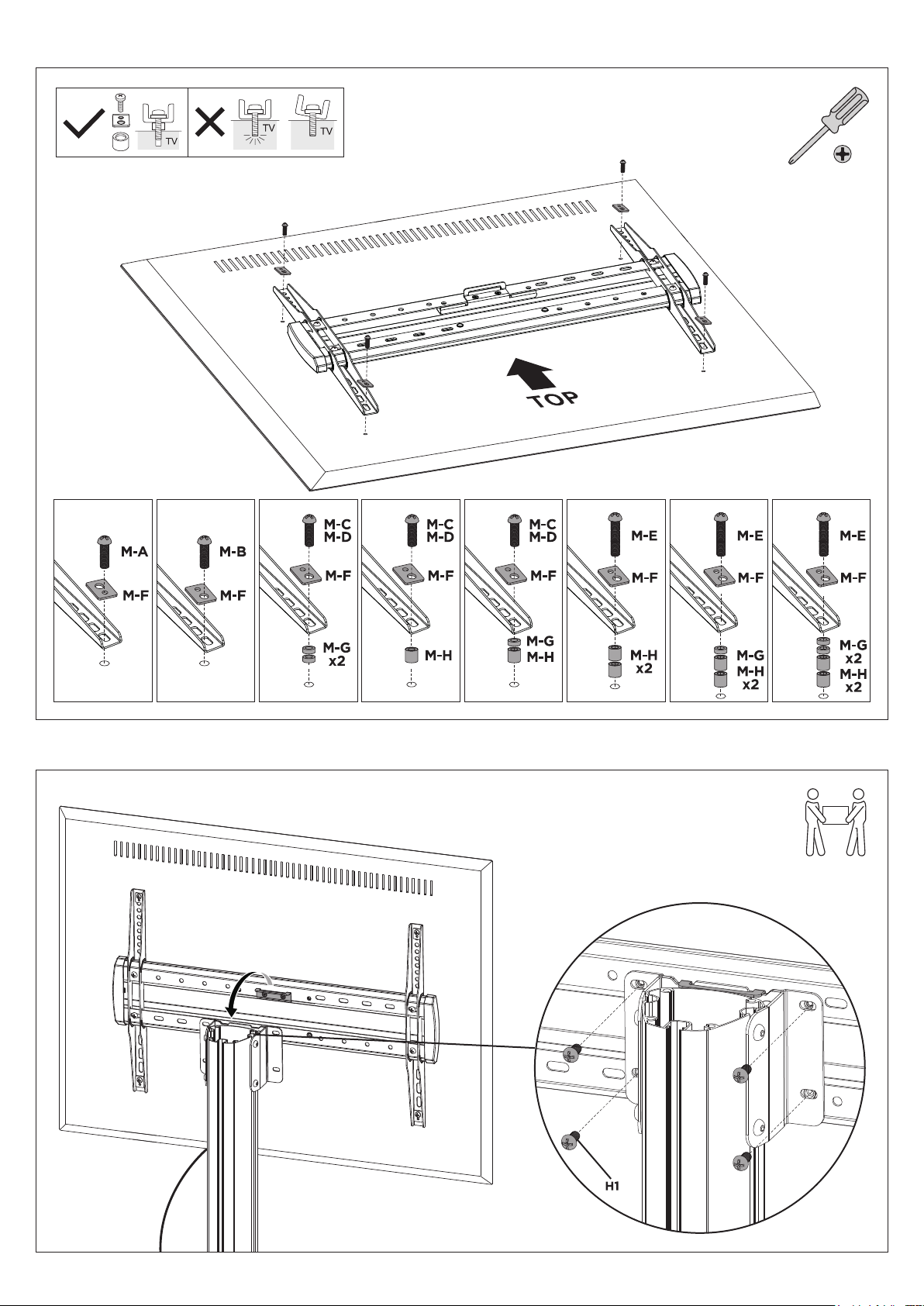

8. Attach Display to Bracket
9. Secure Screen
NOTE:
• Always use a multi-washer.
• Use the shortest combination of spacers (if necessary)
ensuring the display is not loose and screws are not forced
too deep into the display.
9.1. Hook the display rail onto the
mounting bracket on the column. 9.2. Secure the rail to the bracket using
screws (part H1) removed in Step 5.1.
NOTE: Display must be supported until
screws are fastened to rail.
AD-TVC-70A Page 7 of 8

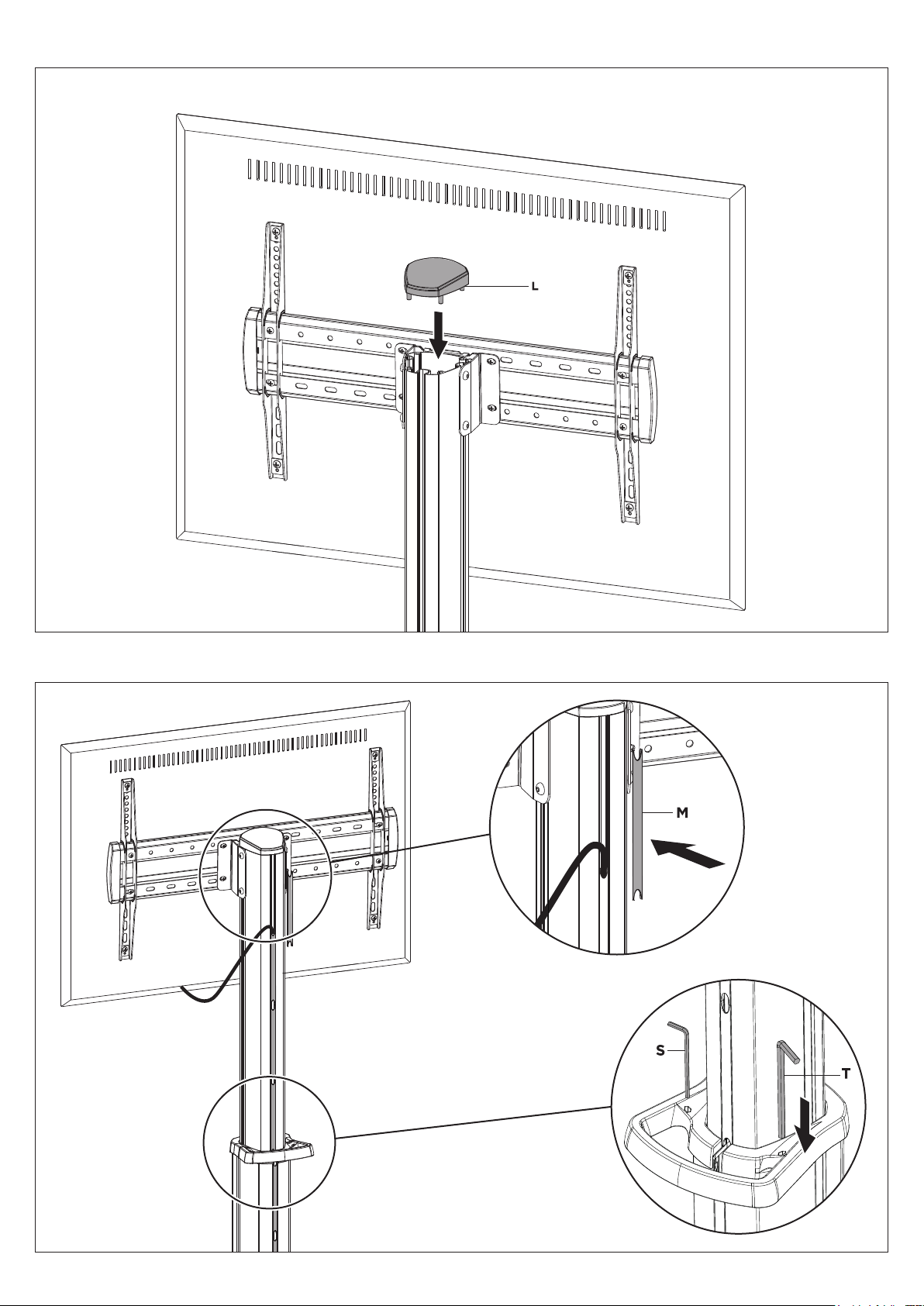

10. Assemble Cap
11. Cable Management
Install the top cap (part L) to the upper column.
11.1. To organise cables,
insert them into the
channel at the rear of
the columns and secure
by pressing the rubber
cable covers into the
rear column channel.
11.2. Allen key Sand Tcan
be stored in the handle for
your convenience.
No portion of this document or any artwork contained herein should be reproduced in any way without
the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer
reserves the right to alter specications without notice. ©20211018
AD-TVC-70A Page 8 of 8
MAINTENANCE
• Tighten fasteners and check if the cart is secure and safe to use at regular intervals (at least every three months.)
• Please contact your distributor if you have any questions.
