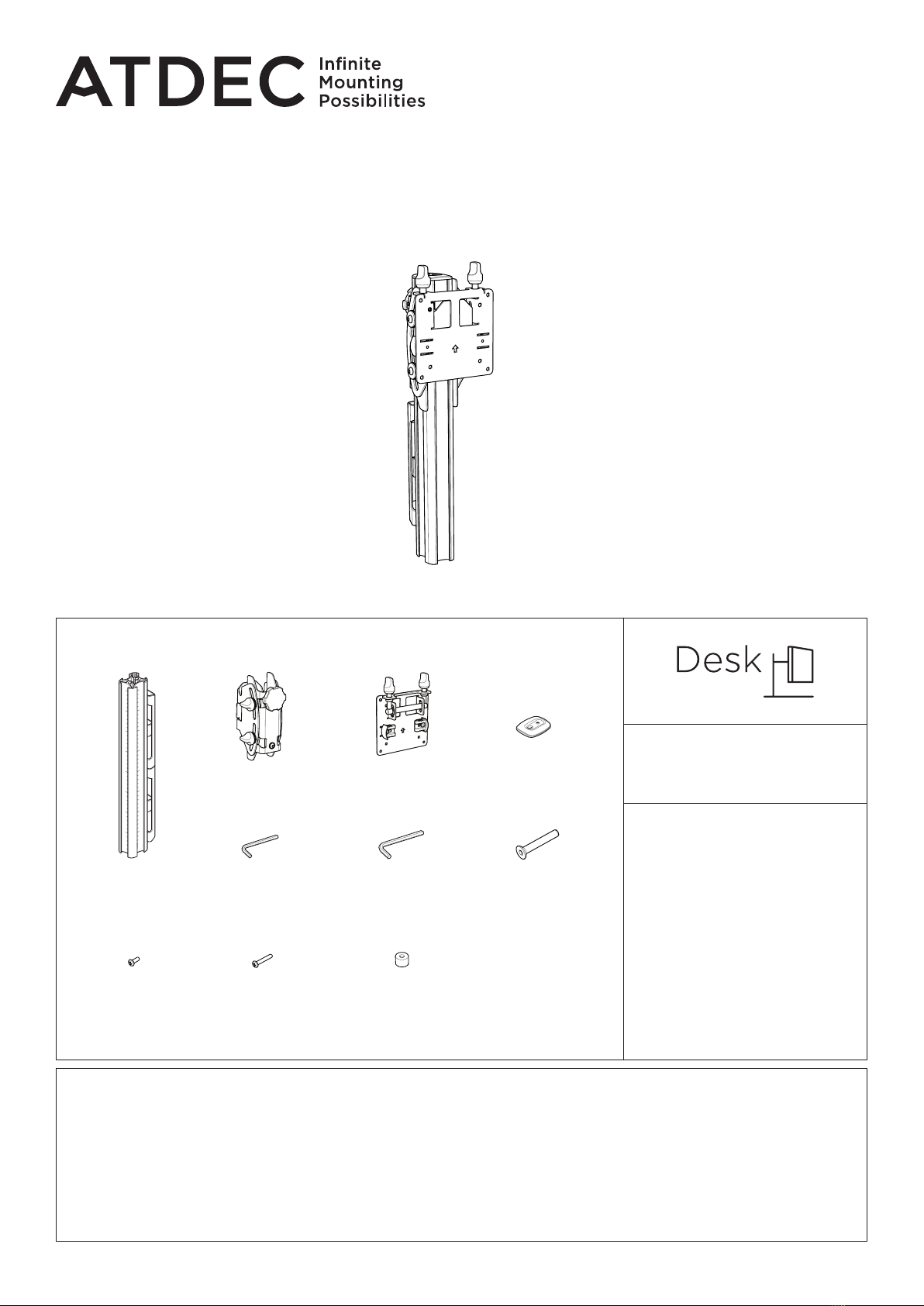

AWMS-BT40 Page 1 of 4

Installation Guide

AWMS-BT40

Post Mounted Heavy Duty

Monitor Mount

AWMS-BT40-H

AWMS-BT40X-H

AWMS-BT40-C AWMS-BT40-G

AWMS-BT40X-G

AWMS-BT40-H

AWMS-BT40X-H

AWMS-BT40-C AWMS-BT40-G

AWMS-BT40X-G

COMPONENT CHECKLIST

Bridge

(x1)

Leg

(x2)

Post

(x1)

Bracket

(x1)

4mm

Hex Key

(x1)

5mm

Hex Key

(x1)

13mm

Spanner

(x1)

VESA Plate

(x1)

M8 Stud

(x1)

M4x10mm

Screw

(x4)

Post Cap

(x1)

M4x20mm

Screw

(x4)

10mm

Spacer

(x4)

M8x60mm

Screw

(x2)

M8 Stud

(x1)

M8x30mm

Screw

(x1)

Clamp Bar

(x1)

Clamp Plate

(x1)

REQUIRED TOOLS

CAPACITY

Flat Monitor

4.5 - 25kg

(10 - 55lb)

Curved Monitors

4.5 - 18kg

(10 - 40lb)

Display Size

24” - 55”

300mm (12”) max

overall display depth

• Phillips Head Screwdriver

IMPORTANT INFORMATION

! Product should only be assembled and used as per these installation instructions.

! The manufacturer accepts no responsibility for incorrect installation.

! EachBracketsupportsamaximumweightasperabovecapacityspecication.

! This product is not suitable for outdoor use.

! Do not use this product for mobile applications.

! VESA mounted accessories (such as mini PC brackets and mounts), and offset VESA locations exert additional leverage that

can exceed the capacity of the mount even though the monitor weight may be within the stated range. Please contact Atdec

if you would like further information.

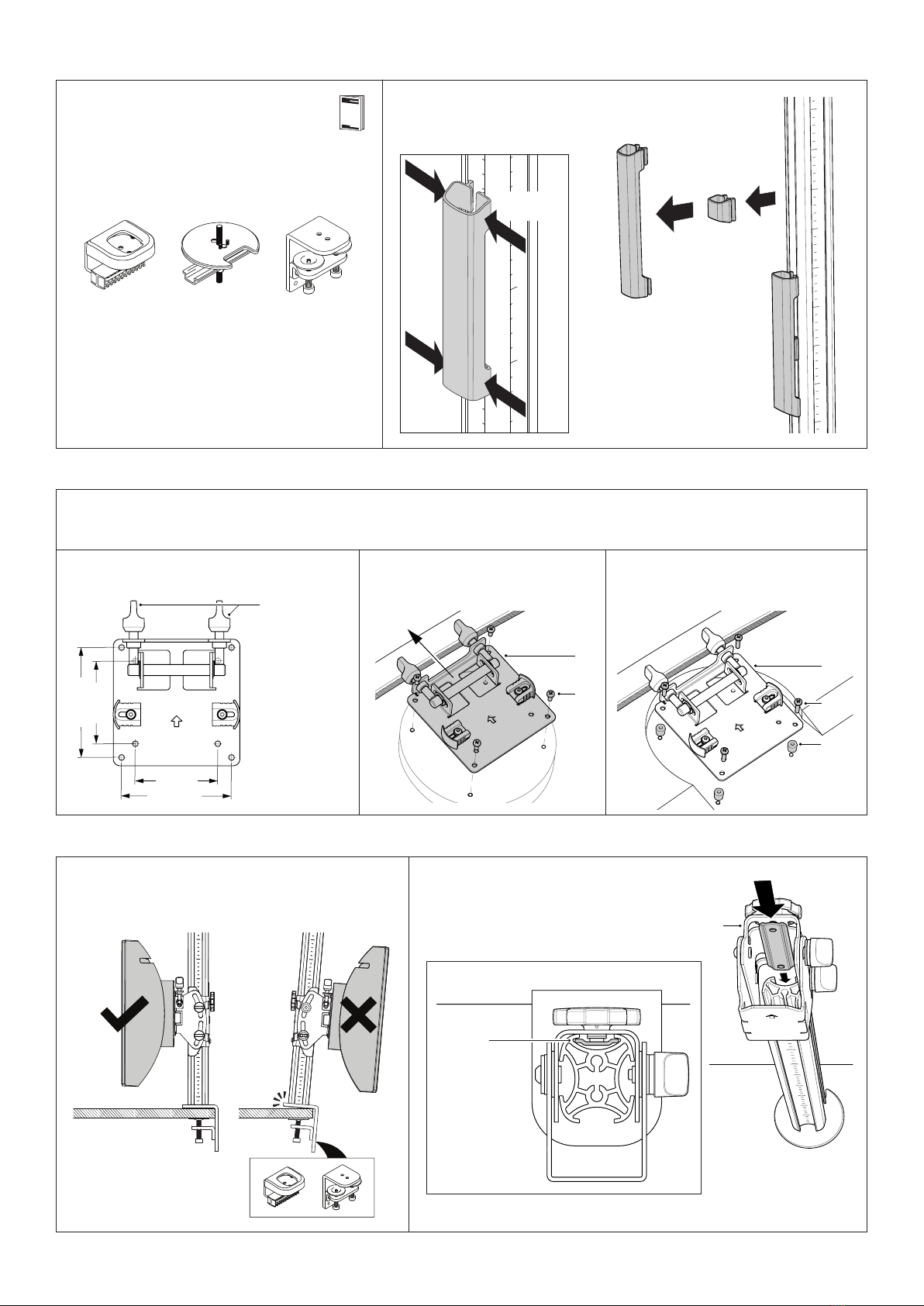

AWMS-BT40 Page 2 of 4

2. Attach VESA plate to display

2.1 VESA compatibility

3.1 Tilt bracket must only be attached with

display facing the front of the mounting

surfaceunlessxingisAC-GC.

NOTE: Some displays require the use of a VESA adapter before attaching the VESA plate. This VESA adapter may ship in the

box with the display. Consult your display’s installation guide for further information.

1. Attach post to xing (xing sold separately)

1.1 Follow the installation guide

providedwiththexingto

attachthepostandxittothe

worksurface.

1.2 Remove cable clips and covers

from post by sliding up and out or

by squeezing sides.

AWM-FC

C Clamp

AC-GC

Grommet

Clamp

AWM-FH

Heavy Duty

F Clamp

3. Slide bracket onto post

3.2 Line up the inner guide on rear of

bracket with rear channel on post.

Slide inner guide into channel, then

lower the bracket.

PLAN VIEW

AWM-FC

C Clamp

AC-GC

Grommet

Clamp

AWM-FH

Heavy Duty

F Clamp

75mm

100mm

75mm

100mm

NOTE:

For 75mm

VESA

unscrew

5mm to

access

top holes

TOP

WORK

SURFACE

BACK OF

DESK

INNER

GUIDE

POSITIONED

IN REAR

POST

CHANNEL

Option B - For recessed VESA use

10mm spacers and M4x20 screws.

Option A - Attach VESA plate

with M4x10 screws.

SQUEEZE

to release

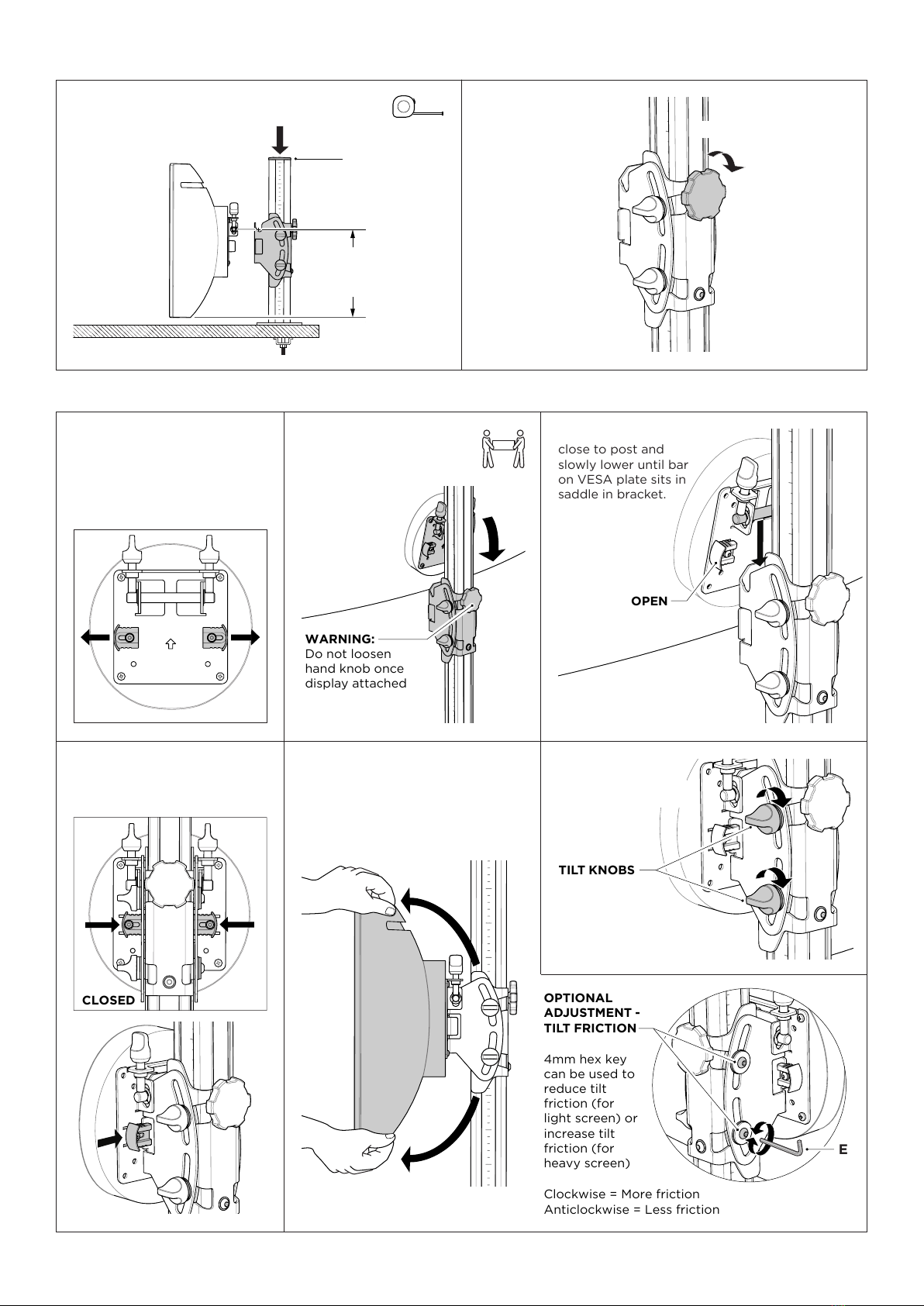

AWMS-BT40 Page 3 of 4

5. Attach display

4. Set height

4.1 Ensure height is

sufcientfordisplayto

clear desk once in place.

4.2 Firmly tighten hand

knob at chosen height.

Fit post cap.

5.1 Set VESA plate to

open position.

5.4 Set VESA plate to

closed position by sliding

clips on both sides inwards.

5.3 Centre VESA plate

close to post and

slowly lower until bar

on VESA plate sits in

saddle in bracket.

5.2 Lift display until

VESA plate is above the

bracket.

5.5 Adjust display tilt

angle by gripping edges

of screen and rolling up or

down to desired position.

WARNING:

Never loosen

knob while display

is on bracket

WARNING:

Use two people to

install display

TIGHTEN

MEASURE

≥Display

height

between

brackets

MEASURE to

ensure clearance

to desk

MEASURE

≥Display

height

between

brackets

MEASURE to

ensure clearance

to desk

OPEN

WARNING:

Do not loosen

hand knob once

display attached

CLOSED

TILT KNOBS

OPEN

OPTIONAL

ADJUSTMENT -

TILT FRICTION

Clockwise = More friction

Anticlockwise = Less friction

4mm hex key

can be used to

reduce tilt

friction (for

light screen) or

increase tilt

friction (for

heavy screen)

5.6 Set display

angle by tightening

both tilt knobs.

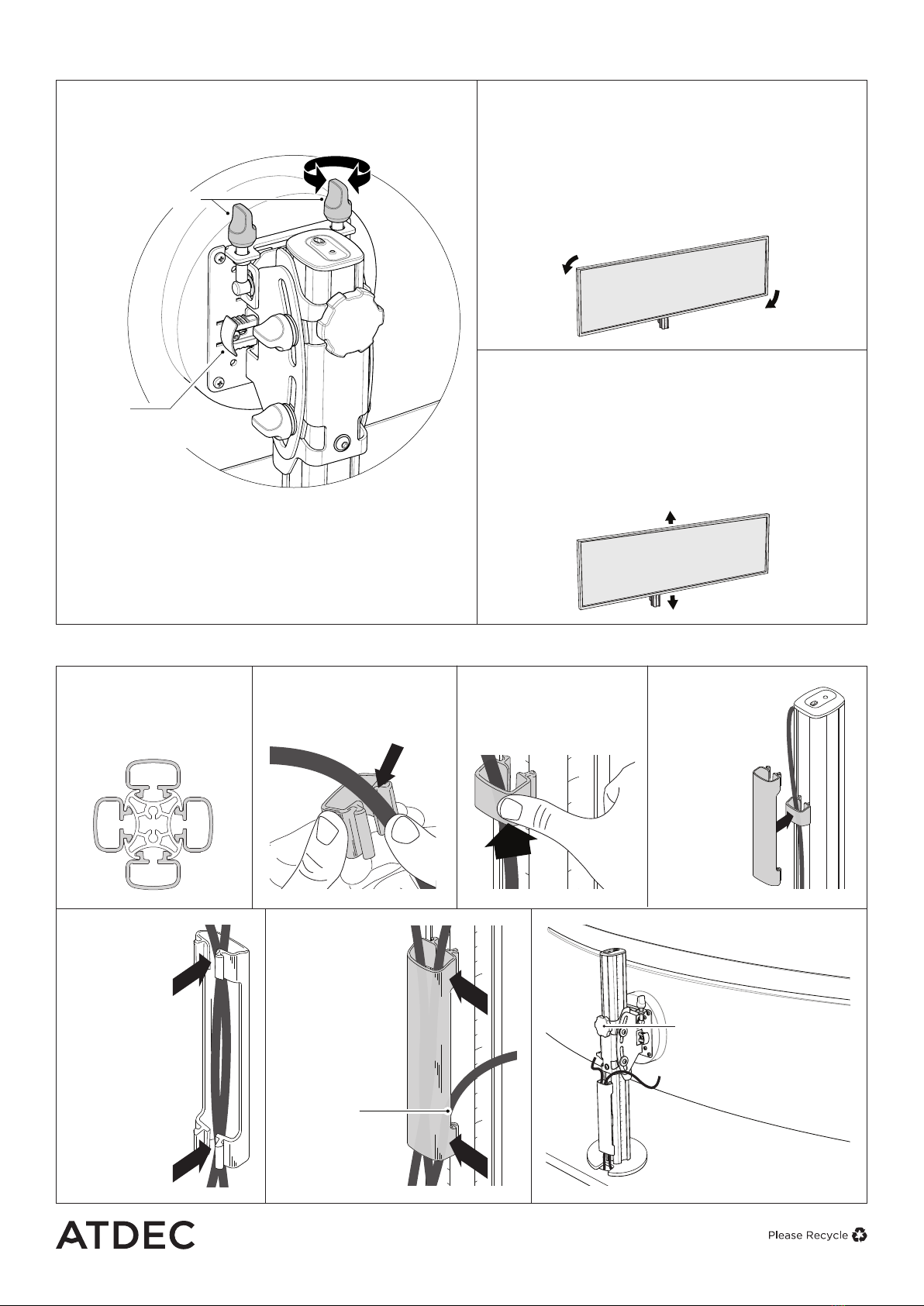

AWMS-BT40 Page 4 of 4

No portion of this document or any artwork contained herein should be reproduced in any way without

the express written consent of Atdec Pty Ltd. Due to continuing product development, the manufacturer

7. Fine adjustment

8. Cable management

CABLE COVERS

8.5 Load cables

into cable cover.

CABLE CLIPS

8.2 Load cables into

cable clip.

8.6 Clip the

cable cover

onto post

channel.

7.1 To correct horizontal angle

of display +/- 3 °:

Turnasinglenetune

adjustment knob to adjust angle

of screen.

CLOCKWISE = HIGHER

ANTI-CLOCKWISE = LOWER

7.2 Tonetuneheightwithout

removing screen +/-6mm (1/4”):

Turnbothnetuneadjustment

knobs - alternating sides a few

rotations at a time.

8.1 Cable clips and covers

can be clipped onto any

post channel. The rear

channel is recommended.

8.3 Insert one side of the

cable clip into a channel

on the post, then push in

the other side.

8.4 (OPTIONAL)

Cable covers can

be clipped on

over the cable

clips.

HINT: Cable covers

have greater cable

capacity.

+/- 6mm (0.25”)

Micro adjustment - Fine tune height

+/- 3°

Micro adjustment - Levelling

FINE HEIGHT ADJUST

FINE ADJUSTMENT

KNOBS

NOTE:

Ensure clips are in

CLOSED position

PUSH

Cables can

exit from

the side of

the cable

cover

PUSH

Load cables into

cable cover

WARNING:

Always remove display

before adjusting height

Unstacked Stacked
