B-K lighting Altair Bedienungsanleitung
RELEASE DATE
01/24/2022
REFERENCE NUMBER
INS-2577-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR
SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
• Product must be installed by a qualified person in a manner
consistent with its intended use and in compliance with the
National Electrical Code, Canadian Electrical Code, and all
Local and Provincial Codes.
• Follow product label information and instructions.
• Qualified Personnel must perform all servicing or relamping
of this product.
• Before wiring to power supply and during servicing or
relamping, turn off power at fuse or circuit breaker before
service.
• The use of accessory equipment not recommended by the
manufacturer or installed contrary to instructions may cause
an unsafe condition. The use of damaged components may
cause an unsafe condition and void product warranty.
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL
SAFETY AND INSTALLATION INSTRUCTIONS
• Do not block light emanating from product in whole or part,
as this may cause an unsafe condition.
• Never operate the fixture with missing or damaged lens.
Lens must be cleaned on regular basis.
• Entire fixture may become extremely hot. Do not touch hot
lens or fixture body. Do not touch the lamp at any time. Use
a clean, dry, soft cloth to handle the lamp. Oil from skin
may damage the lamp and cause it to rupture.
• Replace lamp only with correct wattage and type of lamp
marked on fixture label.
• All gaskets, o-rings and sealing surfaces must be kept
clean during installation and service; failure to do this may
cause an unsafe condition and void product warranty.
INSTRUCTIONS PERTAINING TO
A RISK OF FIRE, OR INJURY
TO PERSONS IMPORTANT
SAFETY INSTRUCTIONS
Lighted fixture is HOT!
WARNING - To reduce the risk of
FIRE OR INJURY TO PERSONS:
Turn off/unplug and allow to cool before
replacing lamp/LED. Fixture gets HOT quickly!
Contact only switch/plug when turning
on. Do not touch hot lens, guard, or enclosure.
Keep fixture away from materials that may burn.
Do not operate the luminaire fitting with a missing or
damaged shield. Do not touch the source at any time.
Use a soft cloth or gloves. Oil from skin may cause
damage.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION
INSTRUCTIONS

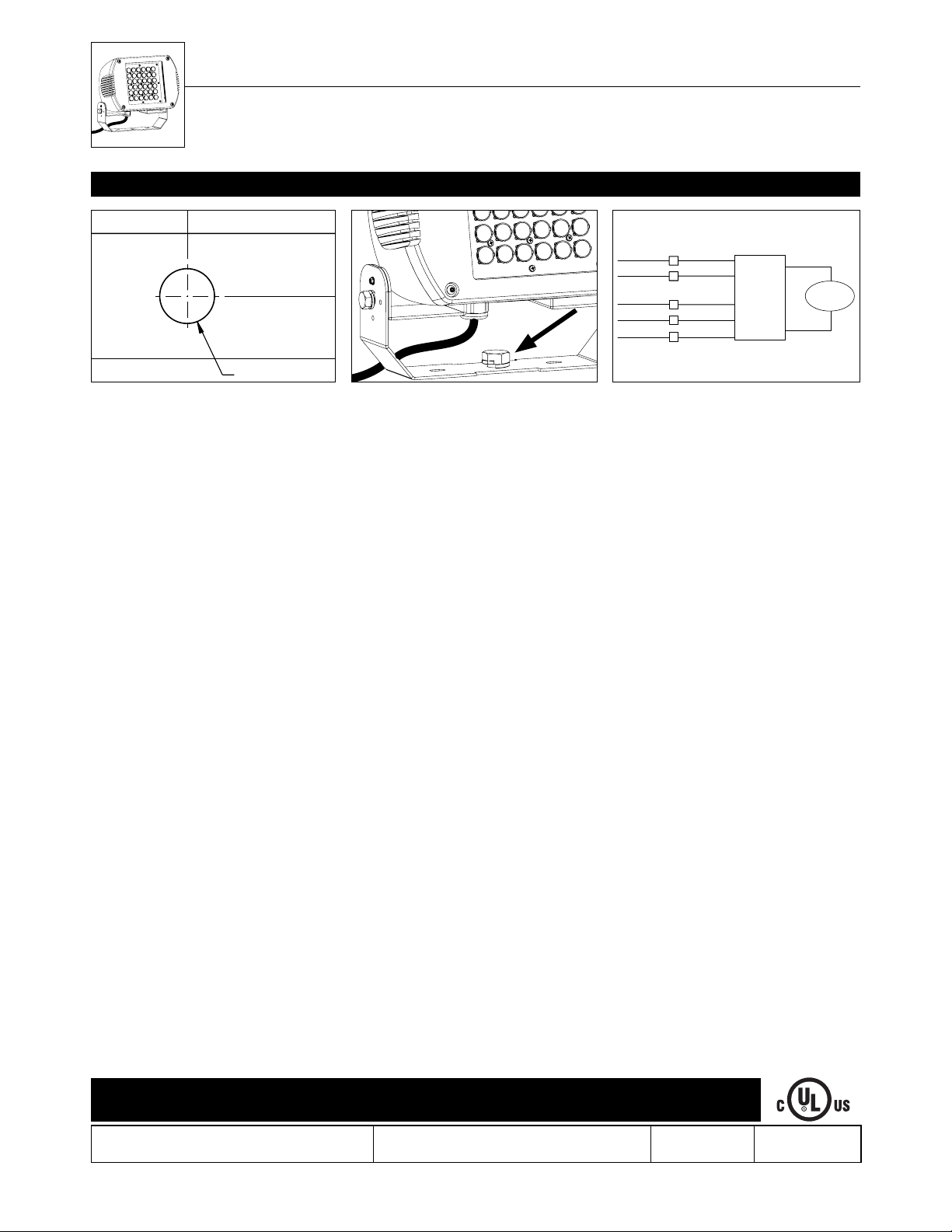

ALTAIR
YOKE MOUNT
IMPORTANT LISTINGS AND CERTIFICATIONS
· Suitable for wet locations
Standard Installation
Warning Hot Surface High Voltage
ALTAIR - YOKE MOUNT
TOOLS
NEEDED:
Waterproof Wire Connectors
Mounting Hardware
Adjustable Crescent Wrench
Torx 27 Tamper-Proof Wrench
Heavy-Gauged, Die-Formed
Aluminum Housing
Anti-Tamper
Fasteners
Gasketed Door
and Lens
Yoke
Weather-tight Connector
with Built-in Strain Relief
Integral Driver (Interior)
16/5 STW Cord
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASE DATE
01/24/2022
REFERENCE NUMBER
INS-2577-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO
MANUFACTURE, USE OR SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
ALTAIR
YOKE MOUNT
Standard Installation
2. Line up fixture yoke to mounting location and
secure with 3/4-10 hex bolt with adjustable
crescent wrench.
Yoke Mount Installation
1. Prepare for installation for yoke location.
Clearance hole is 9/16” diameter.
9/16” Dia.
WIRING DIAGRAM
3. Make watertight connections using waterproof
wire connectors to connect incoming primary
wiring to integral driver wiring as per NEC.
Secondary side is factory wired. See wiring
diagram.
HOT LED
NEUTRAL
GROUND
HOT
NEUTRAL
GROUND
Integral
DRIVER
+
-
0-10V -
0-10V +
0-10V -
0-10V +
ALTAIR
LED
Relamping Instructions
2. Prepare to remove LED board, thermal pad
and heatsink by loosening six (6) #8-32 slotted
screws using a 1/4 nut driver/socket wrench or
a flat head screwdriver.
1. Remove faceplate by loosening four (4)
tamper-resistant hex screws using a Torx T27
tamper resistant hex bit.
3. Use quick disconnect to disconnect heatsink
and LED board from driver.
5. If replacing LED driver: Turn off branch
circuit. Disconnect wire nuts from incoming
primary to primary side of driver.
6. Remove two (2) #10-24 hex nuts from driver
bracket using a 5/16 nut driver with socket.
Replace with new driver and reinstall driver
bracket.
Connect incoming primary to driver primary
leads for correct incoming voltage.
4. If replacing LED board: Remove LED board
and thermal pad from heatsink by loosening
sixteen (16) Phillips screws using Phillips
screwdriver. Line up new thermal pad and
LED board on heatsink. Replace board and
thermal pad on heatsink with thermal pad
closest to heatsink, then reverse install.
7. Reconnect quick disconnect from driver
secondary side to LED board assembly.
TOOLS
NEEDED:
Torx T27 Tamper Resistant Hex Bit
1/4 Nut Driver/Socket Wrench
5/16 Nut Driver/Socket Wrench
Phillips Screwdriver
Flat Head Screwdriver
8. Secure LED board and heatsink by tightening
six (6) #8-32 slotted screws using a 1/4 nut
driver/socket wrench or flat head screw driver.
9. Replace faceplate by tightening four (4)
tamper-resistant hex screws using a Torx T27
tamper resistant hex bit.
IMPORTANT SAFETY
INFORMATION - READ,
FOLLOW, AND SAVE ALL
SAFETY AND INSTALLATION
INSTRUCTIONS
• Product must be installed by a qualified person
in a manner consistent with its intended use
and in compliance with the National Electrical
Code, Canadian Electrical Code, and all Local
and Provincial Codes.
• Follow product label information and
instructions.
• Qualified Personnel must perform all servicing
or relamping of this product.
• Before wiring to power supply and during
servicing or relamping, turn off power at fuse
or circuit breaker before service.
Hot SurfaceHigh VoltageWarning
IMPORTANT SAFETY INFORMATION LISTED ON REVERSE
READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS
RELEASE DATE
01/24/2022
REFERENCE NUMBER
INS-2473-00
40429 Brickyard Drive • Madera, CA 93636 • USA
559.438.5800 • FAX 559.438.5900
B-K LIGHTING
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO
MANUFACTURE, USE OR SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
