B-K lighting HP2RM Bedienungsanleitung

RELEASE DATE

12-13-16

REFERENCE NUMBER

INS-2389-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY

DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

Warning High Voltage Hot Surface

Waterproof Wire

Connectors

Silicone ‘O’ Ring

Patented

Stability

Flange™

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS

Quick

Disconnects

Patented

Hydro-Lock™

Plate

Driver

Assembly

Fixture Housing

HP2RM SERIES™

18W-29W Remote Driver - Solid State LED

Faceplate

Soil Prep

Conduit

trench 18”

Dia.

A. Determine Soil Type by referencing

DIG-IT Guide.

B. Dig hole 18” wide and 20” deep.

Conduit

Trench

Excavated

for Housing

C. Prep soil according to DIG-IT Guide.

1/8” Allen Wrench

Waterproof Wire Connectors

Level

Phillips Screwdriver

NEEDED

FOR

INSTALLATION:

By Others

Proper soil preparation is recommended before installation. See the DIG-IT guide at www.bklighting.com/dig-it for more information.

• Product must be installed by a qualified person in a manner

consistent with its intended use and in compliance with the

National Electrical Code, Canadian Electrical Code, and all Local

and Provincial Codes.

• Follow product label information and instructions.

• Qualified Personnel must perform all servicing or relamping of

this product.

• Before wiring to power supply and during servicing or relamping,

turn off power at fuse or circuit breaker before service.

• The use of accessory equipment not recommended by the

manufacturer or installed contrary to instructions may cause an

unsafe condition. The use of damaged components may cause

an unsafe condition and void product warranty.

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY

AND INSTALLATION INSTRUCTIONS

• Do not block light emanating from product in whole or part,

as this may cause an unsafe condition.

• Never operate the fixture with missing or damaged lens.

Lens must be cleaned on regular basis.

• Entire fixture may become extremely hot. Do not touch hot

lens or fixture body. Do not touch the lamp at any time. Use

a clean, dry, soft cloth to handle the lamp. Oil from skin may

damage the lamp and cause it to rupture.

• Replace lamp only with correct wattage and type of lamp

marked on fixture label.

• All gaskets, o-rings and sealing surfaces must be kept clean

during installation and service; failure to do this may cause an

unsafe condition and void product warranty.

INSTRUCTIONS PERTAINING TO

A RISK OF FIRE, OR INJURY TO

PERSONS IMPORTANT SAFETY

INSTRUCTIONS

Lighted lamp is HOT!

WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:

Turn off/unplug and allow to cool before replacing lamp.

Lamp gets HOT quickly! Contact only switch/plug when

turning on.

Do not touch hot lens, guard, or enclosure (see diagram/

picture).

Keep lamp away from materials that may burn.

Do no touch the lamp at any time. Use a soft cloth. Oil

from skin may damage lamp.

Do not operate the luminaire fitting with a missing or

damaged shield.

SAVE THESE INSTRUCTIONS

· Suitable for wet locations · Suitable for recessed in ground locations

IMPORTANT LISTINGS AND CERTIFICATIONS

Installation Instructions

Concrete Pour Collar

RELEASE DATE

12-13-16

REFERENCE NUMBER

INS-2389-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

HP2RM SERIES™

18W-29W Remote Driver - Solid State LED

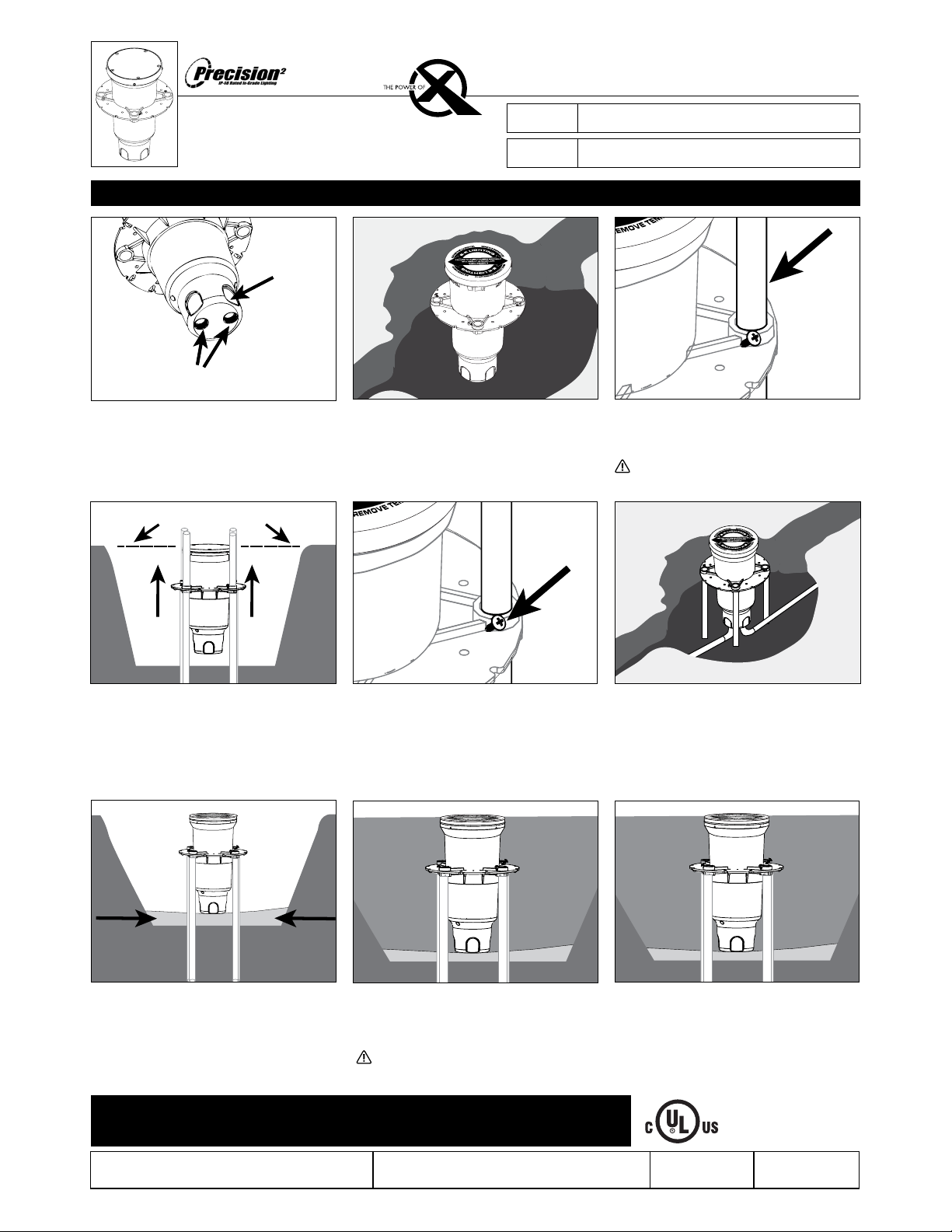

Installation Instructions PROJECT:

TYPE:

2. Place housing in hole. Align junction box in the

path of the conduit trench.

3. Insert (4) pieces of ½” EMT conduit through the

Stability Flange™. Hammer into substrate until

secure.

Leave sufficient clearance to elevate housing

to finished grade.

4. Raise housing on EMT so concrete pour collar is

flush with finished grade. Use a level to aid in

housing installation.

5. When housing is level, tighten screws on Stability

Flange™ to secure housing to EMT. Remove

excess EMT as needed.

7. Per DIG-IT Guide, backfill the gap between the

bottom of housing and bottom of hole with sand

for drainage.

Housing Installation

Threaded Entry

Side Flats

1. Connect branch conduit connectors (By Others)

to the junction box using either the threaded

conduit entries on the bottom of the junction

box or through holes drilled into the sides of the

junction box.

Flush with finished grade

6. Connect the conduit to the conduit connectors.

8. For soil installation: Fill and tamp soil to the

appropriate height leaving room for sod, pavers,

etc. to be level with the top of the temporary

cover.

Soil installation is not drive-over rated.

9. For concrete installation: Fill the hole around

the fixture housing to 12” below the finished

grade with clean fill dirt and tamp carefully to

prevent settling of fixture. Pour concrete and

finish as required flush with the top surface of the

temporary cover.

RELEASE DATE

12-13-16

REFERENCE NUMBER

INS-2389-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

HP2RM SERIES™

18W-29W Remote Driver - Solid State LED

Installation Instructions PROJECT:

TYPE:

4. Wipe inside of housing where HydroLock® plate

will sit clean of debris before inserting patented

HydroLock® plate on to junction box. Align

HydroLock® plate with pins in housing and seat

it firmly in place.

Installation

6. Connect driver assembly to Patented

HydroLock®Barrier plate with quick disconnects.

WIRING DIAGRAM

LINE

HYDRO-LOCK®

PLATE

COM

GROUND

LINE

COM

GROUND

FIXTURE + FIXTURE +

FIXTURE -FIXTURE -

1. Remove temporary cover.

2. Pull primary branch circuit wiring into junction

box.

3. Make watertight connections using waterproof

wire connectors (provided) to leads on the

bottom of Patented HydroLock® Barrier Plate

Assembly. See wiring diagram(s).

5. Turn HydroLock®

Barrier Plate clockwise ¼” to

lock.

Patented HydroLock® Barrier Plate must be

completely seated to ensure proper seal or

water may intrude. This step must be done as

stated or you will void your warranty.

7. Lower driver assembly into HP2 housing. 8. Attach driver assembly to housing by aligning

keyhole notch under one (1) of three (3) #8

screw heads.

For use with 18-29 watt dimming driver.

9. Tighten the Phillips screws to secure driver plate

to housing.

HP2RM SERIES™

18W-29W Remote Driver - Solid State LED

Installation Instructions PROJECT:

TYPE:

RELEASE DATE

12-13-16

REFERENCE NUMBER

INS-2389-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

10. Remove any dirt or debris in O-ring groove near

top of housing. Place O-Ring inside of groove.

Failure to clean groove of debris will cause

fixture to fail and void product warranty.

11. Install faceplate using 1/8” Allen wrench and

hand-tighten the faceplate screws in a star

pattern to 30 in-lbs. min.

Do not use a power tool to install screws. Do

not exceed 40 in-lbs.

RELEASE DATE

12-13-16

REFERENCE NUMBER

INS-2183-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

Warning High Voltage Hot Surface

Waterproof Wire

Connectors

Silicone ‘O’ Ring

Patented

Stability

Flange

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS

Quick

Disconnects

Patented

Hydro-Lock™

Plate

Driver

Assembly

Fixture Housing

HP2RM SERIES

31W-52W Remote - Solid State LED

Faceplate

Soil Prep

Conduit

trench 18”

Dia.

A. Determine Soil Type by referencing

DIG-IT Guide.

B. Dig hole 18” wide and 20” deep.

Conduit

Trench

Excavated

for Housing

C. Prep soil according to DIG-IT Guide.

1/8” Allen Wrench

Waterproof Wire Connectors

Level

Phillips Screwdriver

NEEDED

FOR

INSTALLATION:

By Others

Proper soil preparation is recommended before installation. See the DIG-IT guide at www.bklighting.com/dig-it for more information.

• Product must be installed by a qualified person in a manner

consistent with its intended use and in compliance with the

National Electrical Code, Canadian Electrical Code, and all Local

and Provincial Codes.

• Follow product label information and instructions.

• Qualified Personnel must perform all servicing or relamping of

this product.

• Before wiring to power supply and during servicing or relamping,

turn off power at fuse or circuit breaker before service.

• The use of accessory equipment not recommended by the

manufacturer or installed contrary to instructions may cause an

unsafe condition. The use of damaged components may cause

an unsafe condition and void product warranty.

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY

AND INSTALLATION INSTRUCTIONS

• Do not block light emanating from product in whole or part,

as this may cause an unsafe condition.

• Never operate the fixture with missing or damaged lens.

Lens must be cleaned on regular basis.

• Entire fixture may become extremely hot. Do not touch hot

lens or fixture body. Do not touch the lamp at any time. Use

a clean, dry, soft cloth to handle the lamp. Oil from skin may

damage the lamp and cause it to rupture.

• Replace lamp only with correct wattage and type of lamp

marked on fixture label.

• All gaskets, o-rings and sealing surfaces must be kept clean

during installation and service; failure to do this may cause an

unsafe condition and void product warranty.

INSTRUCTIONS PERTAINING TO

A RISK OF FIRE, OR INJURY TO

PERSONS IMPORTANT SAFETY

INSTRUCTIONS

Lighted lamp is HOT!

WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:

Turn off/unplug and allow to cool before replacing lamp.

Lamp gets HOT quickly! Contact only switch/plug when

turning on.

Do not touch hot lens, guard, or enclosure (see diagram/

picture).

Keep lamp away from materials that may burn.

Do no touch the lamp at any time. Use a soft cloth. Oil

from skin may damage lamp.

Do not operate the luminaire fitting with a missing or

damaged shield.

SAVE THESE INSTRUCTIONS

· Suitable for wet locations · Suitable for recessed in ground locations

IMPORTANT LISTINGS AND CERTIFICATIONS

Driver Installation Instructions

Concrete Pour Collar

RELEASE DATE

12-13-16

REFERENCE NUMBER

INS-2183-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

HP2RM SERIES

31W-52W Remote - Solid State LED

Driver Installation Instructions PROJECT:

TYPE:

2. Place housing in hole. Align junction box in the

path of the conduit trench.

3. Insert (4) pieces of ½” EMT conduit through the

Stability Flange™. Hammer into substrate until

secure.

Leave sufficient clearance to elevate housing

to finished grade.

4. Raise housing on EMT so concrete pour collar is

flush with finished grade. Use a level to aid in

housing installation.

5. When housing is level, tighten screws on

Stability Flange™ to secure housing to EMT.

Remove excess EMT as needed.

7. Per DIG-IT Guide, backfill the gap between the

bottom of housing and bottom of hole with

sand for drainage.

Housing Installation

Threaded Entry

Side Flats

1. Connect branch conduit connectors (By Others)

to the junction box using either the threaded

conduit entries on the bottom of the junction

box or through holes drilled into the sides of the

junction box.

Flush with finished grade

6. Connect the conduit to the conduit connectors.

8. For soil installation: Fill and tamp soil to

the appropriate height leaving room for sod,

pavers, etc. to be level with the top of the

temporary cover.

Soil installation is not drive-over rated.

9. For concrete installation: Fill the hole around

the fixture housing to 12” below the finished

grade with clean fill dirt and tamp carefully to

prevent settling of fixture. Pour concrete and

finish as required flush with the top surface of

the temporary cover.

RELEASE DATE

12-13-16

REFERENCE NUMBER

INS-2183-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

HP2RM SERIES

31W-52W Remote - Solid State LED

Driver Installation Instructions PROJECT:

TYPE:

4. Wipe inside of housing where HydroLock® plate

will sit clean of debris before inserting patented

HydroLock® plate on to junction box. Align

HydroLock® plate with pins in housing and seat

it firmly in place.

Installation

6. Connect driver assembly to Patented

HydroLock®Barrier plate with quick disconnects.

WIRING DIAGRAM

LINE

Red

FIXTURE

COM

Hydrolock

Plate

Black

GROUND

Driver

White

Black

White

Hydrolock

Plate

Green

Driver

White

Black

White

Blue

Green

LINE

COM

GROUND

Orange

Brown

Blue

Black

Gray

FIXTURE

Green

DIM +

DIM -

DIM +

DIM -

DIM +

DIM -

1. Remove temporary cover.

2. Pull primary branch circuit wiring into junction

box.

3. Make watertight connections using waterproof

wire connectors (provided) to leads on the

bottom of Patented HydroLock® Barrier Plate

Assembly. See wiring diagram(s).

5. Turn HydroLock®

Barrier Plate clockwise ¼” to

lock.

Patented HydroLock® Barrier Plate must be

completely seated to ensure proper seal or

water may intrude. This step must be done as

stated or you will void your warranty.

7. Lower driver assembly into HP2 housing. 8. Attach driver assembly to housing by aligning

keyhole notch under one (1) of three (3) #8

screw heads.

For use with 31-42 watt dimming driver.

WIRING DIAGRAM

LINE

Red

FIXTURE

COM

Hydrolock

Plate

Black

GROUND

Driver

White

Black

White

Hydrolock

Plate

Green

Driver

White

Black

White

Blue

Green

LINE

COM

GROUND

Orange

Black

Gray

Blue

Brown

FIXTURE +

FIXTURE -

Green

DIM +

DIM -

DIM +

DIM -

For use with 52 watt dimming driver.

HP2RM SERIES

31W-52W Remote - Solid State LED

Driver Installation Instructions PROJECT:

TYPE:

RELEASE DATE

12-13-16

REFERENCE NUMBER

INS-2183-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

10. Remove any dirt or debris in O-ring groove near

top of housing. Place O-Ring inside of groove.

Failure to clean groove of debris will cause

fixture to fail and void product warranty.

11. Install faceplate using 1/8” Allen wrench and

hand-tighten the faceplate screws in a star

pattern to 30 in-lbs. min.

Do not use a power tool to install screws. Do

not exceed 40 in-lbs.

9. Tighten the Phillips screws to secure driver

plate to housing.

Andere Handbücher für HP2RM

Inhaltsverzeichnis

Andere B-K lighting Beleuchtungsausrüstung Handbücher

B-K lighting

B-K lighting DENALI Bedienungsanleitung

B-K lighting

B-K lighting SS Bedienungsanleitung

B-K lighting

B-K lighting ArtiStar Remote Bedienungsanleitung

B-K lighting

B-K lighting ArtiStar Integral Bedienungsanleitung

B-K lighting

B-K lighting ArtiStar Remote ES16 Metal Halide Bedienungsanleitung

B-K lighting

B-K lighting ORION Bedienungsanleitung

B-K lighting

B-K lighting Nite Star Bedienungsanleitung

B-K lighting

B-K lighting BKSSL Precision2 DR2 Series Bedienungsanleitung

B-K lighting

B-K lighting Precision2 HP2 Series Bedienungsanleitung

B-K lighting

B-K lighting TETON Bedienungsanleitung

B-K lighting

B-K lighting SIGN STAR Series Bedienungsanleitung

B-K lighting

B-K lighting Union Bollard Bedienungsanleitung

B-K lighting

B-K lighting Precision2 HP2 Series Bedienungsanleitung

B-K lighting

B-K lighting Precision2 HP2 Series Bedienungsanleitung

B-K lighting

B-K lighting ArtiStar Series Bedienungsanleitung

B-K lighting

B-K lighting SQUARE ADJUSTABLE WELL STAR Bedienungsanleitung

B-K lighting

B-K lighting Denali Series Bedienungsanleitung

B-K lighting

B-K lighting Mini-Micro Series Bedienungsanleitung

B-K lighting

B-K lighting Path Star Bedienungsanleitung

B-K lighting

B-K lighting PRECISION2 CO2 Series Bedienungsanleitung

B-K lighting

B-K lighting ORION Bedienungsanleitung

B-K lighting

B-K lighting MICRO NITE STAR Bedienungsanleitung

B-K lighting

B-K lighting Altair Bedienungsanleitung

B-K lighting

B-K lighting Union Bollard Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
