B-K lighting Precision2 HP2 Series Bedienungsanleitung

RELEASE DATE

12-7-16

REFERENCE NUMBER

INS-2375-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY

DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

1/8” Allen Wrench

Waterproof Wire Connectors

Level

Phillips Screwdriver

Warning High Voltage Hot Surface

NEEDED

FOR

INSTALLATION:

By Others

HydroLock® Plate

Waterproof Wire

Connectors

O-Ring

HP2 Housing

Stability

Flange™

Concrete Pour

Collar (CPC)

Proper soil preparation is recommended before installation. See the DIG-IT guide at www.bklighting.com/dig-it for more information.

HP2SERIES

Deep Housing - Standard Solid State LED

Installation Instructions

Soil Prep

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS

Conduit

trench 18”

Dia.

A. Determine Soil Type by referencing

DIG-IT Guide.

B. Dig hole 18” wide and 24” deep.

Conduit

Trench

Excavated

for Housing

C. Prep soil according to DIG-IT Guide.

· Suitable for wet locations · Suitable for recessed in ground locations

IMPORTANT LISTINGS AND CERTIFICATIONS

Quick

Disconnect

OptiLock®

Assembly

Standard

Faceplate

Thumbscrew

TECHNOLOGY

with TECHNOLOGY

• Product must be installed by a qualified person in a manner

consistent with its intended use and in compliance with the

National Electrical Code, Canadian Electrical Code, and all Local and

Provincial Codes.

• Follow product label information and instructions.

• Qualified Personnel with appropriate personal protective

equipment must perform all servicing of this product.

• Before wiring to power supply and during servicing, turn off and

lock out power at fuse or circuit breaker before service.

• The use of accessory equipment not recommended by the

manufacturer or installed contrary to instructions may cause an

unsafe condition. The use of damaged components may cause an

unsafe condition and void product warranty.

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY

AND INSTALLATION INSTRUCTIONS

• Do not block light emanating from product in whole or part, as

this may cause an unsafe condition.

• Never operate the fixture with missing or damaged lens.

Lens must be cleaned on regular basis.

• Entire fixture may become extremely hot. Do not touch hot

lens or fixture body.

• Replace LED assembly only with correct wattage and type of

power supply appropriate for LED assembly.

• All gaskets, o-rings and sealing surfaces must be kept clean

during installation and service; failure to do this may cause an

unsafe condition and void product warranty.

INSTRUCTIONS PERTAINING TO

A RISK OF FIRE, OR INJURY TO

PERSONS IMPORTANT SAFETY

INSTRUCTIONS

Lighted fixture is HOT!

WARNING - To reduce the risk of

FIRE OR INJURY TO PERSONS:

Turn off/unplug and allow to cool before replacing LED.

Fixture gets HOT quickly! Contact only switch/plug when

turning on. Do not touch hot lens, guard, or enclosure.

Keep fixture away from materials that may burn.

Do not operate the luminaire fitting with a missing or

damaged shield. Do not touch the source at any time. Use

a soft cloth or gloves. Oil from skin may cause damage.

SAVE THESE INSTRUCTIONS

RELEASE DATE

12-7-16

REFERENCE NUMBER

INS-2375-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

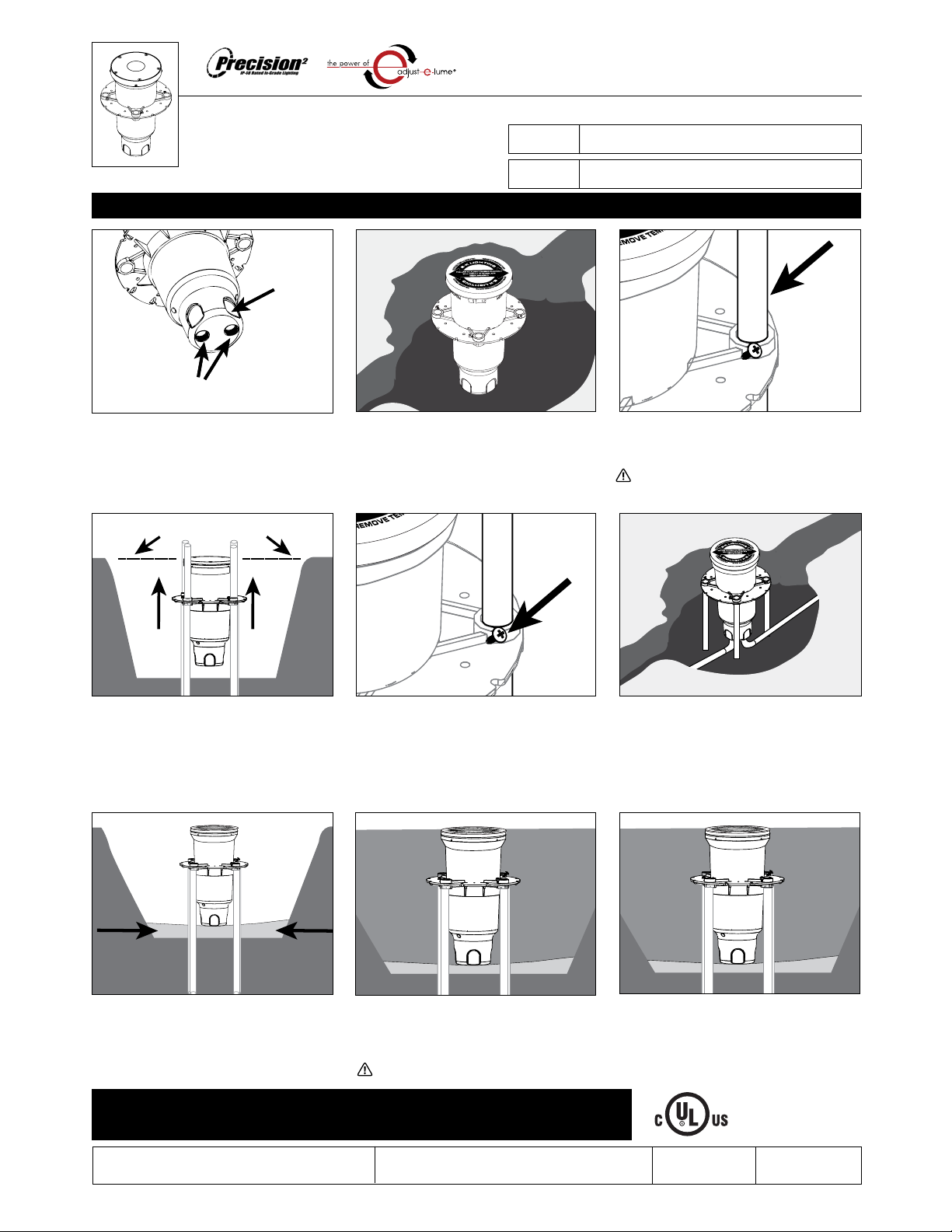

2. Place housing in hole. Align junction box in the

path of the conduit trench.

3. Insert (4) pieces of ½” EMT conduit through the

Stability Flange™. Hammer into substrate until

secure.

Leave sufficient clearance to elevate housing

to finished grade.

4. Raise housing on EMT to concrete pour collar

(CPC). Use a level to aid in leveling housing.

5. When housing is level, tighten screws on

Stability Flange™ to secure housing to EMT.

Remove excess EMT as needed.

8. Per DIG-IT Guide, backfill the gap between the

bottom of housing and bottom of hole with

sand for drainage.

Housing Installation

PROJECT:

TYPE:

Threaded Entry

Side Flats

1. Connect branch conduit connectors (By Others)

to the junction box using either the threaded

conduit entries on the bottom of the junction

box or through holes drilled into the sides of the

junction box.

Flush with finished grade

6. Connect the conduit to the conduit connectors.

7. Pull branch circuit wiring into housing.

9. For soil installation: Fill and tamp soil to

the appropriate height leaving room for sod,

pavers, etc. to be level with the top of the

temporary cover.

Soil installation is not drive-over rated.

10. For concrete installation: Fill the hole around

the fixture housing to 12” below the finished

grade with clean fill dirt and tamp carefully to

prevent settling of fixture. Pour concrete and

finish as required flush with the top surface of

the temporary cover.

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

HP2SERIES

Deep Housing - Standard Solid State LED

Installation Instructions

TECHNOLOGY

with TECHNOLOGY

RELEASE DATE

12-7-16

REFERENCE NUMBER

INS-2375-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

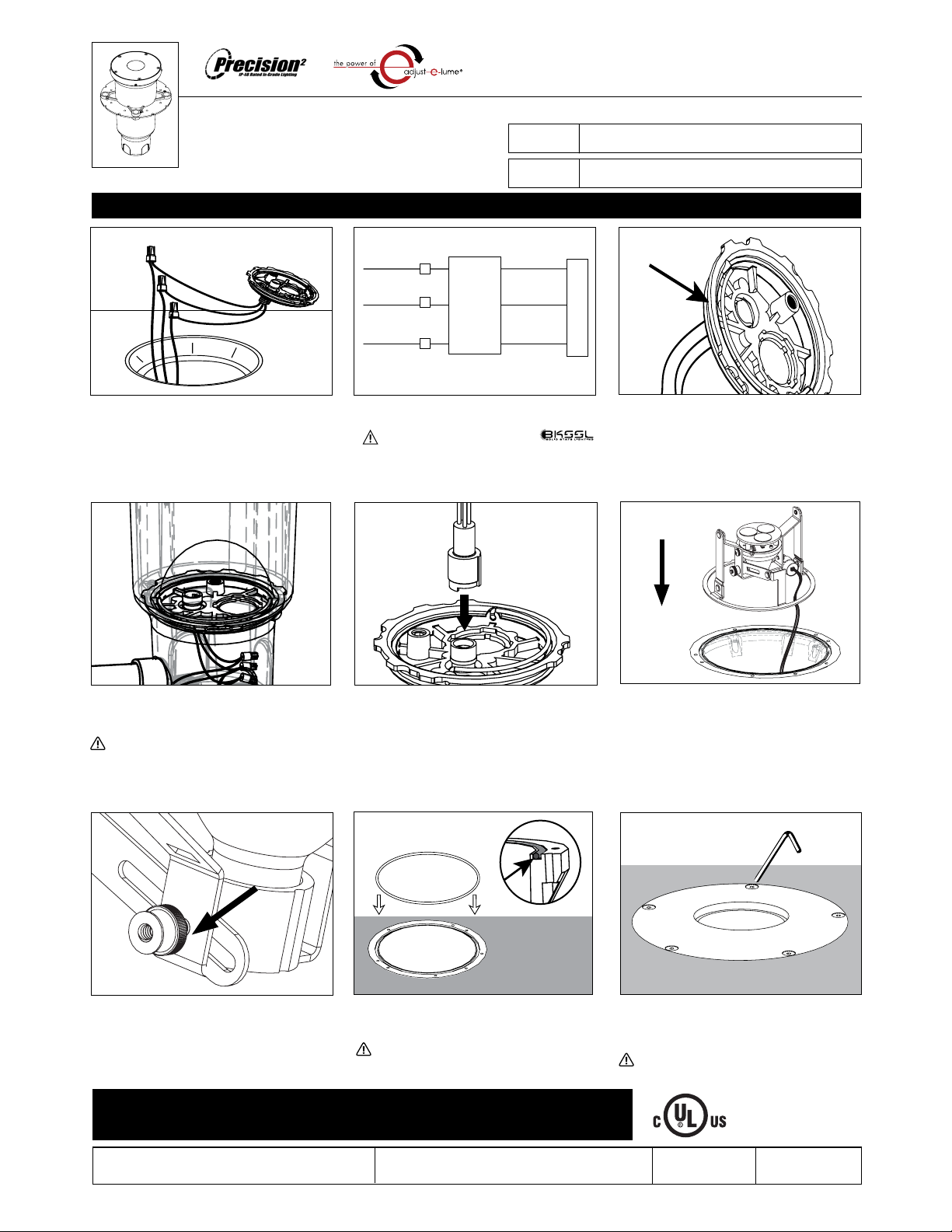

2. Wipe inside of housing where HydroLock® plate

will sit clean of debris before inserting patented

HydroLock® plate on to junction box. Align

HydroLock® plate with pins in housing and seat

it firmly in place.

Installation

4. Connect OptiLock® assembly to Patented

HydroLock®Barrier plate with quick disconnect.

PROJECT:

TYPE:

WIRING DIAGRAM

LINE

COM

GROUND

REMOTE

TRANSFORMER

GROUND

HYDROLOCK PLATE

12V

COM

1. Remove temporary cover. Make watertight

connections using waterproof wire connectors

(provided) to leads on the bottom of Patented

HydroLock® Barrier Plate Assembly. See wiring

diagram.

3. Turn HydroLock®

Barrier Plate clockwise ¼” to

lock.

Patented HydroLock® Barrier Plate must be

completely seated to ensure proper seal or

water may intrude. This step must be done

as stated or you will void your warranty.

5. Place OptiLock® in HP2 housing and align

keyhole notch under one of (3) #8 screw heads.

Rotate horizontally to desired aiming position,

then tighten (2) #8 Phillips screws using Phillips

screwdriver.

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

HP2SERIES

Deep Housing - Standard Solid State LED

Installation Instructions

Aim vertically by turning the thumbscrew on

OptiLock® assembly.

TECHNOLOGY

with TECHNOLOGY

7. Remove any dirt or debris in O-ring groove near

top of housing. Place O-Ring inside of groove.

Failure to clean groove of debris will cause

fixture to fail and void product warranty.

8. Install faceplate using 1/8” Allen wrench and

hand-tighten the faceplate screws in a star

pattern to 30 in-lbs. min.

Do not use a power tool to install screws. Do

not exceed 40 in-lbs.

LED - For use with 12VAC

remote transformer or magnetic

transformers only. B-K Lighting cannot

guarantee performance with third party

manufacturers’ transformers.

HP2/ CO2 SERIES

Solid State LED

Relamping and Optic Replacement

TECHNOLOGY

with

Warning Hot Surface

TOOLS

NEEDED:

By Others

1/8” Allen Wrench

Phillips Screwdriver

Small Flat Head Screwdriver

Relamping and/or Optic Replacement if Required for Solid State LED

RELEASED

7-13-16

REFERENCE NUMBER

INS000012

 %ULFN\DUG 'ULYH 0DGHUD &$  86$

 )$; 

ZZZENOLJKWLQJFRP LQIR#ENOLJKWLQJFRP

B-K LIGHTING

DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS

10. Install faceplate using 1/8” Allen wrench and hand-

tighten the faceplate screws in a star pattern to 30

in-lbs. min.

Do not use a power tool to install screws. Do not

exceed 40 in-lbs.

1. Remove faceplate using 1/8” Allen wrench.

9. Remove any dirt or debris in O-ring groove near top

of housing. Place O-Ring inside of groove. Clean

lens if needed.

Failure to clean groove of debris will cause fixture

to fail and void product warranty.

3. Use 5/64” Allen wrench to remove two (2) #2-56

screws on LED board. Grasp LED board gently and

expose quick disconnect. Disengage LED board from

driver assembly.

2. Space three fingers evenly around the optic and

gently rock optic to remove.

4. Use Phillips screwdriver to loosen #8-32 Phillips

screw on driver bracket on OptiLock®. Disconnect

driver from fixture via quick disconnect. Replace

old driver. Place new driver in bracket, then

tighten #8-32 Phillips screw to secure new driver to

OptiLock®. Reconnect new replacement driver to

fixture and to LED board via quick disconnects.

6. If OptiLock® Has Thumbscrew Aim:

Aim vertically by

turning the thumbscrew on OptiLock® assembly.

7. If OptiLock® Has Tilt Assembly Aim:

Aim vertically

by turning the #10 Phillips head screw on OptiLock®

assembly with Phillips screwdriver.

5. Secure LED board to heatsink by tightening two (2)

#2-56 screws on LED board using 5/64” Allen wrench.

Carefully snap optics back into tabs on LED board.

8. With flat head screw driver rotate Adjust-e-Lume®

dial to desired lumen output.

SUBMITTAL DATE

5-15-14

REFERENCE NUMBER

INS-2158-00

 %ULFN\DUG 'ULYH 0DGHUD &$  86$

 )$; 

ZZZENOLJKWLQJFRP LQIR#ENOLJKWLQJFRP

B-K LIGHTING

DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

1/8” & 7/64” Allen Wrench

Warning Hot Surface

NEEDED

FOR

INSTALLATION:

By Others

HP2SERIES

Faceplate Accessories

Accessories Installation Instructions

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS

t 1SPEVDU NVTU CF JOTUBMMFE CZ B RVBMJGJFE QFSTPO JO B NBOOFS

DPOTJTUFOU XJUI JUT JOUFOEFE VTF BOE JO DPNQMJBODF XJUI UIF

/BUJPOBM&MFDUSJDBM$PEF$BOBEJBO&MFDUSJDBM$PEFBOEBMM-PDBM

BOE1SPWJODJBM$PEFT

t 'PMMPXQSPEVDUMBCFMJOGPSNBUJPOBOEJOTUSVDUJPOT

t 2VBMJGJFE1FSTPOOFMNVTUQFSGPSNBMMTFSWJDJOHPSSFMBNQJOHPG

UIJTQSPEVDU

t #FGPSFXJSJOHUPQPXFSTVQQMZBOEEVSJOHTFSWJDJOHPSSFMBNQJOH

UVSOPGGQPXFSBUGVTFPSDJSDVJUCSFBLFSCFGPSFTFSWJDF

t 5IF VTF PG BDDFTTPSZ FRVJQNFOU OPU SFDPNNFOEFE CZ UIF

NBOVGBDUVSFSPSJOTUBMMFEDPOUSBSZUPJOTUSVDUJPOTNBZDBVTFBO

VOTBGFDPOEJUJPO5IFVTFPGEBNBHFEDPNQPOFOUTNBZDBVTF

BOVOTBGFDPOEJUJPOBOEWPJEQSPEVDUXBSSBOUZ

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY

AND INSTALLATION INSTRUCTIONS

t %POPUCMPDLMJHIUFNBOBUJOHGSPNQSPEVDUJOXIPMFPSQBSU

BTUIJTNBZDBVTFBOVOTBGFDPOEJUJPO

t /FWFS PQFSBUF UIF GJYUVSF XJUI NJTTJOH PS EBNBHFE MFOT

-FOTNVTUCFDMFBOFEPOSFHVMBSCBTJT

t &OUJSF GJYUVSF NBZ CFDPNF FYUSFNFMZ IPU %P OPU UPVDI IPU

MFOTPSGJYUVSFCPEZ%POPUUPVDIUIFMBNQBUBOZUJNF6TF

BDMFBOESZTPGUDMPUIUPIBOEMFUIFMBNQ0JMGSPNTLJONBZ

EBNBHFUIFMBNQBOEDBVTFJUUPSVQUVSF

t 3FQMBDF MBNQ POMZ XJUI DPSSFDU XBUUBHF BOE UZQF PG MBNQ

NBSLFEPOGJYUVSFMBCFM

t "MM HBTLFUT PSJOHT BOE TFBMJOH TVSGBDFT NVTU CF LFQU DMFBO

EVSJOHJOTUBMMBUJPOBOETFSWJDFGBJMVSFUPEPUIJTNBZDBVTFBO

VOTBGFDPOEJUJPOBOEWPJEQSPEVDUXBSSBOUZ

INSTRUCTIONS PERTAINING TO

A RISK OF FIRE, OR INJURY TO

PERSONS IMPORTANT SAFETY

INSTRUCTIONS

-JHIUFEMBNQJT)05

8"3/*/(5PSFEVDFUIFSJTLPG'*3&03*/+63:501&340/4

5VSOPGGVOQMVHBOEBMMPXUPDPPMCFGPSFSFQMBDJOHMBNQ

-BNQHFUT)05RVJDLMZ$POUBDUPOMZTXJUDIQMVHXIFO

UVSOJOHPO

%POPUUPVDIIPUMFOTHVBSEPSFODMPTVSFTFFEJBHSBN

QJDUVSF

,FFQMBNQBXBZGSPNNBUFSJBMTUIBUNBZCVSO

%POPUPVDIUIFMBNQBUBOZUJNF6TFBTPGUDMPUI0JM

GSPNTLJONBZEBNBHFMBNQ

%POPUPQFSBUFUIFMVNJOBJSFGJUUJOHXJUIBNJTTJOHPS

EBNBHFETIJFME

SAVE THESE INSTRUCTIONS

· Suitable for wet locations · Suitable for recessed in ground locations

IMPORTANT LISTINGS AND CERTIFICATIONS

3PDL(VBSEXJUI0QUJDBM0QFOJOH 3PDL(VBSE

'PS6TF8JUI

(MBSF4IJFME" (MBSF4IJFME#

)BMG%PNF" )BMG%PNF#

SUBMITTAL DATE

5-15-14

REFERENCE NUMBER

INS-2158-00

 %ULFN\DUG 'ULYH 0DGHUD &$  86$

 )$; 

ZZZENOLJKWLQJFRP LQIR#ENOLJKWLQJFRP

B-K LIGHTING

Faceplate Accessories

PROJECT:

TYPE:

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

HP2SERIES

Faceplate Accessories

Accessories Installation Instructions

 6TJOHBw"MMFOXSFODIMPPTFOUIF

TFUTDSFXTPOUIFGBDFQMBUFUPBMMPXBDDFTTPSZUP

SPUBUFGSFFMZ

 "DDFTTPSZ DBO SPUBUF ¡ JOEFQFOEFOUMZ PG

GBDFQMBUF

 8IFOTFUJOGJOBMQPTJUJPOUJHIUFOTFU

TDSFXTVTJOHw"MMFOXSFODI

 *OTUBMM GBDFQMBUF VTJOH w "MMFO XSFODI BOE

IBOEUJHIUFOUIFGBDFQMBUFTDSFXTJO

BTUBSQBUUFSOUPwMCTNJO

Do not use a power tool to install screws. Do

not exceed 40” lbs.

 #FGPSF *OTUBMMBUJPO PG GBDFQMBUF DMFBO PSJOH

HSPPWFBOEDPMMBSPGEFCSJTGPSBQSPQFSTFBM

Failure to clean groove of debris will cause

fixture to fail and void product warranty.

*OTUSVDUJPOT"QQMZUP

3PDL(VBSE

XJUI0QUJDBM

0QFOJOH

3PDL(VBSE (MBSF4IJFME" (MBSF4IJFME# )BMG%PNF" )BMG%PNF#

Andere Handbücher für Precision2 HP2 Series

Inhaltsverzeichnis

Andere B-K lighting Beleuchtungsausrüstung Handbücher

B-K lighting

B-K lighting ORION Bedienungsanleitung

B-K lighting

B-K lighting Altair Bedienungsanleitung

B-K lighting

B-K lighting BACK BOX Bedienungsanleitung

B-K lighting

B-K lighting HP2RM Bedienungsanleitung

B-K lighting

B-K lighting Mini-Micro Series Bedienungsanleitung

B-K lighting

B-K lighting ArtiStar Series Bedienungsanleitung

B-K lighting

B-K lighting INTEGRAL DENALI Series Bedienungsanleitung

B-K lighting

B-K lighting Precision2 HP2 Series Bedienungsanleitung

B-K lighting

B-K lighting PRECISION2 CO2 Series Bedienungsanleitung

B-K lighting

B-K lighting RE1 Bedienungsanleitung

B-K lighting

B-K lighting SIGN STAR Series Bedienungsanleitung

B-K lighting

B-K lighting SS Bedienungsanleitung

B-K lighting

B-K lighting MINI-MICRO RECESSED UPLIGHT Bedienungsanleitung

B-K lighting

B-K lighting CORE DRILL Bedienungsanleitung

B-K lighting

B-K lighting ORION Bedienungsanleitung

B-K lighting

B-K lighting TETON Bedienungsanleitung

B-K lighting

B-K lighting MB2 Bedienungsanleitung

B-K lighting

B-K lighting Union Bollard Bedienungsanleitung

B-K lighting

B-K lighting ArtiStar Remote Bedienungsanleitung

B-K lighting

B-K lighting Denali Series Bedienungsanleitung

B-K lighting

B-K lighting Path Star Bedienungsanleitung

B-K lighting

B-K lighting SQUARE ADJUSTABLE WELL STAR Bedienungsanleitung

B-K lighting

B-K lighting Union Bollard Bedienungsanleitung

B-K lighting

B-K lighting DENALI Bedienungsanleitung

Beliebte Beleuchtungsausrüstung Handbücher anderer Marken

Brizo

Brizo 8SP-MU-4 Bedienungsanleitung

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Bedienungsanleitung

IKEA

IKEA BJÖRKSPIREA Bedienungsanleitung

Laserworld

Laserworld Evolution Series ES-400RGB Bedienungsanleitung

Alien

Alien RG STAR Bedienungsanleitung

EuroLite

EuroLite LED B-40 Bedienungsanleitung

Qazqa

Qazqa Suplux SL 3 Black 103062 Bedienungsanleitung

Commercial Electric

Commercial Electric 54568141 Bedienungsanleitung

CREE LIGHTING

CREE LIGHTING 304 Series Bedienungsanleitung

Goobay

Goobay 49867 Bedienungsanleitung

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Bedienungsanleitung

Alkalite

Alkalite Krypton KT-81 Bedienungsanleitung

Clas Ohlson

Clas Ohlson GU10 Bedienungsanleitung

DTS

DTS DELTA 10 F Bedienungsanleitung

ring

ring Solar Steplight Bedienungsanleitung

One Stop Gardens

One Stop Gardens 57696 Montageanleitung

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Bedienungsanleitung

SIREM

SIREM Swimeo A2 Bedienungsanleitung
