B-K lighting MICRO NITE STAR Bedienungsanleitung

RELEASED

1-25-16

REFERENCE NUMBER

INS-2385-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR SELL ANYTHING IT MAY

DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

5/32” and 5/64” Allen wrench

Waterproof Wire Connectors

NEEDED

FOR

INSTALLATION:

By Others

MICRO NITE STAR™

Standard Installation

MN - Micro Nite Star™

Nite Star™

Locking ‘O’ Ring Compression

Knuckle (L.O.C.K.™)

1/2” NPS Threaded Nipple

Locknut (Retaining Ring)

For non-threaded mounting options

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS

• Product must be installed by a qualified person in a manner

consistent with its intended use and in compliance with the

National Electrical Code, Canadian Electrical Code, and all Local

and Provincial Codes.

• Followproductlabelinformationandinstructions.

• QualifiedPersonnel mustperform allservicing orrelamping of

this product.

• Beforewiringtopowersupplyandduringservicingorrelamping,

turnoffpoweratfuseorcircuitbreakerbeforeservice.

• The use of accessory equipment not recommended by the

manufacturer or installed contrary to instructions may cause an

unsafe condition. The use of damaged components may cause

an unsafe condition and void product warranty.

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY

AND INSTALLATION INSTRUCTIONS

• Donotblocklightemanatingfromproductinwholeorpart,

as this may cause an unsafe condition.

• Never operate the fixture with missing or damaged lens.

Lensmustbecleanedonregularbasis.

• Entire fixture may become extremely hot. Do not touch hot

lensorfixturebody.Donottouchthelampatanytime.Use

a clean, dry, soft cloth to handle the lamp. Oil from skin may

damage the lamp and cause it to rupture.

• Replace lamp only with correct wattage and type of lamp

markedonfixturelabel.

• All gaskets, o-rings and sealing surfaces must be kept clean

during installation and service; failure to do this may cause an

unsafe condition and void product warranty.

INSTRUCTIONS PERTAINING TO

A RISK OF FIRE, OR INJURY TO

PERSONS IMPORTANT SAFETY

INSTRUCTIONS

Lighted lamp is HOT!

WARNING - To reduce the risk of FIRE OR INJURY TO PERSONS:

Turnoff/unplugandallowtocoolbeforereplacinglamp.

LampgetsHOTquickly!Contactonlyswitch/plugwhen

turning on.

Do not touch hot lens, guard, or enclosure (see diagram/

picture).

Keeplampawayfrommaterialsthatmayburn.

Do no touch the lamp at any time. Use a soft cloth. Oil

from skin may damage lamp.

Do not operate the luminaire fitting with a missing or

damaged shield.

SAVE THESE INSTRUCTIONS

· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground

IMPORTANT LISTINGS AND CERTIFICATIONS

Warning Low Voltage Hot Surface

Please refer to the low voltage

designguideatwww.bklighting.

com/lvguidebeforeinstallationfor

proper wire selection.

& Low Voltage

RELEASED

1-25-16

REFERENCE NUMBER

INS-2385-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

PROJECT:

TYPE:

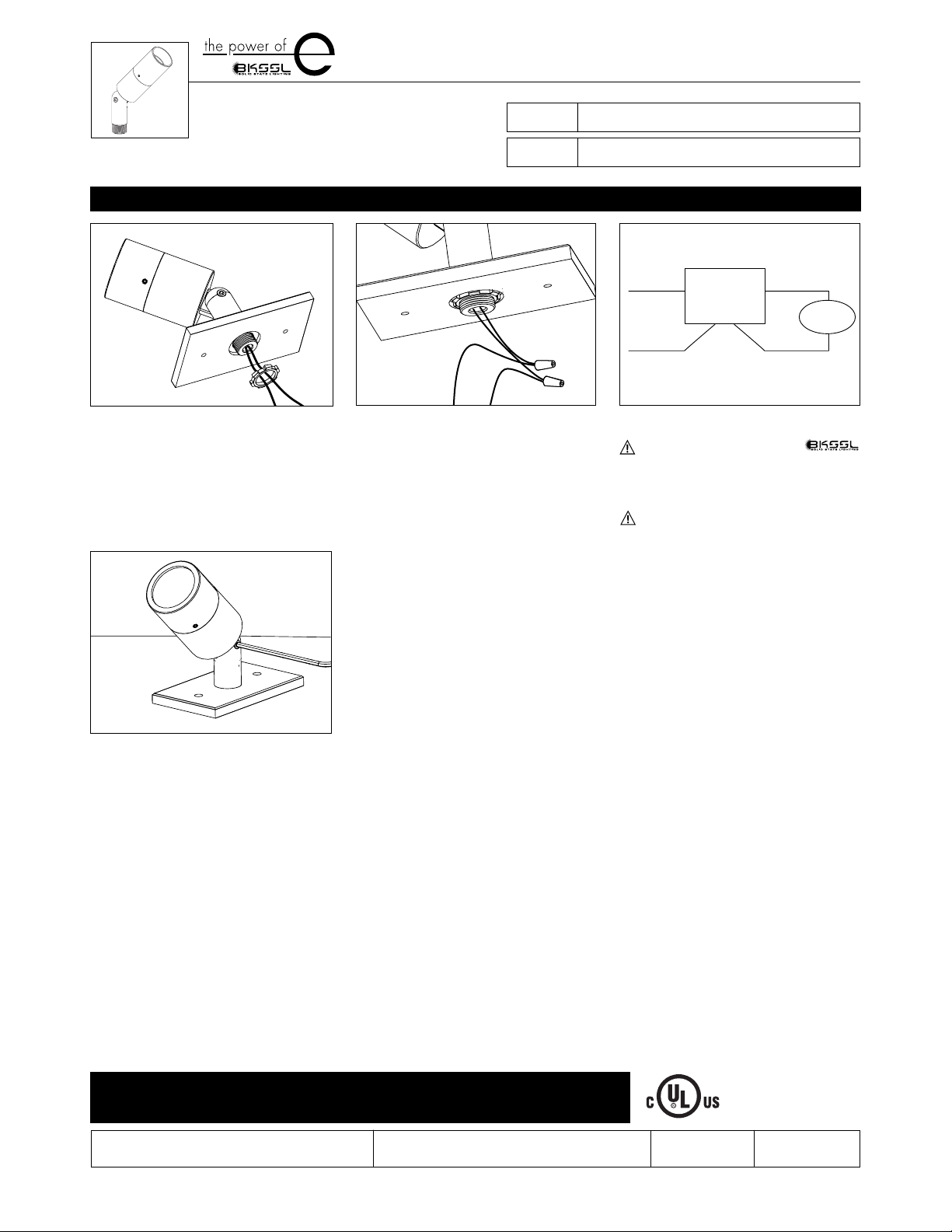

1. Mount knuckle onto suitable enclosure

according to designed lighting plan.

2. Secure ½” NPS stem to mounting option. Secure

withprovidedlocknutifapplicable.

3. Make watertight connections from remote

transformer to fixture leads using waterproof

wire connectors (By Others). See wiring

diagram.

Fixture Installation with Standard Knuckle

4. Use 5/32” Allen wrench to slightly loosen #10-

32 stainless steel black oxide socket head cap

screw at the knuckle for aiming purposes.

Tighten to secure desired location.

LINE 12V

Fixture

COM

Remote

Transformer

COM

MICRO NITE STAR™

Standard Installation

& Low Voltage

WIRING DIAGRAM

LED - For use with 12VAC

remote transformer or magnetic

transformers only. B-K Lighting cannot

guarantee performance with third party

manufacturers’ transformers.

Low Voltage - For use with 12VAC remote

transformer.

RELEASED

6-19-14

REFERENCE NUMBER

INS-2164-00

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION INSTRUCTIONS

Warning Hot Surface

TOOLS

NEEDED:

By Others

5/32” Allen Wrench

L.O.C.K.™ Knuckle System

Standard Adjustment

• Product must be installed by a qualified person in a manner

consistent with its intended use and in compliance with the

NationalElectricalCode,CanadianElectricalCode,andallLocal

andProvincialCodes.

• Followproductlabelinformationandinstructions.

• QualifiedPersonnel mustperform allservicing orrelamping of

thisproduct.

• Beforewiringtopowersupplyandduringservicingorrelamping,

turnoffpoweratfuseorcircuitbreakerbeforeservice.

• The use of accessory equipment not recommended by the

manufacturerorinstalledcontrarytoinstructionsmaycausean

unsafecondition.Theuseofdamagedcomponentsmaycause

anunsafeconditionandvoidproductwarranty.

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL SAFETY

AND INSTALLATION INSTRUCTIONS

• Donotblocklightemanatingfromproductinwholeorpart,

asthismaycauseanunsafecondition.

• Never operate the fixture with missing or damaged lens.

Lensmustbecleanedonregularbasis.

• Entire fixture may become extremely hot. Do not touch hot

lensorfixturebody.Donottouchthelampatanytime.Use

aclean,dry,softclothtohandlethelamp.Oilfromskinmay

damagethelampandcauseittorupture.

• Replace lamp only with correct wattage and type of lamp

markedonfixturelabel.

• All gaskets, O-rings and sealing surfaces must be kept clean

duringinstallationandservice;failuretodothismaycausean

unsafeconditionandvoidproductwarranty.

INSTRUCTIONS PERTAINING TO

A RISK OF FIRE, OR INJURY TO

PERSONS IMPORTANT SAFETY

INSTRUCTIONS

LightedlampisHOT!

WARNING-ToreducetheriskofFIREORINJURYTOPERSONS:

Turnoff/unplugandallowtocoolbeforereplacinglamp.

LampgetsHOTquickly!Contactonlyswitch/plugwhen

turningon.

Donottouchhotlens,guard,orenclosure(seediagram/

picture).

Keeplampawayfrommaterialsthatmayburn.

Donotouchthelampatanytime.Useasoftcloth.Oil

fromskinmaydamagelamp.

Donotoperatetheluminairefittingwithamissingor

damagedshield.

SAVE THESE INSTRUCTIONS

· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground

IMPORTANT LISTINGS AND CERTIFICATIONS

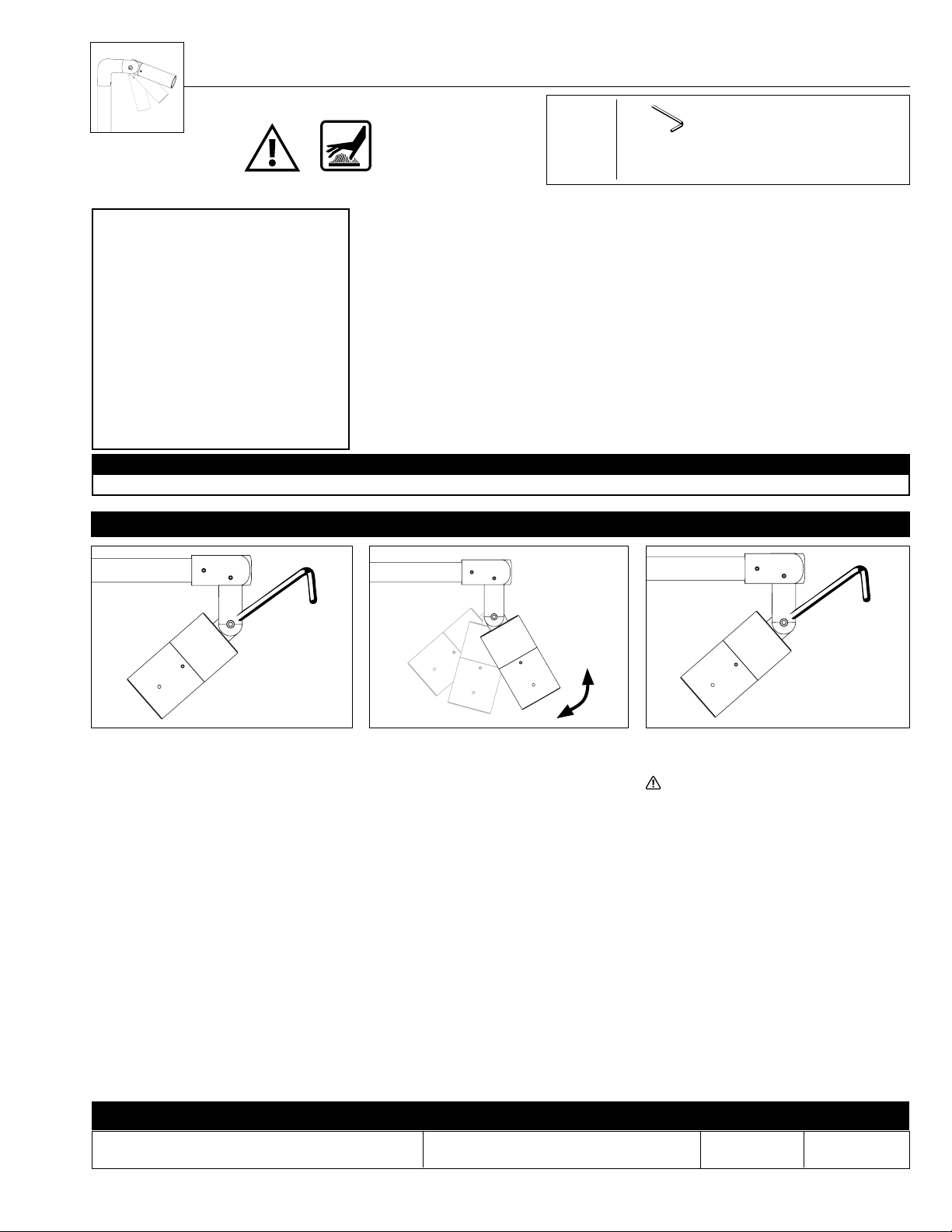

L.O.C.K.™ Knuckle - (Locking ‘O’ Ring Compression Knuckle)

2. Aimfixturetodesiredangle.1. Use 5/32” Allen wrench to slightly loosen #10-32

stainlesssteelsetscrewonthestemfor180°aiming

purpose.

3. Tighten#10-32stainlesssteelsetscrewusinga5/32”

Allenwrenchtosecureaimingposition.

Warning: Do not over tighten set screw. Doing

so will compromise O-ring seal and will void

warranty.

1. Use 5/64” Allen wrench to loosen #8-32 stainless set

screw and remove cap.

2. Space three fingers evenly around the optic and

gently rock optic to remove.

4. Disengage LED board and driver assembly. Replace

with new board and driver assembly.

5. Reverse install LED board and driver by carefully

wrapping 18 gauge wires around driver and

inserting into fixture body. Secure LED board in

place with stainless steel screws.

6. Snap optics in place. Place cap on fixture and

tighten set screw.

3. Use 5/64” Allen wrench to remove two

(2) #2-56 socket head cap screws on LED

board, grasp LED board and gently pull up to

expose quick disconnect.

REPLACING LED BOARD/DRIVER AND OPTICS

REPLACING LOW VOLTAGE HALOGEN LAMPS

1. Use 5/64” Allen wrench to loosen #8-32 stainless

set screw and remove cap.

3. Place cap on fixture and tighten set screw. Tighten

screw to 1/2 inch pounds. Top of screw should sit

flush with fixture cap.

Warning: Do not over tighten set screw.

Doing so will compromise O Ring seal and will

void warranty.

2. Firmly insert lamp pins into socket to make

connection. Rocking motion maybe required.

Do not exceed the maximum wattage listed

on the fixture label before installing.

LED / Low Voltage Halogen

1-5/8” Size

Replacement / Installation Instructions

RELEASED

11-18-14

REFERENCE NUMBER

INS000010

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION INSTRUCTIONS

IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.
