B-K lighting Nite Star Bedienungsanleitung

RELEASE DATE

01/20/2021

REFERENCE NUMBER

INS000929.2

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION OF B-K LIGHTING, INC. AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO REPRODUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE OR

SELL ANYTHING IT MAY DESCRIBE. REPRODUCTION, DISCLOSURE OR USE WITHOUT SPECIFIC WRITTEN AUTHORIZATION OF B-K LIGHTING, INC. IS STRICTLY FORBIDDEN.

5/32” and 5/64” Allen Wrench

Waterproof Wire Connectors

Mallet or Sledge Hammer

Warning Hot Surface

NEEDED

FOR

INSTALLATION:

By Others

Nite Star (NS)

Low Voltage

Standard Installation

Knuckle

Stake

• Product must be installed by a qualified person in a manner

consistent with its intended use and in compliance with the

National Electrical Code, Canadian Electrical Code, and all

Local and Provincial Codes.

• Follow product label information and instructions.

• Qualified Personnel must perform all servicing or relamping

of this product.

• Before wiring to power supply and during servicing or

relamping, turn off power at fuse or circuit breaker before

service.

• The use of accessory equipment not recommended by the

manufacturer or installed contrary to instructions may cause

an unsafe condition. The use of damaged components may

cause an unsafe condition and void product warranty.

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE ALL

SAFETY AND INSTALLATION INSTRUCTIONS

• Do not block light emanating from product in whole or part,

as this may cause an unsafe condition.

• Never operate the fixture with missing or damaged lens.

Lens must be cleaned on regular basis.

• Entire fixture may become extremely hot. Do not touch hot

lens or fixture body. Do not touch the lamp at any time. Use

a clean, dry, soft cloth to handle the lamp. Oil from skin

may damage the lamp and cause it to rupture.

• Replace lamp only with correct wattage and type of lamp

marked on fixture label.

• All gaskets, o-rings and sealing surfaces must be kept

clean during installation and service; failure to do this may

cause an unsafe condition and void product warranty.

INSTRUCTIONS PERTAINING TO

A RISK OF FIRE, OR INJURY

TO PERSONS IMPORTANT

SAFETY INSTRUCTIONS

Lighted lamp is HOT!

WARNING - To reduce the risk of FIRE OR INJURY TO

PERSONS:

Turn off/unplug and allow to cool before replacing

lamp.

Lamp gets HOT quickly! Contact only switch/plug

when turning on.

Do not touch hot lens, guard, or enclosure (see

diagram/picture).

Keep lamp away from materials that may burn.

Do no touch the lamp at any time. Use a soft cloth. Oil

from skin may damage lamp.

Do not operate the luminaire fitting with a missing or

damaged shield.

SAVE THESE INSTRUCTIONS

· Suitable for wet locations · Additionally suitable for mounting within 4 ft. of the ground

IMPORTANT LISTINGS AND CERTIFICATIONS

NS-Nite Star

Please refer to the low voltage design guide at www.bklighting.com/lvguide before installation for proper wire

selection.

IMPORTANT SAFETY INFORMATION - READ, FOLLOW, AND SAVE THESE INSTALLATION

INSTRUCTIONS

RELEASE DATE

01/20/2021

REFERENCE NUMBER

INS000929.2

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

Nite Star (NS)

Low Voltage

Standard Installation

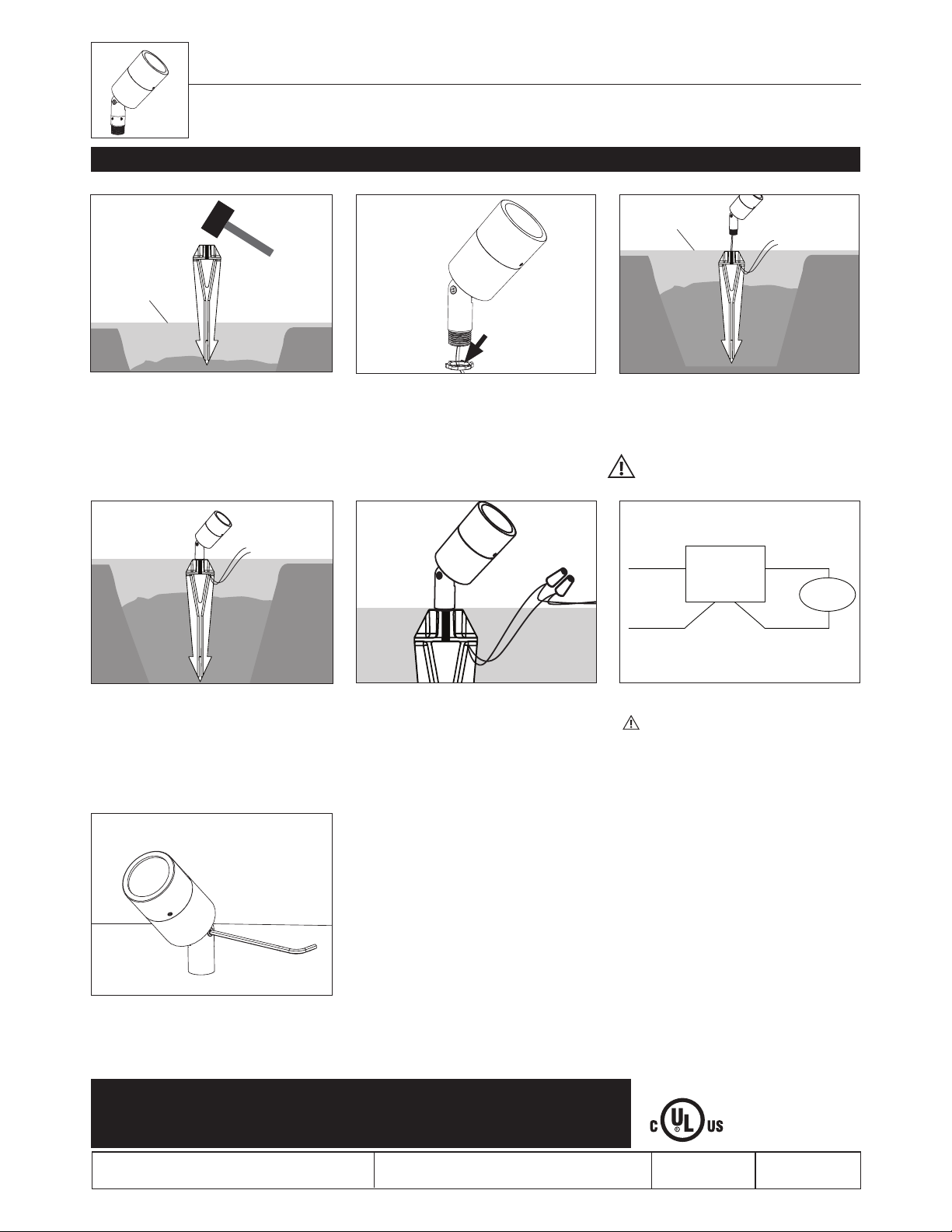

Fixture Installation with Stake

4. Attach the fixture to the threads on the stake.

Make sure the stake is secured in the ground.

2. Remove the locknut from the fixture, leave

the o-ring on the threads.

5. Make watertight connections from remote

transformer to fixture leads using waterproof

wire connectors (by others). See wiring

diagram.

6. Use a 5/32” allen wrench to slightly loosen

#10-32 stainless steel black oxide socket

head cap screw at the knuckle for aiming

purposes. Tighten to secure desired location.

LINE 12V

Fixture

COM

Remote

Transformer

COM

WIRING DIAGRAM

For use with 12VAC remote

transformer.

Finished Grade

1. Drive the stake into the ground with a mallet

or a small sledge hammer (by others). Make

sure the top is flush with the finished grade.

Finished Grade

3. Pull the fixture wire cable throught the

stake’s center where the hole is located. Silce

moved the fixture wire from under the stake

to the side to make a connection with the low

voltage direct burial cable (by others).

Ground wire connections is based off of

local code requirements.

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION

INSTRUCTIONS

RELEASE DATE

01/20/2021

REFERENCE NUMBER

INS000929.2

40429 Brickyard Drive • Madera, CA 93636 • USA

559.438.5800 • FAX 559.438.5900

www.bklighting.com • [email protected]

B-K LIGHTING

Nite Star (NS)

Low Voltage

Standard Installation

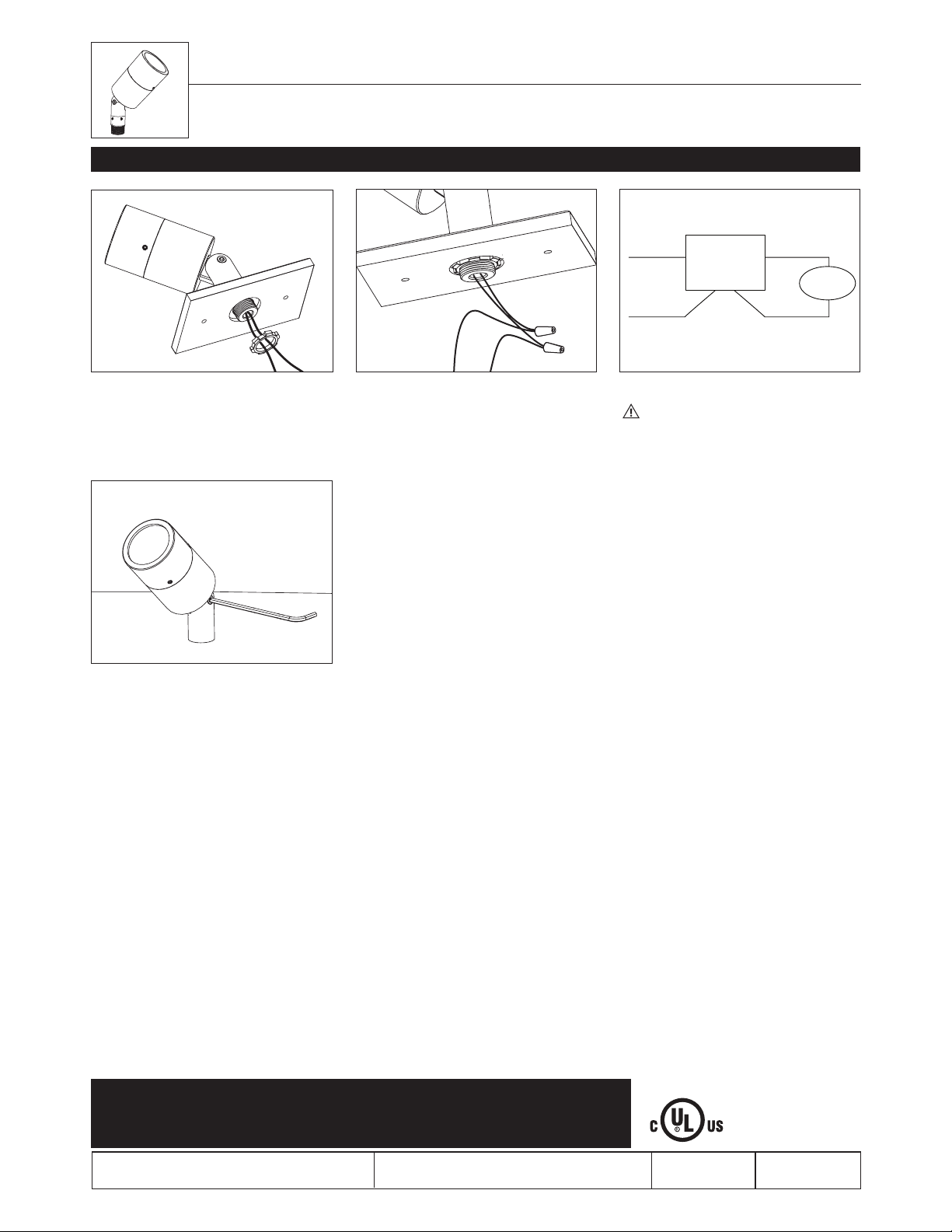

Fixture Installation with Standard Knuckle

1. Mount knuckle onto suitable enclosure

according to designed lighting plan.

2. Secure ½” NPS stem to mounting option.

Secure with provided locknut if applicable.

3. Make watertight connections from remote

transformer to lamp leads using waterproof

wire connectors (by others). See wiring

diagram.

4. Use a 5/32” allen wrench to slightly loosen

#10-32 stainless steel black oxide socket

head cap screw at the knuckle for aiming

purposes. Tighten to secure desired location.

LINE 12V

Fixture

COM

Remote

Transformer

COM

WIRING DIAGRAM

For use with 12VAC remote

transformer.

IMPORTANT SAFETY INFORMATION LISTED ON REVERSE

READ, FOLLOW, AND SAVE ALL SAFETY AND INSTALLATION

INSTRUCTIONS
