Barco RLS W12 Bedienungsanleitung

RLS W12

MSWU-81E

Document version: 00

Barco NV Projection Division

Noordlaan 5, B-8520 Kuurne

Phone: +32 56.36.82.11

Fax: +32 56.36.883.86

Support: www.barco.com/esupport

Visit us at the web: www.barco.com

1. MSWU-81E Serial Communication

MSWU-81E –2014/10/30 3

1. RLS W12 SERIAL COMMUNICATION

About this chapter

This chapter contains serial commands to control the projector.

Overview

Interface and Requirements

Cable Type and Pin definition

System Operation commands

1. MSWU-81E Serial Communication

4 MSWU-81E –2014/10/30

1.1 Interface and Requirements

Control Command Protocol

The RS-232 Commands use only ASCII characters which can be entered using a typical terminal emulator like Windows

HyperTerminal with the following setting:

Bits per second: 115200

Data bits: 8

Parity: None

Stop bits: 1

Flow control: None

TCP/IP communication port

The TCP/IP communication port number: 43680

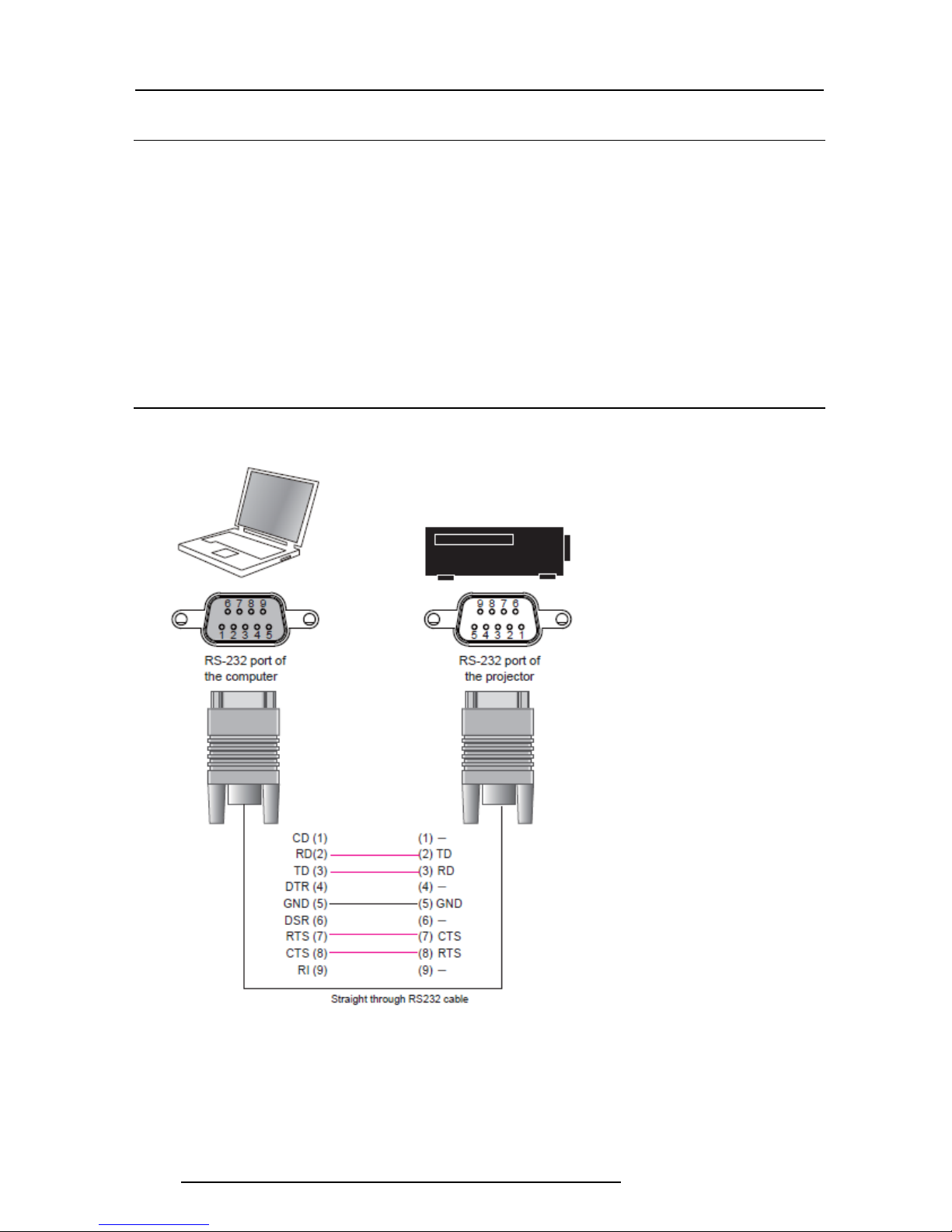

1.2 Cable Type and Pin definition

Diagram:

Note:

Use Straight through RS232 cable.

Pin 9 is reserved for service purpose only.

1. MSWU-81E Serial Communication

MSWU-81E –2014/10/30 5

1.3 System Operation commands

Introduction

The Operation commands tell the projector what to do. All commands start with 2 letters: “op” for operations

commands and a space [SP] then following a control command then finally the value wants to read, set, increase or

decrease. All commands must end with a carriage return (ASCII hex 0D), shown as [CR] below. The syntax for

operations commands is as follows:

op[SP]<operation command>[SP]<Setting Value>[CR]

For all but Execute functions the response from the projector will be the command and “= <value>” where <value> is

the current value or “NA” if the value is not available. For Execute functions the response will be the same command.

All responses will be in CAPS and also ending with a carriage return (ASCII hex 0D). Please refer to the following table

for command list and examples:

System Operation Commands:

Operation

Commands

Values

Set

= <value>

Makes the unit take that value.

Get

Asks what the current value is.

Increment

Adds 1 to the current value.

Decrement

Subtracts 1 from the current value.

Execute

(none)

Performs an action such as a reset.

Motor operation command:

For motor control like lens shift, focus and zoom, the parameters “ + ” and “ - ” are defined as follows.

Command item

command

System Action

focus

+ -

+ => Focus Near,

- => Focus Far

zoomio

+ -

+ => Zoom out

- => Zoom in

Vert.offset

+ -

+ => Up

- => Down

horiz.offset

+ -

+ => Right

- => Left

lens.center

(execute)

Midposition shift

Get operations command example:

Input: op bright? [CR]

System Response: OP BRIGHT = 100

Increase & Decrease operations command examples:

Input: op bright + [CR]

System Response: OP BRIGHT = 101

Input: op bright - [CR]

Response: OP BRIGHT = 126

Set operations command example:

Input: op bright = 127 [CR]

System Response: OP BRIGHT = 127

Execute command example:

Input: op auto.img [CR]

Response: OP AUTO.IMG

1. MSWU-81E Serial Communication

6 MSWU-81E –2014/10/30

1.4 List of valid operations commands for Barco MSWU-81E

RLS W12 Operations Commands

No.

Operation

Commands

Values

Notes

input.sel

= ?

0 = HDMI

1 = HD BaseT

2 = RGB D-15

3 = YUV 1

4 = RGBHV/YUV2

5 = Reserve (CVBS)

6 = Reserve (SVIDEO)

7 = Reserve (SCART)

8 = SDI/HDSDI/3G

9 = Reserve (STEREO DVI)

Note1

Note3

input.lock

= ?

0 = Auto

1 = 48 Hz

2 = 50 Hz

3 = 60 Hz

Note2

auto.powoff

= ?

0 = Off

1 = On

auto.powon

= ?

0 = Off

1 = On

no.signal

= ?

0 = Logo

1 = Blue

2 = Black

3 = White

Note1

auto.imgadj

= ?

0 = Off

1 = Auto

2 = Always

Note2

contrast

= ? + -

0 - 200

Note2

Bright

= ? + -

0 - 200

Note2

sharp

= ? + -

0 - 200

Note2

= ? + -

0 - 200

Note2

color.temp

= ?

0 = 3200K

1 = 5400K

2 = 6500K

3 = 9300K

4 = Native

Note2

Note8

red.offset

= ? + -

0-200

Note2

green.offset

= ? + -

0-200

Note2

blue.offset

= ? + -

0-200

Note2

red.gain

= ? + -

0-200

Note2

green.gain

= ? + -

0-200

Note2

blue.gain

= ? + -

0-200

Note2

aspect

= ?

0 = 5:4

1 = 4:3

2 = 16:10

3 = 16:9

4 = 1.88

5 = 2.35

6 = Letterbox

7 = Native

8 = Unscaled

Note2

Note5

1. MSWU-81E Serial Communication

MSWU-81E –2014/10/30 7

h.total

= ? + -

0-200

Note2

Note7

h.pos

= ? + -

0-200

Note2

h.phase

= ? + -

0-200

Note2

Note7

v.pos

= ? + -

0-200

Note2

auto.img

(execute)

Note2

picture.mode

= ?

0 = Bright

1 = Presentation

2 = Video

3 = RGB Only

color.space2

= ?

0 = Auto

1 = YUV HD

2 = YUV STD

3 = RGB-PC (0-255)

4 = RGB-Video (16-235)

Note2

zoom

= ?

0 = Off

1 = Crop

2 = Zoom

Note2

Note6

pip.sel

= ?

1 = HDMI 1

2 = HDMI 2

3 = VGA

4 = YUV 1

5 = RGBHV/YUV2

6 = Reserve

7 = Reserve

8 = Reserve

9 = SDI/HDSDI/3G

Note1

Note9

pip.pos

= ?

0 = Top left

1 = Top right

2 = Bottom left

3 = Bottom right

4 = Split L-R

Note1

Note10

pip

= ?

0 = Off

1 = On

Note1

lamp.mode

= ?

0 = Economy

1 = Standard

2 = Dimming

Note2

lamps

= ?

0 = Single

1 = Dual

Note1

Note11

altitude

= ?

0 = Off

1 = On

Note1

lamp.pwr

= ?

W7:0(75%) ~ 20 (100%)

H8:0(80%) ~ 20 (100%)

Note2

lamp1.stat

0 = Off

1 = On

Note1

lamp2.stat

0 = Off

1 = On

Note1

rear.proj

= ?

0 = front

1 = rear

Note1

ceil.mode

= ?

0 = floor

1 = ceiling

Note1

zoomio

+ -

+ = Zoom out

- = Zoom in

Note1

focus

+ -

+ = Focus Near

- = Focus Far

Note1

vert.offset

+ -

+ = Up

- = Down

Note1

1. MSWU-81E Serial Communication

8 MSWU-81E –2014/10/30

horiz.offset

+ -

+ = Right

- = Left

Note1

dyna.cont

= ?

0 = Off

1 = On

Note2

gamma

= ?

0 = 1.8

1 = 2.0

2 = 2.2

3 = 2.35

4 = 2.5

5 = S-Curve (H8 only)

Note2

int.ptrn

= ?

0 = Off

1 = Color Bars

2 = Hatch

3 = Burst

4 = Red

5 = Green

6 = Blue

7 = White

8 = Black

9 = TI-Red

10 = TI-Green

11 = TI-Blue

12 = TI-Ramp

13 = Warping/Blending

Note1

color.space

= ?

0 = Native

1 = Reserve (EBU)

2 = Reserve (SMPTE)

3 = Custom

Note2

Lens.center

(execute)

Note1

h.keystone

= ? + -

-350~+350

Note1

Note15

v.keystone

= ? + -

-200~+200

Note1

Note15

warp.rotat

= ? + -

-20 ~ +20 (in ¼∘unit)

warp.pinbrl

= ? + -

-100 ~ +100

warp.tlc.x

= ? + -

‘x: -192 ~ +192

warp.tlc.y

‘y: -120 ~ +120

warp.trc.x

= ? + -

‘x: -192 ~ +192

warp.trc.y

‘y: -120 ~ +120

warp.blc.x

= ? + -

‘x: -192 ~ +192

warp.blc.y

‘y: -120 ~ +120

warp.brc.x

= ? + -

‘x: -192 ~ +192

warp.brc.y

‘y: -120 ~ +120

warp.reset

(execute)

w2.recover

(execute)

blank.top

= ? + -

0 ~ 360

blank.btm

= ? + -

0 ~ 360

blank.left

= ? + -

0 ~ 534

blank.right

= ? + -

0 ~ 534

1. MSWU-81E Serial Communication

MSWU-81E –2014/10/30 9

blank.rst

(execute)

scen.stat

= ?

0 = Off

1 = On

scen.wht.top

= ? + -

0 ~ 500

scen.wht.btm

scen.wht.left

= ? + -

0 ~ 800

scen.wht.right

scen.blk.top

= ? + -

0 ~ 32

scen.blk.btm

scen.blk.left

= ? + -

0 ~ 32

scen.blk.right

scen.red

= ? + -

0 ~ 32

scen.green

= ? + -

0 ~ 32

scen.blue

= ? + -

0 ~ 32

scen.all

= ? + -

0 ~ 32

scen.reset

(execute)

scen.adl

= ?

0 = Off

1 = On

brilliant.blend

= ?

0 = Off

1 = On

ir.addr

= ?

0 = remote code 1

1 = remote code 2

eco.net.pow

= ?

0 = Off (RJ45 Power On)

1 = On (RJ45 Power Off)

net.ipaddr

= ?

net.subnet

= ?

net.gateway

= ?

net.dhcp

= ?

0 = Off

1 = On

menu.pos

= ?

0 = Top left

1 = Top right

2 = Bottom left

3 = Bottom right

4 = center

Note1

startup.logo

= ?

0 = Off

1 = On

startup.chime

= ?

0 = Off

1 = On

btn.1

btn.2

btn.3

btn.4

btn.5

= ?

0 = HDMI

1 = HD BaseT

2 = VGA

3 = YUV 1

4 = RGBHV/YUV2

5 = Reserve (CVBS)

6 = Reserve (SVIDEO)

7 = Reserve (SCART)

8 = SDI/HDSDI/3G

9 = Reserve (STEREO DVI)

1. MSWU-81E Serial Communication

10 MSWU-81E –2014/10/30

trig.1

= ?

0 = 5:4

1 = 4:3

2 = 16:10

3 = 16:9

4 = 1.88

5 = 2.35

6 = Letterbox

7 = Native

8 = Unscaled

9 = Auto

Note1

trig.2

= ?

0 = 5:4

1 = 4:3

2 = 16:10

3 = 16:9

4 = 1.88

5 = 2.35

6 = Letterbox

7 = Native

8 = Unscaled

9 = Auto

Note1

auto.src

= ?

0 = Off

1 = On

Note1

lang

= ?

0 = English

1 = French

2 = Spanish

3 = German

4 = Portuese

5 = Chinese Simplified

6 = Chinese Traditional

7 = Japanese

8 = Korean

9 = Russian

100

model

101

ser.no

102

sw.ver

Note13

103

act.src

0 = HDMI 1

1 = HDMI 2

2 = VGA

3 = YUV 1

4 = RGBHV/YUV2

5 = Reserve

6 = Reserve

7 = Reserve

8 = SDI/HDSDI/3G

Note1

104

pip.src

0 = HDMI 1

1 = HDMI 2

2 = VGA

3 = YUV 1

4 = RGBHV/YUV2

5 = Reserve

6 = Reserve

7 = Reserve

8 = SDI/HDSDI/3G

Note1

105

pixel.clock

Note2

106

signal

Note2

107

h.refresh

Note2
