Belkin F5U503ea Bedienungsanleitung
It
Belkin®Components FireWire
PCI Card Instruction Manual
Mode d’emploi de la carte FireWire
PCI de Belkin®Components
Bedienungshandbuch für die Belkin®
Components FireWire-PCI-Karte
Handleiding Belkin®Components FireWire
PCI kaart
Instructivo para
la tarjeta PCI FireWire
Manuale d’istruzione scheda PCI Fire
Wire Belkin®Components
En
P74106ea F5U503ea
Fr
De
Ne
Es
P74106ea_F5U503ea_Manual.qxd 11/4/04 2:32 PM Page 1
Table of Contents En
English . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Français (Europe) . . . . . . . . . . . . . . . . . 17
Deutsch . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Nederlands . . . . . . . . . . . . . . . . . . . . . . .49
Español . . . . . . . . . . . . . . . . . . . . . . . . . 65
Italiano . . . . . . . . . . . . . . . . . . . . . . . . . . .81
P74106ea_F5U503ea_Manual.qxd 11/4/04 2:32 PM Page 2
Thank you for purchasing the Belkin IEEE-1394 PCI
upgrade card. Now you can add three 400 Mbps FireWire
ports to your Windows®98 SE, Windows®2000, or
Windows®Me computer system and enjoy the blazing
speed and Plug-and-Play ease of next-generation
FireWire devices.
Features:
• Three external 400 Mb/ps IEEE 1394 ports
• OHCI 1.0 Compliant
• PCI 2.1 and 2.2 compliant
• IEEE 1394a Rev 5 compliant
• Internal auxiliary power connector
• IT/AT FIFO Buffers – 4k/2k
• IR/AR FIFO Buffers – 4k/2k
Minimum Recommended System Requirements:
• 266 Mhz Pentium II
• 32 Megabytes RAM
• One Free PCI 2.1 compliant PCI Slot
• Windows®98 SE, Windows®2000, Windows®Me
Package Contents
• Belkin IEEE 1394 PCI card
• Installation CD
• User’s Manual
Introduction
1
En
P74106ea_F5U503ea_Manual.qxd 11/4/04 2:32 PM Page 4
Hardware Installation (continued)
3
Hardware Installation
2

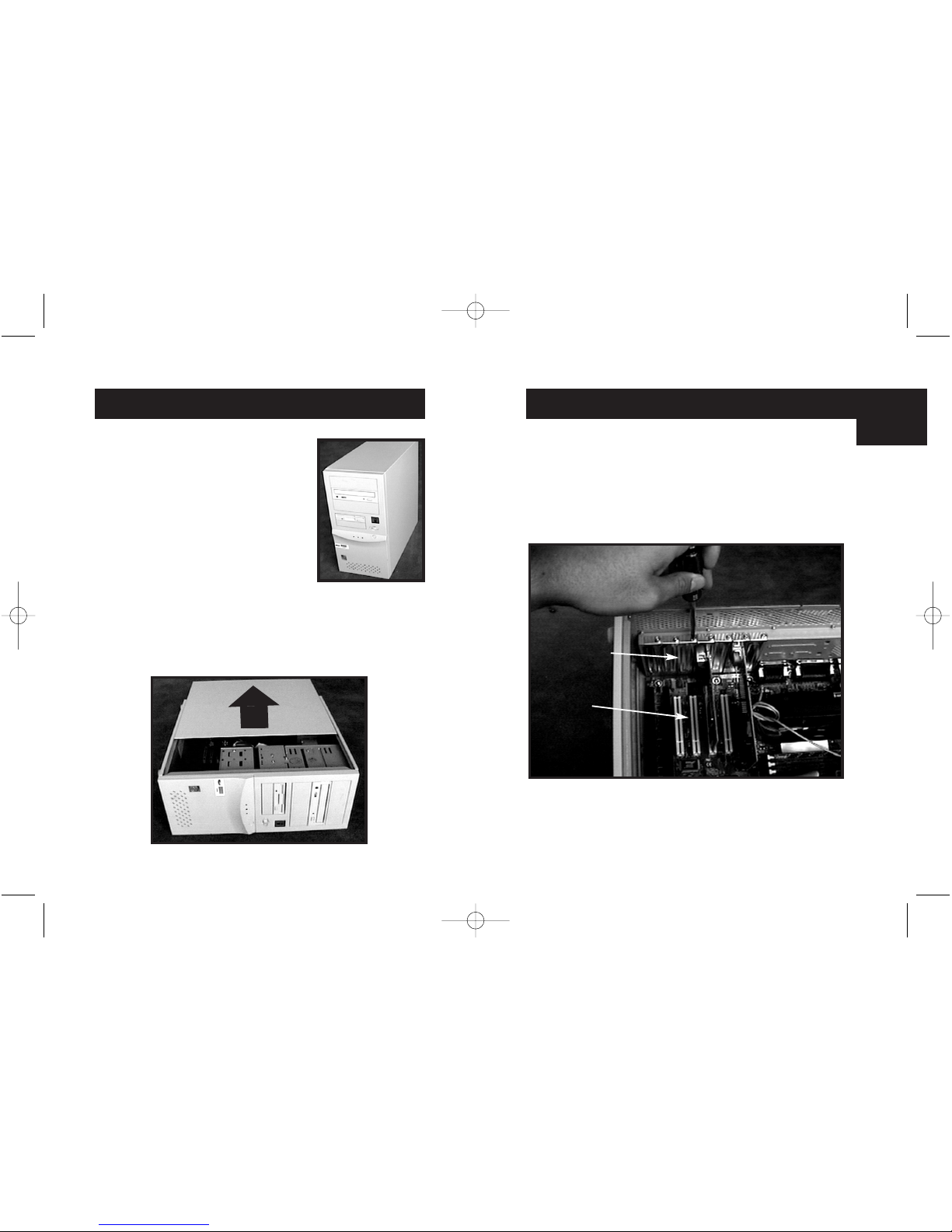

1. Power off your computer and
disconnect all connected devices
and peripherals.
3. Locate the PCI slots on your computer’s main circuit board.
Locate a free PCI slot. Remove the metal plate that covers
the rear slot corresponding to the PCI slot you had selected.
You may need a cross-head/Phillips screwdriver to remove
any screws. See the image below for your reference.
2. Open the case of your computer. Refer to your computer
user manual for details regarding how to do this. Be sure
to touch any bare metal portion of your computer case to
discharge yourself of any static electricity, which can
damage your computer, or the FireWire card. Rear Bracket
PCI Slots
En
P74106ea_F5U503ea_Manual.qxd 11/4/04 2:32 PM Page 2
5
Hardware Installation (continued)

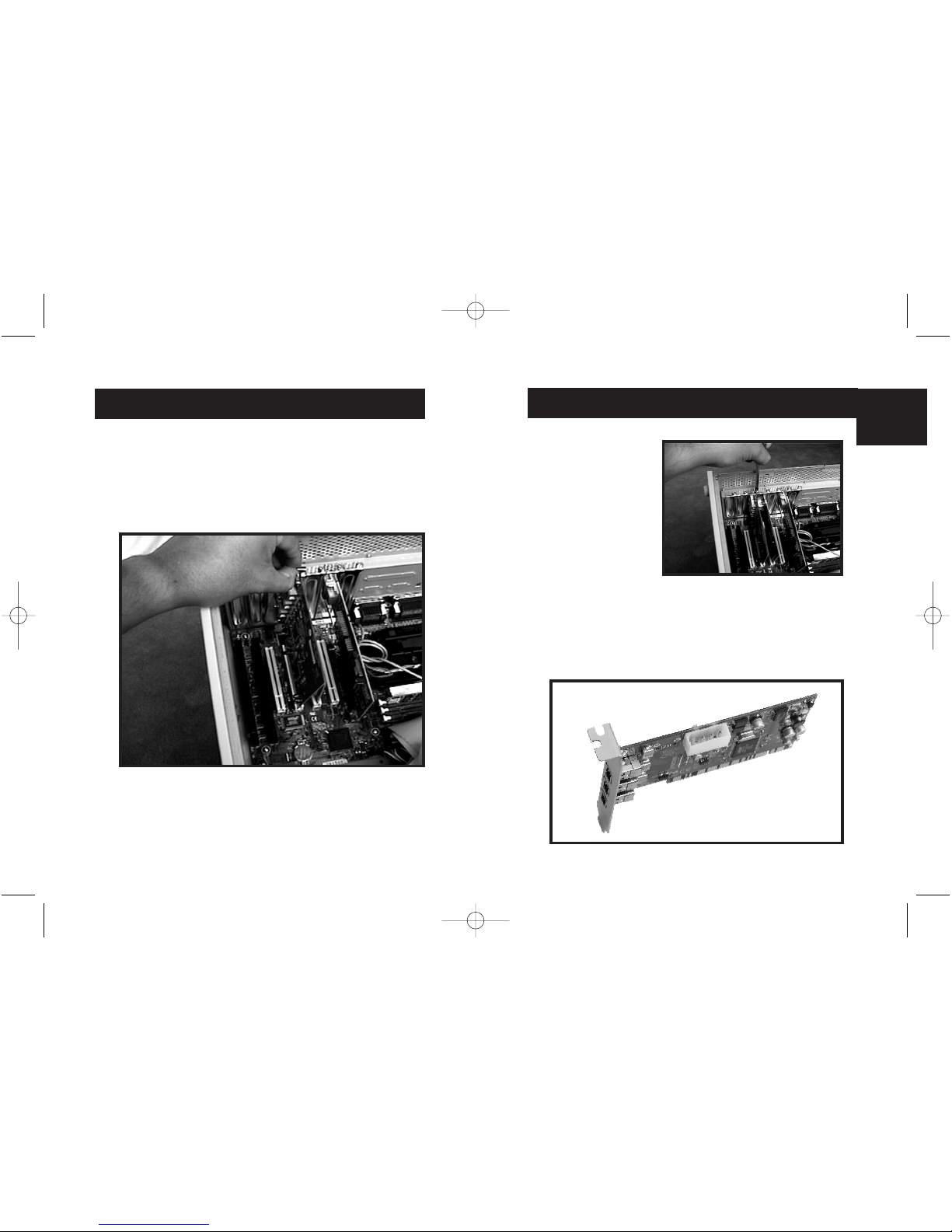

4. Remove the FireWire card from its protective static bag.
Handle it by the metal bracket only, and do not touch the
gold edge connectors. Insert the card into the PCI slot,
carefully aligning the rear bracket to the computer case.
Make sure that the gold fingers are fully inserted into the slot.
Hardware Installation (continued)
4
5. Fasten the card
securely using the
screw that was
used to hold
the rear bracket.
6. (Optional) If you are planning to connect multiple bus
powered FireWire devices to the Belkin IEEE 1394
PCI card, it may be necessary to draw auxiliary power from
your computers power supply. This is accomplished by
connecting a spare disk drive power cable to the power
connector on the PCI card.
En
P74106ea_F5U503ea_Manual.qxd 11/4/04 2:32 PM Page 4
Windows 98 SE Driver Installation
7
1. As Windows 98 SE starts the "New Hardware Wizard" will
launch and recognize the IEEE 1394 PCI card as a "PCI OHCI
compliant IEEE 1394 Host Controller”. Click "Next”.
2. Select "Search for the best driver for your device
(Recommended)". Click "Next".
Hardware Installation (continued)
6
8. Re-attach all peripherals to your computer, and turn the
power on.
8. Close the computer case.
En
P74106ea_F5U503ea_Manual.qxd 11/4/04 2:32 PM Page 6

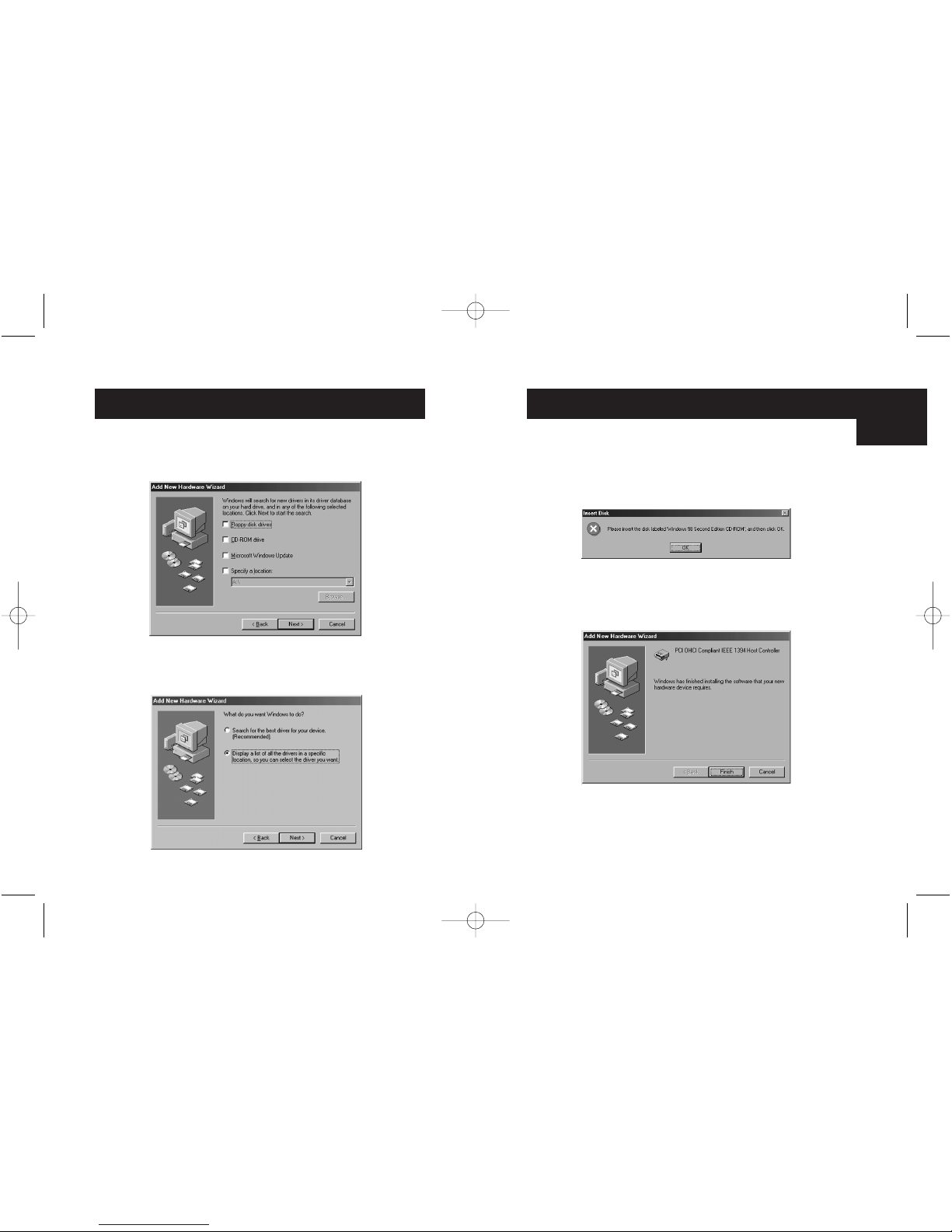

Windows 98 SE Driver Installation (continued)
9
5. You may now be prompted to insert your Windows 98 SE
installation disk. If so, insert the CD into your CD-ROM drive,
and click "OK”.
6. Driver Installation is now complete. Click "Finish”.
Windows 98 SE Driver Installation (continued)
8
3. Uncheck all boxes. Click "Next”.
4. Windows will now search its driver database for the correct
driver. Click "Next.
En
P74106ea_F5U503ea_Manual.qxd 11/4/04 2:32 PM Page 8

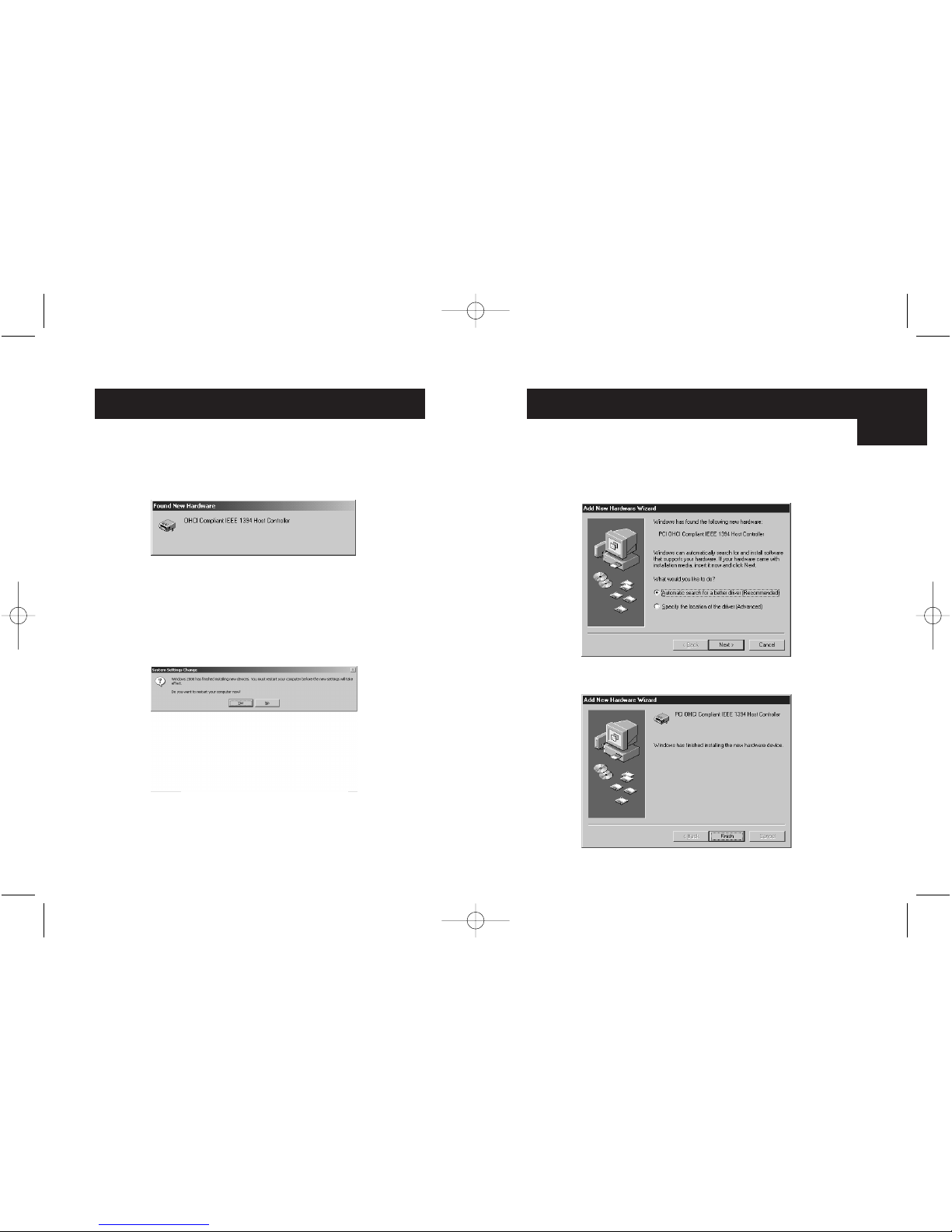

Windows Me Driver Installation
11
1. As Windows Me starts the "New Hardware Wizard" will
launch, and recognize the IEEE 1394 PCI card as a "PCI OHCI
Compliant IEEE 1394 Host Controller”. Choose "Automatic
search for a better driver (Recommended)”. Click "Next”.
2. Windows will now locate and install the correct driver.
Click "Finish".

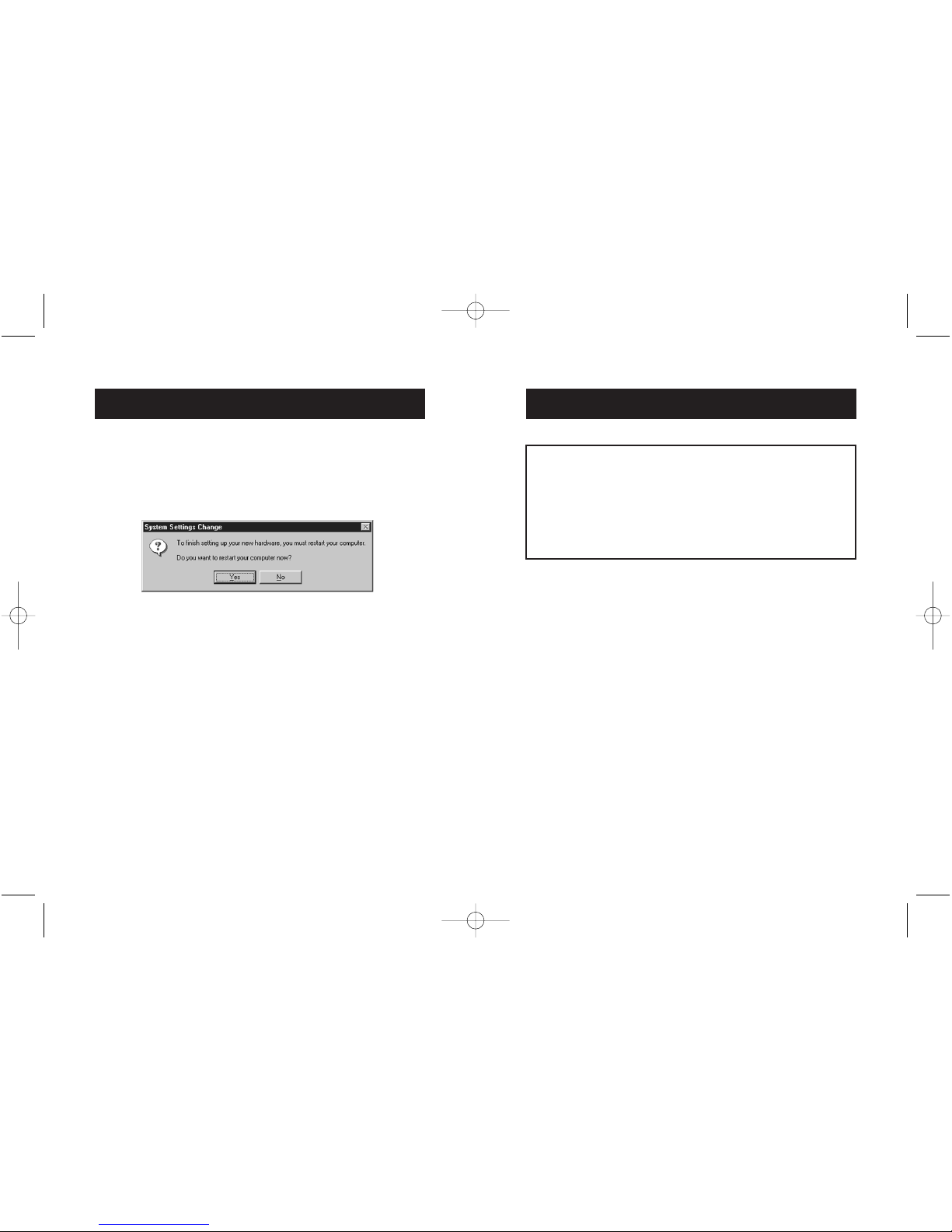

Windows 2000 Driver Installation
10
1. As Windows 2000 starts the "New Hardware Wizard" will
launch, and recognize the IEEE 1394 PCI card as a "OHCI
Compliant IEEE 1394 Host Controller”.
2. Windows will automatically install the correct driver and
prompt you to restart your computer. Click "Yes”. Installation is
now complete and the IEEE 1394 PCI card will be ready to use
after Windows restarts.
En
P74106ea_F5U503ea_Manual.qxd 11/4/04 2:32 PM Page 10
FCC Statement
DECLARATION OF CONFORMITY WITH FCC RULES FOR
ELECTROMAGNETIC COMPATIBILITY
We, Belkin Components, of 501 West Walnut Street, Compton CA 90220,
declare under our sole responsibility that the product:
F5U503ea
to which this declaration relates:
Complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this
device must accept any interference received, including interference that may
cause undesired operation.
CE Declaration of Conformity
We, Belkin Components, declare under our sole responsibility that the F5U501, to which this
declaration relates, is in conformity with Generic Emissions Standard EN50081-1 and with
Generic Immunity Standard EN50082-1 1992.
Belkin Components Limited Lifetime Product Warranty
Belkin Components warrants this product against defects in materials and workmanship for
its lifetime. If a defect is discovered, Belkin will, at its option, repair or replace the product at
no charge provided it is returned during the warranty period, with transportation charges
prepaid, to the authorized Belkin dealer from whom you purchased the product. Proof of
purchase may be required.
This warranty does not apply if the product has been damaged by accident, abuse, misuse,
or misapplication; if the product has been modified without the written permission of Belkin;
or if any Belkin serial number has been removed or defaced.
THE WARRANTY AND REMEDIES SET FORTH ABOVE ARE EXCLUSIVE IN LIEU OF ALL OTHERS,
WHETHER ORAL OR WRITTEN, EXPRESSED OR IMPLIED. BELKIN SPECIFICALLY DISCLAIMS
ANY AND ALL IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
No Belkin dealer, agent, or employee is authorized to make any modification, extension, or
addition to this warranty.
BELKIN IS NOT RESPONSIBLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES RESULTING FROM ANY BREACH OF WARRANTY, OR UNDER ANY OTHER
LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOST PROFITS, DOWNTIME,
GOODWILL, DAMAGE TO OR REPROGRAMMING, OR REPRODUCING ANY PROGRAM
OR DATA STORED IN OR USED WITH BELKIN PRODUCTS.
13
Windows Me Driver Installation (continued)
12
3. Windows will automatically install the correct driver and
prompt you to restart your computer. Click "Yes”. Installation is
now complete and the IEEE 1394 PCI card will be ready to use
after Windows restarts.
P74106ea_F5U503ea_Manual.qxd 11/4/04 2:32 PM Page 12
Belkin Corporation
501 West Walnut Street • Compton • CA •
90220-5221 • USA
Tel +1 310 898 1100
Fax +1 310 898 1111
Belkin Ltd.
Express Business Park •
Shipton Way • Rushden •
NN10 6GL • United Kingdom
Tel +44 (0) 1933 35 2000
Fax +44 (0) 1933 31 2000
Belkin B.V.
Starparc Building • Boeing Avenue 333 •
1119 PH Schiphol-Rijk • The Netherlands
Tel +31 (0) 20 654 7300
Fax +31 (0) 20 654 7349
Belkin GmbH
Hanebergstrasse 2
80637 München, Germany
Tel +49 (0) 89 / 1434 05-0
Fax +49 (0) 89 / 143405-100
Belkin SAS
5 Rue du Petit Robinson•
78350 Jouy en Josas • France
Tel +33 (0) 1 34 58 14 00
Fax +33 (0) 1 39 46 62
Free Technical support
Tel: 00800 22355460
e-mail: [email protected]
© 2004 Belkin Corporation. All rights reserved.
All trade names are registered trademarks of respective manufacturers listed.
FireWire®is a trademark of Apple Computer, Inc. registered in the United States and other countries,
used under license. The Apple logo, FireWire®and the FireWire®logo are trademarks of Apple
Computer, Inc. registered in the United States and other countries, used under license. P74237ea
