BestScope BS-2094 Series Bedienungsanleitung

BS-2094 Series

Inverted Biological Microscope

Instruction Manual

BS-2094A BS-2094AF

BS-2094B BS-2094BF

This instruction manual is intended for users of the Inverted Series Biological Microscope BS-2094. To ensure

safety use, perform the best performance and to familiarize yourself with the use of this microscope, please read

this manual carefully before operating this product.

BestScope International Limited

Contents

Before Using ……………………………………………………………………

Safety Symbol…………………………………………………………………

Safety Precautions ……………………………………………………………

Care and Maintenance…………………………………………………………

Chapter 1 Introduction …………………………………………………………

1.1 Technical Specifications …………………………………………………

1.1.1 Main Technical Specifications and Configuration……………………

1.1.2 Objective Parameters…………………………………………………

1.1.3 Electrical Parameters…………………………………………………

1.2 Components ………………………………………………………………

Chapter 2 Overview of Agencies ………………………………………………

Chapter 3 Regulation and Operation …………………………………………

3.1 Turning the Power on ……………………………………………………

3.2 Turning the Illumination switch on………………………………………

3.2.1 Manual Lighting Switch……………………………………………

3.2.2 ECO Switch (Optional functions) …………………………………

3.3 Adjusting the Illumination Brightness……………………………………

3.4 Specimen Placement and Stage Knob Adjustment………………………

3.4.1 Mechanical Stage……………………………………………………

3.4.2 Pallet…………………………………………………………………

3.4.3 Auxiliary Stage………………………………………………………

3.5 Adjusting the Interpupillary Distance………………………………………

3.6 Focusing on the Specimens ………………………………………………

3.6.1 Focus Knobs…………………………………………………………

3.6.2 Focus Knob Tight Adjustment ………………………………………

3.7 Adjusting the Diascopic Illumination Aperture Diaphragm………………

3.8 Switching the Objective……………………………………………………

3.9 Operation the Phase Contrast Microscope…………………………………

3.10 Operation the Emboss Contrast Microscope ……………………………

3.10.1 Condenser-side Emboss Contrast Slider……………………………

3.10.2 Eyepiece-tube-side Emboss Contrast Slider ………………………

BestScope International Limited

3.11 Operating the Episcopic Illumination Microscopy………………………………

3.11.1 Episcopic Illumination………………………………………………

3.11.2 Fluorescence Filter Cube Turret ……………………………………

3.11.3 Filter Cube Switching Unit …………………………………………

3.11.4 Fluorescence Filter Cube……………………………………………

3.11.5 Fluorescence LED Unit ……………………………………………

3.12 Operating the LCD ………………………………………………………

3.12.1 The status of LCD …………………………………………………

3.12.2 Operating the illumination switch ………………………………

Chapter 4 Assembly………………………………………………………………

4.1 Installation diagram ……………………………………………………

4.2 Installation Steps ………………………………………………………

4.2.1 Installing the Condenser ……………………………………………

4.2.2 Installing the Phase Contrast Slider …………………………………

4.2.3 Installing the Moving Ruler …………………………………………

4.2.4 Installing the Objective ………………………………………………

4.2.5 Installing the Eyepiece ………………………………………………

4.2.6 Installing the LED Light Box ………………………………………

4.2.7 Installing the Camera…………………………………………………

4.3 Assembly Episcopic Illumination Microscopy…………………………………

4.3.1 Installing the Filter Cube ……………………………………………

4.3.2 Installing the Fluorescence LED Unit ………………………………

4.3.3 Replacing the Fuse …………………………………………………

Chapter 5 Maintenance and Storage……………………………………………

5.1 Cleaning …………………………………………………………………

5.1.1 Cleaning the Lenses …………………………………………………

5.1.2 Cleaning Parts other than Lenses ……………………………………

5.1.3 Cleaning off Immersion Oil …………………………………………

5.1.4 Decontaminating this Product ………………………………………

5.2 Storage ……………………………………………………………………

Chapter 6 Troubleshooting ……………………………………………………

6.1 Optical System ……………………………………………………………

6.2 Mechanical Parts …………………………………………………………

6.3 electrical Parts………………………………………………………………

BestScope International Limited

Before Using BS-2094

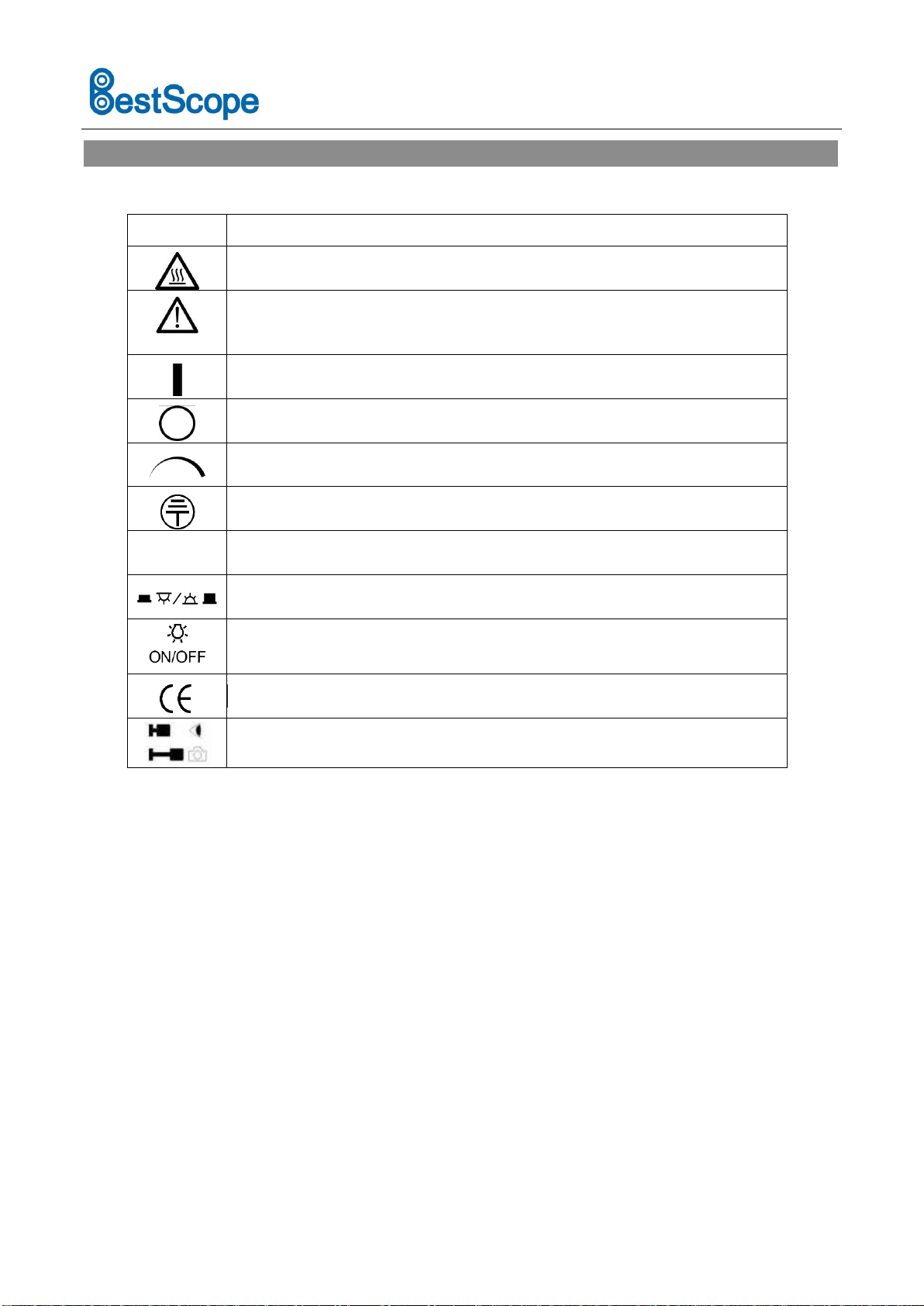

Safety Symbol

Symbol

Description

The surface is hot and cannot be touched with bare hands.

Please read this manual carefully before using the product. Incorrect

usage can cause personal injury or property damage.

The main power switch is turned on.

The main power switch is turned off.

Adjustment direction of illumination.

Ground connection.

ECO

People go lights out switch.

Up and down light switch.

Light switch.

Through the CE certification.

Lever in, Bino: Trino=100: 0

Lever out, Bino: Trino=0: 100

Safety Precautions

1. Be careful when opening box, prevent lens glass to stick to fingerprint, perspiration other

factors influence observation, prevent lens and other attachment drop damaged.

2. Avoid placing the microscope in place with direct sunlight, high temperature or high

humidity, dust, and strong vibration. Ensure that the stage is flat, horizontal and strong

enough.

3. If a bacterial solution or water spatters spill on the stage, objective or observing tube,

immediately unplug the power cord. Then, wipe off any solution or water with to keep the

microscope dry. Otherwise, it could damage the instrument.

4. To avoid blocking the natural convection air for cooling, make sure the left, right, top, and

rear of the microscope are at least 10 centimeters away from the wall and other objects.

BestScope International Limited

BS-2094

5. Grounding the machine to avoid lightning strike.

6. To ensure safety, always make sure the main switch is in "O" (disconnecting) and cut off

the power while waiting for the LED lights and the lamp room to cool completely. Input

voltage check: the input voltage indicated on the back of the microscope is consistent with

the supply voltage, otherwise the microscope will be seriously damaged.

7. Use our company dedicated wire.

8. When carrying this product, one hand should firmly hold it by gripping the recess in the

front lower part of the main body and the other holds the recess in the rear of the main

body.

★Do not hold any other parts (such as the upper part of the illumination pillar, focus knobs, eyepiece tube,

or stage) when carrying the microscope. Doing so might result in dropping or failure of this microscope.

Care and Maintenance

1. All lenses have been calibrated, please do not disassemble by yourself.

2. The structure of objective converter and coarse and fine focus mechanism are precise,

please do not disassemble easily.

3. The instrument should be kept clean, have to regular removal of dust, special attention

should be paid to do not contaminate the optical parts when cleaning.

4. The stain of the lens, such as fingerprints and grease can be wiped with a small amount of

ethyl ether (70%) and alcohol (30%) mixed solution.

Recess in the rear

Recess in the front lower part

BestScope International Limited

BS-2094

5. Do not use organic solvents to clean the non-optical parts of the microscope. Please use

neutral detergents when cleaning.

6. When using, if the microscope be wet liquid, should immediately cut off the power and

dry.

7. Do not disassemble any part of the microscope, which will affect the function or reduce

the performance of the microscope.

8. The instrument should be placed indoor with cool and dry, covered the dust cover when

not in use. Cover up, must wait for the lamp room to cool down.

9. The microscope usage environmental requirements:

a) For indoor use;

b) The environment temperature range: 10 ℃~ 35 ℃;

c) Maximum relative humidity: 80% at 31 ℃, linear temperature down to 34 ℃is 70%,

60% at 37 ℃, 50% at 40 ℃.

10. Microscope to store and transport environment requirements:

a) the environment temperature range: - 40 ℃~ + 70 ℃

b) relative humidity range: 10% ~ 100%

c) atmospheric pressure range: 500 hpa ~ 1060 hpa

Because the solvent such as ether and alcohol are extremely flammable, do not operate

power switch of various electrical equipment when using, and keep away from open fire, please

ensure indoor ventilation.

BestScope International Limited

Chapter 1 Introduction BS-2094

1.1 Technical Specifications

1.1.1 Main technical specifications and configuration

Device

Technical Specifications

BS-2094A

BS-2094AF

BS-2094B

BS-2094BF

Eyepiece

Extra Wide Field Eyepiece 10×/22

●

Field Eyepiece 15×/16

○

Field Eyepiece 20×/12

○

Observation head

Seidentopf Viewing Head, Inclined at 45°, Interpupillary

48-75mm

●

Objective

Infinity plane objective 4×

●

○

●

○

Infinity plane objective 10×

○

Infinity plane objective 20×

○

Infinity plane objective40×

○

Infinity plane Phase contrast objective 4×

○

Infinity plane Phase contrast objective 10×

●

○

●

○

Infinity plane Phase contrast objective 20×

●

○

●

○

Infinity plane Phase contrast objective 40×

●

○

●

○

Infinity plane semi-apochromatic objective 4×

—

●

—

●

Infinity plane semi-apochromatic objective 10×

—

●

—

●

Infinity plane semi-apochromatic objective 20×

—

●

—

●

Infinity plane semi-apochromatic objective 40×

—

●

—

●

Nosepiece

Quintuple Nosepiece

●

—

Quintuple intelligent Nosepiece

—

●

Focusing mechanism

up 7mm, down 1.5mm, to limit up to 18.5mm

●

Centering telescope

lens tube φ30

●

○

●

○

stage

250mm×170mm

●

Moving stage

Y- 80mm, X- 128mm

●

Plain stage

Two plain stages

○

Condenser

NA=0.3, WD=75

●

illumination

Transmitted illumination: 3WLED

●

Fluorescent illumination: (B, G, U) 3WLED

—

●

—

●

Fluorescent illumination: V, 3WLED

○

Universal phase

contrast slider

4×, 10×/20×/40× (for phase contrast)

●

4×, 10×/20×, 40×, 60× (for semi-apochromatic contrast)

○

Emboss contrast slider

contrast slider

○

Camera mount

C-Mount 1×

●

C-Mount 0.5×

○

LCD

—

●

Note: ● Standard component, ○ Choose component,― Inapplicability

BestScope International Limited

BS-2094

Optional Objective

No.

Technical Specifications

Infinity plan semi-apochromatic objective (adjustable) 20×, 40×, 60×

Infinity plan semi-apochromatic phase contrast objective (adjustable) 20×, 40×, 60×

Infinity plan semi-apochromatic phase contrast objective 4×, 10×, 20×, 40×, 60×

1.1.2 Objective parameters

Type

BS-2094A/BS-2094B

BS-2094AF/BS-2094BF

Magnification

4×

10×

20×

40×

4×

10×

20×

40×

Numerical aperture(N.A)

0.10

0.25

0.40

0.60

0.13

0.30

0.45

0.60

Work distance (mm)

10.2

2.2

7.4

3.6

Cover-glass thickness

0.17

1.2

Conjugate distance(mm)

∞

1.1.3 Electricity parameter

Item

BS-2094A/BS-2094B

BS-2094AF/BS-2094BF

Input voltage

AC100-240V; 50/60 Hz

Fuse Size

T500 mA; 250 V

LED light

3W S-LED

Fluorescence LED light (B light）

—

wavelength is 485nm at 3W

Fluorescence LED light (G light)

—

wavelength is 520nm at 3W

Fluorescence LED light (U light)

—

wavelength is 360nm at 3W

BestScope International Limited

BS-2094

1.2 Components

The microscope BS-2094A components (following diagrams), BS-2094B add LCD based on

BS-2094A.

BS-2094A

Eyepiece

Viewing head

Mainframe

Moving stage

Objective

Condenser

Universal holder

Nosepiece

Stage

BestScope International Limited

BS-2094

The microscope BS-2094BF components (following diagrams), BS-2094AF = BS-2094BF remove

LCD screen.

BS-2094BF

Eyepiece

Viewing head

Mainframe

Universal holder

Condenser

Fluorescence

illumination

Objective

Moving stage

Filter Cube turret

Stage

Nosepiece

LCD

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere BestScope Mikroskop Handbücher

BestScope

BestScope BS-3044 Bedienungsanleitung

BestScope

BestScope BS-2053 Series Bedienungsanleitung

BestScope

BestScope BS-3040 Bedienungsanleitung

BestScope

BestScope BS-3080 Series Bedienungsanleitung

BestScope

BestScope BS-2030MH4B Bedienungsanleitung

BestScope

BestScope BS-3015 Series Bedienungsanleitung

BestScope

BestScope BS-2030B Bedienungsanleitung

BestScope

BestScope BS-6000A Bedienungsanleitung

BestScope

BestScope BS-2042 Series Bedienungsanleitung

BestScope

BestScope BS-3035 Series Bedienungsanleitung

BestScope

BestScope BS-6005 Bedienungsanleitung

BestScope

BestScope BS-2076 Series Bedienungsanleitung

BestScope

BestScope BS-2080D Bedienungsanleitung

BestScope

BestScope BLM-205 Bedienungsanleitung

BestScope

BestScope BS-2073 Series Bedienungsanleitung

BestScope

BestScope BS-3012 Series Bedienungsanleitung

BestScope

BestScope BS-6002 Series Bedienungsanleitung

BestScope

BestScope BS-3030 Series Bedienungsanleitung

BestScope

BestScope BLM2-241 Bedienungsanleitung

BestScope

BestScope BS-3001 Series Bedienungsanleitung

BestScope

BestScope BS-6024RF Bedienungsanleitung

BestScope

BestScope BS-5092 Series Bedienungsanleitung

BestScope

BestScope BS-6020DRF Bedienungsanleitung

BestScope

BestScope BPM-620 Bedienungsanleitung

Beliebte Mikroskop Handbücher anderer Marken

Thermo Scientific

Thermo Scientific Nicolet iN10 Leitfaden

National

National DC3-163 Bedienungsanleitung

KERN Optics

KERN Optics OPE-1 Bedienungsanleitung

OPTIKA MICROSCOPES

OPTIKA MICROSCOPES B-150D Bedienungsanleitung

Prior

Prior Lux POL Bedienungsanleitung

Opitec

Opitec Smartscoop 115615 Bedienungsanleitung

KERN

KERN OPO-1 Bedienungsanleitung

Topcon

Topcon SP-1P Bedienungsanleitung

Motic

Motic PA43 Bedienungsanleitung

Leica

Leica DVM5000 Benutzerhandbuch

MshOt

MshOt MZ62 Bedienungsanleitung

KERN Optics

KERN Optics OZR-5 Bedienungsanleitung

VWR

VWR VisiScope 384 Series Bedienungsanleitung

Nikon

Nikon ECLIPSE E200 POL Bedienungsanleitung

Leica

Leica DI C800 Handbuch

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Bedienungsanleitung

ThermoFisher Scientific

ThermoFisher Scientific Continuµm Bedienungsanleitung

Olympus

Olympus SZ61 Bedienungsanleitung
