Car-Interface CI-RL4-NAC08 Bedienungsanleitung

Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08

Video-inserter

CI-RL4-NAC08

Compatible with

Opel, Citroen, Peugeot and Toyota vehicles

with NAC or RCC infotainment

and 7inch or 8inch monitor

Video-inserter for front- and rear-view camera

and two additional video inputs

Product features

Video-inserter for factory-infotainment systems

1 CVBS Input for rear-view camera

1 CVBS Input for front camera

2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)

Automatic switching to rear-view camera input on engagement of the reverse gear

Automatic front camera switching after reverse gear for 10 seconds

Activatable parking guide lines for the rear-view camera (not available for all

vehicles)

Video-in-motion (ONLY for connected video-sources)

Video-inputs NTSC compatible

Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the compatibility of vehicle and accessories

1.3. Warning notes

1.4. Connection Video-Interface

1.5. Settings of the 8 Dip switches (black)

1.5.1. Adjustment –power supply output (dip 1)

1.5.2. Enabling the interface’s video inputs (dip 2-3)

1.5.3. Rear-view camera setting (dip 5)

1.5.4. Activating –front camera back switching (dip 6)

1.5.5. Choosing the corresponding head unit version (dip 8)

1.6. Settings of the 4 Dip switches (CAN function –red)

2. Installation

2.1. Place of installation –video interface

2.2. Connection schema

2.3. Connection - head-unit

2.3.1. Connection –picture signal cable

2.3.1.1. Low version head unit (1 x 4 PIN HSD)

2.3.1.2. High version head unit (2 x 4 PIN HSD)

2.3.2. Connection–Power / CAN

2.3.3. Installation with analogue connection (without CAN-Bus)

2.4. Power supply output

2.5. Connection - video sources

2.5.1. Audio insertion

2.5.2. After-market front camera

2.5.3. After-market rear-view camera

2.5.3.1. Case 1: Video-interface receives the reverse gear signal

2.5.3.2. Case 2: Video interface does not receive the reverse gear signal

2.6. Connection - external keypad

2.7. Picture settings and guide lines

3. Interface operation

3.1. By NAVI button

3.2. By external keypad

4. Specifications

5. FAQ –Trouble shooting

Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. Apart from using this

product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-

camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).

Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to

one year after purchase we offer free software-updates for our interfaces. To receive a free

update, the interface has to be sent in at own cost. Wages for de-and reinstallation and

other expenditures involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

place of installation must be free of moisture and away from heat sources.

1.1. Delivery contents

Take down the serial number of the interface and store this manual for support

purposes: ____________________

Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08

Page4

Compatibility

1.2. Checking the compatibility

of vehicle and accessories

Brand

Compatible vehicles

Infotainment systems

Citroen

Berlingo (K9) since 09/2018,

C3 since 01/2017,

C3 Aircross since 11/2017 til 05/2021,

C4 (N) since about 2017 til 05/2018,

Grand (C4) SpaceTourer since model

year 2018,

C4 Picasso since model year 2017,

Dispatch since model year 2016,

Jumpy since model year 2016

NAC or RCC with 7inch or 8inch touch

monitor. Continental or Bosch head-unit

For Continental High version an additional

cable CAB-HSD-MF026 might be required

Opel

Combo since model year 2018

Corsa F since 07/2019

Crossland X since model year 2017

Grandland X since model year 2017

Mokka B since 09/2020,

Vivaro since model year 2020

Zafira Life since model year 2020

Navi 5.0 IntelliLink 8inch (NAC low

Continental),

Multimedia Radio 7inch (RCC Bosch),

Multimedia Navi Pro 7inch,

Multimedia 8inch

Peugeot

208 since 02/2017 til 03/2019,

208 II since 06/2019,

2008 since 02/2017 til 06/2019,

2008 II since 11/2019,

308 II since 07/2017 til 06/2021,

3008 II since 10/2016,

508 since 02/2017 til 08/2018,

508 II since 10/2018,

5008 II since 02/2017,

Expert III since 03/2016,

Partner III since 06/2018,

Rifter since 09/2018,

Traveller since 09/2016

NAC or RCC with 7inch or 8inch touch

monitor. Continental or Bosch head-unit

For Continental High version an additional

cable CAB-HSD-MF026 might be required

Toyota

ProAce since model year 2016

RCC (Bosch)

Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08

Page5

Limitations

Video only The interface inserts ONLY video signals into the infotainment.

For audio inserting, use the possibly existing factory audio-AUX-input or a

FM-modulator. If 2 AV-sources shall be connected to the infotainment, for

audio switching an additional electronic part is required.

Factory rear-view camera Automatic switching-back from inserted video to factory rear-view camera

is only possible while the reverse gear is engaged. To delay the switch-

back, an additional electronic part is required.

After market front camera The front camera will automatically be switched for 10 seconds after

disengaging the reverse gear. A manually front camera switching is

possible by external keypad.

Video input signal NTSC video sources compatible only.

NAC high-version If the two HSD connectors cannot be separated for the reconnection of the

white HSD socket, the separately available cable CAB-HSD-MF026 can

optionally be connected here.

Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08

Page6

1.3. Warning notes:

Damage to the head-unit is possible, if this RL4-NAC08 interface is installed to older

Citroen / Peugeot SMEG or SMEG+ head-units (by Magneti Marelli)! Use this RL4-NAC08

interface only on Citroen/Opel/Peugeot/Toyota head-units NAC (by Continental) or RCC

(Bosch). Designs and features –see the following pictures:

NAC-Systems

Furthermore, even when installed to the correct NAC systems, there is also damage to the

head-unit possible if:

-the 4pin HSD connectors of this harness are wrong-plugged

-the 4pin HSD harness is connected to the vehicle monitor

Prior to installation, the head-unit’s version has to be determined (see following page).

Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08

Page7

1.4. Checking the head unit’s version

Prior to installation, it has to be determined if whether the head-units version is a

low version head-unit

(single black male 4pin

HSD on backside)

Attention: Bosch Low Version requires different

Dip 8 switch position (see following chapters)

high version head-unit

(double black male 4pin

HSD on the backside)

Please, carefully follow the manual for high or low version connection of the head unit and

the assignment of the Dip-8 switch position!

Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08

Page8

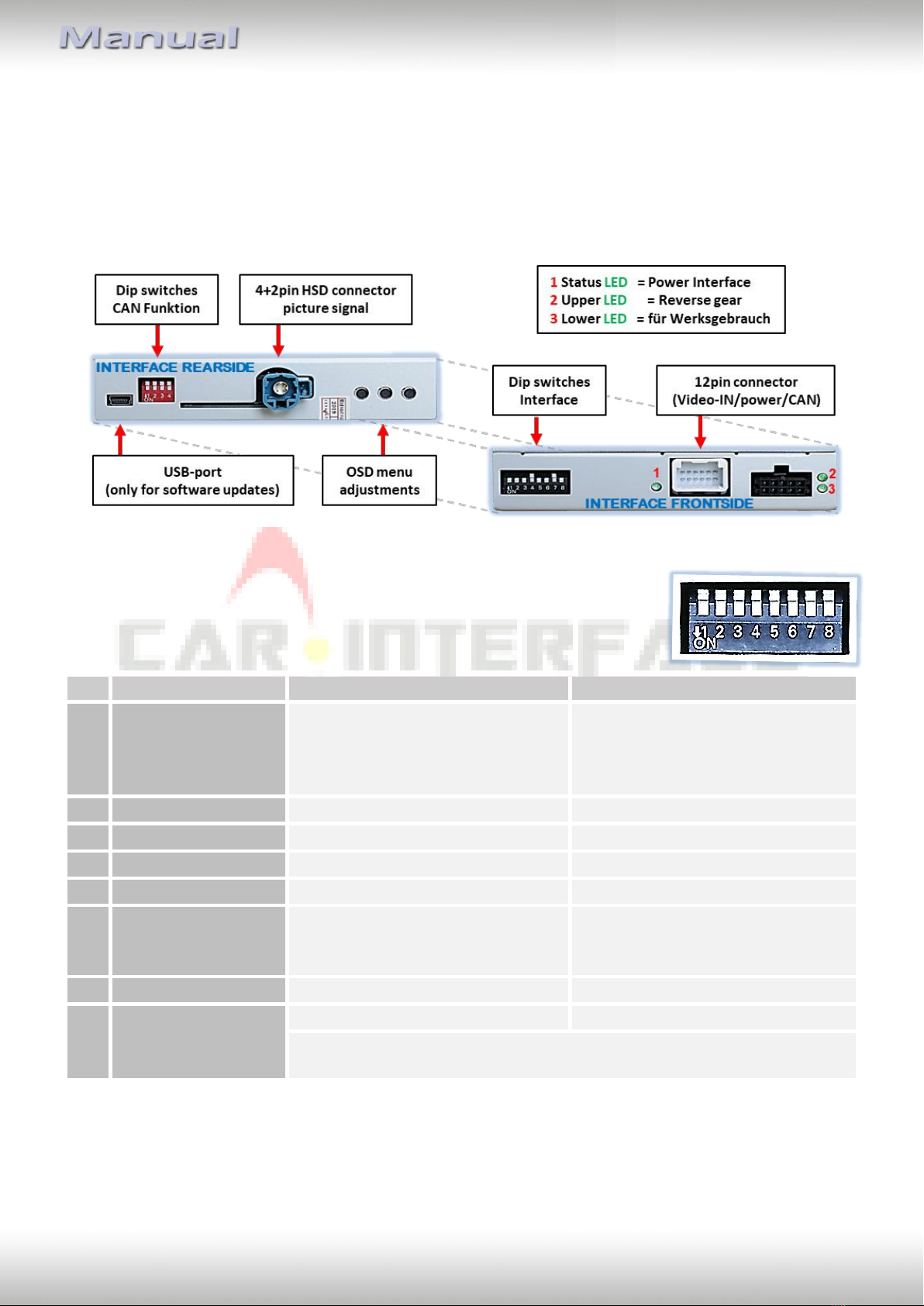

1.5. Connectors - Video-Interface

The video-interface converts the video signals of connected after-market sources in a factory

monitor compatible picture signal which is inserted in the factory monitor, by using separate

trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and

converts them for the video interface.

1.6. Settings of the 8 Dip switches (black)

Some settings have to be selected by the 8 dip-switches at the

video-interface. Dip position down is ON and position up is OFF.

See the following chapters for detailed information.

After each Dip-switch-change a power-reset of the Can-box has to be performed!

Dip

Function

ON (down)

OFF (up)

Power supply

output

(red wire)

+12V (max. 3A) when reverse gear

is engaged incl. 10 seconds delay

and +12V by manual switching to

front camera by keypad

+12V (max. 3A) ACC

CVBS AV1-input

enabled

disabled

CVBS AV2-input

enabled

disabled

No function

Set to OFF

Rear-view cam type

after-market

factory or none

Frontcam

back-switching

for 10 seconds

enabled

disabled

No function

Set to OFF

Monitor type

Low resolution monitor

High resolution monitor

If you do not know the resolution, test both settings.

Power reset after change of dip switches necessary.

Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08

Page9

1.6.1. Adjustment –power supply output (dip 1)

If set to ON, the video interfaces’ red wire will supply +12V (max 3A) with engaging the

reverse gear and additionally 10 more seconds delay for the time of the front camera’s back-

switching after the reverse gear has been disengaged. Furthermore, the red wire’s power

supply for the front cam becomes active with manually front camera switching (short press

of the external keypad).

If set to OFF, the video interfaces’ red wire will supply permanent +12V ACC (max 3A).

Description of the power supply output: see chapter “Power supply output”.

1.6.2. Enabling the interface’s video inputs (dip 2-3)

Only the enabled video inputs can be accessed by switching through the interface’s video

sources. It is recommended to enable only the required inputs. Then the disabled inputs will

be skipped while switching through the video interfaces inputs.

1.6.3. Rear-view camera settings (dip 5)

If set to OFF, the interface switches to factory picture while the reverse gear is engaged to

display factory rear-view camera or factory optical park system picture.

If set to ON, the interface switches to its rear-view camera input while the reverse gear is

engaged.

1.6.4. Activating –front camera back-switching (dip 6)

If set to ON, the interface switches for 10 seconds from the rear-view camera to the front

camera input after having disengaged the reverse gear. In addition, a manual switch-over to

the front camera input is possible via keypad (short press) from any image mode.

(Attend to correct adjustment of the power supply output (dip1)!

1.6.5. Head unit selection (Dip 8)

Dipswitch 8 is used to set the corresponding resolution of the factory monitor.

Dip switch position ON supports the low resolution monitor.

Dip switch position OFF supports the high resolution monitor.

Note: If you do not know the resolution, test both settings.

Note: Dip4 and 7 are out of function and have to be set to OFF.

After each Dip-switch-change a power-reset of the interface box has to be performed!

Version 01.12.2021 HW: CAM(V100)/(V52) CI-RL4-NAC08

Page10

1.7. Settings of the 4 Dip switches (CAN function - red)

Dip position down is ON and position up is OFF.

Navigation / Sy5tem

Dip 1

Dip 2

Dip 3

Dip 4

NAC infotainments

OFF

Set all 4 dips to OFF.

After each Dip-switch-change a power-reset of the Can-box has to be performed!

2. Installation

Switch off the ignition and disconnect the vehicle’s battery! The interface needs a

permanent 12V source. If -according to factory rules- a disconnection of the battery has to

be avoided, it should be sufficient to use the vehicle’s sleep-mode. In case, the sleep-mode

doesn’t succeed, the battery has to be disconnected with a resistor lead.

The connection’s power has to be checked for being start-up proven and permanent.

Before the final installation, we recommend a test-run of the interface. Due to changes in

the production of the vehicle manufacturer, there’s always the possibility of

incompatibility.

2.1. Place of installation –video-interface

The video-interface is performed to be installed at the head unit’s rear side.

Erfahrungswerte zu Einbauorten:

Radio/Navi in Peugeot 2008 FY 2019 vehicles: Directly behind the display.

Head Units in Peugeot 5008 and Opel Grandland X vehicles: Behind the centre console (for

this, remove the panel in the passenger footwell).

Inhaltsverzeichnis

Andere Car-Interface Autozubehör Handbücher

Car-Interface

Car-Interface TV-Free CI-TF-C25 Bedienungsanleitung

Car-Interface

Car-Interface TV-Free TF-NTG1 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL3-LR17 Bedienungsanleitung

Car-Interface

Car-Interface CI-UCON5-JEEP Bedienungsanleitung

Car-Interface

Car-Interface CI-RL2-MZD Bedienungsanleitung

Car-Interface

Car-Interface CI-VL7-SY2 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-ELINK Bedienungsanleitung

Car-Interface

Car-Interface CI-CARPLAY-NTG45 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL3-SC15 Bedienungsanleitung

Car-Interface

Car-Interface v.LiNK CI-VL2-CIC-F Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-UCON22 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL2-MBN45 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-MIB92 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-R40-E Bedienungsanleitung

Car-Interface

Car-Interface v.LOGiC CI-V5-CCC-PNP Bedienungsanleitung

Car-Interface

Car-Interface v.LINK VL2-MIB-3 Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-PCM21 Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-NTG3 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-UCON12 Bedienungsanleitung

Car-Interface

Car-Interface CI-DAB-MMI2G Installationsanleitung

Car-Interface

Car-Interface CI-CARPLAY-CIC Bedienungsanleitung

Car-Interface

Car-Interface CI-DAB-CAN1-SK Bedienungsanleitung

Car-Interface

Car-Interface CI-VL2-124SPY Bedienungsanleitung

Car-Interface

Car-Interface CI-C1-RNSE Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
