Car-Interface CI-RL3-LR16-8 Bedienungsanleitung

Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10

r.LiNK Video inserter

CI-RL3-LR16-8

CI-RL3-LR16-10

Compatible with

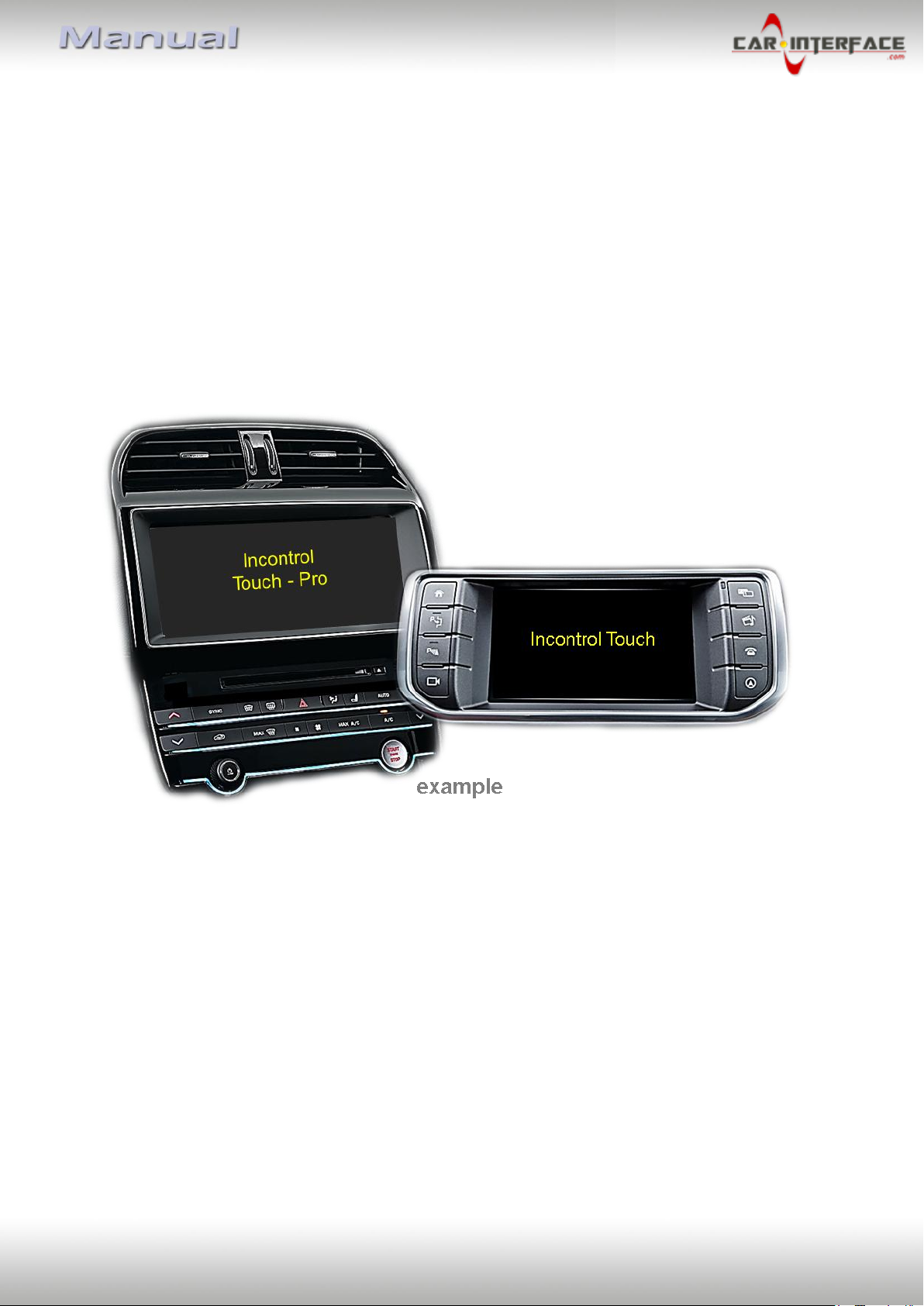

Jaguar and Landrover vehicles

With Incontrol Touch system and 8inch monitor

or Incontrol Touch Pro system and 10.2inch Monitor

Video-inserter for one rear-view camera

and two additional video inputs

Product features

Video-inserter for factory-infotainment systems

CVBS Input for one rear-view camera

2 CVBS Video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)

Automatic switching to rear-view camera input on engagement of the reverse gear

Activatable parking guide lines for rear-view camera (not available for all vehicles)

Video-in-motion (ONLY for connected video-sources)

Video-inputs NTSC compatible

Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10

Page2

Contents

1. Prior to installation

1.1. Delivery contents

1.2. Checking the compatibility of vehicle and accessories

1.3. Boxes and connectors –video interface

1.4. Settings of the 8 Dip switches (black)

1.4.1. Enabling the interface’s video inputs (dip 2-3)

1.4.2. Rear-view camera setting (dip 5)

1.4.3. Activating the guide lines (dip6)

1.4.4. Activating the PDC (dip7)

1.4.5. Monitor selection (Dip 8)

1.5. Settings of the 4 Dip switches (CAN function –red)

2. Installation

2.1. Place of installation

2.2. Connection schema

2.3. Connection - factory head unit and monitor

2.3.1. Connection - picture signal cable –

2.3.1.1. ICT head unit and 8inch monitor (RL3-LR16-8)

2.3.1.2. ICT - Pro head unit and 10.2inch monitor (RL3-LR16-10)

2.3.2. Connection - Quadlock - CAN

2.3.2.1. Incontrol Touch head unit (8 inch monitor –RL3-LR16-8)

2.3.2.2. Incontrol Touch Pro head unit (10,2 inch monitor –RL3-LR16-10)

2.4. Analog power supply for the video interface

2.5. Connection - video-sources

2.5.1. Audio insertion

2.5.2. After-market rear-view camera

2.5.2.1. Case 1: Interface receives the reverse gear signal

2.5.2.2. Case 2Interface does not receive the reverse gear signal

2.6. Connecting - video-interface and external keypad

2.7. Picture settings and guide lines

3. Interface operation

3.1. By factory infotainment button

3.2. By keypad

4. Specifications

5. FAQ –Trouble Shooting-Interface functions

Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10

Page3

Legal Information

By law, watching moving pictures while driving is prohibited, the driver must not be

distracted. We do not accept any liability for material damage or personal injury resulting,

directly or indirectly, from installation or operation of this product. Apart from using this

product in an unmoved vehicle, it should only be used to display fixed menus or rear-view-

camera video when the vehicle is moving (for example the MP3 menu for DVD upgrades).

Changes/updates of the vehicle’s software can cause malfunctions of the interface. Up to

one year after purchase we offer free software-updates for our interfaces. To receive a free

update, the interface has to be sent in at own cost. Wages for de-and reinstallation and

other expenditures involved with the software-updates will not be refunded.

1. Prior to installation

Read the manual prior to installation. Technical knowledge is necessary for installation. The

video interface’s place of installation must be free of moisture and away from heat sources.

Before the final installation in the vehicle of the video sources, we recommend a test-run

to ensure the compatibility of vehicle and interface. Due to changes in the production of

the vehicle manufacturer there’s always a possibility of incompatibility.

1.1. Delivery contents

Take down the serial number of the interface and store this manual for support

purposes: ____________________

Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10

Page4

Requirements

Brand

Compatible vehicles for RL3-LR16-8

Compatible systems

Jaguar

F-Pace model years since 2016

F-Type model years since 2016

XE model years since 2016

XF model years since 2016

XJ model years since 2016

Incontrol Touch - 8 inch 16:9 monitor with

touch-screen menu 4

Not compatible with Dual-View monitor!

Land Rover

Discovery4 model years since 2014

Discovery Sport model years since 2015

Range Rover Evoque model years since 2014

Range Rover Sport model years 2014-2016

Range Rover model years 2014-2016

Freelander2 model years since 2014

Incontrol Touch Pro - 10.2 inch 24:9 monitor

Not compatible with Dual-View monitor!

Brand

Compatible vehicles for RL3-LR16-10

Compatible systems

Jaguar

F-Pace model years since 2016

F-Type model years since 2016

XE model years since 2016

XF model years since 2016

XJ model years since 2016

Incontrol Touch Pro - 10.2 inch 24:9 monitor

Not compatible with Dual-View monitor!

Land Rover

Discovery 5 model years since 2017

Discovery Sport model years since 2017

Range Rover model years since 2017

Range Rover Sport model years 2017

Range Rover Evoque model years 2017-2019

Incontrol Touch Pro - 10.2 inch 24:9 monitor

Not compatible with Dual-View monitor!

Limitations

Video only The interface inserts ONLY video signals into the infotainment. For inserting

Audio signals either the possibly existing factory audio-AUX-input or a FM-

modulator can be used. If 2 audio sources shall be connected to the

infotainment, an additional electronic is necessary to switch them.

Factory rear-view camera Automatically switching-back from inserted video to factory rear-view camera is

only possible while the reverse gear is engaged. To delay the switch-back an

additional electronic part is required.

Video input signal Only NTSC video sources compatible

PDC and guidelines If the video interface does not receive the required information from the vehicle

CAN-bus, neither guide-lines nor optical PDC display will be supported.

1.2. Checking the compatibility of vehicle and accessories

Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10

Page5

1.3. Boxes and connectors –video interface

The video-interface converts the video signals of connected after-market sources in a factory

monitor compatible picture signal which is inserted in the factory monitor, by using separate

trigger options. Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and

converts them for the video interface.

1.4. Settings of the 8 Dip switches (black)

Some settings have to be selected by the dip-switches on the

video interface. Dip position down is ON and position up is OFF.

See the following chapters for detailed information.

Dip

Function

ON (down)

OFF (up)

No function

set to OFF

CVBS Video 1-input

enabled

disabled

CVBS Video 2-input

enabled

disabled

No function

set to OFF

Rear-view cam type

after-market

factory or none

Guide lines

enabled

disabled

PDC

enabled

disabled

Monitor size

8inch

10.2inch

Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10

Page6

1.4.1. Enabling the interface’s video inputs (dip 2-3)

Only by dip switches enabled video inputs can be accessed by switching through the

interface’s video sources. It is recommended to enable only the required inputs. Disabled

inputs will be skipped while switching through the video interfaces inputs.

1.4.2. Rear-view camera setting (dip5)

If set to OFF, the interface switches to factory picture while the reverse gear is engaged to

display factory rear-view camera or factory optical park system picture.

If set to ON, the interface switches to its rear-view camera input while the reverse gear is

engaged.

1.4.3. Activating the guide lines (dip6)

If there is no communication between interface and the vehicle`s CAN-bus (several vehicles

aren’t compatible), the reverse gear guide-lines can`t be shown during the vehicle’s

operation, even if they once appear after having switched the system to powerless

1.4.4. Activating the PDC (dip7)

If set to ON, the PDC car will be displayed on the screen and the park distance will be shown

by using the signals of the vehicle’s CAN-bus. If there is no communication between the

interface and the vehicle`s CAN-bus (several vehicles aren’t compatible), the park distance

can’t be shown. In this case, set dip7 to OFF.

1.4.5. Monitor selection (dip8)

Dip8 changes the monitor-specific video settings.

Using a 8inch monitor, the dip switch position is ON.

Using the 10,2inch monitor, the dip switch setting is OFF.

Size of monitor

Dip 8

8inch –INCONTROL TOUCH

10.2inch –INCONTROL TOUCH PRO

OFF

Note: Dip 1 and 4 are out of function and have to be set to OFF!

Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10

Page7

1.5. Settings of the 4 Dip switches (CAN functions –red)

Dip position down is ON and position up is OFF.

Fahrzeug/Navigation

Dip 1

Dip 2

Dip 3

Dip 4

Jaguar XF, Land Rover

Discovery Sport

OFF

Jaguar XE 2016

OFF

Jaguar XE 2018

OFF

Land Rover Discovery 5,

Ranger Rover Evoque, Range

Rover Sport

OFF

The experience values of the CAN bus dip settings are only exemplary. If the Can

communication doesn’t succeed, try other dip combinations

After each Dip-switch-change a power-reset of the Can-box has to be performed!

2. Installation

To install the interface, first switch off the ignition and disconnect the vehicle’s battery.

Please read the owner`s manual of the car, regarding the battery`s disconnection! If

required, enable the car`s Sleep-mode (hibernation mode)

In case the sleep-mode does not succeed, the disconnection of the battery can be done

with a resistor lead.

If the necessary stabilized power supply for the interface is not taken directly from the

battery, the chosen connection has to be checked for being constantly stabile.

The interface needs a permanent 12V source!

Before a final installation, we recommend a test-run to ensure the compatibility of the

vehicle and the interface. Due to changes in the production of the vehicle manufacturer

there’s always a possibility of incompatibility.

2.1. Place of installation

The interface is supposed to be installed at a suitable location behind the vehicle`s head-

unit. Depending on the vehicle, the head unit may be located at the following places:

Behind the trim panel in the boot on the left (e.g. F-Pace 10.2 inch - not 8 inch)

Under the rear centre console

Under the driver seat

Under the passenger seat.

Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10

Page8

2.2. Connection schema

Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10

Page9

2.3. Connections to factory head-unit and monitor

2.3.1. Connection - picture signal cable

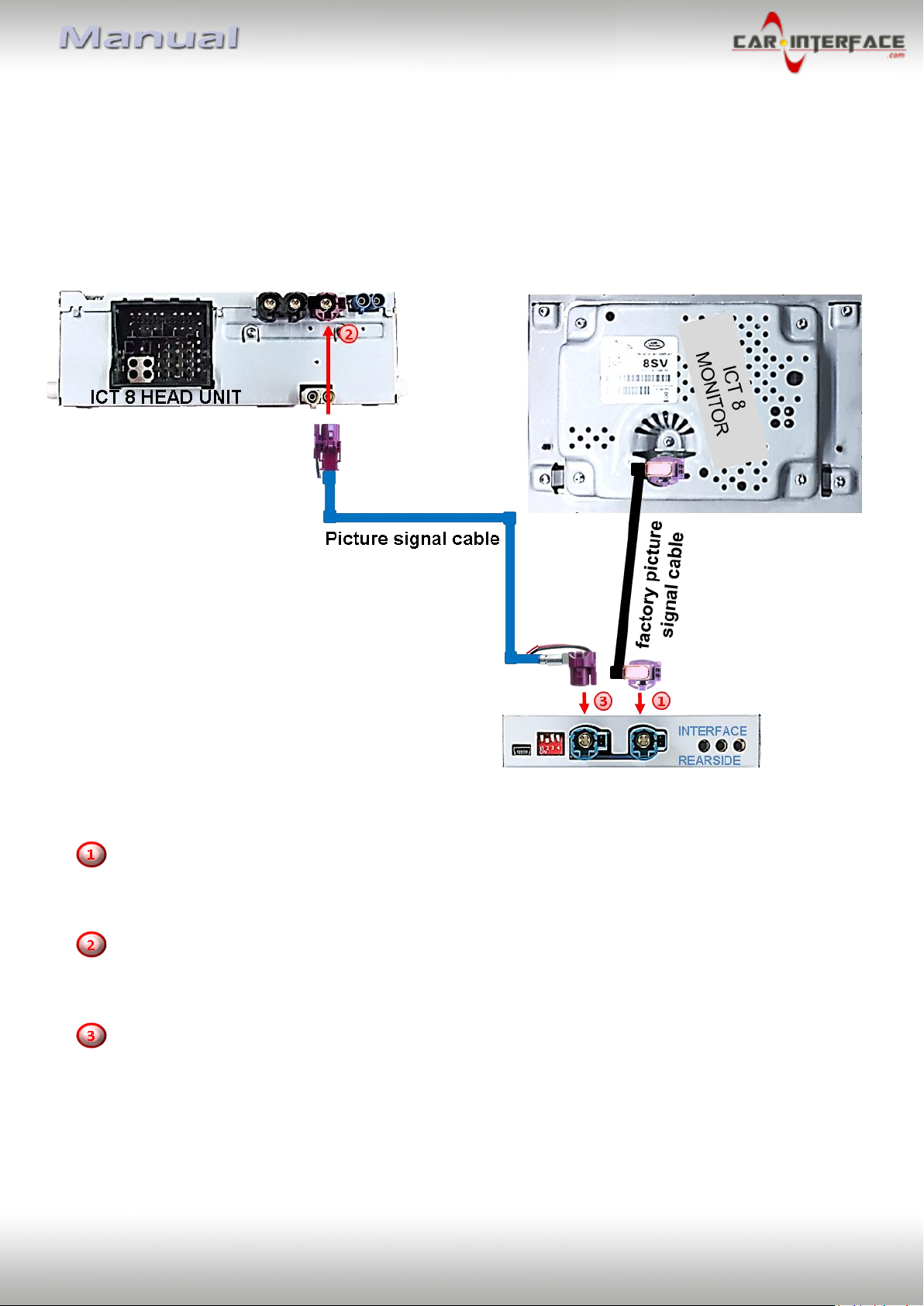

2.3.1.1. INCONTROL TOUCH head unit and 8inch monitor (RL3-LR16-8)

Disconnect the factory picture signal cable’s purple coloured female HSD+2 connector from

the rear-side of the head unit and connect it to the waterblue coloured HSD+2 connector

„TO LCD“ of the video interface .

Connect the not angled aubergine coloured female HSD+2 connector of the enclosed picture

signal cable to the previously become free purple coloured male HSD+2 connector of the

video interface.

Connect the female aubergine coloured HSD+2 connector opposite the picture signal cable

to the waterblue coloured male HSD+2 connector „HU IN“ of the video interface.

Note: The colours of the HSD+2 connectors at monitor and head unit may vary.

Version 03.07.2020 HW CAM(V98)/(V16) CI-RL3-LR16-8/10

Page10

2.3.1.2. INCONTROL TOUCH PRO head unit and 10,2inch monitor (RL3-LR16-10)

Disconnect the factory picture signal cable’s purple coloured female HSD+2 connector from

the rear-side of the head unit and connect it to the waterblue coloured HSD+2 connector

„TO LCD“ of the video interface .

Connect the not angled aubergine coloured female HSD+2 connector of the enclosed picture

signal cable to the previously become free white coloured male HSD+2 connector of the

head unit.

Connect the angled female aubergine coloured HSD+2 connector opposite the picture signal

cable to the waterblue coloured male HSD+2 connector „HU IN“ of the video interface.

Note: The colours of the HSD+2 connectors at monitor and head unit may vary.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Car-Interface Autozubehör Handbücher

Car-Interface

Car-Interface CI-RL4-MIB100 Bedienungsanleitung

Car-Interface

Car-Interface CI-CARPLAY-MMI3G Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-SC14 Bedienungsanleitung

Car-Interface

Car-Interface CI-VL3-MBN51 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL3-SC15 Bedienungsanleitung

Car-Interface

Car-Interface RL4-MIB92 Bedienungsanleitung

Car-Interface

Car-Interface CI-AUX-110 Bedienungsanleitung

Car-Interface

Car-Interface v.LiNK CI-VL2-PC-HSD Bedienungsanleitung

Car-Interface

Car-Interface CI-C2-MK-AUX Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-R40-E Bedienungsanleitung

Car-Interface

Car-Interface RL4-MM-R Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-UCON8-CP Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-FSYNC54 Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-PCM30 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL3-MIB-TT Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-MM-NP Bedienungsanleitung

Car-Interface

Car-Interface v.LOGiC CI-V5-CCC-PNP Bedienungsanleitung

Car-Interface

Car-Interface TV-Free CI-TF-PCM21 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL2-SC14 Bedienungsanleitung

Car-Interface

Car-Interface c.LOGiC lite CI-C1-CCC Bedienungsanleitung

Car-Interface

Car-Interface CI-RL3-CIC Bedienungsanleitung

Car-Interface

Car-Interface TV-Free TF-NTG1 Bedienungsanleitung

Car-Interface

Car-Interface CI-RL4-MBN6 Bedienungsanleitung

Car-Interface

Car-Interface CI-UCON5-JEEP Bedienungsanleitung

Beliebte Autozubehör Handbücher anderer Marken

James Baroud

James Baroud Odyssey Bedienungsanleitung

Motorola

Motorola i50sx Bedienungsanleitung

Yakima

Yakima 9MM STANDARD BIKE MOUNT Bedienungsanleitung

Feniex

Feniex T3 Bedienungsanleitung

Renault

Renault 77 11 423 180 Bedienungsanleitung

Kia

Kia E8300-4D000 Bedienungsanleitung

Brink

Brink 756843 Bedienungsanleitung

Whispbar

Whispbar K085W Bedienungsanleitung

v.link

v.link CI-VL2-PC-HSD Bedienungsanleitung

Viking

Viking Stack-Rack Kurzanleitung zur Einrichtung

Aries

Aries 203015 Bedienungsanleitung

Choetech

Choetech AT0005 Bedienungsanleitung

ZZ2

ZZ2 ZZAIR-PRO Bedienungsanleitung

Holman

Holman 4A80L Bedienungsanleitung

Thule

Thule 2075 Bedienungsanleitung

Motorola

Motorola T325 Bedienungsanleitung

TAUBENREUTHER

TAUBENREUTHER 16-3950 Installationsanleitung

DV8

DV8 FBJL-02 Bedienungsanleitung
