Clarke D18 Bedienungsanleitung
D14 & D18
Upright Vacuum
Operator's Manual
Manueld'utilisation
Libro de Instrucciones
Form No. 70720A 9/06 Clarke®Printed in the U.S.A.
This book has important information for the use and safe operation of this machine. Failure to read this
book prior to operating or attempting any service or maintenance procedure to your Clarke machine
couldresultininjurytoyouortootherpersonnel;damagetothemachineortootherpropertycouldoccur
as well. You must have training in the operation of this machine before using it. If your operator(s) cannot
read this manual, have it explained fully before attempting to operate this machine.
All directions given in this book are as seen from the operator’s position at the rear of the machine.
For new books write to: Clarke®, 2100 Highway 265, Springdale, Arkansas 72764.
English (2 - 15)
Español (16 - 29)
Français (30 - 42)
READ THIS BOOK
LEA ESTE MANUAL
LISEZ CE MANUEL
ES
EN
FR
EN
ENGLISH
Page -2-
Clarke®
Operator's Manual (EN) - D14 & D18
Important Safety Instructions ............................................................................................................ 3
Introduction & Machine Specifications .............................................................................................. 4
Grounding Instructions ..................................................................................................................... 5
How To Assemble The Machine ....................................................................................................... 6
The Controls ..................................................................................................................................... 8
How To Operate The Machine .......................................................................................................... 10
Maintenance .................................................................................................................................... 11
How To Change The Filter Bag ......................................................................................................... 11
How To Clean The Filter Cartridge .................................................................................................... 12
How To Replace The Brush .............................................................................................................. 12
How To Change The Drive Belt ......................................................................................................... 13
The Vacuum Indicator Light .............................................................................................................. 13
The Circuit Breaker .......................................................................................................................... 13
Brush Performance Indicator Lights .................................................................................................. 14
SECTION II Parts and Service Manual
Drawing #1 Assembly ..................................................................................................................... 44
Parts List #1 .................................................................................................................................... 45
Drawing #2 Assembly ...................................................................................................................... 46
Parts List #2 .................................................................................................................................... 47
Electrical Schematic ........................................................................................................................ 48
Table of Contents
EN
ENGLISH
Clarke®
Operator's Manual (EN) - D15 & D18 - 3 -
IMPORTANT SAFETY INSTRUCTIONS
For the safe operation of this machine, read and understand all dangers, warnings and cautions. Look for these symbols:
DANGER: If you do not follow the instructions in a DANGER, severe bodily injury or death can occur
to the operator and/or other personnel.
WARNING: If you do not follow the instructions in a WARNING, injury can occur to you or to other
personnel.
CAUTION: If you do not follow the instructions in a CAUTION, damage can occur to the machine.
WARNING: To reduce the risk of fire, electric shock, or injury:
1. You must have training in the operation of this machine before using it. READ THE
INSTRUCTION BOOK.
2. Do not use outdoors or on wet surfaces.
3. Do not leave vacuum cleaner unattended when plugged in. Turn off the switch and unplug
the electrical cord when not in use and before servicing.
4. Do not allow to be used as a toy. Close attention is necessary when used by or near
children.
5. Use only as described in this manual. Use only manufacturer's recommended attach-
ments.
6. Do not use with damaged cord or plug. If vacuum cleaner is not working as it should, has
been dropped, damaged, left outdoors, or dropped into water, return it to a service center.
7. Do not pull or carry by cord, use cord as a handle, close a door on cord, or pull a cord
around sharp edges or corners. Do not run vacuum cleaner over cord. Keep cord away
from heated surfaces.
8. Connect to a properly grounded outlet only (refer to Grounding Instructions).
9. Do not use extension cords or outlets with inadequate current carrying capacity.
10. Turn off all controls before unplugging.
11. Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
12. Do not handle plug or vacuum cleaner with wet hands.
13. Do not put any objects into openings. Do not use with any opening blocked, keep free of
dust, lint, hair, and anything that may reduce airflow.
14. This vacuum cleaner creates suction and contains a revolving brush. Keep hair, loose
clothing, fingers and all parts of body away from openings and moving parts.
15. Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot
ashes.
16. Belt pulleys can become hot during normal use. To prevent burns, avoid touching the belt
pulley when servicing the drive belt.
17. Do not use to pick up flammable or combustible liquids such as gasoline, or use in areas
where they may be present.
18. Unplug the machine before servicing the belt or brush. The brush may start suddenly and
cause injury.
SAVE THESE INSTRUCTIONS
EN
ENGLISH
Page -4-
Clarke®
Operator's Manual (EN) - D14 & D18

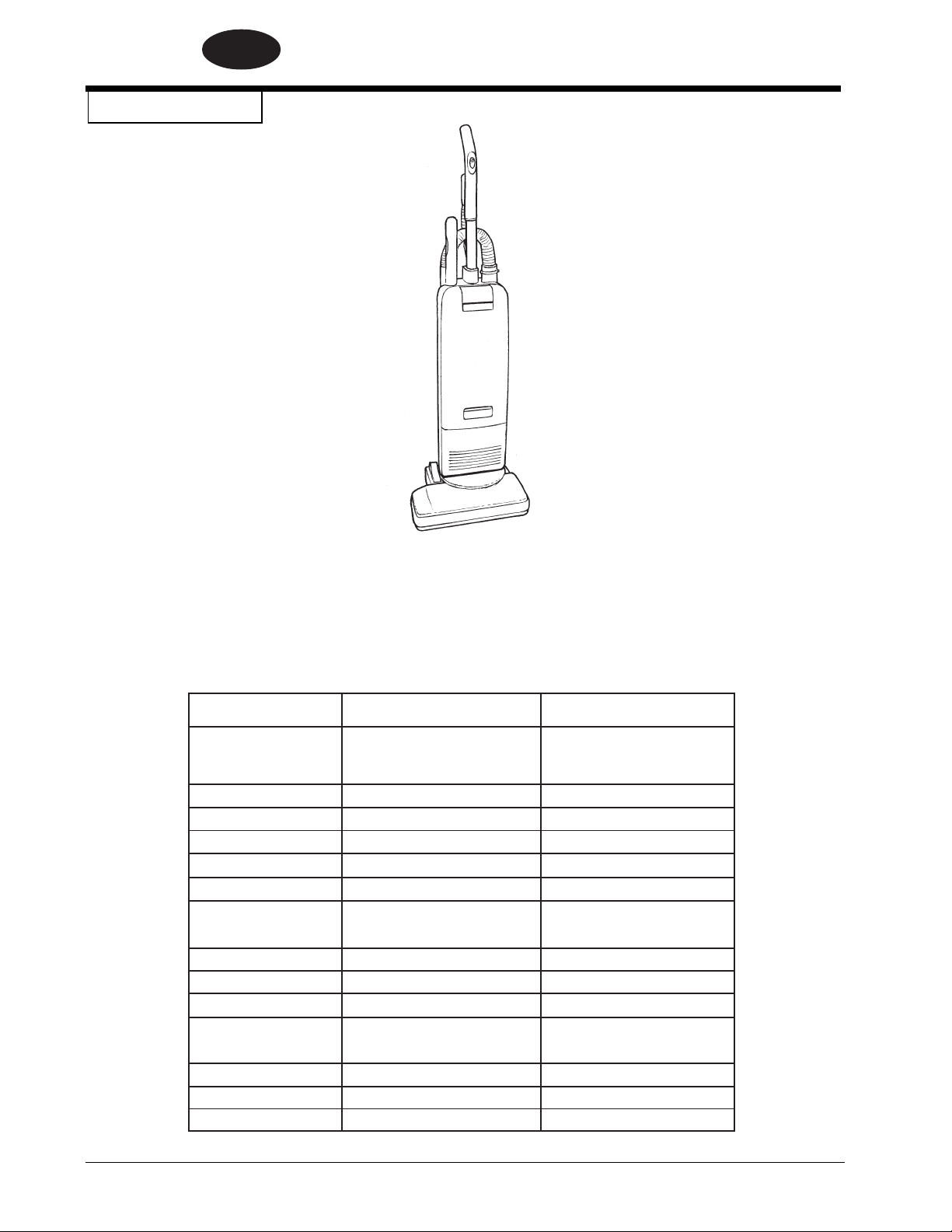

Power Supply 120V-60 Cycle 120V-60 Cycle
230V-50/60 Cycle 230V-50/60 Cycle
Vacuum Motor 1050 Watts 1050 Watts
Brush RPM 4300 rpm 4300 rpm
Cord 50 ft. 3-wire 50 ft. 3-wire
Wheels (2) 2.7" x 1.25" 2.7" x 1.25"
Wand 21" extends to 33.5" 21" extends to 33.5"
Hose 1.5" x 18.5" 1.5" x 18.5"
extends to 72" extends to 72"
Agitator Brush Chevron Brush Pattern Chevron Brush Pattern
Cleaning Width 14" 18"
Filter Bags 6 lt, 2-ply disposable 6 lt, 2-ply disposable
Weight (less power
cord) 20 lbs. 20.5 lbs.
Shipping Weight 26 lbs 26.75 lbs
Vacuum Dimensions 10.5 x 14.25 x 46.5 10.5 x 14.25 x 46.5
Warranty One Year One Year
Model D14 D18
INTRODUCTION
The D14 and D18 are upright vacuums for cleaning carpet. These machines are used to remove dry material
from carpet. These machines are intended for commercial use.
MACHINE SPECIFICATIONS
EN
ENGLISH
Clarke®
Operator's Manual (EN) - D15 & D18 - 5 -

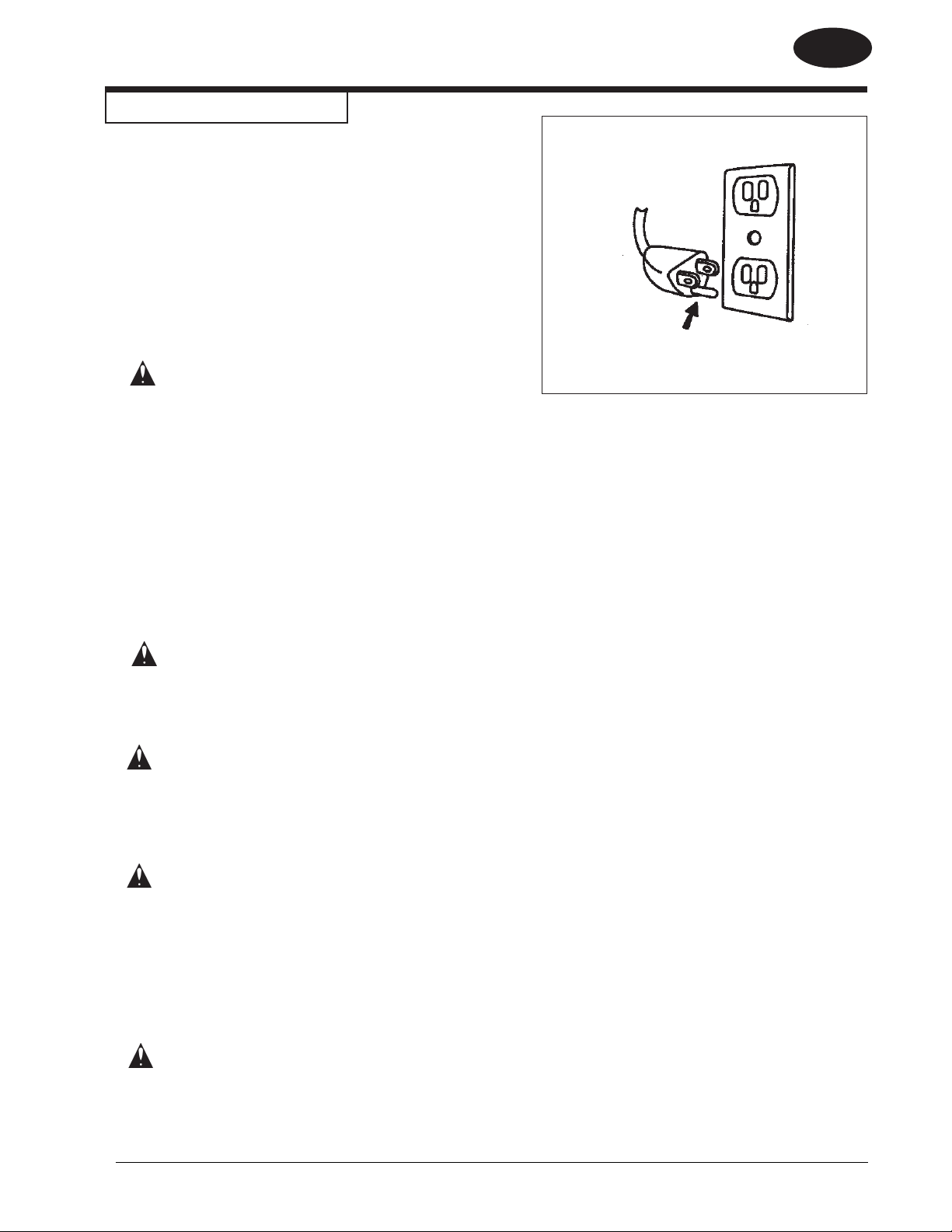

GROUNDING INSTRUCTIONS
Preparation:
The following are instructions for connection to the
power supply and the electrical ground.
This machine must be connected to the electrical ground to
protect the operator from electrical shock. The machine has
an approved power cord with three conductors and a plug
with three terminals. Connect the plug to a receptacle that
has three holes and is connected to the electrical ground.
The green (or green and yellow) conductor in the cord is the
ground wire. Never connect this wire to any terminal other
than the ground pin terminal.
DANGER: Improper connection of
the equipment-grounding conductor can result
in risk of electric shock. Check with a qualified
electrician or service person if you are in doubt
as to whether the outlet is properly grounded.
Do not modify the plug provided with the
appliance. If it will not fit the outlet, have a
proper outlet installed by a qualified
electrician.
This machine is for use on a 110 to 120 Volt AC 60 cycle
electric circuit. Make sure you have the correct frequency
and voltage before connecting the power cord to an outlet.
The machine has a plug as shown in figure 1.
WARNING: Always use this machine with an AC
three-conductor electrical system connected to
the electrical ground. Replace any worn, cut or
damaged cords. Replace any damaged plugs,
receptacles or connector bodies.
WARNING: Do not cut, remove, or break the
ground terminal. Do not try to fit a three-termi-
nal plug into a receptacle or connector body
that does not fit the plug, see your Authorized
Clarke Dealer to get an authorized person to
make the connection.
WARNING: Do not move the machine over an
electrical cord. Always lift the cord over the
machine.
EXTENSION CORDS:
Use only an approved extension cord with three conductors,
a plug with three terminals and a connector body with three
holes. This machine has a power cord with wire size 18
AWG (AWG means American Wire Gauge).
WARNING: If you use an extension cord, use an
extension cord with minimum wire size 16 AWG.
Do not use an extension cord longer than 50
feet. Do not join two extension cords.
Grounded
Outlet Box
Grounding Blade
is longest of the
three blades
Figure 1
EN
ENGLISH
Page -6-
Clarke®
Operator's Manual (EN) - D14 & D18
Figure 2
Figure 3
Figure 5 Figure 4
HOW TO ASSEMBLE THE MACHINE
To assemble the machine, follow this procedure:
1. Remove the brush housing, vacuum bags, hose,
wand, handle assembly, canister housing, and
tools from the carton.
2. Remove the canister housing and the brush
housing from the plastic bags.
3. Install the canister housing on the brush housing.
To install the canister housing, follow this proce-
dure:
a. Position canister housing over brush housing
(see figure 2).
b. Align pivot airway (A) and canister support
pivot (B) with openings (C and D) in bottom of
canister housing (see figure 2).
c. Lower canister housing completely onto brush
housing until pin clicks into place and latches
(see figure 3).
4. Install the handle assembly to the canister hous-
ing. To install the handle assembly, follow this
procedure:
a. Insert handle tube in the upper canister
housing (see figure 4).
b. Lower handle completely into canister housing
until mark on handle tube is below flush (see
figure 5, item A). This insures the handle is
properly seated.
c. Push handle latch into lock position (see
figure 5, item B).
C
B
AD
A
B
Mark on
handle tube.
EN
ENGLISH
Clarke®
Operator's Manual (EN) - D15 & D18 - 7 -

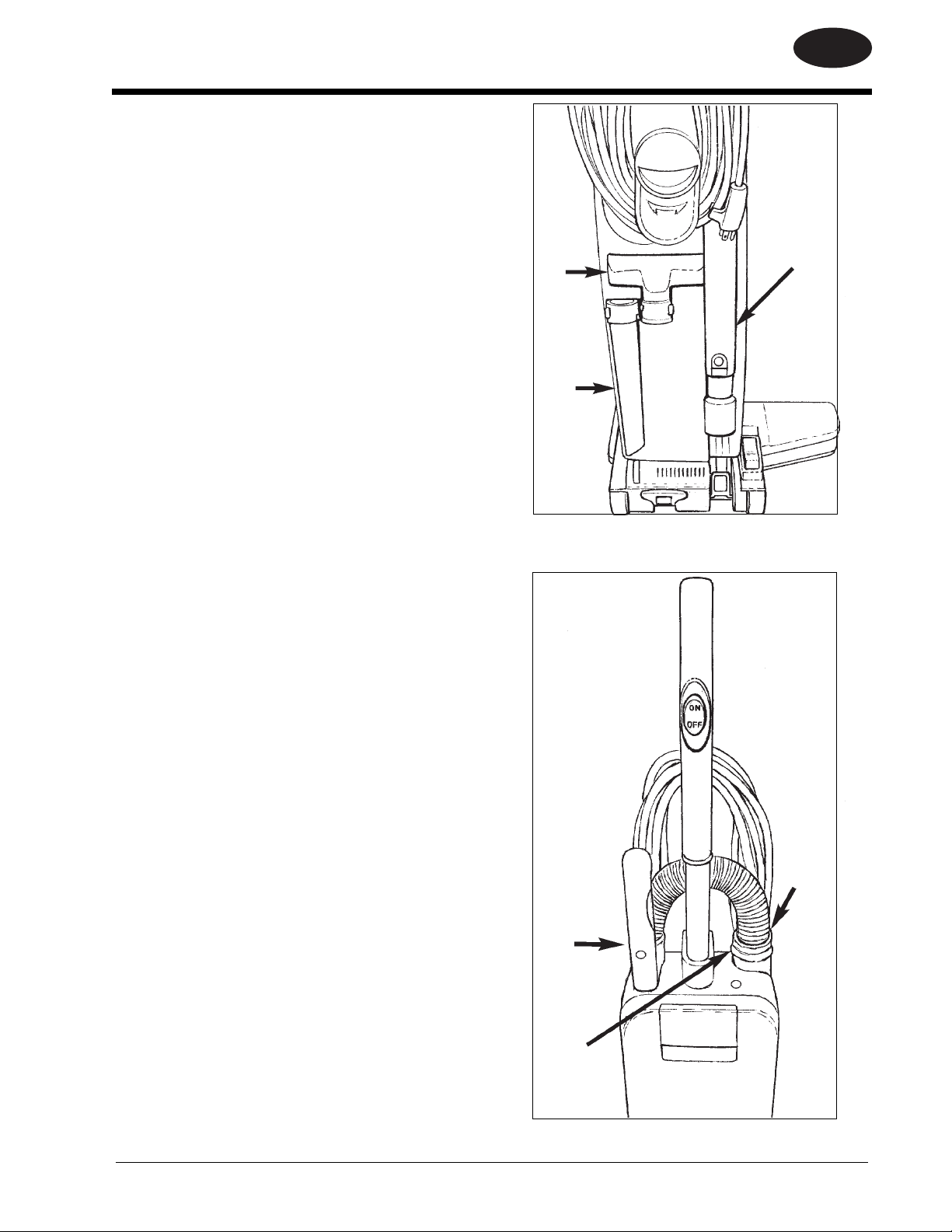

Figure 7
Figure 6
5. Install the wand assembly in the right rear canister
housing (see figure 6, item A).
6. Position wand handle so that handle is towards
the front of the machine (see figure 7, item A).
7. Attach hose to wand and canister (see figure 7).
To attach hose properly, depress lock on canister
(see figure 7, item B).
8. Snap the crevice (B) and upholstery (C) tools into
the tool retainer on rear of canister housing (see
figure 6).
A
B
C
A
B
B
EN
ENGLISH
Page -8-
Clarke®
Operator's Manual (EN) - D14 & D18

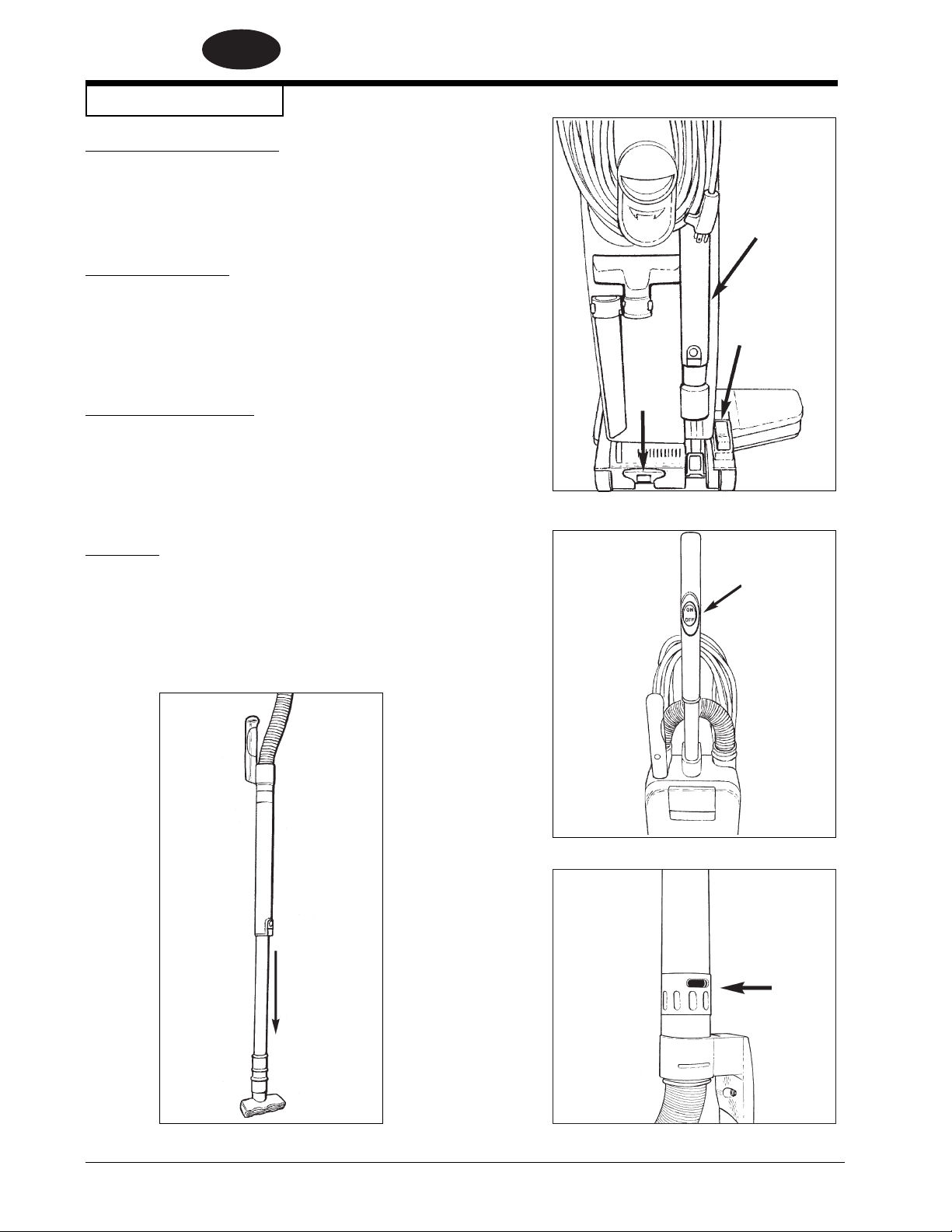

Figure 9
THE CONTROLS
The Handle Release Pedal (See figure 8, item A)
The handle release pedal is on the lower left side of the
machine. Press the pedal to release the handle and start
the brush motor. The brush motor will not run unless the
ON/OFF switch is in the "I" position.
The ON/OFF Switch (See figure 9)
The ON/OFF switch is on handle. Put the switch in the
"I" position to start the vacuum motor. Put the switch in
the "O" position to stop the vacuum motor. Putting the
switch in the off position will also shut off the brush
motor.
The Height Adjustment (See figure 8, item B)
The height adjustment is located on the lower right side
of the machine. Press the front of the pedal with your
foot when vacuuming shorter carpet. Press the back of
the pedal with your foot when vacuuming thicker, longer
carpet.
The Wand (See figure 8, item C)
The wand is in the holder in the back of the canister
housing. The wand has a telescoping feature (see figure
11). The crevice tool and the upholstery tools fit the end
of the wand. The wand has a suction control sleeve (see
figure 10). For normal vacuuming keep suction control
sleeve closed. To reduce suction, when cleaning drapes
or furniture, open suction control sleeve.
Figure 11
Figure 8
A
B
C
Figure 10
EN
ENGLISH
Clarke®
Operator's Manual (EN) - D15 & D18 - 9 -

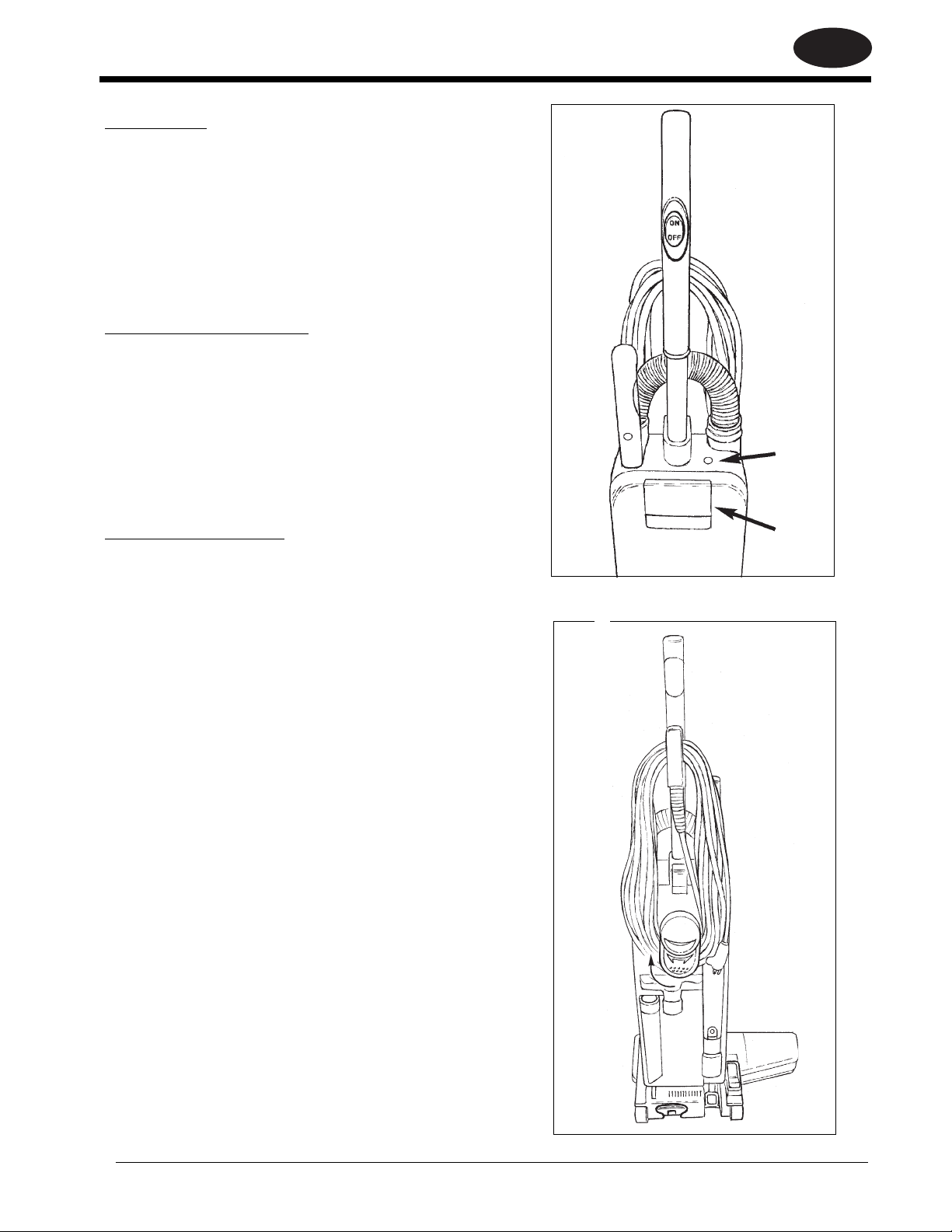

Figure 12
Figure 13
Canister Door (See figure 12, item A)
The canister door release is in the upper part of the
canister housing. Lift to open door.
NOTE: Door will not close without a properly mounted
filter bag. See page 15 for filter bag mounting instruc-
tions.
The Vacuum Indicator Light (See figure 12, item B)
The vacuum indicator light is on the top of the canister
housing. The indicator light comes on when the airflow to
the vacuum motor is obstructed.
NOTE: See page 17 for intructions on how to remove an
obstruction.
The Cord Storage Hooks (See figure 13)
The cord storage hooks are on the back of the canister
housing. The lower cord hook is also a carrying handle.
The lower cord hook rotates to provide a quick cord
release and to ease cord removal.
A
B
EN
ENGLISH
Page -10-
Clarke®
Operator's Manual (EN) - D14 & D18
HOW TO OPERATE THE MACHINE
CAUTION: To prevent damage to the machine,
do not allow large objects to be pulled into the
lower housing or the attachments.
NOTE: The machine comes with a filter bag installed
in the canister housing.
Use the D14 & D18 as a carpet cleaner or as an upholstery
cleaner. To operate the machine as a carpet cleaner,
follow this procedure:
1. Remove the power cord from the cord storage
hooks, by rotating the lower cord hook 180° (see
figure 14).
2. Connect the electrical plug to the electrical
outlet.
3. Put the ON/OFF switch in the "I" position (see
figure 9).
4. Press the handle release pedal (see figure 8,
item A).
5. Pull the handle toward you to the best operating
position.
6. Move the machine forward and backward over the
carpet.
To operate the machine as an upholstery cleaner, follow
this procedure.
1. Make sure the ON/OFF switch is in the "O"
position.
2. Push the handle forward until it locks in position.
NOTE: the machine comes with a crevice tool
attachment and an upholstery tool attachment.
Select the tool needed for the cleaning opera-
tion.
3. Remove the wand from the canister housing.
4. Connect an accessory tool to the end of the
wand, or directly to the hose (see figures 15 and
16).
NOTE: Push button on wand handle to release
the hose from the wand (see figure 16, item A).
5. Put the ON/OFF switch in the "I" position.
6. Move the tool over the area to be cleaned.
Figure 14
Figure 15
Figure 16
A
Dieses Handbuch passt für folgende Modelle
1
Inhaltsverzeichnis
Sprachen:
Andere Clarke Staubsauger Handbücher
Clarke
Clarke SUMMIT SUMMIT Wet/Dry Vacuum Bedienungsanleitung
Clarke
Clarke VAC KING CVAC20SS Installations- und Betriebshandbuch
Clarke
Clarke MA10 12E 107408160 Bedienungsanleitung
Clarke
Clarke CVACASH Bedienungsanleitung
Clarke
Clarke NapSac Bedienungsanleitung
Clarke
Clarke VAC KING 6471100 Installations- und Betriebshandbuch
Clarke
Clarke CVACASH500 Installations- und Betriebshandbuch
Clarke
Clarke CarpetMaster 100 Series Installations- und Benutzerhandbuch
Clarke
Clarke DTV-7 Bedienungsanleitung
Clarke
Clarke Woodworker CDE1000 Installations- und Betriebshandbuch
Clarke
Clarke SUMMIT 3 Bedienungsanleitung
Clarke
Clarke American Sanders C.A.V. 15 Bedienungsanleitung
Clarke
Clarke CDE35B 6470310 Installations- und Betriebshandbuch
Clarke
Clarke SALTIX 10 Bedienungsanleitung
Clarke
Clarke S12 Gebrauchs- und Pflegehandbuch
Clarke
Clarke CDE35B 6470310 Installations- und Betriebshandbuch
Clarke
Clarke Carpet Master 30 Bedienungsanleitung
Clarke
Clarke Alto Bedienungsanleitung
Clarke
Clarke Summit Wet/Dry Vacuum Bedienungsanleitung
Clarke
Clarke Woodworker CDE7B Installations- und Betriebshandbuch
Beliebte Staubsauger Handbücher anderer Marken
Bissell
Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung
Panasonic
Panasonic MC-YL637S147-AE Bedienungsanleitung
NEFF
NEFF N17XH10 0 Series Bedienungsanleitung
LG
LG A9 Series Bedienungsanleitung
Oreck
Oreck Cordless Captura BK51700 Series Bedienungsanleitung
Kogan
Kogan KAVACROBVWA Bedienungsanleitung
