DataMan®475 Verifier

Reference Manual

2021 October 15

Revision: 6.2.5.18

Legal Notices

The software described in this document is furnished under license, and may be used or copied only in accordance with

the terms of such license and with the inclusion of the copyright notice shown on this page. Neither the software, this

document, nor any copies thereof may be provided to, or otherwise made available to, anyone other than the licensee.

Title to, and ownership of, this software remains with Cognex Corporation or its licensor. Cognex Corporation assumes

no responsibility for the use or reliability of its software on equipment that is not supplied by Cognex Corporation.

Cognex Corporation makes no warranties, either express or implied, regarding the described software, its

merchantability, non-infringement or its fitness for any particular purpose.

The information in this document is subject to change without notice and should not be construed as a commitment by

Cognex Corporation. Cognex Corporation is not responsible for any errors that may be present in either this document or

the associated software.

Companies, names, and data used in examples herein are fictitious unless otherwise noted. No part of this document

may be reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, nor

transferred to any other media or language without the written permission of Cognex Corporation.

Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as

well as pending U.S. and foreign patents listed on the Cognex web site at: cognex.com/patents.

The following are registered trademarks of Cognex Corporation:

Cognex, 2DMAX, Advantage, AlignPlus, Assemblyplus, CheckitwithChecker, Checker, CognexVisionforIndustry,

CognexVSOC, CVL, DataMan, DisplayInspect, DVT, EasyBuilder, Hotbars, IDMax, In-Sight, LaserKiller, MVS-8000,

OmniView, PatFind, PatFlex, PatInspect, PatMax, PatQuick, SensorView, SmartView, SmartAdvisor, SmartLearn,

UltraLight, VisionSolutions, VisionPro, VisionView

The following are trademarks of Cognex Corporation:

The Cognex logo, 1DMax, 3D-Locate, 3DMax, BGAII, CheckPoint, CognexVSoC, CVC-1000, FFD, iLearn, In-Sight

(design insignia with cross-hairs), In-Sight2000, InspectEdge, Inspection Designer, MVS, NotchMax, OCRMax,

PatMaxRedLine, ProofRead, SmartSync, ProfilePlus, SmartDisplay, SmartSystem, SMD4, VisiFlex, Xpand

Other product and company trademarks identified herein are the trademarks of their respective owners.

Legal Notices

Table of Contents

Legal Notices 2

Table of Contents 3

Symbols 5

Getting Started 6

About the DataMan 475 Verifier Verifier 6

Supporting Documentation 6

DataMan 475 Verifier Verifier Accessories 7

Cables and Power Supply 7

Mounting Brackets 8

DataMan 475 Verifier Systems 8

Setting Up Your DataMan 475 Verifier Verifier 9

Reader Layout 9

Dimensions 11

DataMan 475 Verifier Verifier 11

DataMan 475 Verifier Verifier DPM 11

Additional Information 12

DataMan475 Verifier and DPM Specifications 12

LED Wavelengths 14

Calibration 15

User Interface 19

Toolbar 19

UsingYour DataMan 475 Verifier Verifier 20

Verifying a 2D Barcode 20

Selecting Regions 21

Standards Based Grading 22

Verifications of Multiple Symbols 22

Examining the Results 24

1D & 2D Verification 24

Main Tab 24

General Characteristics Tab 25

Data Detail Tab 26

Modulation table legend 28

Quality Detail Tab 28

Advanced Detail Tab 29

Histogram Tab 30

Report Tab 31

Settings 32

The Settings Menu 32

Application Settings 32

Application Standards Settings 32

Grading Standards 38

DataFormat Check 39

Table of Contents

Auto Aperture 40

Calibration Settings 41

Trending Settings 42

User Information 43

Report Settings 43

Navigation 44

Results through Setup Tool (local machine) 45

Results through FTP 45

Symbologies/Multi Mode 47

Scripting 47

Setting Up FTP Transfer 49

Image FTP Transfer 49

Result FTP Transfer 49

Report FTP Transfer 50

Grading Standards and their Parameters 51

ISO/IEC 15415 Grading Parameters 51

ISO/IEC 15416 (ANSI x3.182) Grading Parameters 56

ISO 29158 (AIM-DPM) 2006 Grading Parameters 58

Traditional (Non-Graded) Parameters 59

PCS 59

MRD 60

Setting Up DataMan Setup Tool 61

Reading your first Code 61

External Triggers 63

Cleaning and Maintenance 64

Cleaning the Verifier Housing 64

Cleaning the Verifier Lens Cover 64

Compliance Information, Warnings and Notices 65

Precautions 65

Regulations/Conformity 66

For European Community Users 66

Table of Contents

Symbols

The following symbols indicate safety precautions and supplemental information:

WARNING:This symbol indicates a hazard that could cause death, serious personal injury or electrical shock.

CAUTION:This symbol indicates a hazard that could result in property damage.

Note: This symbol indicates additional information about a subject.

Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.

Symbols

Getting Started

This section provides general information about the DataMan 475 Verifier Verifier and the DataMan 475 Verifier Verifier

accessories and systems.

About the DataMan 475 Verifier Verifier

The DataMan 475 Verifier Verifier provides immediate quality assurance benefits:

lSets alerts for when code quality begins to degrade

lGrades up to 20 codes per second

lExports verification results to PLC, database, or FTP server as CSV, HTML, PDF, and custom formats

lImproves processes with detailed analysis and diagnostic information for every code

The DataMan 475 Verifier LabelLight utilizes a four-quadrant, 45-degree lighting attachment and the DataMan 475 DPM

utilizes either a four-quadrant 30-degree, 45-degree, or 90-degree lighting attachment. Both types of 475 verifiers are

compliant with the International Organization for Standardization (ISO) requirements for grading 1D and 2D label-based

barcodes. The included calibration card and robust grading algorithms ensure that the DataMan 475 Verifier verifiers

conform to ISO and application standards while providing accurate and repeatable results.

The DataMan 475 Verifier verifiers are packaged in a rugged, IP65-rated housing, and provide numerous ease-of-use

features, including one button to trigger and one button to start tuning.

Supporting Documentation

This document provides basic information about how to configure and use the DataMan 475 Verifier verifier. Additional

information is available through the Windows Start menu or the DataMan Setup Tool Help menu once installing the

DataMan software on your PC:

lThe DataMan Communications and Programming Guide shows you how to integrate your DataMan verifier into

your particular automation and factory environment.

Cognex->DataMan Software v x.x.x->Documentation->Communications->DataMan Communications and

Programming Guide

lThe DataMan Industrial Protocols Manual provides information on how to integrate DataMan verifier into your

particular environment using industrial protocols.

Cognex->DataMan Software v x.x.x->Documentation->Communications->DataMan Industrial Protocols Manual

Getting Started

lThe DataMan Reader Configuration Codes document provides printable 2-D codes that you can use to

configure the DataMan verifier.

Cognex->DataMan Software v x.x.x->Documentation->English->Reader Configuration Codes

lThe DataMan 475 Verifier Verifier Quick Reference Guide provides essential information about the DataMan

475 Verifier verifier.

Cognex->DataMan Software v x.x.x->Documentation->English->DM475V Series->DM475V Quick Reference

Guide

lThe DataMan Fixed-Mount Readers Reference is a complete online hardware reference for the DataMan fixed-

mount ID verifier.

Cognex->DataMan Software v x.x.x->Documentation->English->DM475V ->Fixed-Mount Reference Manual

lThe DataMan Control Commands lists DataMan Control Commands with all relevant information. You can view

this help inside the Setup Tool or as a stand-alone help file.

Cognex->DataMan Software v x.x.x->Documentation->English->DataMan Control Commands

lThe Setup Tool Reference Manual describes the user interface of the DataMan Setup Tool software.

Cognex->DataMan Software v x.x.x->Documentation->English->Setup Tool Reference Manual

lThe Release Notes list detailed system requirements and additional information about this DataMan software

release.

Cognex->DataMan Software v x.x.x->Documentation->DataMan v x.x.x Release Notes

DataMan 475 Verifier Verifier Accessories

Note: For ISO compliant verification, equip the DM475V with LabelLight 45° lighting accessory (DMV-475V-LBL-

0200). Use other light accessories for DM475V for Standards Based Grading only.

Note: The product images below serve illustration purposes only. You can purchase the following components

separately. For a list of options and accessories, contact your local Cognex sales representative.

Cables and Power Supply

Note: Cables are sold separately.

CAUTION:All cable connectors are keyed to fit the connectors on the verifier. Do not force the connections or

damage may occur.

Accessory Name Accessory Product Number Accessory

Illustration

Power and I/O Breakout Cable, M12-12 to

Flying Lead

CCB-PWRIO- xx (straight, xx specifies length: 5m,

10m, 15m)

CCB-PWRIO-xxR (right-angled, xx specifies length:

5m, 10m, 15m)

X-Coded to A-Coded Ethernet cable adapter,

0.5 m

CCB-M12X8MS-XCAC

Ethernet Cable, X-coded M12-8 to RJ-45 CCB-84901-2001-xx (straight, xx specifies length: 2m,

5m, 10m, 15m, 30m)

Getting Started

Accessory Name Accessory Product Number Accessory

Illustration

I/O extension cable, straight, 5 m CKR-200-CBL-EXT

Connection module (up to 4 cameras

including network switch)

xx can be US, EU, UK or JP

DMA-CCM-4X-xx

Connection module (1 camera)

xx can be US, EU, UK or JP

DMA-CCM-1-xx

Mounting Brackets

Accessory Name Accessory Product Number Accessory Illustration

Mounting Bracket Kit DMBK-470-MNT

Pivot Mounting Bracket DM100-PIVOTM-00

External Heat Sink DMHS-370-470

DataMan 475 Verifier Systems

Symbologies Light Configurations Verification Standards

DMV-475V-LBL-0200 1D, 2D, DPM 45° LabelLight ISO/IEC15415, 15416, 29158

DMV-475V-DPM-0100 1D, 2D, DPM 30°, 45°, 90° DPM ISO/IEC 15415, 15416, 29158

Getting Started

Setting Up Your DataMan 475 Verifier Verifier

This section provides information on the physical appearance of the DataMan 475 Verifier verifier. It also details the

steps of installing the lenses and filters of the verifier, and gives information on the imager.

Reader Layout

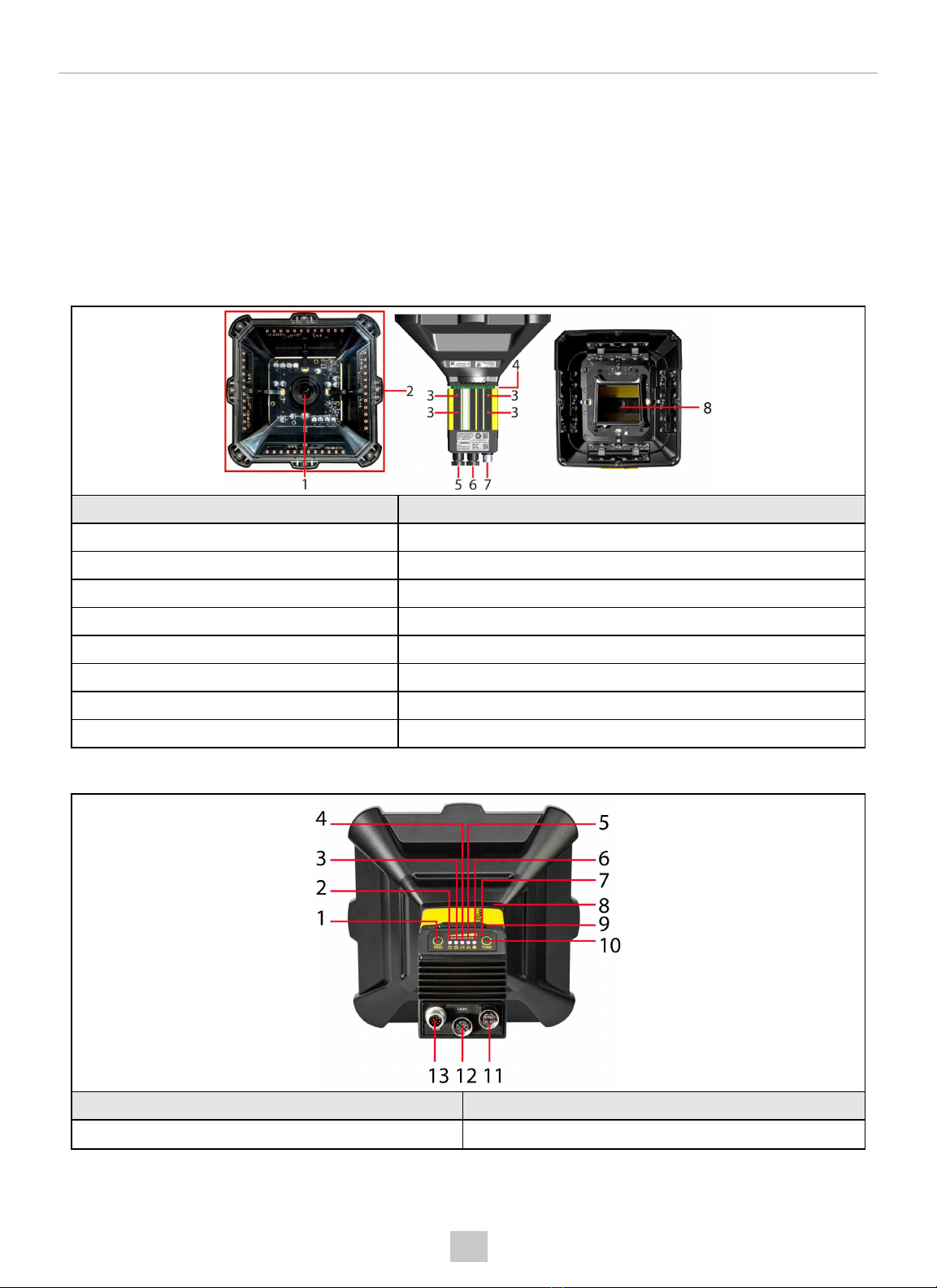

The following image shows the lighting system of the DataMan 475 Verifier verifier and the mounting holes underneath

the plastic lighting cover.

Item Description

1 Lens

2 Label Light attachment

3 Mounting holes (M3 x 5 mm)

4 Indicator light ring

5 Ethernet connection

6 External lighting connection (disabled for verification)

7 Breakout cable connection

8 DPM Light attachment

The image shows the back cover of the DataMan 475 Verifier and the functions of the indicator lights.

Item Description

1 Trigger button

Setting Up Your DataMan 475 Verifier Verifier

Item Description

2 Power

3 Train status

4 Good/bad read

5 Network

6 Error

7 Peak meter

8 Indicator light ring

9 SD card slot

10 Tuning button

11 Ethernet

12 External light control

13 Power, I/O, and RS-232

The table explains the indicator light ring behavior.

Type Signal Color Meaning

Status

Power GREEN Power ON

Train status GREEN Trained

YELLOW Untrained

Error RED Error - check device log

Action

Good/bad read GREEN Good read

RED Bad read

Communication YELLOW Link up

blink Activity

Peak meter - Decode yield, train progress/quality

Setting Up Your DataMan 475 Verifier Verifier

Andere Handbücher für DataMan 475

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Cognex Barcode-Lesegerät Handbücher

Cognex

Cognex DataMan 300 Series Bedienungsanleitung

Cognex

Cognex DataMan 300 Series Bedienungsanleitung

Cognex

Cognex DataMan 370 Series Betriebsanleitung

Cognex

Cognex DataMan 380 Series Bedienungsanleitung

Cognex

Cognex DataMan 260 Series Bedienungsanleitung

Cognex

Cognex DataMan 370 Series Bedienungsanleitung

Cognex

Cognex DataMan 503 Bedienungsanleitung

Cognex

Cognex DataMan 60 Series Bedienungsanleitung

Cognex

Cognex DataMan 8000 Series Bedienungsanleitung

Cognex

Cognex DataMan 50 Bedienungsanleitung

Cognex

Cognex In-Sight SnAPP Series Bedienungsanleitung

Cognex

Cognex MX-1000 Bedienungsanleitung

Cognex

Cognex DataMan 8600 Verifier Series Bedienungsanleitung

Cognex

Cognex DataMan 300 Series Bedienungsanleitung

Cognex

Cognex DataMan 150 Series Bedienungsanleitung

Cognex

Cognex DataMan 8072 DL Bedienungsanleitung

Cognex

Cognex DataMan 260 Bedienungsanleitung

Cognex

Cognex DataMan 8600 Series Bedienungsanleitung

Cognex

Cognex DataMan 700 series Bedienungsanleitung

Cognex

Cognex DataMan 8072 Verifier Bedienungsanleitung

Cognex

Cognex DataMan 8072 Bedienungsanleitung

Cognex

Cognex DataMan 470 Series Bedienungsanleitung

Cognex

Cognex DataMan 300 Series Bedienungsanleitung

Cognex

Cognex DataMan 470 Series Bedienungsanleitung

Beliebte Barcode-Lesegerät Handbücher anderer Marken

POSMicro

POSMicro Datalogic PowerScan D7100 Bedienungsanleitung

Marson

Marson MT780 Kurzanleitung zur Einrichtung

NCR

NCR RealPOS Bedienungsanleitung

Motorola

Motorola SE3300 Kurzanleitung zur Einrichtung

Element

Element P130BT Bedienungsanleitung

Motorola

Motorola Symbol LS3008 Installations- und Betriebshandbuch

Meec tools

Meec tools OBD-II / VAG Bedienungsanleitung

SICK

SICK CLP 100 Bedienungsanleitung

Royal Tag SA

Royal Tag SA I-Read Bedienungsanleitung

Welch Allyn

Welch Allyn IMAGETEAM 3800 Bedienungsanleitung

Meteor

Meteor 8310 Bedienungsanleitung

Denso

Denso BHT-500B Bedienungsanleitung

Datalogic

Datalogic Heron HD3130 Bedienungsanleitung

Motorola

Motorola MP6000 Montageanleitung

Newland

Newland NLS-HR15-BT Bedienungsanleitung

ARTDEV

ARTDEV AS-1310 Bedienungsanleitung

Aopos

Aopos AS290 Bedienungsanleitung

ENS

ENS 367-5455 Bedienungsanleitung
