Cognex DataMan 8700 Bedienungsanleitung

DataMan®8700

Reference Manual

2023 May 04

Revision: 23.2.0.9

Legal Notices

The software described in this document is furnished under license, and may be used or copied only in accordance with the

terms of such license and with the inclusion of the copyright notice shown on this page. Neither the software, this document,

nor any copies thereof may be provided to, or otherwise made available to, anyone other than the licensee. Title to, and

ownership of, this software remains with Cognex Corporation or its licensor. Cognex Corporation assumes no responsibility

for the use or reliability of its software on equipment that is not supplied by Cognex Corporation. Cognex Corporation makes

no warranties, either express or implied, regarding the described software, its merchantability, non-infringement or its fitness

for any particular purpose.

The information in this document is subject to change without notice and should not be construed as a commitment by

Cognex Corporation. Cognex Corporation is not responsible for any errors that may be present in either this document or the

associated software.

Companies, names, and data used in examples herein are fictitious unless otherwise noted. No part of this document may be

reproduced or transmitted in any form or by any means, electronic or mechanical, for any purpose, nor transferred to any

other media or language without the written permission of Cognex Corporation.

Portions of the hardware and software provided by Cognex may be covered by one or more U.S. and foreign patents, as well

as pending U.S. and foreign patents listed on the Cognex web site at: cognex.com/patents.

The following are registered trademarks of Cognex Corporation:

Cognex, 2DMAX, Advantage, AlignPlus, Assemblyplus, CheckitwithChecker, Checker, CognexVisionforIndustry,

CognexVSOC, CVL, DataMan, DisplayInspect, DVT, EasyBuilder, Hotbars, IDMax, In-Sight, LaserKiller, MVS-8000,

OmniView, PatFind, PatFlex, PatInspect, PatMax, PatQuick, SensorView, SmartView, SmartAdvisor, SmartLearn,

UltraLight, VisionSolutions, VisionPro, VisionView

The following are trademarks of Cognex Corporation:

The Cognex logo, 1DMax, 3D-Locate, 3DMax, BGAII, CheckPoint, CognexVSoC, CVC-1000, FFD, iLearn, In-Sight (design

insignia with cross-hairs), In-Sight2000, InspectEdge, Inspection Designer, MVS, NotchMax, OCRMax, PatMaxRedLine,

ProofRead, SmartSync, ProfilePlus, SmartDisplay, SmartSystem, SMD4, VisiFlex, Xpand

Other product and company trademarks identified herein are the trademarks of their respective owners.

Legal Notices

Table of Contents

Legal Notices 2

Table of Contents 3

Symbols 5

Precautions 6

Getting Started 7

About DataMan 8700 7

DataMan 8700 Accessories 9

Base Stations 9

Power Supplies 9

Cables 9

Miscellaneous Accessories 10

Physical Layout of the Reader 11

OLED Display Layout 13

Physical Layout of the Base Stations 14

Setting up Your DataMan 8700 15

Setting up the Reader 15

Install the DataMan SetupTool and Connect to Reader 15

Firmware Update 15

DataMan 8700 Specifications 16

DataMan 8700 Imager Specifications 17

DataMan 8700 Base Station Specifications 17

LED Wavelengths for DataMan 8700 Readers 17

Base Station Mounting Options 18

Adjusting Base Station Grip Strength 19

Connection Options 21

Connecting Corded DataMan 8700 21

Troubleshooting an Ethernet Connection 21

Using Your Device Through USB 21

Keyboard Layout Setup 22

Changing the Communication Module in DataMan 8700 Corded Reader 23

Using DataMan 8700 Wireless Reader 26

Intelligent Base Station Connection Options 26

Intelligent Base Station Routing Capabilities 26

Buffering Data 27

Summary of Intelligent Base Station Buffering Indicators 28

Changing Communication Module On Intelligent Base Station 29

Connecting to a Bluetooth DataMan 8700 Through an Intelligent Base Station 32

Pairing Wireless Readers to Base Station Through Bluetooth 34

Charging Base Station 35

Changing the Power Source for Charging Base Station 35

Summary of Charging Base Station Indicators 35

Table of Contents

Using DataMan 8700 Wireless Reader through Wi-Fi 35

Connecting in Access Point Mode 35

Connecting in Infrastructure Mode 39

Wi-Fi Channels 40

Connecting in Bluetooth Direct Connect Mode 42

Connect the Reader using Cognex Applications 42

Connect with Bluetooth Direct Connect of your Mobile Device Bluetooth Application 43

Connect your Reader to a PC or a Laptop Running Windows Operating System 43

Charging 44

Changing Batteries 45

Reading Codes with the DataMan 8700 47

Industrial Protocols 47

Trigger Types 47

Field of View and Reading Distances 48

Cleaning and Maintenance 52

Cleaning the Reader Housing 52

Cleaning the Reader Lens Cover 52

Replacing the Latch 52

Compliance Information, Warnings and Notices 55

Regulations and Conformity 55

Compliance Statements: DataMan Wireless Base Station 58

Compliance Statements: DataMan Charging Base Station 60

For European Community Users 61

中国大陆RoHS (Information for China RoHS Compliance) 62

Table of Contents

Symbols

The following symbols indicate safety precautions and supplemental information:

WARNING:This symbol indicates a hazard that could cause death, serious personal injury or electrical shock.

CAUTION:This symbol indicates a hazard that could result in property damage.

Note: This symbol indicates additional information about a subject.

Tip: This symbol indicates suggestions and shortcuts that might not otherwise be apparent.

Symbols

Precautions

To reduce the risk of injury or equipment damage, observe the following precautions when you install the Cognex product:

lThis product is intended for industrial use in automated manufacturing or similar applications.

lThe safety of any system incorporating this product is the responsibility of the assembler of the system.

lThis product does not contain user-serviceable parts. Do not make electrical or mechanical modifications to product

components. Unauthorized modifications can void your warranty.

lRoute cables and wires away from high-current wiring or high-voltage power sources to reduce the risk of damage or

malfunction from the following causes: over-voltage, line noise, electrostatic discharge (ESD), power surges, or other

irregularities in the power supply.

lChanges or modifications not expressly approved by the party responsible for regulatory compliance could void the

user’s authority to operate the equipment.

lEnsure that the cable bend radius begins at least six inches from the connector. Cable shielding can be degraded or

cables can be damaged or wear out faster if a service loop or bend radius is tighter than 10X the cable diameter.

lThis device should be used in accordance with the instructions in this manual.

lAll specifications are for reference purposes only and can change without notice.

Precautions

Getting Started

About DataMan 8700

The DataMan 8700 readers offer a rugged, industrial housing and advanced technology for reading 1-D and 2-D codes

regardless of size, quality, printing method, or surface. DataMan 8700 is available with patented 1DMax+ with Hotbars, class

leading 2-D PowerGrid algorithm, robust plastics, easy setup, and communication.

The DataMan 8700 readers use the three unique styles of Cognex lighting technology and 2DMax+ algorithms to read even

the most challenging Direct Part Mark barcodes. Tri-Lucent Lighting provides flexible lighting control to create polarized,

bright field, and diffuse lighting.

The DataMan 8700 readers are available with the following communication options:

lEthernet, with industrial protocols

lUSB

lRS-232

lBluetooth to Base Station

lBluetooth Direct Connect

lWi-Fi

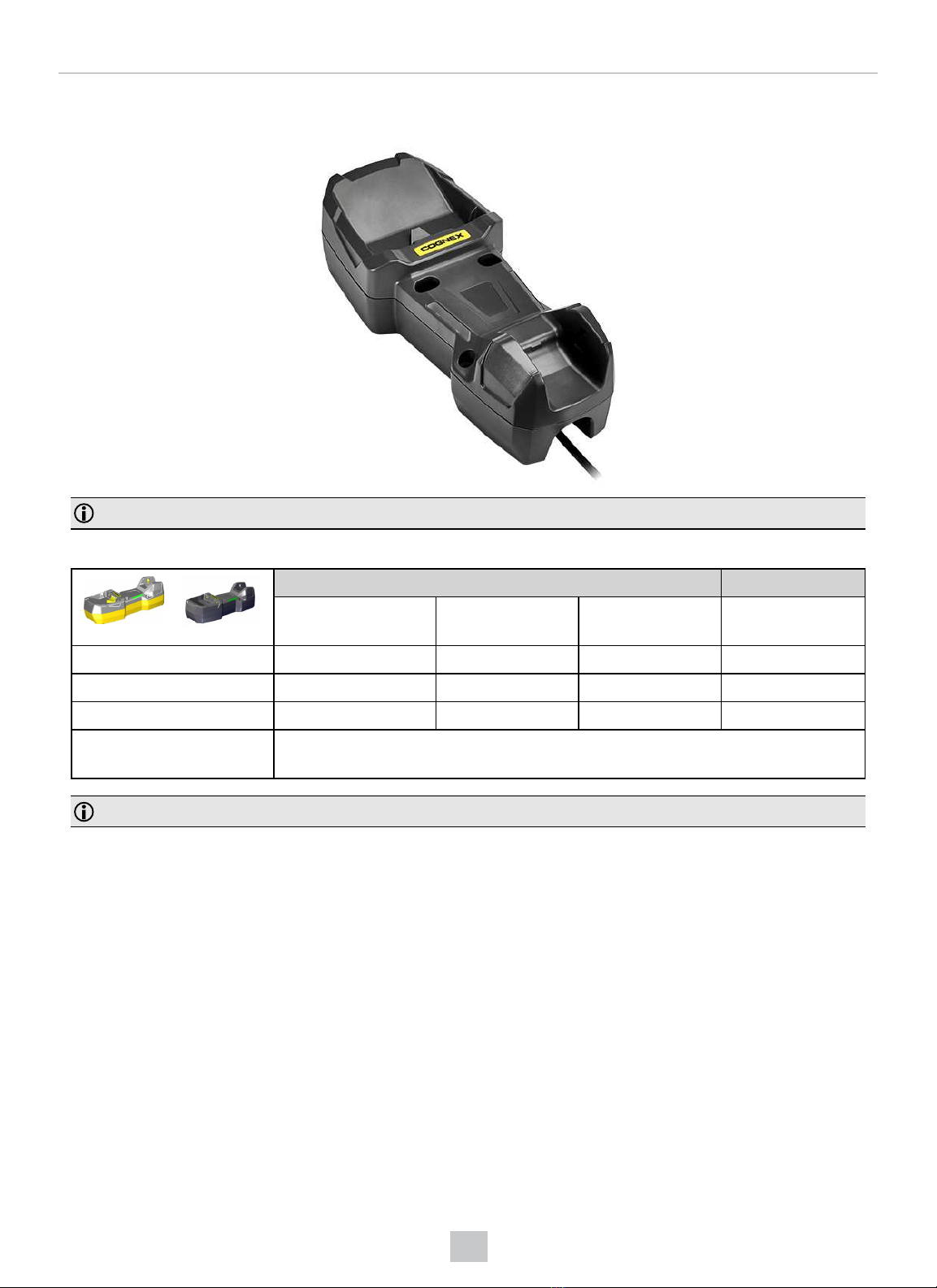

Cognex provides an intelligent base station for the DataMan 8700 reader that uses Bluetooth connection. The base station

acts as a router between the reader and your computer, PLC, or network. The base station charges the battery in the reader.

Getting Started

You can purchase a charging base station with the DataMan 8700 reader that uses Bluetooth Direct Connect or Wi-Fi. The

base station charges the battery in the reader and has no advanced communications.

Note: The term wireless refers to the Wi-Fi, Bluetooth, or Bluetooth direct communication options.

The DataMan 8700 series base stations are available with the following communication options:

Base Station Communication Wireless Protocol

Ethernet with Industrial

Protocols

USB RS-232 Bluetooth to Base

Station

DMB-8700-RS ✓ ✓

DMB-8700-USB ✓ ✓

DMB-8700-E ✓ ✓

DMB-8700-CHARGE The charging base station is compatible with Bluetooth Direct Connect and Wi-Fi, but has

no advanced communications.

Note: You can purchase additional power supplies separately.

Getting Started

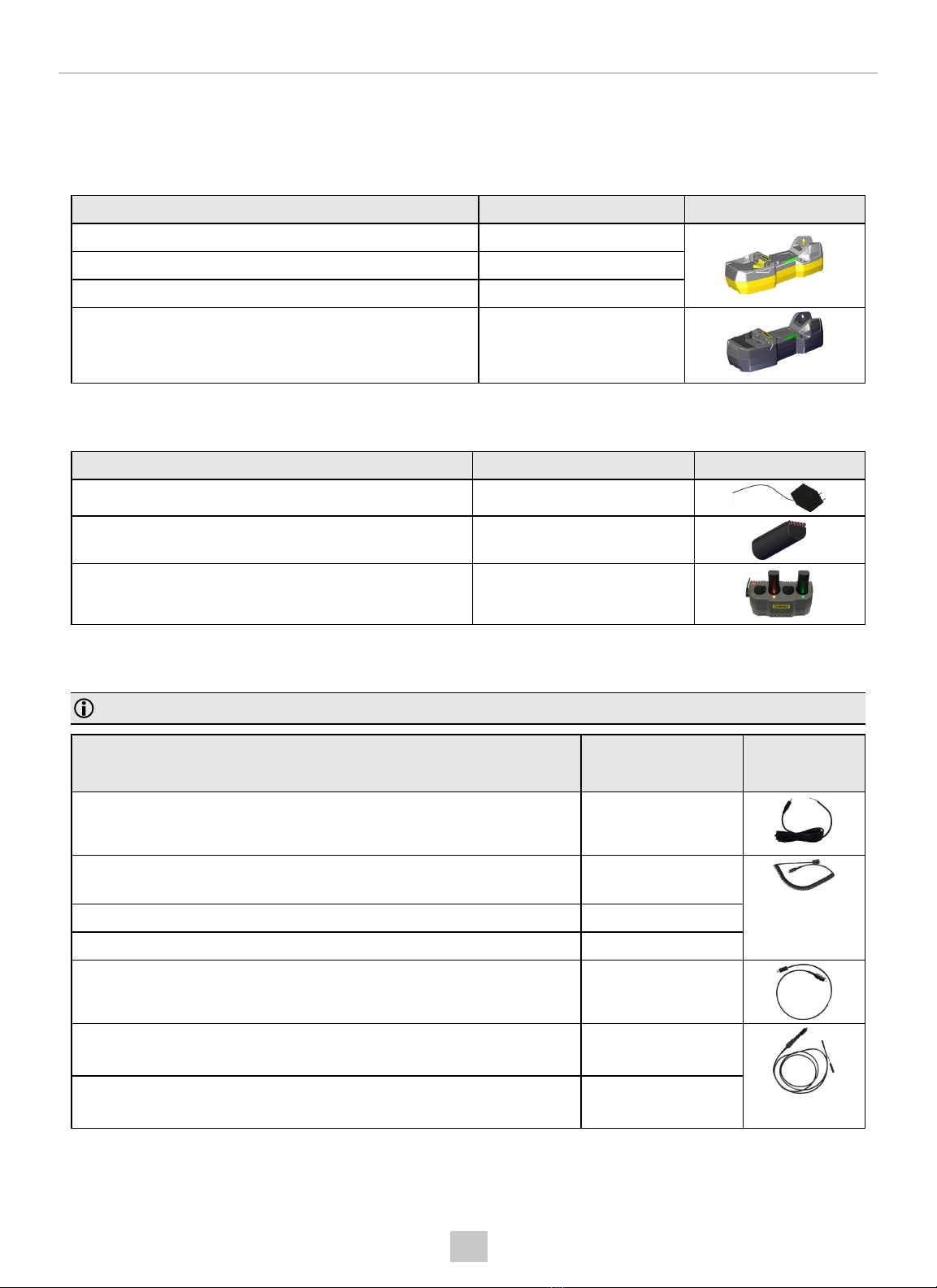

DataMan 8700 Accessories

Base Stations

Accessory Name Accessory Number Accessory Image

DM8700 Base Station with RS-232 Slide-in DMB-8700-RS

DM8700 Base Station with USB Slide-in DMB-8700-USB

DM8700 Base Station with Ethernet Slide-in DMB-8700-E

DM8700 Base Station Charge-Only DMB-8700-CHARGE

Power Supplies

Accessory Name Accessory Number Accessory Image

Power Supply for reader and base station DM8700-PWR-00

5000 mAh Battery for the wireless reader DMA-BATTERY-5000-1

4-bay Battery Charger for 5000 mAh Batteries DMA-MBC-5000

Cables

Note: Cables are sold separately.

Accessory Name Accessory Number Accessory


Flying lead cable for the charging base station DMB8700-CHARGE-

RS-232 coiled cable for Reader with 9-pin D-sub connector, power over pin 9,

2.5 m

DMC-HH-RS232P-02C

RS-232 coiled cable for Reader with 9-pin D-sub connector, 2.5 m DMC-HH-RS232-02C

RS-232 coiled cable for Reader with 9-pin D-sub connector, 4 m DMC-HH-RS232-05C

RS-232 Firmware update cable, RS-232 to USB converter DMC-HH-RS232-USB

USB straight cable with type A connector, 2.5 m DMC-HH-USBA-02

USB straight cable with type C connector, 2.5 m DMC-HH-USBC-02

Getting Started

Accessory Name Accessory Number Accessory


USB coiled cable with type A connector, 2.5 m DMC-HH-USBA-02C

USB cable with type C connector, coiled, 2.5 m DMC-HH-USBC-02C

Ethernet coiled cable with RJ45 connector, 5 m DMC-HH-ENET-05C1

Ethernet straight cable with RJ45 connector, 2.5 m DMC-HH-ENET-02

Ethernet straight cable with RJ45 connector, 5 m DMC-HH-ENET-05

Ethernet straight cable with RJ45 connector, 30 m DMC-HH-ENET-30

Ethernet coiled cable with M12 X-coded connector, 5 m DMC-HH-ENETM12-

05C

Miscellaneous Accessories

Accessory Name Accessory Number Accessory Image

DM8700 slide-in communication USB conversion kit DM8700-USB-KIT

DM8700 slide-in communication Ethernet conversion kit DM8700-ENET-KIT

DM8700 slide-in communication RS-232 conversion kit DM8700-RS-KIT

4 Port 24 V DC Industrial PoE Supply CPS-24V-POE4

PoE injector for one device CPS-AC-POE1A-xx2

Wall Mount Bracket DMA-WALL-8700

Presentation Stand, can be used with wall mount bracket (DMA-WALL-8700) DM-STAND-00

Holster DMA-HOLSTER-8700

1Collimated cable length including DM8700-ECABLE-X should not exceed 50 m.

2xx can be US, EN, UK, or JP.

Getting Started
