DataMan®8072 Verifier

Quick Reference Guide

06/07/2018

Revision:5.7.7.140

Precautions

WARNING: LASER LIGHT, DO NOT STARE INTO BEAM: CLASS 2

LASER PRODUCT. FAILURE TO FOLLOW THESE INSTRUCTIONS

MAY CAUSE SERIOUS INJURY.

Observe these precautions when installing the Cognex product, to reduce the risk of

injury or equipment damage:

lTo reduce the risk of damage or malfunction due to over-voltage, line noise,

electrostatic discharge (ESD), power surges, or other irregularities in the

power supply, route all cables and wires away from high-voltage power

sources.

lChanges or modifications not expressly approved by the party responsible

for regulatory compliance could void the user’s authority to operate the

equipment.

lCable shielding can be degraded or cables can be damaged or wear out

more quickly if a service loop or bend radius is tighter than 10X the cable

diameter. The bend radius must begin at least six inches from the

connector.

lThis device should be used in accordance with the instructions in this

manual.

lAll specifications are for reference purpose only and may be changed

without notice.

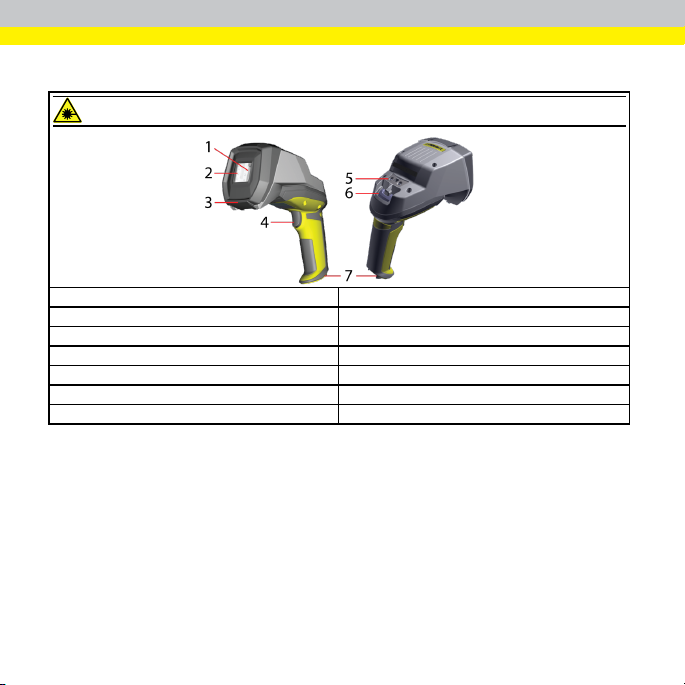

Product Overview

WARNING:LASER LIGHT, DO NOT STARE INTO BEAM

1 Imager and Lens Optical System

2 Illumination

3 Removable Standoff

4 Trigger (press and release)

5 Lanyard hook

6 Indicator light

7 Communication module insertion point

Status indicators:

lCommunication:

oGREEN= good verification

oRED = bad verification

DataMan 8072V Kits

The DataMan 8072V Verifier is available in the following kits:

Model number Description

DMV-8072V-S-0200 DataMan 8072V Verifier Ethernet Kit with Stand:

- 8072V Verifier

- Standoff

- Ethernet Slide-In

- Ethernet Cable Attachment

- Standard Ethernet Cable

- POE Injector

- Basic Calibration Card

- Stand Accessory

DMV-8072V-S-0100 DataMan 8072V Verifier USB Kit with Stand:

- 8072V Verifier

- Standoff

- USB Slide-In

- USB Cable

- Power Supply

- Basic Calibration Card

- Stand Accessory

DMV-8072V-0200 DataMan 8072V Verifier Ethernet Kit:

- 8072V Verifier

- Standoff

- Ethernet Slide-In

- Ethernet Cable Attachment

- POE Injector

- Basic Calibration

DMV-8072V-0100 DataMan 8072V Verifier USB Kit

- 8072V Verifier

- Standoff

- USB Slide-In

- USB Cable

- Power Supply

- Basic Calibration Card

DMV-8072V-0000 DataMan 8072V Verifier Kit No Slide-In

- 8072V Verifier

- Standoff

- Basic Calibration Card

DMV-8072V-S-0000 DataMan 8072V Verifier Kit with Stand No Slide-In

- 8072 Verifier

- Standoff

- Stand Accessory

- Basic Calibration Card

DataMan 8072V verifier and stand-off Ethernet or USB slide-in

Stand accessory Calibration card

DataMan 8072V Verifier Accessories

Ethernet slide-in DMCM-ENETM-00

Serial/USB 2.0 slide-in DMCM-USB2EN-00

Power Supply for USB 2.0 Slide-In DM100-PWR-000

POE hub CPS-AC-POE1A-US

Stand Accessory DMV-8072V-STAND

Cables

USB Cable for USB 2.0 Slide-In, 2.5 m DM8500-USBC-02

Ethernet Cable for Ethernet Slide-In, 5 m DM8000-ECABLE-05

Standard Ethernet Cable CBL-C10E

Connecting the Verifier

Note: Disconnect the DataMan 8072V Verifier from power or remove the battery before inserting/removing

the communication modules.

Installation

Installation procedures and specifications are presented in detail in the DataMan®

8072 Verifier Reference Manual, which is installed with the DataMan Setup Tool.

From the Windows Start menu, select the following to access the manual: All

Programs > Cognex > DataMan Software vx.x.x > Documentation.

Note:

lCables are sold separately.

lIf any of the standard components appear to be missing or damaged,

immediately contact your Cognex Authorized Service Provider (ASP)

or Cognex Technical Support.

CAUTION:All cable connectors are "keyed" to fit the connectors on the

DataMan system; do not force the connectors or damage may occur.

Install Software and Documentation and

Connect the Reader

To configure a DataMan 8072V Verifier, the DataMan Setup Tool software must be

installed on a networked PC. The DataMan Setup Tool is available from the

DataMan support site: http://www.cognex.com/support/dataman.

1. After installing the software, connect the DataMan 8072V Verifier to your

PC.

2. Launch the DataMan Setup Tool and click Refresh.

3. Select your DataMan 8072V Verifier from the list and click Connect.

DataMan 8072V Verifier Specifications

Weight 400 g (including grip assembly with battery)

Operating Temperature 0ºC — 45ºC (32ºF — 113ºF)

Storage Temperature 0ºC — 60ºC (32ºF — 140ºF)

Maximum Humidity 95% (non-condensing)

Environemntal IP65

Codes 2-D barcodes: Data MatrixTM (IDMax and IDQuick: ECC200)

Power Supply

Requirements

USB: bus powered (optionally: external 6W max LPS or NEC class 2 power supply +5V

- +6V DC)

ETH: Class 2 PoE supply IEEE 802.3af (connect only to PoE networks without routing to

the outside plant)

Inrush current peak 5A maximum

Duration: approx. 30μs

Ethernet 10/100 Base-T FULL/HALF DUPLEX, IEEE 802.3

DataMan 8072V Verifier Imager Specifications

Specification DataMan 8072V Verifier Imager

Image Sensor 1/3 inch CMOS global shutter

Image Sensor Properties 3.75 μm square pixels

Image Resolution (Pixels) 1280 x 966

Lens Type 12 mm F:4 S-mount lens

LED Wavelengths

The following table shows LED types and the related wavelengths:

LED λ [nm]

RED 660
