QU-14S
1 to 4 HDMI Distribution Amplifier
OPERATION MANUAL
3
DISCLAIMERS
The information in this manual has been carefully checked and is
believed to be accurate. CYP (UK) Ltd assumes no responsibility for any
infringements of patents or other rights of third parties which may result
from its use.
CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be
contained in this document. CYP (UK) Ltd also makes no commitment to
update or to keep current the information contained in this document.
CYP (UK) Ltd reserves the right to make improvements to this document
and/or product at any time and without notice.
COPYRIGHT NOTICE
No part of this document may be reproduced, transmitted, transcribed,
stored in a retrieval system, or any of its part translated into any language
or computer file, in any form or by any means—electronic, mechanical,
magnetic, optical, chemical, manual, or otherwise—without express
written permission and consent from CYP (UK) Ltd.
© Copyright 2019 by CYP (UK) Ltd.
All Rights Reserved.
Version 1.1
TRADEMARK ACKNOWLEDGMENTS
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
4
SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or operate
this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of fire,
electrical shock and injury to persons.
• To prevent fire or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts inside
the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU if
it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
sufficient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE SUMMARY OF CHANGE
v2.00 12/07/2019 Updated format/diagrams
5
CONTENTS
1. Introduction...........................................6
2. Applications ...........................................6
3. Package Contents ..................................6
4. System Requirements ...........................6
5. Features..................................................7
6. Operation Controls and Functions.......8
6.1 Front Panel................................................... 8
6.2 Rear Panel..................................................... 9
7. Connection Diagram .......................... 10
8. Specifications ..................................... 11
9. Acronyms............................................. 12
6
1. INTRODUCTION
The QU-14S Distribution Amplifier (splitter) accepts one HDMI input and
splits this signal to four identical outputs. This device is compatible to
v1.3 HDMI specifications, supporting ‘Deep Colour’ together with High
Definition Audio. Each buffered output can run 1080p/8-bit up to 20
metres and can also be cascaded up to 3 layers.
2. APPLICATIONS
Simultaneously display an HDMI source on 4 TVs/projectors
Showroom display
University lecture hall display
Retail sales displays
3. PACKAGE CONTENTS
1×1 by 4 HDMI Splitter
1×5V/2.6 A Power Adaptor
1×Operation Manual
4. SYSTEM REQUIREMENTS
HDMI source device such as a DVD/Blu-ray player and HDMI equipped
displays (TVs/monitors) with High Speed HDMI cables.
7
5. FEATURES
v1.3 HDMI, HDCP 1.1 and DVI 1.0 compliant
HDMI 1 to 4 Splitter
Resolutions supported: PC - VGA to UXGA; HDTV - 480i to 1080p plus
1080p24fps
High Definition Audio supported: Dolby TrueHD, Dolby Digital Plus
and DTS-HD Master Audio plus LPCM
Auto signal amplification & equalisation improves signal transmission
distances
Supports CEC bypass
Supports Deep Colour (10 & 12 bit)
Selectable EDID settings - TV (downstream) and STD (fixed)
Power, HDMI/DVI, HDCP & SYNC plus independent output LED's
indicator
Supports xvYCC
Supports 3D signals
8
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Front Panel
SYNC 4321 POWERHDCPHDMI / DVI
1 2 3 4 5
1HDMI/DVI Indicator: The LED will illuminate when the selected
HDMI input source is originally from an HDMI output, the LED will not
illuminate when the selected HDMI input source is originally from a
DVI output.
2HDCP Indicator: The LED will illuminate when the selected HDMI
input source is HDCP-protected.
3SYNC Indicator: The LED will illuminate when the selected HDMI IN
connects to an HDMI or DVI output correctly.
4HDMI output Indicator: The LED will illuminate when the output
sources are been connected.
5POWER Indicator: The power LED will illuminate when power on.
9
6.2 Rear Panel
1234
DC 5V
HDMI IN
EDID
HDMI OUT
STD TV
1 2 3 4
1EDID Control Jumper: Default factory setting is TV, leave as is if the
display is properly. Switch to STD to use built-in EDID if the display has
problems. When the EDID control jumper in TV selection, the unit will
detect the first HDMI output source’s EDID and record in the unit. If
the first detected output source is DVI it will pass to next source, until
the first HDMI been detected.
2HDMI Input: Connect input port to the HDMI or DVI output of your
source equipment such as DVD player or set-top-box.
3HDMI Outputs 1 to 4: Connect each of the output ports to the HDMI
display. When more than one output connected, the HDMI outputs
play identical video signal simultaneously.
4Power: Plug the 5V DC power supply into the splitter and connect the
adaptor to AC wall outlet.
10

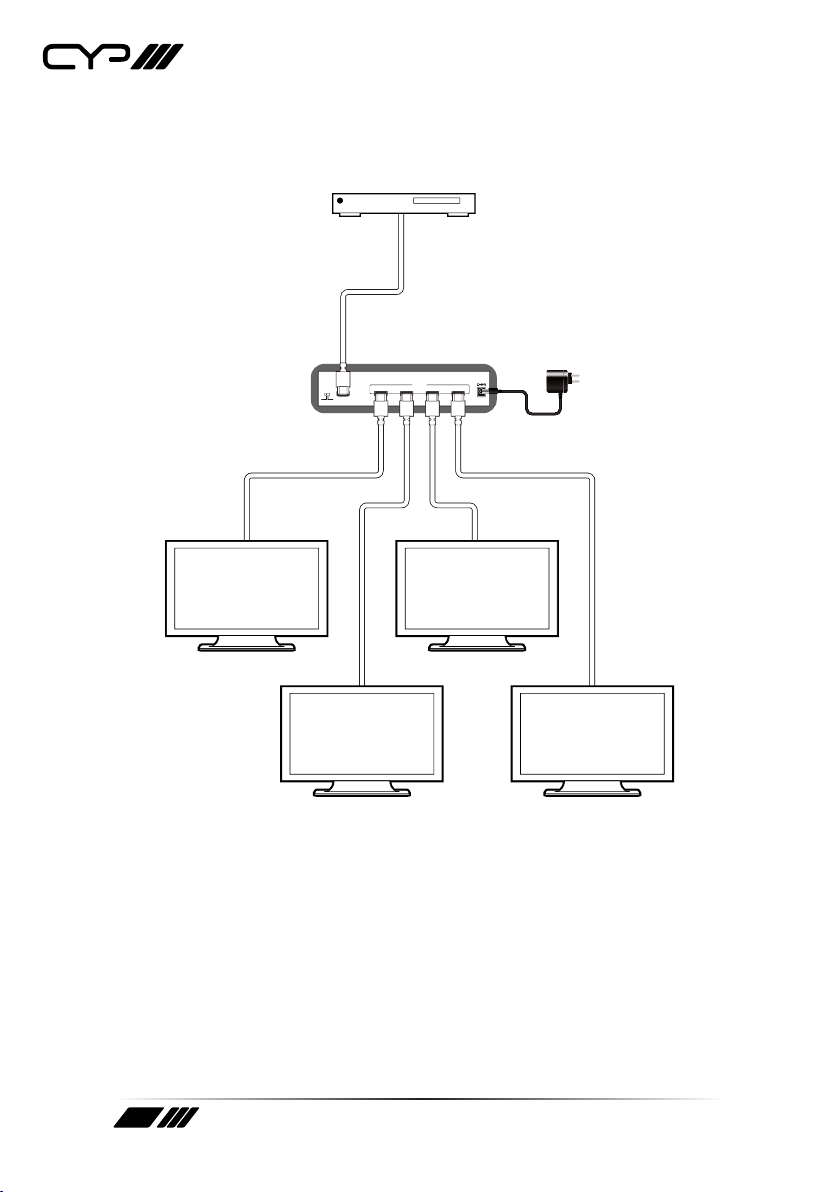

7. CONNECTION DIAGRAM
1234
DC 5V
HDMI IN
EDID
HDMI OUT
STD TV
HDTV
HDTV
HDTV
HDTV
HDMI
Outputs
HDMI
Input
Power
Supply
Blu-ray Player
