CYP CP-1262DE Bedienungsanleitung

CP-1262DE

DVI to PC/Component

Converter Box

Operation Manual

CP-1262DE

1. Introduction................................................................................

2. Features......................................................................................

3. Operation Controls and Functions..........................................

3.1 Front Panel...........................................................................

3.2 Rear Panel............................................................................

4. Connection and Installation.....................................................

5. Pin Configuration........................................................................

6. Specifications.............................................................................

TABLE OF CONTENTS

1. Introduction

This converter box converts digital DVI-D to Analog PC/RGB or HD YPbPr

output. It enables to connect the DVI sources to the analog PC monitor,

Projector or TV. Its high bandwidth capability supports a wide range of PC

and HDTV resolutions.

2. Features

 Supports DVI-D input and Analog PC/RGB or HD YPbPr output.

 Supports output selection between YPbPr and RGB.

 Supports input/output resolution as below:

PC: 640x480= VGA59 , VGA60, VGA72, VGA75, VGA85

800x600= SVGA56, SVGA60, SVGA72, SVGA75, SVGA85

1024x768= XGA60, XGA70, XGA75, XGA85

1152x864=MAC70, MAC75, MAC85

1280x1024= SXGA60, SXGA75, SXGA85,

1600x1200= UXGA60

1920x1200= WUXGA60(pixel-rate=154MHz)

HD: 480I60, 576I50, 480P60, 576P50, 720P60, 720P50, 1080I60, 1080I50,

1080P30, 1080P60, 1080P50

Note: 1 Due to the IC didn’t support Tri-level synchronies output.

So component output at 720p/1080i/1080p, the image

will shift to the left side of the screen.

2 If DVI source includes HDCP(High-bandwidth Digital Content

Protection), DVI display should not support HDCP decryption.

 Build in EDID.

3. Operation Controls and Functions

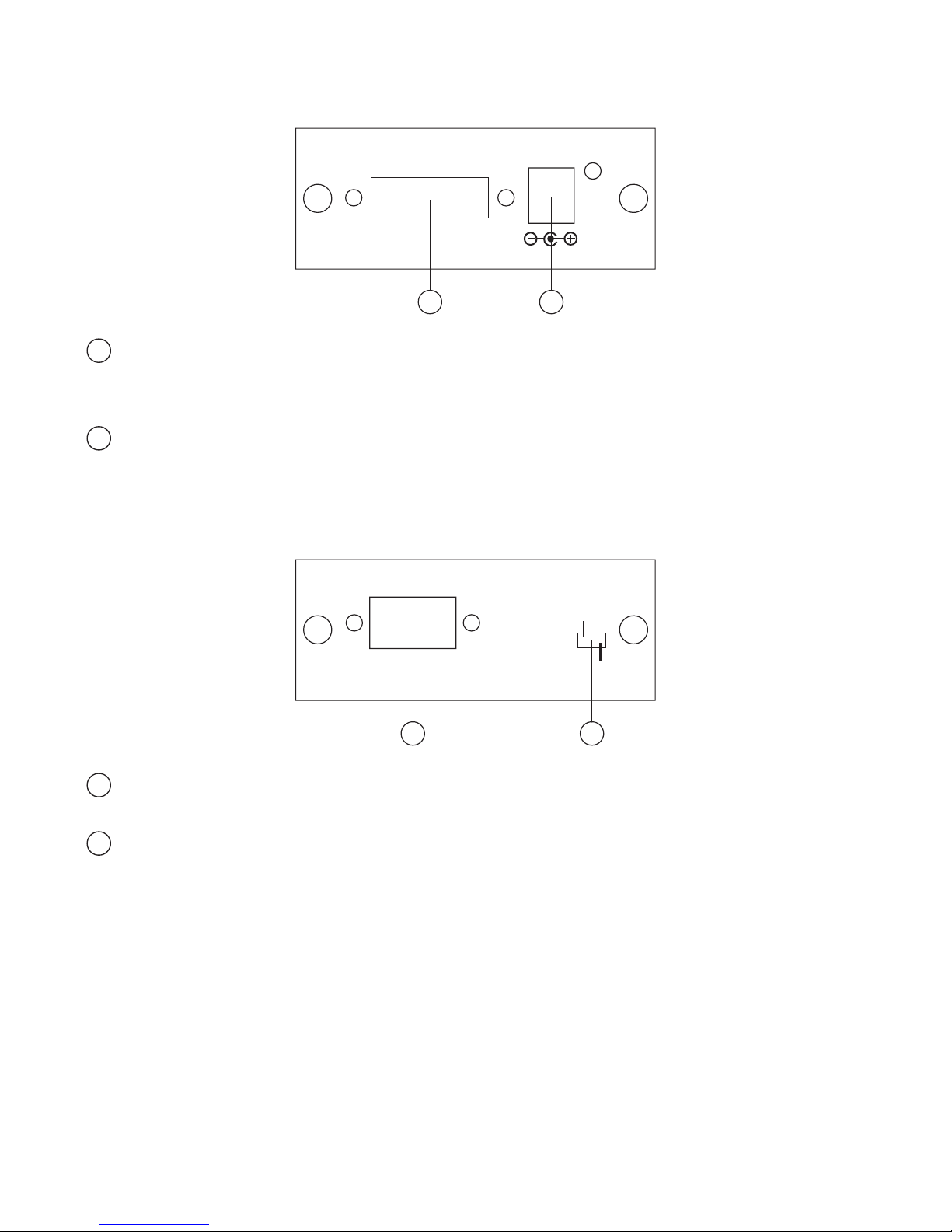

3.1 Front Panel

1 DVI input: Connect the DVI-D input port to the DVI output port of your

source equipment such as DVD player or set-top-box. It supports only

DVI-D signal via a DVI-I connector.

2 Power: Plug the 5VDC power supply into the unit and connect the

adaptor to AC wall outlet.

3.2 Rear Panel

1 HD-15 D-Sub output: Connect the output port to the PC/YPbPr input of

analog PC monitor, Projector or TV.

2 YPbPr/RGB switch:

Set the switch to RGB when your DVI source equipment is PC graphic card

or other digital RGB source signal. Use HD-15 to HD-15 VGA cable to

connect between the unit's RGB out and the RGB input of your PC

monitor, or projector. Set the switch to YPbPr when your DVI source

equipment is DVD player, set-top-box or other High definition digital video

source. Use a VGA to 3 RCA adaptor cable to connect the unit's YPbPr

out to the YPbPr input connector of your HDTV.

Note: When YPbPr output from HD-15 D-Sub the H-pin and V-pin will remain

the signal at the same time.

1 2

DC 5V

DVI INPUT

1 2

OUTPUT

RGB

YPbPr

PC/YPbPr OUTPUT

4. Connection and Installation

5. Pin Configuration

A. DVI input Pin Assignment.

DVD or Set-Top Box

DVI Cable VGACable

RGB out

D-Sub to 3 RCA Cable HDTV or,

Projector

PC monitor

Projector,

PDP.

Connection 1

Connection 2

HD YPbPr input

YPbPr out

DVI Cable

Pin#

Function

TMDS D2-

TMDS D2+

TMDS D2 SHD

N.C.

DDC CLOCK

DDC DATA

RESERVED

Function Pin#

Function

TMDS D1-

TMDS D1+

TMDS D1 SHD

N.C.

POWER +5V

GND(DDC)

H.P. DETECT

TMDS D0-

TMDS D0+

TMDS D0 SHD

N.C.

TMDS CLK SHD

TMDS CLK+

TMDS CLK-

109

14131211

4321

6 7 8

17 24

6. Specifications

Operation frequency Up to 165MHz

Input port 1 x DVI (only DVI-D supported)

Input signal Digital RGB or YPbPr bistream

Output port 1 x HD-15 D-Sub (RGBHV or YPbPr)

Output signal RGB: 0.7Vp-p 75ohm

H+V: 3 to 5 Vp-p

Or Y: 1 Vp-p 75ohm

PB/Pr: 0.7 Vp-p 75ohm

Input/Output resolution PC: 640x480= VGA59 , VGA60, VGA72, VGA75,

VGA85

800x600= SVGA56, SVGA60, SVGA72, SVGA75,

SVGA85

1024x768= XGA60, XGA70, XGA75, XGA85

1152x864=MAC70, MAC75, MAC85

1280x1024= SXGA60, SXGA75, SXGA85,

1600x1200= UXGA60

1920x1200= WUXGA60(pixel-rate=154MHz)

HD: 480I60, 576I50, 480P60, 576P50, 720P60, 720P50,

1080I60, 1080I50, 1080P30, 1080P60, 1080P50

Power Supply 5V/2A DC (US/EU standards, CE/FCC/UL certified)

Dimensions (mm) 76(W) x 30(D) x 92(H)

Weight(g) 182

Chassis Material Aluminum

Silk Skin Color Silver

Operating Temperature Operating from 0°C ~ 40°C

Part No. Pin No. Description (PC out)

DB15HD

RED

GREN

BLUE

GND

GND (DDC-RETURN)

GND-RED

GND-GREEN

GND-BLUE

N.C

GND-SYNC

GND

DDC-DATA

H-SYNC

V-SYNC

DDC-CLOCK

Part No. Pin No. Description (HD out)

DB15HD

GND

GND (DDC-RETURN)

GND-Pr

GND-Y

GND-Pb

N.C

GND-SYNC

GND

DDC-DATA

H-SYNC

V-SYNC

DDC-CLOCK

B. Analog VGA output pin

assignment when output switch

set to RGB.

C. Analog VGA output pin assignment

when output switch set to YPbPr.

20080819 MPM-CP1262DE
