CYP DCT-15 Bedienungsanleitung
DCT-15
USB Audio Converter
with Optical
Operation Manual
DCT-15
DRAFT MANUAL
Disclaimers
The information in this manual has been carefully checked and
is believed to be accurate. Cypress Technology assumes no
responsibility for any infringements of patents or other rights of third
parties which may result from its use.
Cypress Technology assumes no responsibility for any inaccuracies
that may be contained in this document. Cypress also makes
no commitment to update or to keep current the information
contained in this document.
Cypress Technology reserves the right to make improvements to this
document and/or product at any time and without notice.
Copyright Notice
No part of this document may be reproduced, transmitted,
transcribed, stored in a retrieval system, or any of its part translated
into any language or computer le, in any form or by any means
- electronic, mechanical, magnetic, optical, chemical, manual,
or otherwise - without express written permission and consent from
Cypress Technology.
© Copyright 2009 by Cypress Technology.
All Rights Reserved.
Version 1.0 October 2009
Trademark Acknowledgments
All products or service names mentioned in this document may be
trademarks of the companies with which they are associated.
Safety Precautions
Please read all instructions before attempting to unpack or install or
operate this equipment, and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
Always follow basic safety precautions to reduce the risk of
re, electrical shock and injury to persons.
To prevent re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
Never spill liquid of any kind on or into this product.
Never push an object of any kind into this product through
module openings or empty slots, as you may damage parts.
Do not attach the power supply cabling to building surfaces.
Do not allow anything to rest on the power cabling or allow it to
be abused by persons walking on it.
To protect the equipment from overheating, do not block the
slots and openings in the module housing that provide
ventilation.
Revision History
Version No Date Summary of Change
V1 20100607 Preliminary Release
Table of Contents
1. Introduction..................................................................................1
2. Applications.................................................................................1
3. PackageContents......................................................................1
4. SystemRequirements..................................................................1
5. Features........................................................................................1
6. Specifications..............................................................................2
6.1 Input Audio Reference Level ......................................... 2
7. OperationControlsandFunctions............................................. 3
7.1 Front Panel ..................................................................... 3
7.2 Rear Panel ..................................................................... 3
8. ConnectionandInstallation..................................................... 4
1. Introduction
The DCT-15 USB Audio Converter with Optical is a powerful device for your
audio outputting needs. It is designed to be compatible with most modern
devices thanks to its use of USB and Optical ports and is intelligently designed
to receive power over a USB connection; this optical output can also be
linked with an amplier or sound system that has SPDIF inputs. Don’t forget
about the R/L jacks because they can be linked to a display or to speakers
to simultaneously output stereo audio. The DCT-15 USB Audio Converter with
Optical is your best choice when you want to enjoy high quality sound.
2. Applications
• High performance audio output
• Digital to analog audio conversion
• USB to audio conversion
3. Package Contents
• Audio Box
• Operation Manual
4. System Requirements
PC or laptop with USB cables and/or another source input such as a DVD
player with an optical cable. Output to an amplier or active speaker with
optical and RCA cables.
5. Features
• USB 2.0 compatible
• USB audio device class specication v1.0 Compatible
• USB High performance 16-bit Stereo, 48/44.1 kHz sampling rate for audio
playback
• Optical sampling rate supports up to 192 kHz, 24bit
• Low power consumption
1
Input Port Optical and Mini USB
USB Sampling Frequency 48/44.1KHz / 16 bits
Optical Sample Frequency Up to 192 kHz / 24 bits
Output Port Optical (48kHz) and R/L
ESD Protection Human body model: ± 8kV (air-gap discharge)
± 6kV (contact discharge)
Dimensions(mm) 90 (W) x 120 (D) x 25(H)
Weight(g) 250
Chassis Material Plastic
Silkscreen Color Black
Operating Temperature 0°C~40°C / 32°F~104°F
Storage Temperature -20°C~60°C / -4°F~140°F
Power Consumption 1W
Relative Humidity 20 ~ 90% RH (non-condensing)
6.1InputAudioReferenceLevel
Input
Reference
Level/Freq
Output Level T.H.D+N Freq
Response SNR Crosstalk
OPTICAL
OdBFS
1KHz
L / R 2.1±0.05
Vrms 0.01%↓ 0±1 dBrA >80dB <-80dB
OPT
48KHZ 0dBFS 0.01%↓ 0±0.5dBFS >90dB <-90dB
6. Specications
2
7. Operation Controls and Functions
7.1FrontPanel
Optical In
Power Mini USB In
1 2 3 4
1 Power LED: This red LED will turn on when the device is connected with
the power supply.
2 Mini USB In: This slot is where you connect the input audio source or the
power supply with a USB cable from a PC or notebook.
3 USB & OPTICAL Switch: This switch allows the user to choose the input
audio source from either the USB port or from the Toslink socket.
4 OPTICAL IN: This slot is where you connect the input audio source from a
DVD player, PS3 etc, with an optical cable.
7.2RearPanel
1 2
1 OPTICAL OUT: This slot is where you connect the amplier or speaker with
optical cable for audio output.
2 L/R OUT: These slots are where you connect the speaker with RCA cables
for audio output.
3

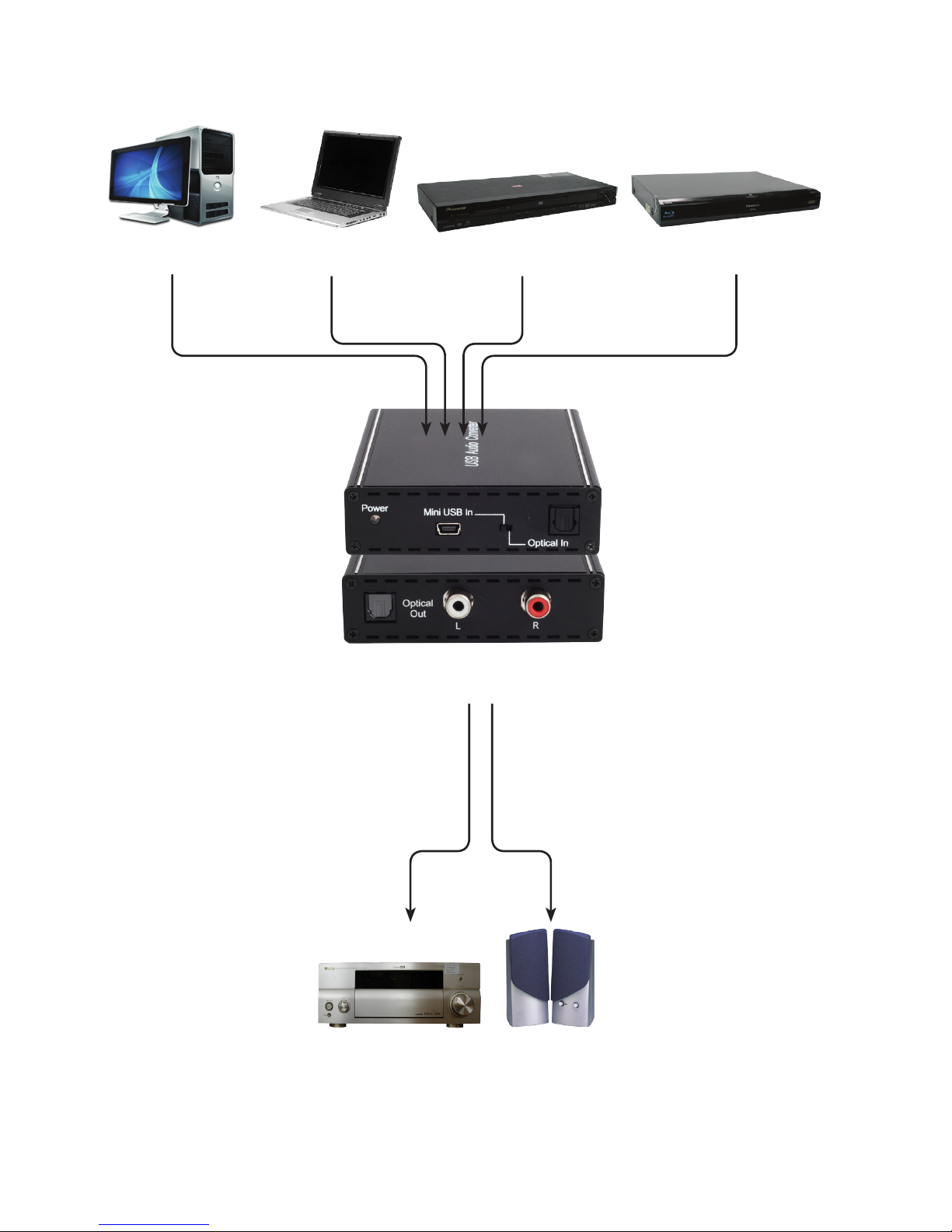

8. Connection and Installation
PC
DCT-15
NB DVD Blu-Ray
ONKYO AMP Active Speaker
4
Acronyms A
Acronym Complete Term
USB Universal Serial Bus
5
