CYP PU-515PL-WPRX Bedienungsanleitung

PU-515PL-WPRX

HDBaseT™ LITE Wall Plate Receiver with PoC

& 2-Way IR (up to 60m)

OPERATION MANUAL

DISCLAIMERS

The information in this manual has been carefully checked and is

believed to be accurate. CYP (UK) Ltd assumes no responsibility for any

infringements of patents or other rights of third parties which may result

from its use.

CYP (UK) Ltd assumes no responsibility for any inaccuracies that may be

contained in this document. CYP (UK) Ltd also makes no commitment to

update or to keep current the information contained in this document.

CYP (UK) Ltd reserves the right to make improvements to this document

and/or product at any time and without notice.

No part of this document may be reproduced, transmitted, transcribed,

stored in a retrieval system, or any of its part translated into any language

or computer le, in any form or by any means—electronic, mechanical,

magnetic, optical, chemical, manual, or otherwise—without express

written permission and consent from CYP (UK) Ltd.

Version 1.1 August 2011

TRADEMARK ACKNOWLEDGMENTS

All products or service names mentioned in this document may be

trademarks of the companies with which they are associated.

SAFETY PRECAUTIONS

Please read all instructions before attempting to unpack, install or operate

this equipment and before connecting the power supply.

Please keep the following in mind as you unpack and install this

equipment:

• Always follow basic safety precautions to reduce the risk of re,

electrical shock and injury to persons.

• To prevent re or shock hazard, do not expose the unit to rain,

moisture or install this product near water.

• Never spill liquid of any kind on or into this product.

• Never push an object of any kind into this product through any

openings or empty slots in the unit, as you may damage parts inside

the unit.

• Do not attach the power supply cabling to building surfaces.

• Use only the supplied power supply unit (PSU). Do not use the PSU if

it is damaged.

• Do not allow anything to rest on the power cabling or allow any

weight to be placed upon it or any person walk on it.

• To protect the unit from overheating, do not block any vents or

openings in the unit housing that provide ventilation and allow for

sucient space for air to circulate around the unit.

REVISION HISTORY

VERSION NO. DATE SUMMARY OF CHANGE

v1.00 20/01/15 First release

v1.01 02/03/15 Amended Cover Image

v1.02 24/03/15 Amended Intro/Features Text

CONTENTS

1. Introduction...........................................6

2. Applications ...........................................6

3. Package Contents ..................................6

4. System Requirements ...........................6

5. Features..................................................7

6. Operation Controls and Functions .......8

6.1 Receiver Front Panel................................. 8

6.2 Receiver Rear Panel................................... 9

6.3 IR Cable Pin Assignment ......................... 9

7. Connection Diagram .......................... 10

Option 1: Point to Point................................10

Option 2: Matrix System...............................11

8. Specications...................................... 12

8.1 Technical Specications ........................12

8.2 CAT5e/6/7 Cable Specication ...........13

9. Acronyms............................................. 13

1. INTRODUCTION

The PU-515PL-WPRX allows uncompressed HDMI signals, control and

power to be transmitted over a Single CAT5e/6/7 cable. This device allows

the distribution of Video, Audio, Power over Cable (PoC) and 2-way IR

control functionality over the same CAT5e/6/7 cable. These combined

HDMI and control signals can be transmitted up to lengths of 60 metres.

This wall plate variant of the PU-515PL-RX receiver enables seamless

integration into a standard double-gang back box.

2. APPLICATIONS

Extend an HDMI signal to a remote location

Household entertainment sharing and control

Showroom display and control

Classroom display and control

3. PACKAGE CONTENTS

1×HDMI over Single CAT5e/6/7 Wall-plate Receiver

1×IR Blaster

1×IR Extender

Operation Manual

4. SYSTEM REQUIREMENTS

HDMI equipped source device (connected with HDMI cables) or DVI

equipped source (connected with DVI to HDMI cables)

HDMI equipped display (TV or monitor) or AN HDMI equipped AV

receiver, connected with HDMI cables

Industry standard CAT5e/6/7 cable

Compatible PoC HDBaseT™ Receiver such as a PU-515PL-TX

5. FEATURES

HDCP 2.2 Compliant

Supports all v1.4 HDMI resolutions plus 4K

Supports uncompressed video/audio up to 10.2Gbps

Supports resolutions VGA~WUXGA, 480i~1080p, 4K UHD@24/25/30Hz

(RGB 4:4:4 & YUV 4:2:2), 4K UHD@ 60Hz (YUV 4:2:0), 4K/2K@24/25/30Hz

(RGB 4:4:4 & YUV 4:2:2) and 4K/2K@ 60Hz (YUV 4:2:0) dependent upon

the output display’s EDID settings

HDMI, HDCP, & DVI compliant

Uncompressed data transfer over single CAT cable (60m @ 1080p

cat5e/6)

Uncompressed video 1080p, 60Hz, 48bits

Audio support up to 7.1CH & Dolby TrueHD, DTS-HD

Supports: HDMI, PoC & Control (2-way IR)

Note:

1. This system was tested with CAT6/23AWG and CAT5e/24AWG cables,

results may vary with cables of a dierent specication.

2. The PoC function requires a compatible Transmitter unit. Transmitters

from other brands may not be compatible.

3. For playback of 4K2K HDMI source signals, a 4K2K capable display and

High Speed HDMI cables are required.

6. OPERATION CONTROLS AND FUNCTIONS

6.1 Receiver Front Panel

HDMI OUT

POWER

LINK

IR 1

EXTENDER

IR 2

BLASTER

1 2 3 4 5

1IR 1 EXTENDER: Connect an IR Extender cable for IR signal reception.

Signals received will be transmitted to the transmitter unit. Ensure

that the remote being used is within the direct line-of-sight of the IR

Extender.

2IR 2 BLASTER: Connect an IR Blaster cable for IR signal transmission.

IR signals received by an IR extender connected to the transmitter unit

will be transmitted by this blaster. Place the IR Blaster in direct line-of-

sight of the equipment to be controlled.

3HDMI OUT: Connect to a HDMI equipped TV/monitor for display of

the HDMI source signal.

4POWER LED: This LED will illuminate when the device is connected

and powered by a compatible transmitter unit via PoC.

5LINK LED: This LED will illuminate when both the source connected

to the transmitter and the display connected to the receiver are

connected.

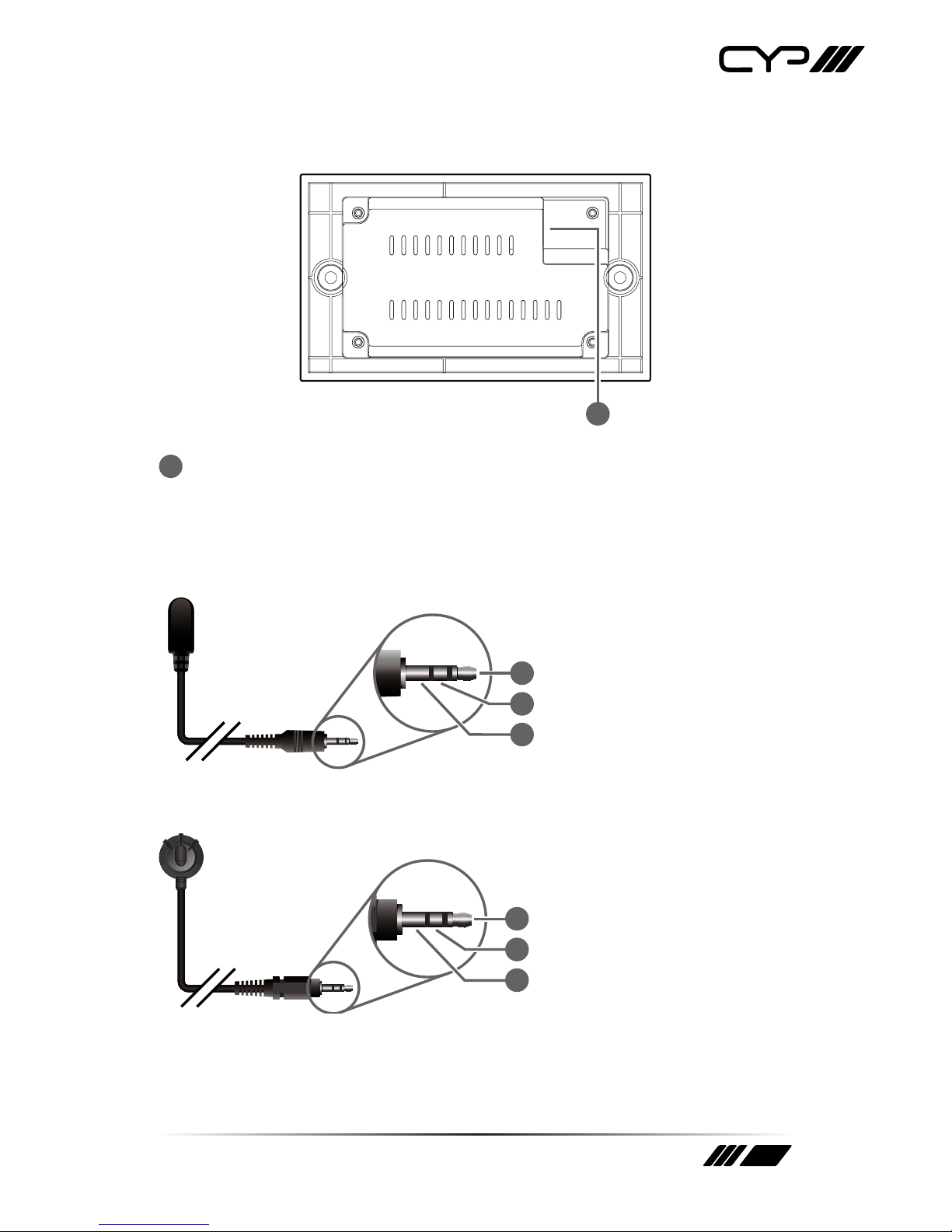

6.2 Receiver Rear Panel

1CAT5e/6/7 IN: Connect to the transmitter unit with a single CAT5e/6/7

cable for transmission of all data signals.

6.3 IR Cable Pin Assignment

1Power

IR Blaster Signal

IR Signal

Power

Ground

IR Extender

IR Blaster

7. CONNECTION DIAGRAM

Option 1: Point to Point

Note: The receiver is

powered via PoC by the

transmitter.

Power

Link

CAT 5e /6 OutLite

DC 24V

IR2 Extender

RS232 In IR1 Blaster

HDMI In

HDMI OUT

POWER

LINK

IR 1

EXTENDER

IR 2

BLASTER

7m3m 3m

60°

1.5m

60°

1.5m

60°

HDMI

Input

HDMI

Output

Power

Supply

HDTV

IR Extender

DVD/Blu-ray Player

IR Blaster

Single

CAT5e/6/7

Cable

IR Blaster

Compatible

Transmitter unit with

PoC

Option 2: Matrix System

HDMI IN

CONTROL

RS232

SERVICE

IR OUT

IR IN

IR OUT

IR IN

IR OUT

IR IN

ALL A B C D E F G H

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUTCAT5e/6 OUT

IR OUT

IR IN

CAT5e/6 OUT

MAIN 24V

POE 24V

HDMI IN

V+

GND

GND GND

V+

HDMI OUT

POWER

LINK

IR 1

EXTENDER

IR 2

BLASTER

7m3m 3m

60°

1.5m

60°

7m3m 3m

60°

1.5m

60°

Single

CAT5e/6/7

Cable

HDMI

Input

PoC Power Supply

Main Power Supply

Blu-ray Player

Internet

Router

HDBaseT

Transmitter

(8×8 Matrix)

Up to 7 Other Zones

Up to 7 Other Sources

HDMI

Output

TV/Display

Extender

IR Extender

IR Blaster

Blaster Note: The receiver can be used in a wider HDMI

matrix system and can be powered via PoC by a

compatible matrix/transmitter unit.
