CYP CA-DVIAT Bedienungsanleitung
CA-DVIAT &
CA-DVI250R
DVI over CAT5
Transmitter &
Receiver Box
Operation Manual
CA-DVIAT&CA-DVI250R
Revision History
Version No Date Summary of Change
V1 20090401 Preliminary Release
Precaution
Failure to follow the precautions described below may cause damage to DVI
over CAT 5 Transmitter and Receiver Box and void the warranty.
DO NOT open the case. Doing so will void the warranty. If you find
problem with it, please return back to your retailer or seller who will
assist you or provide you with solution.
DO NOT use third-Party AC adapter or power cord. Doing so may
damage DVI over CAT 5 Transmitter and Receiver Box.
DO NOT bump, jar or drop contents of the products as it may
damage it and result in warranty void.
DO NOT set any liquids or beverages on the drive as they may
damage DVI over CAT 5 Transmitter and Receiver Box.
Table of Contents
1
1
1
1
2
2
3
4
4
4
5
6
1. Introduction…………………………………………………........……….
2. Application…………………………………………………................….
3. Contents……………………………………………….........................…
4. System Require…………………………………….…………........…….
5. Features…………………………………………….......……........………
6. Operation Controls and Functions…………………………………….
6.1 Transmitter’s Front Panel.........................................................
6.2 Receiver’s Front Panel………………..........................….….…
6.3 Transmitter’s Rear Panel..........................................................
6.4 Receiver’s Rear Panel……………………………….........….…
7. Connection and Installation…………………………….........……..…
8. Specications……………………………………………...........………..
1. Introduction
DVI transmitter and receiver over CAT 5 is a pair of extender for DVI signal -
up to 250 meters long. Not only can this device transfer the HD image signal
but also the analog/digital audio signal with coaxial and L/R audio port.
Through the DDC cable the device can also support HDCP and CEC. This
extender is perfect for extending high resolution digital signage with crystal
clear images over low cost network solution.
2. Application
For long distance DIV/HDMI source display in a separate room or class.
For long distance digital or analog sounds transferring up to 250M long.
Any PC source equipment with output DVI connector.
3. Contents
DVI over CAT 5 Transmitter x 1
DVI over CAT 5 Receiver 250M x 1
Operational Manual x 1
5V/2.6A Power Adaptor x 2
4. System Require
PC/DVI/HDMI source with DVI output connector, DVI to DVI or HDMI to DVI
cable(s), CAT 5 cable(s) and DVI display monitor or HDMI TV/Monitor.
1
①DVI-D IN – Plug from DVI/HDMI source equipment’s video output with DVI
in cable.
Note: Duo to this device has build-in EDID therefore, when HDIM’s audio
signal is send the device may not perform. Hence, it may be adjust from
the HDMI source equipment (eg. DVD play) to set the audio output to
LPCM or AC3 or DTS or …etc.
②COAX IN – Plug from DVI/HDMI source equipment’s audio output with
coaxial cable.
Note: This audio signal is received from CAT 5 with SPDIF format and
therefore, LPCM sound will perform 2CH.
③L/R IN – Plug from DVI/HDMI source equipment’s audio output with L/R
phone jack cable.
④AUDIO switch – Switch your audio source by COAX in or L/R in.
Note: When audio source input is bit stream format, L/R output will not
display hence, audio input source should select LPCM for displayable
format. Coaxial output will perform the same signal as to Coaxial inputs’.
6. Operation Controls and Functions
6.1 Transmitter’s Front Panel
1
5. Features
Compliant with HDMI 1.2, HDCP 1.1 and DVI 1.0 specifications.
Support Equalizer, Gain, CTI (Color Transient Improvement) adjustment.
Supports high definition input up to 1080P/UXGA, output resolution follows
input.
Easy to install and simple to operate.
Connect CAT 5 back to DVI without signal loss after 250 meter's
transmission.
Supports DDC/HDCP signal transferring through DDC cable.
Build-in EDID at transmitter
Support both external Coaxial and Stereo Sound.
2 3 4
DVI-D
IN
COAX
IN
COAX L/R
L/R
IN AUDIO
DV I to CAT 5 /TRANSMIT TER
2
DDCCTI VIDEO DC 5V
EQUALIZER1 2
GAIN
ADJUST
CTI
250M
150M
100M
50M
MIN
MAX
CAT5 INPUT

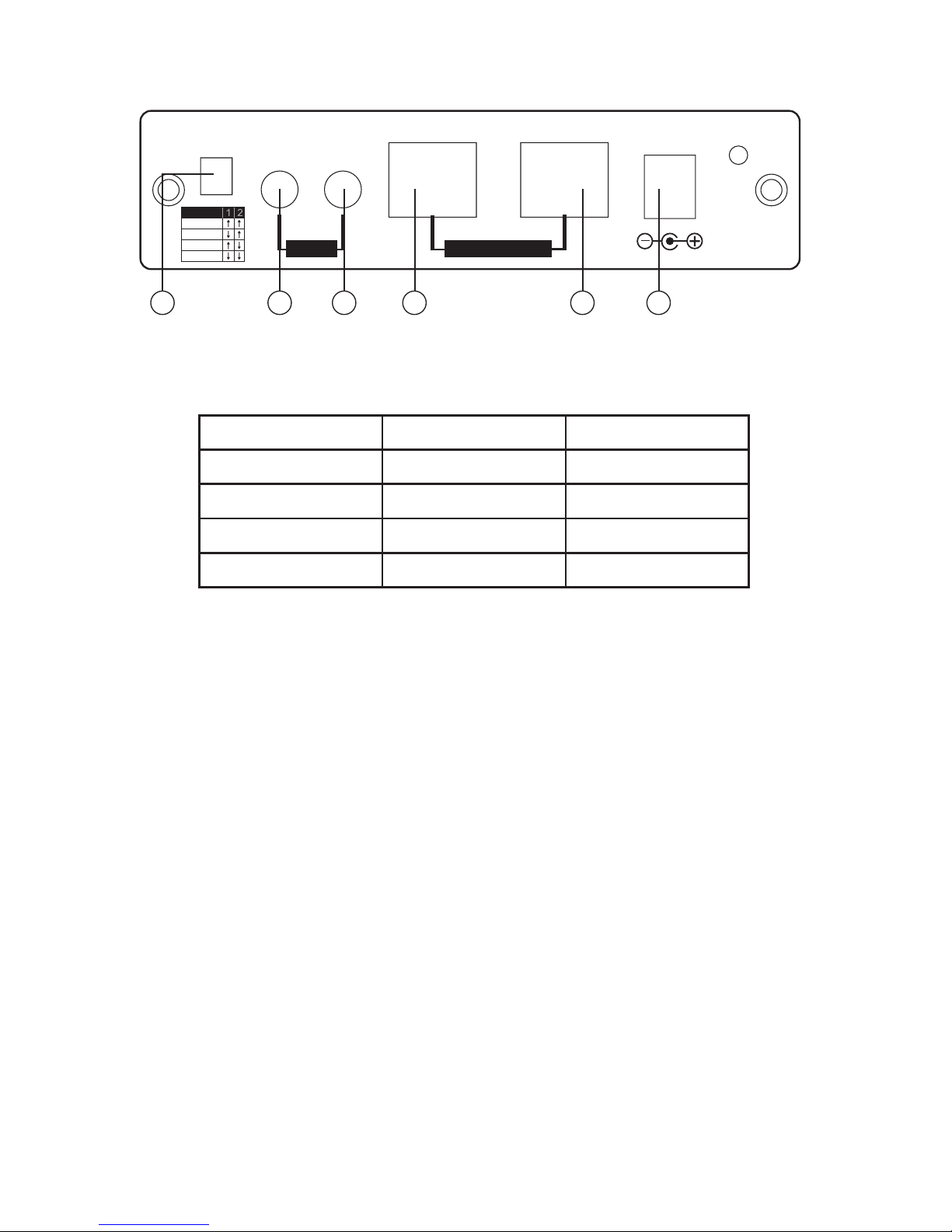

6.2 Receiver’s Front Panel
①CTI dip switch – Setting CTI by using the twin jumpers to adjust the
optimized setting for different distance of connection.
②EQUALIZER – Use this switch to adjust Sharpness/Peak over long distance
by turning right or left.
③GAIN – Use this switch to adjust Brightness/Contrast by turning right or left.
④DDC CAT 5 INPUT – Connect the DDC input to the DDC output of the
transmitter with CAT-5/CAT-5E/CAT-6 cable.
Note: For advanced user only, if it's known that the DDC or HDCP data
are required for the source and the display, you can use a single CAT-5
cable for the VIDEO connection only.
⑤VIDEO CAT 5 INPUT – Connect the VIDEO input to the Video output of the
transmitter with CAT-5/CAT-5E/CAT-6 cable.
⑥Power Jack – Connect with 5V / 2.6A power adaptor with power supply.
CTI 1 2
150
-
250m ↑ ↑
100
-
150m ↓ ↑
50
-
100m ↑ ↓
50
m↓ ↓ ↓
1 2 3 4 5 6
3
6.4 Receiver’s Rear Panel
6.3 Transmitter’s Rear Panel
DVI-D
OUT
COAX
OUT
L/R
OUT
CA T5 toDV I 250M / RECEIVER
VIDEO DDC DC 5V
CAT5 OUTPUT
①with CAT-5/CAT-5E/CAT-6 cable.
②DDC CAT 5 INPUT – Connect the DDC input to the DDC output of the
transmitter with CAT-5/CAT-5E/CAT-6 cable.
Note: For advanced user only, if it's known that the DDC or HDCP data
are required for the source and the display, you can use a single CAT-5
cable for the VIDEO connection only.
③Power Jack – Connect with 5V / 2.6A power adaptor with power supply.
1 2 3
1 2 3
①DVI-D OUT – Connect to DVI/HDMI display equipment with DIV or DVI to
HDMI cable.
②COAX OUT – Connect to audio amplifier or audio equipment’s input with
coaxial cable.
Note: This audio signal is received from CAT 5 with SPDIF format and
therefore, LPCM sound will perform 2CH.
③L/R OUT – Connect to audio equipment’s input with 3.5mm phone jack.
Note: This audio channel will perform Stereo sound only. When Dolby or
DTS signal is send no sound will be performed.
4
DVD Player
LCD MonitorPC / DVI Display
DDC (CAT-5 Cable)
250 Meters
VIDEO (CAT-5 Cable)
Transmitter unit
Front
Transmitter unit
Rear
Receiver Unit
Front
Receiver Unit
Rear
PC
VIDEO DDC DC 5V
CAT5 OUTPUT
DVI-D
IN
COAX
IN
COAX L/R
L/R
IN AUDIO
DVI to CAT 5 / TRANSMITTER
DDCCTI VIDEO DC 5V
EQUALIZER1 2
GAIN
ADJUST
CTI
250M
150M
100M
50M
MIN
MAX
CAT5 INPUT
DVI-D
OUT
COAX
OUT
L/R
OUT
CAT5 to DVI 250M / RECEIVER
DVI
Cable
HDMI to DVI
Cable
DVI
Cable
HDMI
HDMI
to
DVI
Cable
Co-ax
Cable
L/R
Cable
Co-ax
Cable
L/R
Cable
Audio Amplifier

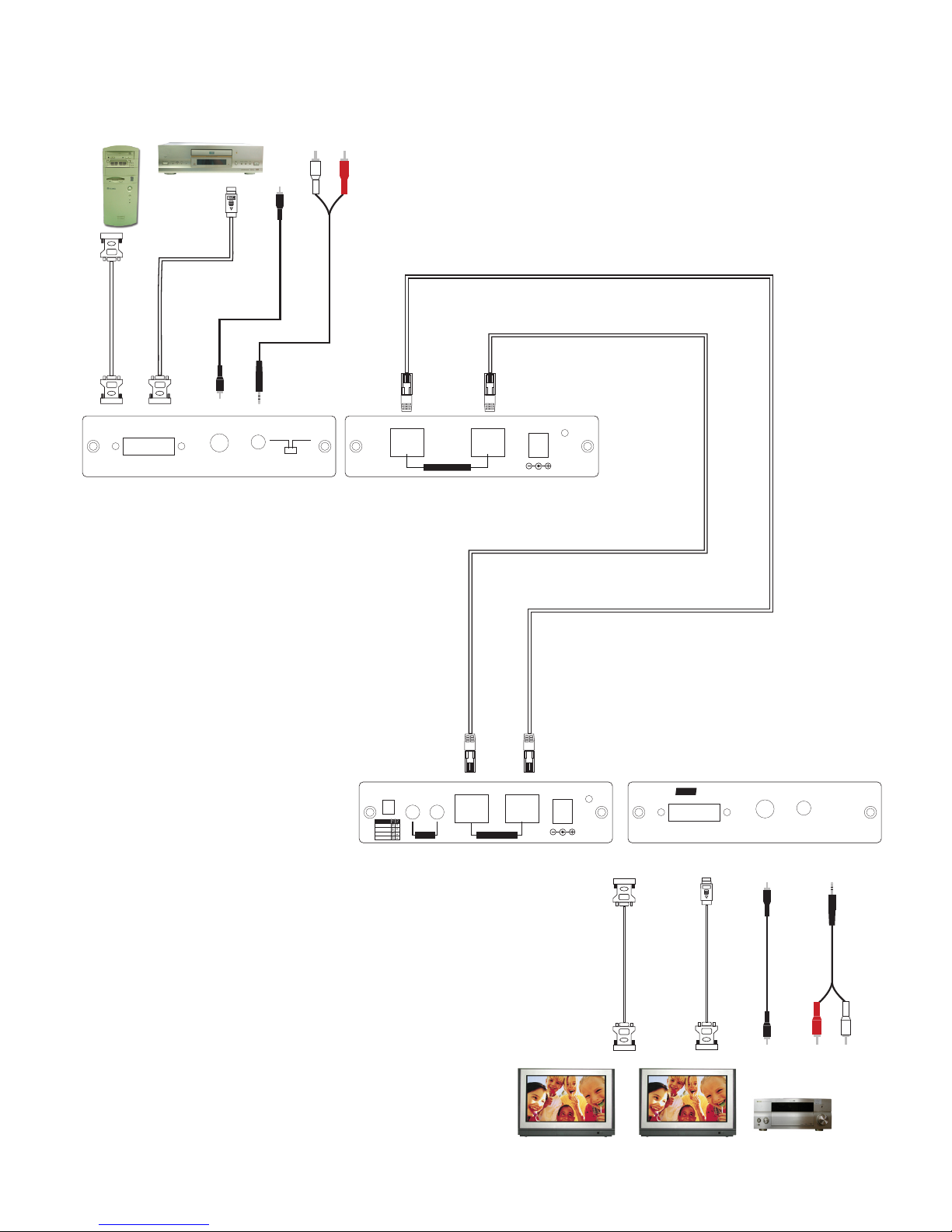

7. Connection and Installation
5
Transmitter Input port 1 x DVI-I female port (Accept DVI-D signel only)
1 x Coaxial
1 x L/R Audio
Transmitter Output port 2 x CAT5 RJ 45 8pin
Receiver Input port 2 x CAT5 RJ 45 8pin
Receiver Output port 1 x DVI-I female port
1 x Coaxial
1 x L/R Audio
Resolution HD- 480i/p 60, 576p 60, 720P 50/60,
1080i 50/60Hz, 1080p 50/60Hz
PC- 640 x 480=VGA72, VGA75, VGA85
800 x 600=SVGA56, SVGA60, SVGA72, SVGA75,
SVGA85
1024 x 768=XGA60, XGA70, XGA75, XGA85
1280 x 1024=SXGA60, SXGA75, SXGA85
1600 x 1200=UXGA60
1920 x 1200=Reduced blanking WUXGA
Power Supply 5V / 2.6A DC power supply
Dimensions (mm) 125 x 130 x 30 / each
Weight (g) 700 /each
Material Aluminum
Color Silver
Power Consumption W
8. Specications
