DI-102 User’s Manual

D-Link Systems, Inc.

Table of Contents

Package Contents ............................................................................ 3

Introduction ..................................................................................... 4

Connections ..................................................................................... 5

LEDs ................................................................................................ 6

Using the Conﬁguration Menu ......................................................... 7

Contacting Technical Support ........................................................ 12

Warranty ...................................................................................... 13

Registration ................................................................................... 17

Table of Contents

DI-102 User’s Manual

D-Link Systems, Inc.

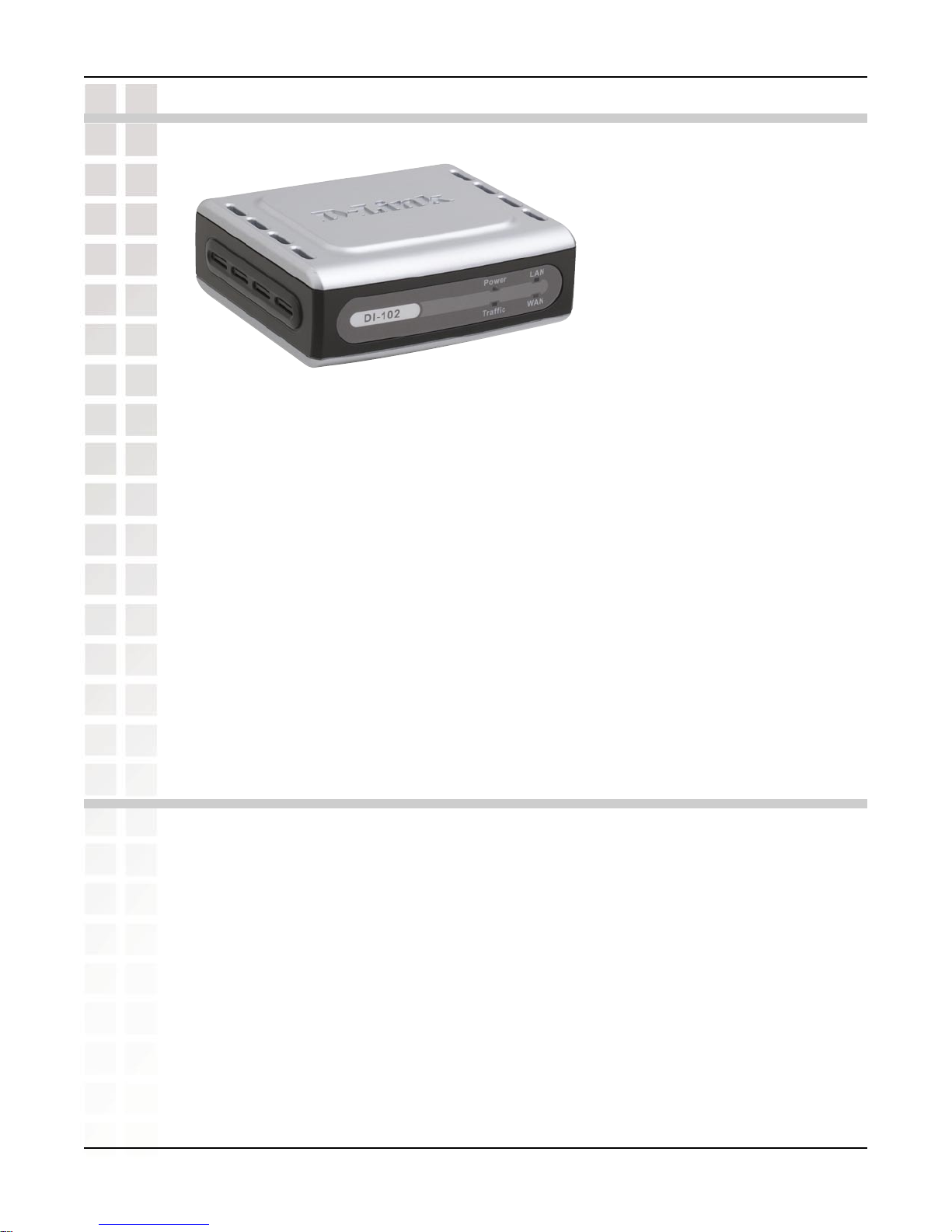

Package Contents

 D-Link StreamEngine™ DI-102

Internet/VoIP Accelerator

 Power Adapter-5.0V DC, 2A

 Manual, QIG and Warranty on CD

 Ethernet Cable Straight-through

Note: Using a power supply with a different voltage than the one included with the

DI-102

will cause damage and void the warranty for this product.

If any of the above items are missing, please contact your reseller.

 Computers with Windows, Macintosh, or Linux-based operating systems with

installed Ethernet Adapters

 NAT Router with Ethernet WAN Port

 Broadband Modem with Internet Connection

Package Contents

Minimum System Requirements

DI-102 User’s Manual

D-Link Systems, Inc.

Introduction

The Internet/VoIP Accelerator offers the fastest time-to-market and the highest

ﬂexibility

compared with competitive solutions due to its unique easy integration path.

Also, the Internet/VoIP Accelerator is the only TCP ofﬂoad solution that enables an OS

independent implementation mode.

Quality of Service (QoS) refers to the ability of a network to classify different types

trafﬁc on a network, which ensure that bandwidth dependant real time applications

are given priority so that they are not interrupted. QoS technologies provide the

elemental

building blocks that will be used for future business applications in campus,

WAN, and service provider networks.

For instance the example below shows how the DI-102 ensures QoS for VoIP trafﬁc.

DI-102 User’s Manual

D-Link Systems, Inc.

Connections

Auto MDI/MDIX LAN

Connects to the WAN port of

your router.

Auto MDI/MDIX WAN

Connects to your Ethernet enabled

Cable or DSL modem.

Reset Button

Restores the Internet/VoIP Accelerator

to its original factory settings.

Power Receptor

Connect the power

adapter.

Connections

DI-102 User’s Manual

D-Link Systems, Inc.

LEDs

Power

A solid light indicates a proper

connection to the power supply.

Trafﬁc

This LED blinks when trafﬁc is

being classiﬁed and prioritized.

LAN

A solid light indicates a connection

to the WAN port of your router. This

LED blinks during data transmission.

WAN

A solid light indicates connection

on the WAN port. This LED blinks

during data transmission.

DI-102 User’s Manual

D-Link Systems, Inc.

Using the Conﬁguration Menu

Whenever you want to conﬁgure the DI-102, you can access the Conﬁguration Menu

by opening the web-browser and typing in the IP Address of the DI-102.

 Open the web browser.

 Type the IP Address (http://192.168.229.61).



Type admin in the User name ﬁeld.



Leave the Password blank.



Click OK.

INFO

This screen shows the current status of the DI-102.

Using the Conﬁguration Menu

DI-102 User’s Manual

D-Link Systems, Inc.

Using the Conﬁguration Menu

Conﬁguration

This allows the DI-102 to automatically detect the upstream data rate

of your Internet connection. If this box is unchecked, you will need

to specify this value in the Upstream Data Rate ﬁeld.

Enter the upload speed of you Internet connection. This information

should be provided to you by your ISP. If you are unsure of what

this value should be, please check the Auto Rate Detection box

or contact your ISP.

Auto Rate

Detection:

Upstream Data

Rate:

DI-102 User’s Manual

D-Link Systems, Inc.

Using the Conﬁguration Menu

Conﬁguration (continued)

Choose either Auto-detect, xDSL modem, or Cable modem /

other broadband connection.

Check this box when you have conﬁgured a Static IP address on

the WAN interface of your router. Auto Rate Detection may not

work properly if you router has a Static IP conﬁgured on the WAN

interface and this option is not selected.

Enter the default gateway IP address that your ISP has assigned

you. This option is only necessary when Static IP Mode has been

enabled on the DI-102. If you are unsure of what this value should

be, please contact your ISP.

Once you have conﬁgured the DI-102 for Static IP Mode, entered

the ISP Router IP Address, and saved these settings, you will

need to click this button in order for the DI-102 to detect the upload

speed of your Internet connection.

Connection Type:

Enable Static IP

Mode:

ISP Router IP

Address:

Start Auto Rate

Detection:

DI-102 User’s Manual

D-Link Systems, Inc.

Using the Conﬁguration Menu

Admin

Enter the user name that will be used to login to the DI-102. By

default the user name is admin

Enter the password that will be used to login the DI-102. By default

there is no password conﬁgured.

User name:

Administrator

Password:
