TS715 Si

Installation & User Instructions

(Including 24V models)

Electronic

single channel

timeswitch

Certification Mark

INDEX

Index

Installation

Product specication 3

Installation 3-4

Wiring 4

DIL switch settings 5

Advanced Programming Options 5

Copy Functions 6-7

Service Interval Timer 7

Wiring Conversion 8-11

User

What is a programmer? 12

Your timeswitch 13

Preset programmes 13

Before you start 14

AM/PM or 24hr display 14

Setting the Time and Day 14-15

Accepting the preset programmes 15

Changing the preset programmes 16

Programming system - 5/2 day 17-18

Programming system - 7 day 19-20

Programming system - 24 hour 21

Running the programme 22

Temporary overrides 23

Holiday Programme 24

Changing clocks forward/back 25

Service Interval Timer 26

Making a full reset 27

Troubleshooting 28

Contact details 30

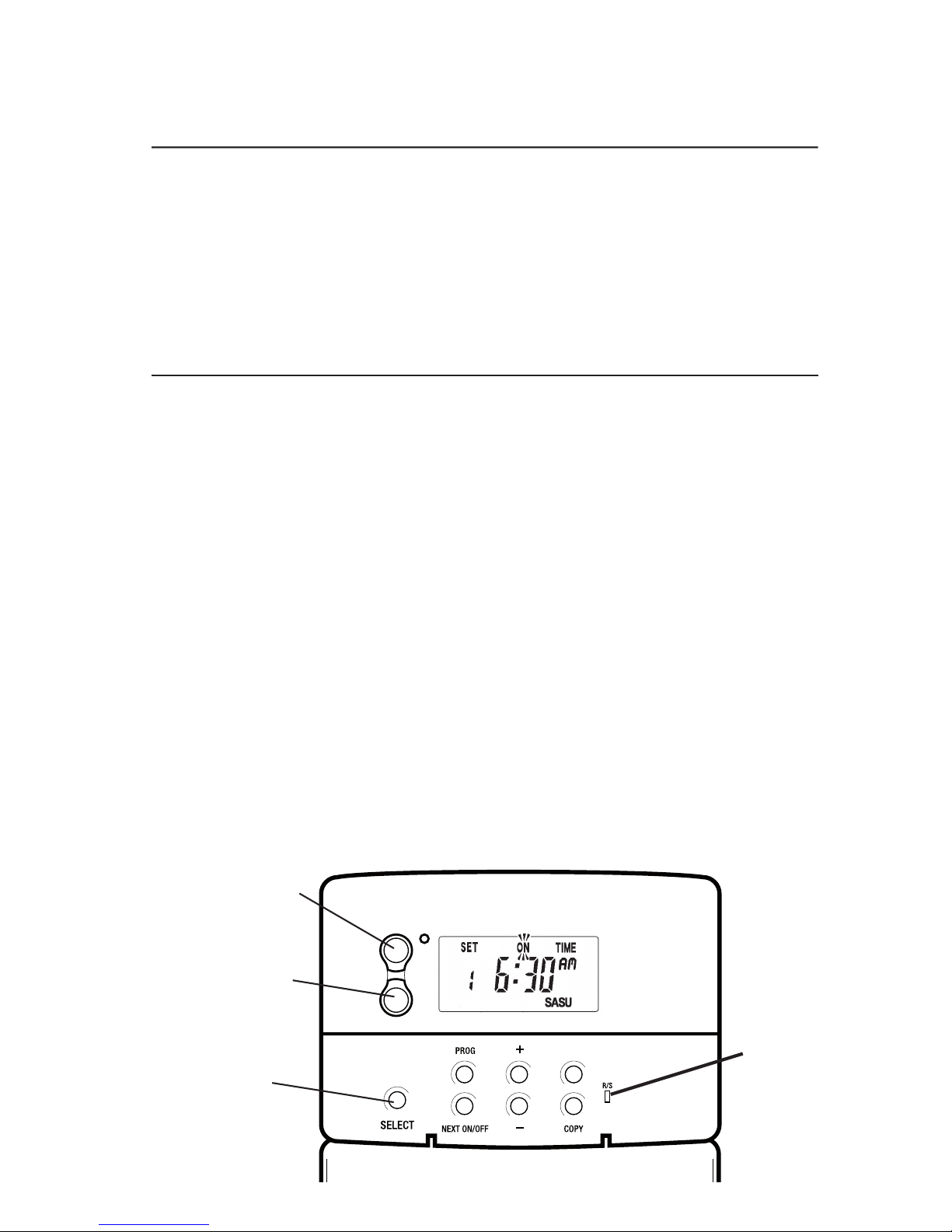

DAY/HOL

+1HR override

MAN override

RESET

Mode

SELECT

Please Note:

This product should only be installed by a qualied

electrician or competent heating installer, and should be

in accordance with the current edition of the IEEE wiring

regulations.

Specication 230V Model 24V Model

Power supply 230 Vac, ±15%,

50/60 Hz

24Vac, ±15%,

50/60Hz

Switching action

1 x SPDT voltage free, Type 1B

Switch rating 24 - 230 Vac, 3(1)A

Battery back-up 24 hours minimum

Setting/Running Accuracy ±1 minute

Dimensions, mm (W, H, D) 135 x 88 x 32

Design standard EN 60730-2-7

Control Pollution Situation Degree 2

Rated Impulse Voltage 2.5kV

Ball Pressure Test 75°C

Product specication

Installation and Specication

Installation Instructions

Installation

 Remove wallplate from unit by unscrewing the two screws

on the bottom edge of the unit.

From the top left hand corner of the wallplate, there must

be clearances of at least 140 mm to the right, 15mm to the

left, 30mm above and 100mm below in order to mount

the plug-on module.

The wallplate must be securely mounted either directly to

the wall using suitable wood screws or to a ush mounted

1-gang electrical accessory box using M3.5 screws.

Cable access can either be from behind for concealed

cabling, or from below for surface cabling. If surface cable

is used, cut out cable access slot on plug-on module prior

to mounting the module.

For wiring connections refer to diagram on page 5.

TS715-Si models are double insulated and do not require

an earth connection, however a parking terminal is

provided on the wallplate. This is clearly marked with an

Earth symbol.

Prior to mounting the plug-on module, DIL switches on

the rear of the plug-on module must be set. See diagram

on page 5 for available options.

Mount plug-on module to wallplate by locating tabs on

top of wallplate in apertures on rear of module, hinge

down and press rmly to wallplate before tightening

securing screws on bottom of wallplate.

Installation and Wiring

Wiring (For Wiring Conversion tables see pages 8-11)

COM OFF ON

230 V

fused 3A

TS715 (3066 12/01)

Always switch o mains rst and never t programmer

to a live wallplate.

NOTE:

Link terminals L

and 1 for standard

mains voltage

operated systems

On 24 volt models

power supply must

be wired to A & B on

wallplate.

DIL switch settings and Advanced Programming Options

Not Used

5/2 Day

7 Day

Sw.1

Sw.2

Sw.3

Sw.4

Not Used

7 Day or 24 Hour

24 Hour

Tick the INSTALLER SETTING box

on the inside ap label to notify

user in which mode their unit is

set (24hr, 5/2 day or 7 day).

DIL Switch Settings

Before mounting the unit, ensure the

4 DIL switches on the rear have been

moved to the required settings.

!INSTALLER SETTING

24 Hour

5+2 Day

7 Day

Advanced Programming Options

To enter advanced programming press PROG, +and DAY/HOL

together and hold for 5 seconds.

Option 1 - (3 or 2 On/O’s per day)

Use + or - to change between 3 and 2 on/o’s each day.

Option 2 - (Disable or enable auto time change)

Press NEXT, then use + or change between auto time change

enabled and auto time change disabled.

Option 8 - (Advanced Copy Functions)

Press NEXT, then +or -to change between the following copy

options:

(0) Standard copy in 7 day and 5+2 day.

(1) Enhanced copy in 7 day, standard copy in 5+2 day

(2) Enhanced copy in 7 day, AB copy in 5+2 day.

For an explanation of the copy features and how to use them

please see page 6.

Press PROG to return to RUN.

3 on/o’s each day (Factory setting) 2 on/o’s each day

Auto time change enabled (Factory setting) Auto time change disabled

Copy Functions Explained

There are 3 possible copy functions available. These are;

Standard Copy, Enhanced Copy, and AB copy. Copy functions

are enabled/disabled in the Advanced Programming Options

(page 5).

Standard Copy: Pressing copy will copy the previous days

events into the displayed day. The unit will then display the 1st

event for the new day. This copy function is present only if the

unit is set to run in 5+2 or 7 day mode.

Enhanced Copy: The enhanced copy function is available in 7

day mode only. This allows any day to be copied to any other

day, or days. To use the enhanced copy function go into the

event programming using the PROG button, then:

Use the DAY button to nd the day to be copied from.

Press the COPY button to select the day to be copied from.

When selected, the day should begin to ash.

Use the DAY button to nd the day to be copied to.

Press COPY button to copy the selected day.

Repeat steps 3 and 4 to select and copy other days.

To stop copying, use the DAY button to go back to the

ashing day and press the COPY button. The previously

ashing day will stop ashing to indicate it has been de-

selected.

NOTE: When a day has been copied to, it will remain visible and

not ashing when the DAY button is used to select other days.

AB Copy: The AB copy function is available in 5+2 mode only

and only if activated in the Advanced Programming setting.

A and B days, when selected, can be any group of days e.g. 5+2,

4+3 etc. The days do not have to run in sequence. For example,

to operate in a 5+2 day mode the days can be set as follows:

Copy Functions

Service Interval Timer

The TS715 Si is tted with an installer setback service interval

timer. If this feature is required please contact our technical

department. Setting instructions for this gas safety feature are

only available to bona de heating installers.

To use the AB copy function – press the PROG button:

This will show the“A”days, with all the days selected.

Use the DAY button to highlight a day.

Subsequent presses of the DAY button will increment

through the days.

Press the +button to select a specic day as an “A” day, or

press the –button to specify a day as a“B” day.

Once the day has been selected as an “A” or “B” day the

programme will automatically jump to the next day.

When the last day of the week is active, pressing +, -, or DAY

will move back to the “A” days displayed with no selected

(ashing) days (see image below).

Repeat 2 to 6 until all selections have been made.

When selections are completed, press the PROG button to

move to event programming.

Event Programming in AB mode

Programme“A”day events using the +(time advance), - (time

decrease), and NEXT (next period) buttons.

Press the DAY button to change to programme the “B” days

Programme“B”day events using the +(time advance), -(time

decrease), and NEXT (next period) buttons.

A Days B Days

Mon Tues Thurs Fri Sat Wed Sun

Copy Functions and Service Interval Timer

DANFOSS RANDALL

TS715-Si

MAINS

The existing wallplate may be used when replacing the following, but the wiring must b

between L & COM terminals of wallplate.

ACL LS111, LS711, LP111 & LP711 N L

DRAYTON TEMPUS ONE & TEMPUS TWO N L

LANDIS & GYR RWB3 N L

LANDIS & GYR RWB30 N L

The TS75/TS15 wallplate must be used to replace the existing wallplate when replacing t

age systems, t wire link between terminal 1 & L of wallplate.

GRASSLIN 45, 45A, 45E 2 1

HONEYWELL ST6100 N L

HORSTMANN 423 PEARL, EMERALD & TOPAZ N L

HORSTMANN KMK2A YMK2 3 4

HORSTMANN 425 CORONET N L

DANFOSS RANDALL 911 N L

DANFOSS RANDALL 103, 103E, 103E5 & 103E7 5 6

RANDALL 3020 1,7 6

DANFOSS RANDALL SET1 N L

RANDALL TSR2 3 2

PEGLER SUNVIC SP20 & SP25/30 N L

POTTERTON MYSON EP4001 N L

WIRING CONVERSIONS, (applies only to 230 volt models)

Wiring conversions for other timeswitches which can be replaced with the

Danfoss TS715-Si, refer to the second part of the table. If in any doubt, please

contact our Technical Services Department before proceeding with the

replacement.

LOAD An additional terminal block may be re-

quired where these disconnected leadss

(or pairs of leads) should be terminated

COM OFF SPARE ON

12 3 4 AB C D

reconnected as shown below. In addition, in mains voltage systems, t wire link

12 4 3

13 4 2

-3 1 4 2

23 1 4

e following timeswitches. Wiring details are shown below. In addition, in mains volt-

3- 4

12 3 4 - -

3- 1 4 25 6

1- 2

56 1 4 2 3

54 2 6

3- 2 1

-- 2 4 35

56 2 4

1- 4 5 67

34 S 5

52 4 AB C D

DANFOSS RANDALL

TS715-Si

MAINS

The TS75/TS15 wallplate must be used to replace the existing wallplate when replacing t

age systems, t wire link between terminal 1 & L of wallplate.

SANGAMO M6 4,5 6

SANGAMO 410 FORM 8 4,5 3

SANGAMO S254 FORM 2, S408 FORM 5,

S251 FORM 2 NL

SANGAMO S610 FORM 2, S611 FORM 2,

S612 FORM 2, S408 FORM 4, S408 FORM 6,

S253 FORM 2, S255 FORM 2

NMOTOR

LIVE

SANGAMO S409 FORM 8 3,N 3,L

SANGAMO S263 FORM 2

SANGAMO S264 FORM 2 NL

SMITHS IND. MKI, MKII N L

SMITHS IND. CENTROLLER 30 1 2

SMITHS IND. CENTROLLER 40 1 2

SWITCHMASTER N L

TOWERCHRON TC 2 1

VENNER VENNERETTE MKIIA N L

VENNER VENNERETTE MKIVA 2 3

VENNER VENOTIME (WITH NEON INDICATING CIRCUIT

ON) NL

VENNER VENOTIME (WITH NEON INDICATING POWER ON) N L

VENNER VENNERON, VENNERON P 3 2

Andere Handbücher für TS715 Si

Inhaltsverzeichnis

Andere Danfoss Thermostat Handbücher

Danfoss

Danfoss RET 230 HCW-1 Bedienungsanleitung

Danfoss

Danfoss LX205T Bedienungsanleitung

Danfoss

Danfoss TP4000 Range Bedienungsanleitung

Danfoss

Danfoss CF-RP 088U0211 Bedienungsanleitung

Danfoss

Danfoss RET 230LS Bedienungsanleitung

Danfoss

Danfoss ECL Comfort 310, P318 Bedienungsanleitung

Danfoss

Danfoss DBR Bedienungsanleitung

Danfoss

Danfoss Icon Master Bedienungsanleitung

Danfoss

Danfoss ECtemp 532 Bedienungsanleitung

Danfoss

Danfoss ECL Comfort 310 Bedienungsanleitung

Danfoss

Danfoss RET2001RF Bedienungsanleitung

Danfoss

Danfoss GreenCon RC-T2 Bedienungsanleitung

Danfoss

Danfoss TP7001 series Bedienungsanleitung

Danfoss

Danfoss REPI Series Bedienungsanleitung

Danfoss

Danfoss TPONE-RF Bedienungsanleitung

Danfoss

Danfoss TP5000 RF Si Leitfaden

Danfoss

Danfoss RET 230 HC-1 Bedienungsanleitung

Danfoss

Danfoss REP24CO Bedienungsanleitung

Danfoss

Danfoss DEVI DEVIreg 330 Bedienungsanleitung

Danfoss

Danfoss EFET 160 Bedienungsanleitung

Danfoss

Danfoss TP5000 si range Bedienungsanleitung

Danfoss

Danfoss 060L2150 Bedienungsanleitung

Danfoss

Danfoss BasicPlus2 Bedienungsanleitung

Danfoss

Danfoss HC75A-1 Betriebsanleitung

Beliebte Thermostat Handbücher anderer Marken

EWELLY

EWELLY EW-181 Bedienungsanleitung

Prolon

Prolon T1100 Montageanleitung

Computherm

Computherm Q20 Bedienungsanleitung

Heatmiser

Heatmiser neoStat Bedienungsanleitung

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Bedienungsanleitung

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Bedienungsanleitung

Saswell

Saswell SAS920XWHB-7-S-RF Leitfaden

Aircalo

Aircalo TFP1-ET85P2 Bedienungsanleitung

Honeywell

Honeywell CM721 Bedienungsanleitung

Carrier

Carrier DEBONAIR 33CS Bedienungsanleitung

Lennox

Lennox iHarmony Zone Thermostat Montageanleitung

Gemtech

Gemtech GT7000 Bedienungsanleitung

Rollei

Rollei Smartes 45000 Bedienungsanleitung

Sinope

Sinope TH1300RF Bedienungsanleitung

Honeywell

Honeywell RLV4305 Bedienungsanleitung

Honeywell

Honeywell Prestige 2.0 THX9421 Bedienungsanleitung

NuTone

NuTone NTBZ48 Original Betriebsanleitung

Stelpro

Stelpro MAESTRO ASMT402AD Bedienungsanleitung
