QUICK REFERENCE GUIDE

MAGELLAN™ 3410VSi

Omni-Directional Imaging Scanner

Datalogic S.r.l.

Via S. Vitalino, 13

40012 Calderara di Reno — Italy

Tel. +39 051 3147011

Fax +39 051 3147205

tation may be reproduced, stored in or introduced into a retrieval system, or transmitted

in any form or by any means, or for any purpose, without the express written permission

of Datalogic S.p.A. and/or its affiliates.

Owners of Datalogic products are hereby granted a non-exclusive, revocable license to

reproduce and transmit this documentation for the purchaser's own internal business

purposes. Purchaser shall not remove or alter any proprietary notices, including copyright

notices, contained in this documentation and shall ensure that all notices appear on any

reproductions of the documentation.

Electronic versions of this document may be downloaded from the Datalogic website

(www.datalogic.com). If you visit our website and would like to make comments or sug-

gestions about this or other Datalogic publications, please let us know via the "Contact"

page.

Disclaimer

Datalogic has taken reasonable measures to provide information in this manual that is

complete and accurate, however, Datalogic shall not be liable for technical or editorial

errors or omissions contained herein, nor for incidental or consequential damages result-

ing from the use of this material. Datalogic reserves the right to change any specification

at any time without prior notice.

Trademarks

Datalogic and the Datalogic logo are registered trademarks of Datalogic S.p.A. in many

countries, including the U.S.A. and the E.U.

Magellan is a trademark of Datalogic S.p.A. and/or its affiliates, registered in the U.S. All

other trademarks and brands are property of their respective owners.

Patents

See www.patents.datalogic.com for patent list.

This manual refers to software version DR9401453.

ORIGINAL INSTRUCTIONS

See the Regulatory Addendum included with your product

for additional regulatory, safety and legal information.

QUICK REFERENCE GUIDE

III

TABLE OF CONTENTS

Features .......................................................................... 1

Installation ....................................................................... 3

Wall/Desk Mount .......................................................................... 5

Installation Instructions ...........................................................5

Desk (Horizontal) Mounting ....................................................5

Wall (Vertical) Mounting ..........................................................6

Attaching/Detaching the Scanner ................................................ 8

Seating the Scanner in the Mount ...........................................8

Detaching the scanner .............................................................8

Bottom Cover / Tilting Riser......................................................... 9

Mounting the Riser ................................................................10

How to Scan ................................................................... 11

Scanner Button ........................................................................... 11

Camera Button............................................................................ 12

LED and Beeper Indicators .............................................. 13

Beeper Indicators........................................................................ 14

Troubleshooting.............................................................. 14

Error Codes.................................................................... 15

Programming ................................................................. 16

Interface Selection ...................................................................... 16

Imaging Features........................................................................ 18

Camera Button Mode .............................................................18

Image Destination ..................................................................19

Cell Phone Mode ....................................................................20

Cell Mode Percent ..................................................................21

Cleaning......................................................................... 22

Manufacturer Approved Cleaning Materials.............................. 23

WARRANTY.................................................................... 24

Going Green ................................................................... 25

Bar Code Mask ............................................................... 26

MAGELLAN™ 3410VSI

NOTES

QUICK REFERENCE GUIDE

MAGELLAN™ 3410VSI

Use this guide to quickly complete installation of the Magellan 3410VSi

series of bar code readers, and begin using your scanner. For more

details and programming information, reference the Product Reference

Guide (PRG), which is available for viewing and download from the

Datalogic website (www.datalogic.com).

FEATURES

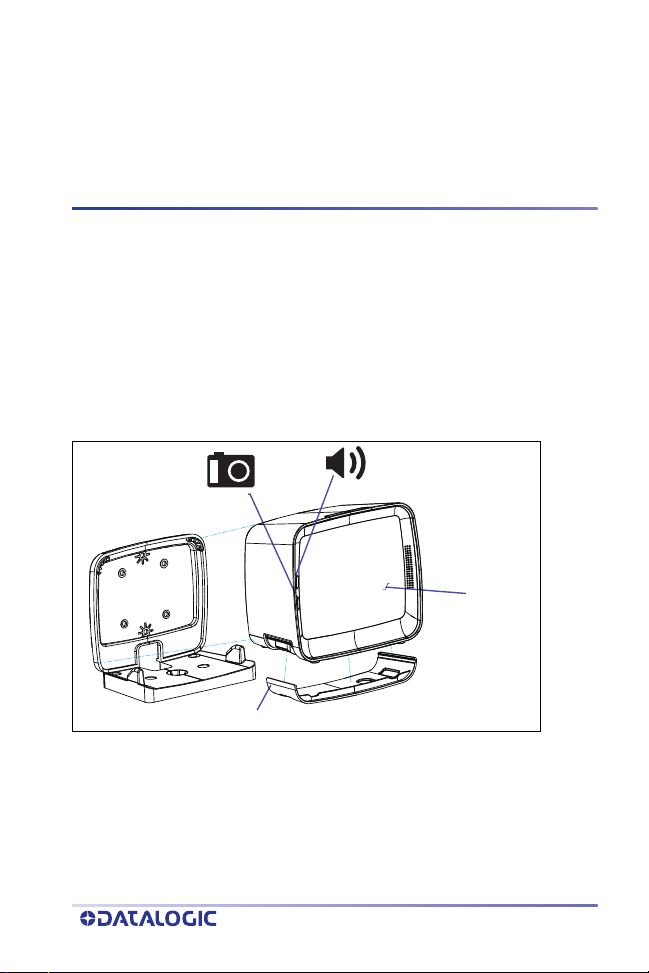

Figure 1. Scanner Features - Front View

Wall/Desk Mount

Scanner Button

Camera

Button

Scan

Cable Connector Cover

FRONT

Window

MAGELLAN™ 3410VSI

Figure 2. Scanner Features - Back View

Figure 3. Scanner Features - Bottom View

Cable Routing

Area

Serial Number Label

Regulatory

USB Micro B/

MicroSD Card Port

Label

(Service Access)

USB Aux Port

Power Host Port

Cavity for EAS Connection Wire

MicroSD Card

USB Micro B

QUICK REFERENCE GUIDE

INSTALLATION

Connect the scanner to the host (terminal) using the interface (I/F)

cable, as shown in the following figures. A cable from an older existing

installation can be re-used for RS-232 interfaces. If external power is

used/needed, plug the AC Adapter into the AC wall outlet, then connect

it to the unit as shown in Figure 5 on page 4.

The USB AUX PORT will only be supported by using a 12V power supply

or using a USB + POWER 12V port. If the scanner is powered only by the

standard USB cable as shown in Figure 6 on page 4, an auxiliary scanner

will not be supported.

After the scanner has fully powered up and indicates that it is ready for

operation, scan some known-good bar code samples to verify correct

operation. The scanner should beep and/or flash its good read LED1and

send the bar code data to the host or terminal. If not, use the

Troubleshooting section of this guide to identify any problems.

Figure 4. USB + Power Cable Power Off the Terminal

1. Beeper and LED behavior may have previously been configured as “disabled”

by another user.

Terminal (PC)

RJ Host Port

Connector

Power

USB + Power Cable

Power Off the Terminal (POT)

MAGELLAN™ 3410VSI

Figure 5. Powered by AC Adapter

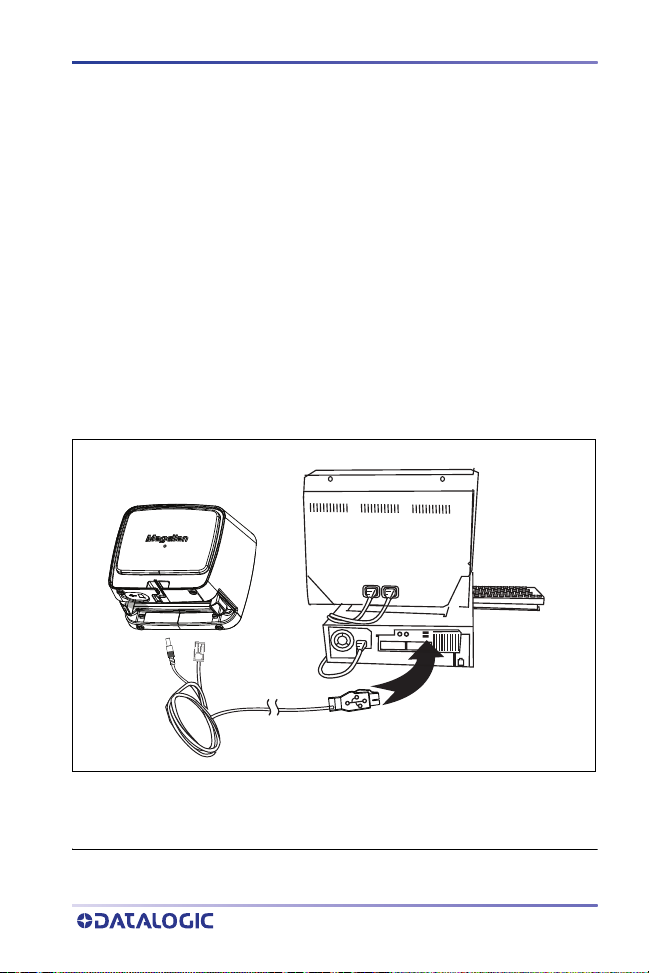

Figure 6. USB Cable Type A Power Off the Terminal

NOTE: This cable (or similar) will not support a USB

peripheral. The system must be powered by 12V in order for

a peripheral to be attached to the AUX USB PORT.

RS-232 and USB Cables

To Terminal (PC)

USB Type A Power Off the Terminal

QUICK REFERENCE GUIDE

Wall/Desk Mount

The Wall/Desk Mount is an accessory part to which the scanner can be

attached. The accessory can be mounted horizontally to a desk,

countertop, or table using screws or a gooseneck stand. It can also be

mounted vertically to a wall using screws, or to a VESA mount.

Installation Instructions

1. Determine the mounting location. While deciding on the best

position, keep in mind the best way to route the scanner cables.

You may need to drill a hole for them.

2. Use two #8 screws (sheet metal screws are preferred) to securely

fasten the Mount in the position desired, as shown in the

following figures.

Desk (Horizontal) Mounting

Figure 7. Desk Mount

Gooseneck Mount location

#8 screws

MAGELLAN™ 3410VSI

Figure 8. Desk Mounting Dimensions

Wall (Vertical) Mounting

Figure 9. Wall mount

92.5

ALL UNITS ARE IN MM

50 mm #8 screws

screw holes

VESA mount
