Quick Start Guide Quick Start Guide

1. The mounting surface must withstand ﬁve times the camera

weight.

2. Do not let the cables get caught in improper places or the electric line

cover can be damaged. This may cause a short or ﬁre.

3. Use the mounting template to mark and drill the necessary holes in

the mounting surface.

3. This product is intended to be supplied by a UL Listed Power Supply

Unit marked “Class 2” or “LPS” or “PS2” and rated 12 Vdc, 0.36A min.

STEP 1 – PREPARING TO MOUNT THE CAMERA

Pass the wires through the mount bracket and make all necessary

connections. Connect the BNC cable and power cables to the

camera.

STEP 2 – CABLING THE CAMERA TO

EXTERNAL DEVICES

Power

Requirements Power Consumption

DC12V DC12V (LED o): 1.89W, 157mA

DC12V (LED on): 4.26W, 355mA

Tel: +1 (866) 446-3595 / (813) 888-9555

Technical Support Hours:

9:00AM – 8:00PM EST, Monday thru Friday

digital-watchdog.com

DWC-VA553WTIR

WHAT’S IN THE BOX

Torque

wrench 1 Set Template

sheet 1 Set

Screw and

plastic

anchor-2pcs

1 Set

Quick

Setup

Guide

1 Set

DC plug

cable 1

Manual

Template Sheet

for installing by Bolt & Nut

Mount Bolt & Nut

Screw &

Plasc Anchor-2pcs

Torx Wrench

Test Video Cable

Manual

Template Sheet

for installing by Bolt & Nut

Mount Bolt & Nut

Screw &

Plasc Anchor-2pcs

Torx Wrench

Test Video Cable

Manual

Template Sheet

for installing by Bolt & Nut

Mount Bolt & Nut

Screw &

Plasc Anchor-2pcs

Torx Wrench

Test Video Cable

Manual

Template Sheet

for installing by Bolt & Nut

Mount Bolt & Nut

Screw &

Plasc Anchor-2pcs

Torx Wrench

Test Video Cable

Template sheet

Attention: This document is intended to serve as a quick reference for initial

set-up. It is recommended that the user read the entire instruction manual for

complete and proper installation and usage.

NOTE: Download all your support materials and tools in one place

1. Go to: http://www.digital-watchdog.com/resources

2. Search your product by entering the part number in

the ‘Search by Product’ search bar. Results for

applicable part numbers will populate automatically

based on the part number you enter.

3. Click ‘Search’. All supported materials, including manuals

and quick start guide (QSGs) will appear in the results.

1. Once all cables have been connected, use the screws included with the camera to properly mount and secure the camera to the

mounting surface.

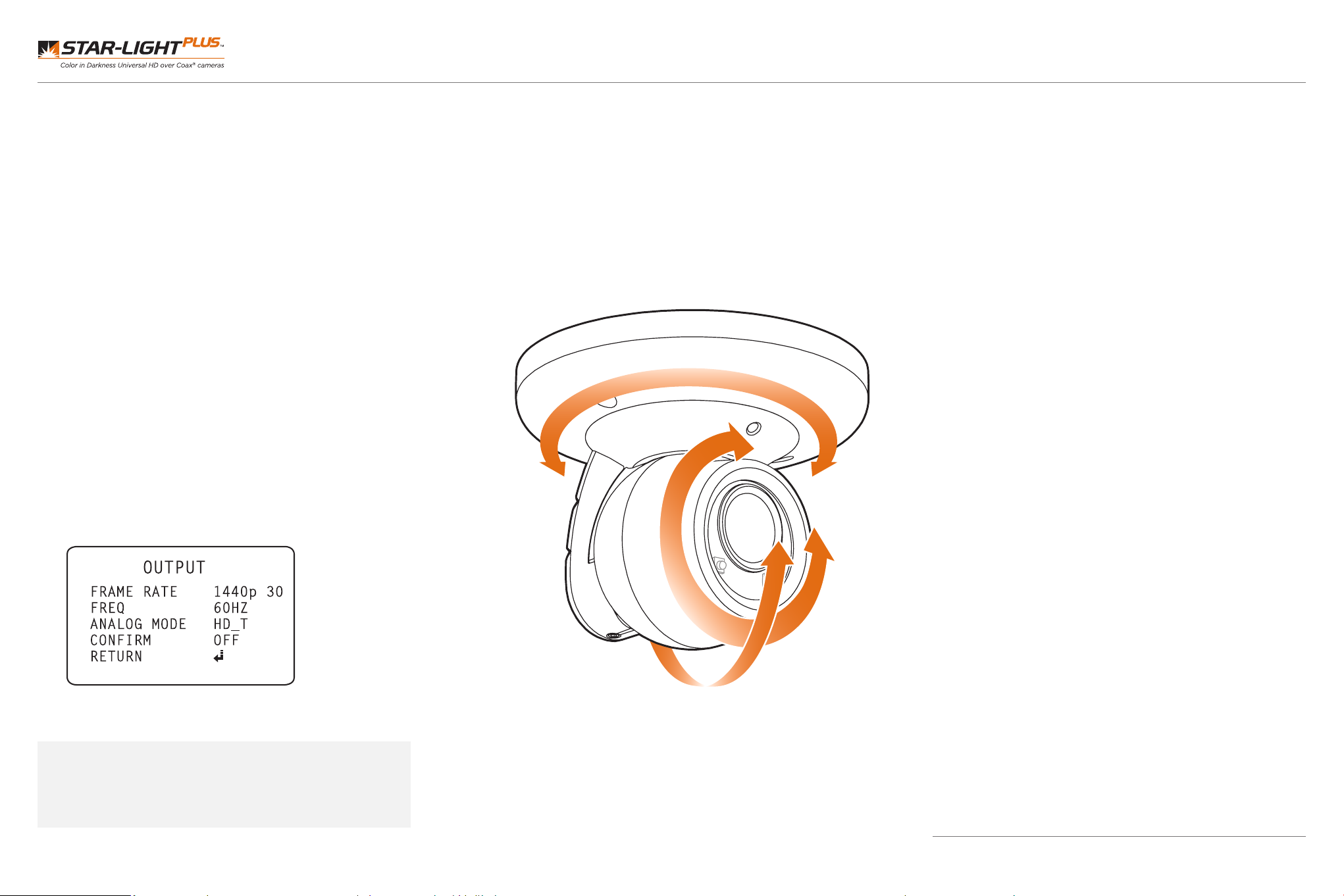

2. Adjust the camera’s pan, tilt and position to achieve the desired view. The cameras’ max angles are:

Pan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

3. Once the installation is complete, tighten the pan/tilt/rotation screw until it’s secure.

Quick Start Guide

1. The camera supports HD-Analog, HD-CVI and HD-TVI signals. To

switch between the signals:

a. Enter the camera’s OSD menu from a recorder supporting UTC

communication. Go to SETUP > OUTPUT > ANALOG MODE.

b. Set the camera’s analog signal output from the following

options:

• HD-A: supports 5MP/1944p @ 20fps 4MP/1440p

@ 30fps, 2.1MP/1080p @ 30fps and 720p @ 30fps.

• HD-T: supports 5MP/1944p @ 20fps, 4MP/1440p @ 30fps,

2.1MP/1080p @ 30fps and 720p @ 30fps.

• HD-C: supports 4MP/1440p @ 30fps, 2.1MP/1080p @ 30fps

and 720p @ 30fps.

• CVBS: supports up to 960H @ 30fps

c. Change CONFIRM to ON to save the changes.

d. Go to the EXIT menu and select SAVE&EXIT to save all changes.

The camera signal automatically.

STEP 4 – INSTALLING THE CAMERA

Speciﬁcations and pricing are subject to change without notice.

Rotation 360°

Titling 90°

Panning 360°

STEP 3 – CHANGING THE SIGNAL IN

THE CAMERA

Rev Date: 08/21

NOTE: To use your Star-Light Plus™ 5MP cameras at a lower

resolution, you must use a VMAX® A1 Plus™ DVR to access

the camera’s menu due to the cameras being set to 5MP as

the default. A DVR that does not support 5MP resolution

may recognize the camera, but will not deliver a picture
