Dirt Devil DD2501 Bedienungsanleitung

CYCLONE

VACUUM CLEANER

850W

220-240V~50HZ

ITEM: 871125247531

A.I.&E. Adriaan Mulderweg 9-11

5657 EM Eindhoven, The Netherlands

DD2501

YEAR

GUARANTEE

7,5M

1,5L

5,5KG

78dB

Points de collecte sur www quefairedemesdechets.fr

Cet appareil,

ses accessoires,

piles et cordons

se recyclent

À DÉPOSER

EN MAGASIN À DÉPOSER

EN DÉCHÈTERIE

FRFR

INSTRUCTION MANUAL

1.5 LITER

aINSTRUCTION MANUAL

BAGLESS VACUUM CLEANER

ITEM NO: 871125247531

MODEL: DD2501 / CCQSASV1P1

IMPORTANT SAFETY INSTRUCTIONS

This appliance should only be used for domestic cleaning and not for

commercial or industrial use. Please ensure that this guide is fully

understood before operating the appliance.

Warning: Danger to the person!

IMPORTANT: Damage to the appliance!

In addition we offer the following safety advice:

LOCATION

• Do not use or keep this product outside when it is raining.

• Do not store the appliance near hot ovens or heating appliances.

• Store your vacuum cleaner in a cool, dry area. If lters have been

cleaned as per user guide instructions ensure they are thoroughly

dry before storing away.

MAINS LEAD

• Do not allow the mains lead to become strained or run this

appliance over it.

• If the electrical cable becomes damaged, the complete cable

assembly must be replaced. Do not attempt this task yourself.

Contact the local retailers.

• Agency service: To ensure the continued safe and efcient

operation of this appliance we recommend that any servicing

or repairs are only carried out by an authorized Agency service

engineer.

CHILDREN

• This appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have been

given supervision or instruction concerning use of the appliance in

a safe way and understand the hazards involved.

• Children shall not play with the appliance.

Scan QR-Code for

extended manual

PERSONAL SAFETY

• The plug must be removed from the wall socket before cleaning or

maintaining the appliance.

• Never modify the cleaner in any way.

• Never use in the presence of explosive liquids or vapors.

• Never pick up inammable or poisonous liquids such as petrol,

copier toner or other volatile substances. Never pick up acids,

asbestos or asbestos dust.

• Repairs to electrical appliances are only to be undertaken by

trained personnel.

• Unprofessional repairs can be dangerous for users.

• The appliance must never be left running when unsupervised.

PRODUCT SAFETY

• Never use the appliance without the lters being installed.

• Never use the appliance to vacuum hot ashes, broken glass, sharp

objects or liquids.

• To protect against re, electric shock and personal injury do not

immerse cord, plug or cleaner in water or other liquid.

• This appliance is not intended for use by persons (including

children) with reduced physical, sensory or mental capabilities, or

lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a

person responsible for their safety.

• Cleaning and user maintenance shall not be made by children

without supervision.

• If the supply cord is damaged, it must be replaced by the

manufacturer, its service agent or similarly qualied persons in

order to avoid a hazard.

• Always switch off the vacuum cleaner before

disconnecting or connecting the hose and

accessories.

• Keep all openings clear and free from debris as this

may affect the airow/suction.

• Do not use the appliance to clean animals or people.

ELECTRICAL REQUIREMENTS

• Check that the voltage on the rating plate corresponds with your

house electricity supply which must be A.C (alternating current).

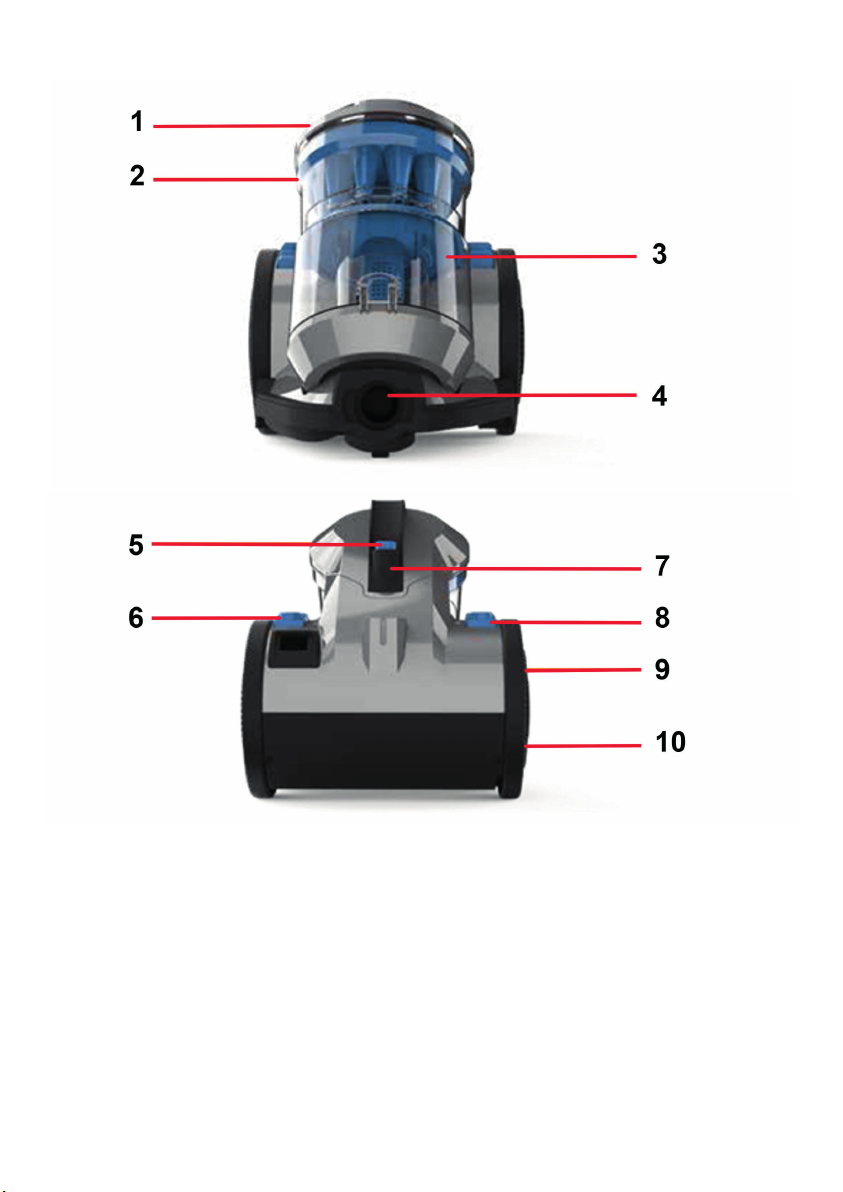

PRODUCT DESCRIPTION

1. Dirt container lid 6. Cord rewind button

2. Inner cyclone 7. Carry handle

3. Dirt container 8. Power On/Off button

4. Hose inlet 9. Floorhead parking slot

5. Bin release button 10. Innerwheel and lter housing

HOW TO INSTALL / OPERATE THE MACHINE

Before you start

• Always switch off and unplug the vacuum cleaner before

connecting or disconnecting the hose/attachments, or

removing and emptying the dirt container.

• The vacuum cleaneris equipped with a thermal cut-out.If for

any reasonthe vacuumcleaner does overheatthe thermostat

will automatically turn the vacuum cleaner off. If this happens,

switch the vacuum cleaner off and unplug from electrical

socket. Removeand empty the dirt container and also check

the vacuum cleaner for blockages.Allow the vacuum cleaner

to cool for approximately 1 hour (if you have cleaned the lters

please wait 24 hours for the lters to fully dry before putting back

into the vacuum).

• Pre-motor lter requires cleaning at least every 3 months.

• If the vacuum cleaner is blocked, switch off and unplug before

removing the blockage.

• When using the accessories always make sure the brush bar is

switched to the off position.

IMPORTANT: The base of the vacuum cleaner should

always be positioned at on the oor when starting and

in use. The dirt container should be locked into place

before lifting the vacuum cleaner by the carry handle.

ASSEMBLING YOUR MACHINE

IMPORTANT: The condition of the lters affects the

performance of your machine. Please check and clean lters

periodically (depending on the level of use).

1. Insert the end of the hose into the unit. Ensure the hose has

clicked into place.

2. Insert the handle into the telescopic extension tube.

3. Press the button on the telescopic extension tube and adjust to

the required length.

4. Insert the other end of the telescopic tube into the oorhead

until it clicks into place.

HOW TO USE

IMPORTANT: The motor is equipped with a thermal cut-out. If

for any reason the unit should overheat, the thermostat will

automatically turn the unit off.

5. Fully unwind the power cord. A yellow mark on the cord

indicates the recommended cord length. Do not exceed the

cord beyond the yellow mark.

6. Plug in and switch the unit on by pressing the power button.

7. Use the vacuum by moving the oorhead backwards and

forwards for an effective clean.

8. Remove the oorhead to use the hose in harder to reach

places.

EMPTYING AND CLEANER THE DIRT CONTAINER

IMPORTANT: Always switch off and unplug the vacuum

cleaner from the electrical socket before assembling,

operating or emptying the dirt container, or before

connecting/disconnecting the attachments. The dirt container

should be emptied and cleaned regularly to allow the vacuum

to perform at its optimum suction rate.

9. Press the dirt containers release button to remove the dirt

container.

10.Hold the dirt container over a bin. Press the dirt release clip

at the bottom of the container. The dirt release door will open

allowing dirt/debris to fall out.

11. Remove the clear dust separator inside the dirt container by

twisting clockwise.

12.Twist the shroud anti-clockwise to unlock and remove from the

dirt container.

13.Tap the shroud against a bin to remove any dirt or debris.

Using a dry cloth wipe the separator and shroud clean.

NOTE: For easier cleaning, follow the 3-step clean

process located on the back of the dirt container. Don’t

over ll the dirt containers. Replace the lters every 6-9

months.

CLEANING THE PRE-MOTOR FILTER

14.Twist the dirt container lid anti-clockwise and lift to remove.

15.Lift out the pre-motor lter.

16.Tap the lter over a bin to remove any dirt and debris.

17.Rinse the lter under water (40°C Max). Leave to dry for 24

hours before placing back in the machine.

POST-MOTOR FILTER MAINTENANCE

18.Post-motor lter is located in the right side wheel. Hold the

centre of the wheel and twist the wheel cover anti-clockwise.

19.With the wheel cover off the post-motor lter is easily removed.

20.Check the post-motor lter for discoloration.

21.Don’t wash the lter with water*.

* IMPORTANT: The exhaust lter is designed to offer long

life with no maintenance. The lter should be checked

periodically and when heavily discolored it should be

replaced. Please do not wash, scrub or brush the lter as

this will damage the delicate lter media.

NOTE: Clean the pre-motor lter every time the dirt

container is emptied and replace the post-motor lter

every 12 months.

STORING YOUR MACHINE

22.Cable rewind button is located at the rear of the machine.

After unplugging, press the cable rewind until the cords is fully

retracted.

23.For convenience there is a parking slot located at the rear of

the vacuum cleaner where the oorhead and tubes can be

attached for storage and carrying.

REMOVING BLOCKAGES FROM THE HOSE

24.Remove the hose from the vacuum cleaner and telescopic

extension tube. Remove any blockage by inserting a wire coat

hanger into the hose.

NOTE: To test for a blockage in the hose, drop a small ball of

paper into the hose. The paper will drop through if the hose is

clear.

TROUBLE SHOOTING

Should you have any problem with you cleaner, follow this simple

check list before calling the agency customer service centre.

A: Some accessories are missing

1) Check the packaging content that is mentioned below the product

specications to be sure the parts included with the appliances.

B: Appliances have no power

1) The plug is not connected (well) into the electrical socket.

2) Check if the plug need to be replaced.

3) The motor thermostat may have tripped. If this has happened,

unplug the vacuum cleaner. Remove and empty the dirt container

and check the hose for blockages. Clean the lter sand allow

the vacuum cleaner to cool for approximately 1 hour (if you have

washed the lters you will need to wait 24 hours for the lters to fully

dry before putting them back into the vacuum cleaner).

C: Vacuum cleaner won’t pick up dust

1) The dirt container may not be correctly tted, remove the dirt

container from the vacuum cleaner and check it’s assembled

correctly, ret ensuring it’s locked into place.

2) The lter may be clogged, clean the lter.

3) The dirt container may be blocked, empty the dirt container.

4) There may be a blockage in the hose/tube. Disconnect from the

vacuum cleaner and carefully remove any blockages.

D: Dust is escaping from the vacuum cleaner

1) The lters may be clogged, clean the lter.

Dieses Handbuch passt für folgende Modelle

Inhaltsverzeichnis

Andere Dirt Devil Staubsauger Handbücher

Dirt Devil

Dirt Devil rebel 70 Bedienungsanleitung

Dirt Devil

Dirt Devil Platinum Force Bedienungsanleitung

Dirt Devil

Dirt Devil M1144 Bedienungsanleitung

Dirt Devil

Dirt Devil M612 Bedienungsanleitung

Dirt Devil

Dirt Devil UD70171 Bedienungsanleitung

Dirt Devil

Dirt Devil Vision Canister Bedienungsanleitung

Dirt Devil

Dirt Devil Wet Dry Bedienungsanleitung

Dirt Devil

Dirt Devil Spider M607 Bedienungsanleitung

Dirt Devil

Dirt Devil BLACK LABEL BG72 Bedienungsanleitung

Dirt Devil

Dirt Devil DD 5255 Bedienungsanleitung

Dirt Devil

Dirt Devil Swivel Glide Bedienungsanleitung

Dirt Devil

Dirt Devil REBEL 3.0 Bedienungsanleitung

Dirt Devil

Dirt Devil MAGNUM MPR Bedienungsanleitung

Dirt Devil

Dirt Devil Classic Bedienungsanleitung

Dirt Devil

Dirt Devil 8245 Bedienungsanleitung

Dirt Devil

Dirt Devil M091200 Bedienungsanleitung

Dirt Devil

Dirt Devil UD70250 Bedienungsanleitung

Dirt Devil

Dirt Devil 360 REACH Bedienungsanleitung

Dirt Devil

Dirt Devil MCE6000 Bedienungsanleitung

Dirt Devil

Dirt Devil CY08 Bedienungsanleitung

Dirt Devil

Dirt Devil QUICK FLIP Bedienungsanleitung

Dirt Devil

Dirt Devil 88150 Bedienungsanleitung

Dirt Devil

Dirt Devil Compact Upright Bedienungsanleitung

Dirt Devil

Dirt Devil Centrino Cleancontrol M2881-6 Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
