Dirt Devil Power DUO UD70170 Bedienungsanleitung
Power DUO™
Carpet + Hard Floor Cyclonic Upright
MANUAL
# 961151950 / ID113543 / R0 1/15
©2015 All rights reserved
Español - página E1
Model #'s UD70170 / UD20125 / UD20125B
HI. WELCOME.
PRODUCT
REGISTRATION
For quick reference, please record your product information below.
Model #:
Mfg. Code:
(Mfg. code located on the back or bottom of product)
Warranty Registration
Be sure to register your product online at www.DirtDevil.com or
call 1-800-321-1134 to register by phone.
Hint: Attach your sales receipt to this Owner’s manual. Verification of date of purchase may be
required for warranty service of your Dirt Devil®product.
Congrats on purchasing your new Power DUO™
Carpet + Hard Floor Cyclonic Upright Vacuum.
Inside, you’ll find everything you want to know
from the tools to how to.
So what are you waiting for? LET’S GO.™
This product uses the following parts:
BELT STYLE F15
PRE-MOTOR FILTER F94
EXHAUST FILTER
F86
Find GENUINE Replacement Parts at www.dirtdevil.com
2
3
TABLE OF
CONTENTS
Quick Start Assembly 6
Tools 8
How to 12
Troubleshooting 18
Limited Warranty 19
4
WARNING
IMPORTANT: READ CAREFULLY BEFORE ASSEMBLY AND USE.
THIS PRODUCT IS INTENDED FOR HOUSEHOLD USE ONLY. IF
USED COMMERCIALLY WARRANTY IS VOID.
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE.
WARNING: TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK OR INJURY:
• Fully assemble before operating.
• Operate cleaner only at voltage specified on data plate on bottom of cleaner.
• Do not leave appliance when plugged in. Unplug from outlet when not in use and before
cleaning or servicing.
• Do not use outdoors or on wet surfaces.
• Do not allow to be used as a toy. Not intended for use by children age 12 and under.
Close supervision is necessary when used near children. To avoid injury or damage, keep
children away from product, and do not allow children to place fingers or other objects
into any openings.
• Use only as described in this manual. Use only manufacturer’s recommended
attachments.
• Do not use with damaged cord or plug. If appliance is not working as it should, has been
dropped, damaged, left outdoors, or dropped into water, return it to a service center for
inspection prior to continuing use.
• Do not pull or carry by cord, use cord as handle, close a door on cord, or pull cord around
sharp edges or corners. Do not place product on cord. Do not run appliance over cord.
Keep cord away from heated surfaces.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
• Do not handle plug or appliance with wet hands.
• Do not put any objects into openings. Do not use with any opening blocked; keep free
of dust, lint, hair, and anything that may reduce air flow.
• Keep hair, loose clothing, fingers, and all parts of body away from openings and
moving parts.
• Turn off all controls before unplugging.
• Use extra care when cleaning on stairs. To avoid personal injury or damage, and to
prevent the cleaner from falling, always place cleaner at bottom of stairs or on floor.
Do not place cleaner on stairs or furniture, as it may result in injury or damage.
• Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas
where they may be present.
• Unplug before connecting Turbo Tool.
• Do not pick up anything that is burning or smoking, such as cigarettes, matches, or
hot ashes.
• Do not use without filters and/or dirt cup in place.
• WARNING: This product contains chemicals known to the State of California to cause
cancer, birth defects or reproductive harm. WASH HANDS AFTER USING.
5
WARNING:
To reduce the risk of electric shock, this appliance has a polarized plug (one blade is
wider than the other). This plug will fit in a polarized outlet only one way. If the plug
does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified
electrician to install the proper outlet. Do not change the plug in any way.
CAUTION: TO REDUCE THE RISK OF DAMAGE:
• Avoid picking up hard, sharp objects with this product, as they may cause damage.
• Store appropriately indoors in a dry place. Do not expose machine to freezing temperatures.
• Do not use sharp objects to clean out hose as they can cause damage.
• With brushroll on, do not allow cleaner to sit in one location for an extended period of time,
as damage to floor can result.
SAVE THESE INSTRUCTIONS
NOTICE
A THERMAL PROTECTOR HAS BEEN DESIGNED INTO
YOUR CLEANER TO PROTECT IT FROM OVERHEATING.
WHEN THE THERMAL PROTECTOR ACTIVATES THE
CLEANER WILL STOP RUNNING.
If this happens proceed as follows:
1. Turn cleaner OFF and unplug it from the electrical outlet.
2. Empty dirt cup.
3. Inspect the nozzle inlet, hose connector, hose, dirt cup inlet, cyclonic lter,
rinsable lter, and HEPA lter. Clear obstructions if present.
4. When cleaner is unplugged and motor cools for 30 minutes, the thermal
protector will deactivate and cleaning may continue.
If the thermal protector continues to activate after following the
above steps, your cleaner needs servicing.
6

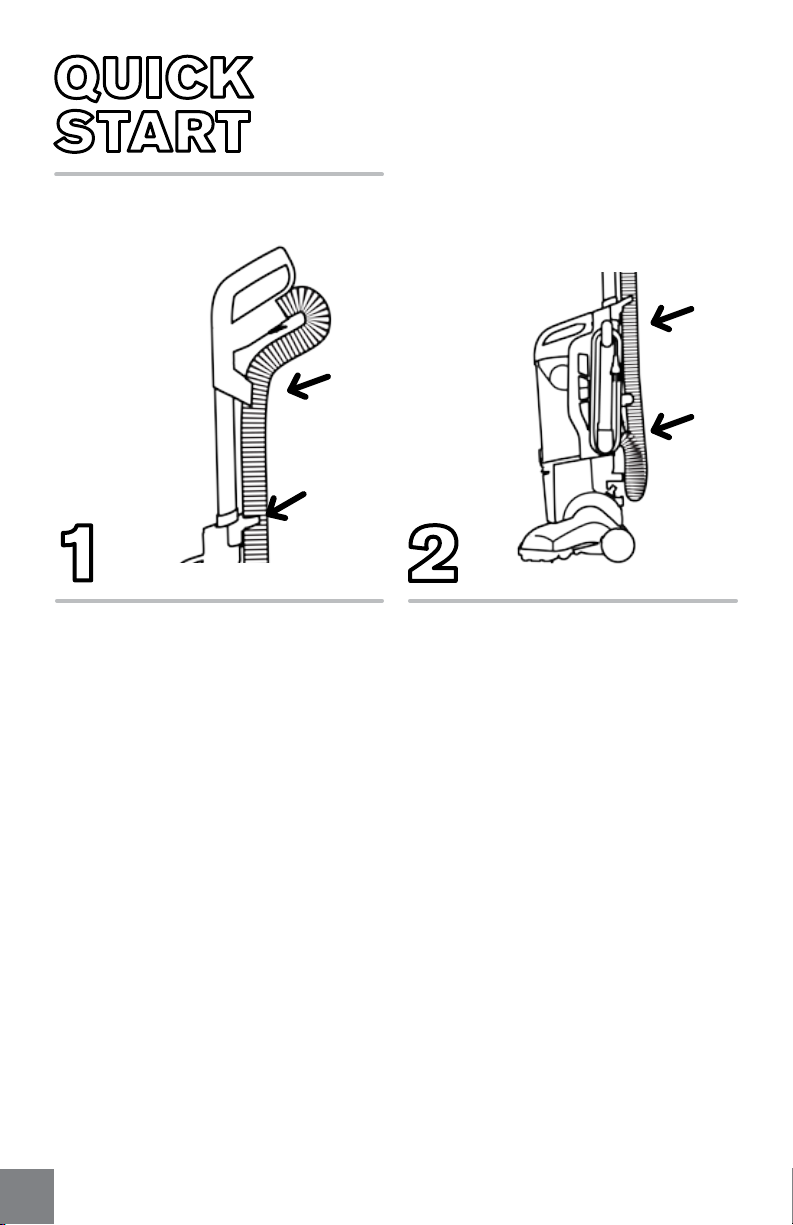

INSERT CLEANING
WAND INTO TOP OF VAC.
SECURE YOUR HOSE
HERE AND HERE.
NOW, WRAP THE CORD
AROUND CORD HOOKS!
7
PLUG IN THE CORD AND
PRESS HERE TO POWER UP.
7

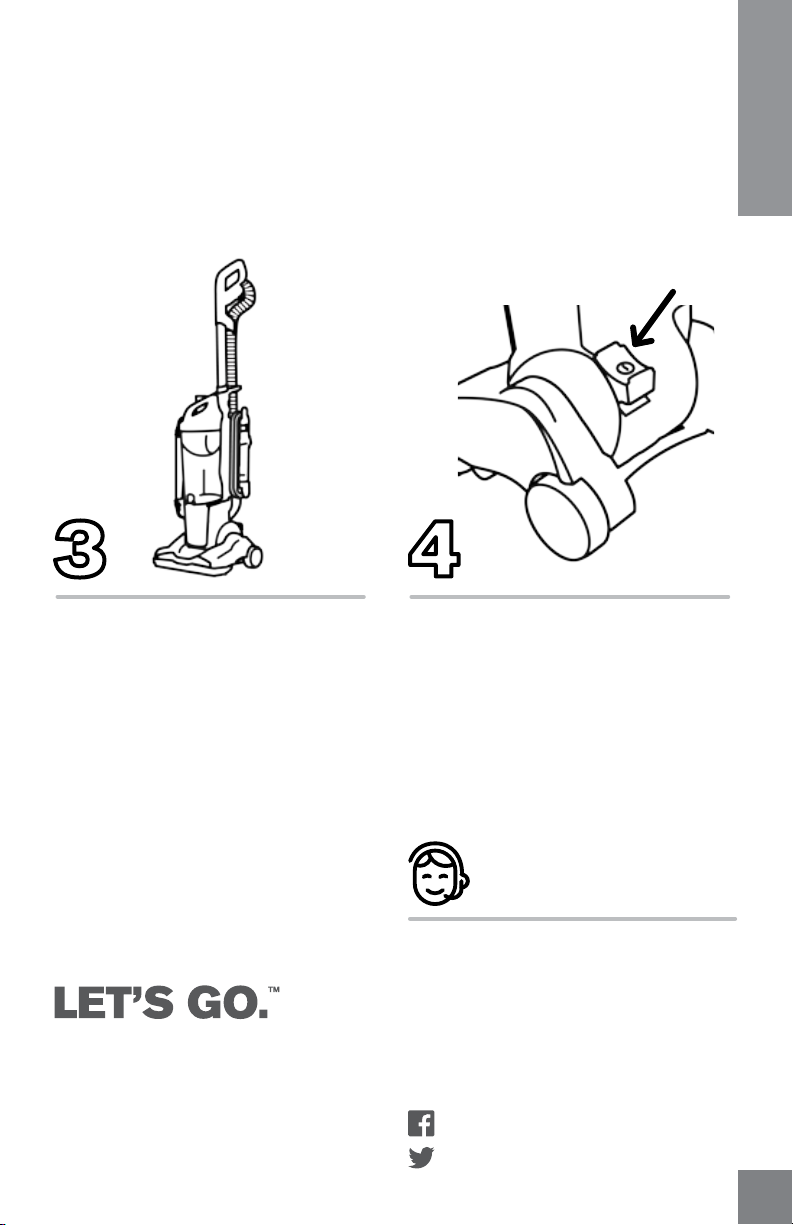

QUICK START
HOLD NOZZLE DOWN
WITH FOOT AND PULL
BACKWARDS ON HANDLE.
YOUR POWER
DUO™IS READY
TO CLEAN! NEED HELP?
Go to dirtdevil.com/support or
contact our Customer Service
Department at (800) 321-1134
8:00 a.m. - 7:00 p.m. EST Mon. - Fri.
or Sat. 10:00 a.m. - 6:00 p.m. EST.
Pick up the conversation on...
Twitter@DirtDevil
Facebook.com/DirtDevil
8
1. Press the wand release button.
*
ONDEMAND
CLEANING WAND
*Accessories not included on all models.
2. Pull wand up & out.
3. Push the tools on the wand
for convenient cleaning.
When you’re done, twist &
pull to take them off.
79

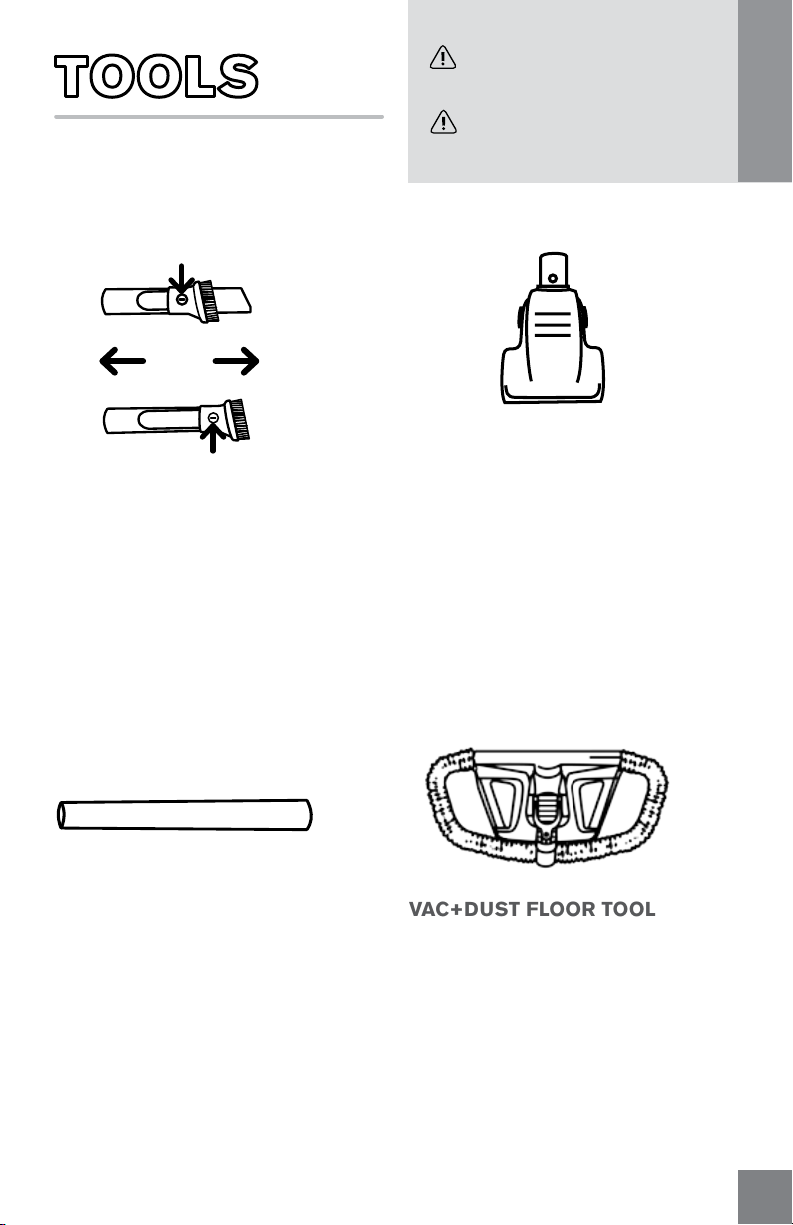

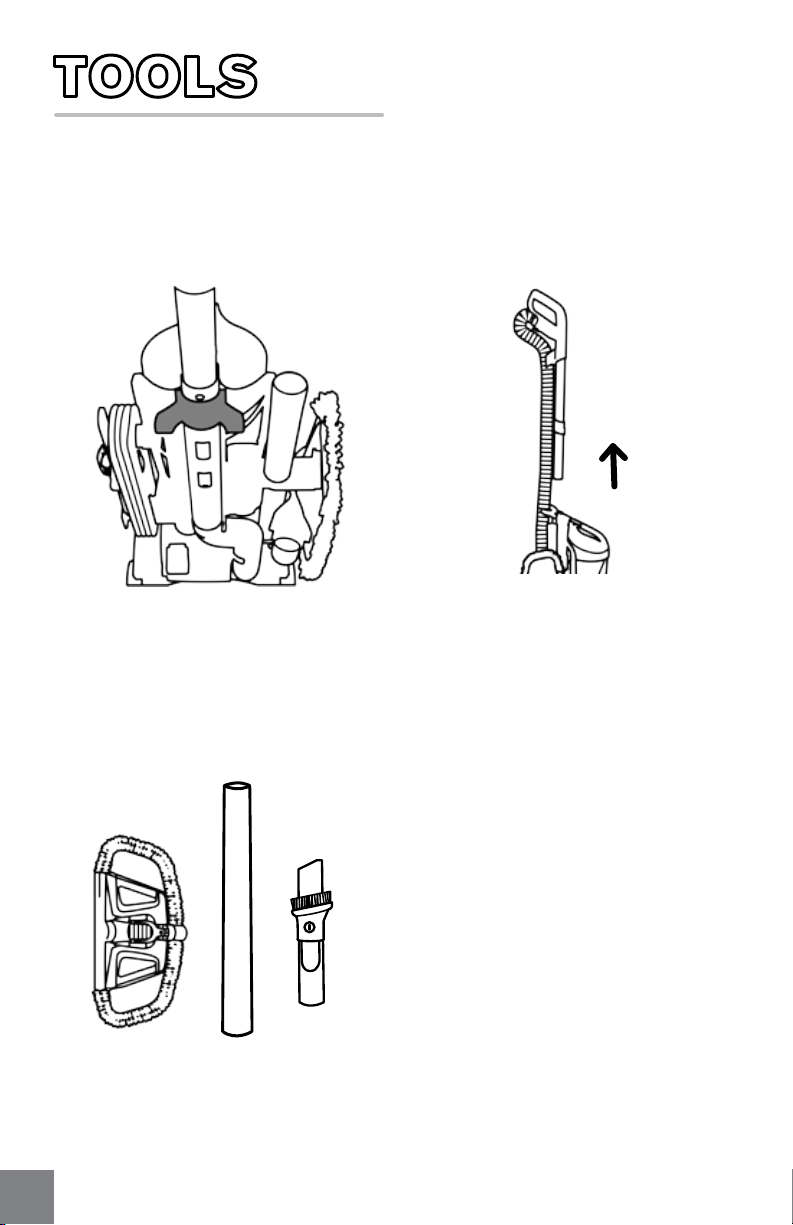

TOOLS
*
EXTENSION WAND:
Attach to cleaning wand
for longer reach on above
and hard floor cleaning.
VAC+DUST FLOOR TOOL
WITH SWIPES™:
Vacuum and dust most
hard floor surfaces.
2IN1 COMBO TOOL: Use
the Crevice Tool for tight
spaces, corners and along
stair edges and baseboards.
Try the Dusting Brush for
furniture, table tops, lamps,
blinds and more.Press the
lock button (A) down and slide
to switch between modes.
TURBO TOOL®: For upholstered
furniture, draperies, mattresses
and stairs.
CAUTION
Not to be used for grooming a pet.
WARNING
Unplug vacuum before connecting hose,
wand or tools.
COMPLETE
ONBOARD TOOLKIT
*Accessories not included on all models.
OR
A
A
10
*

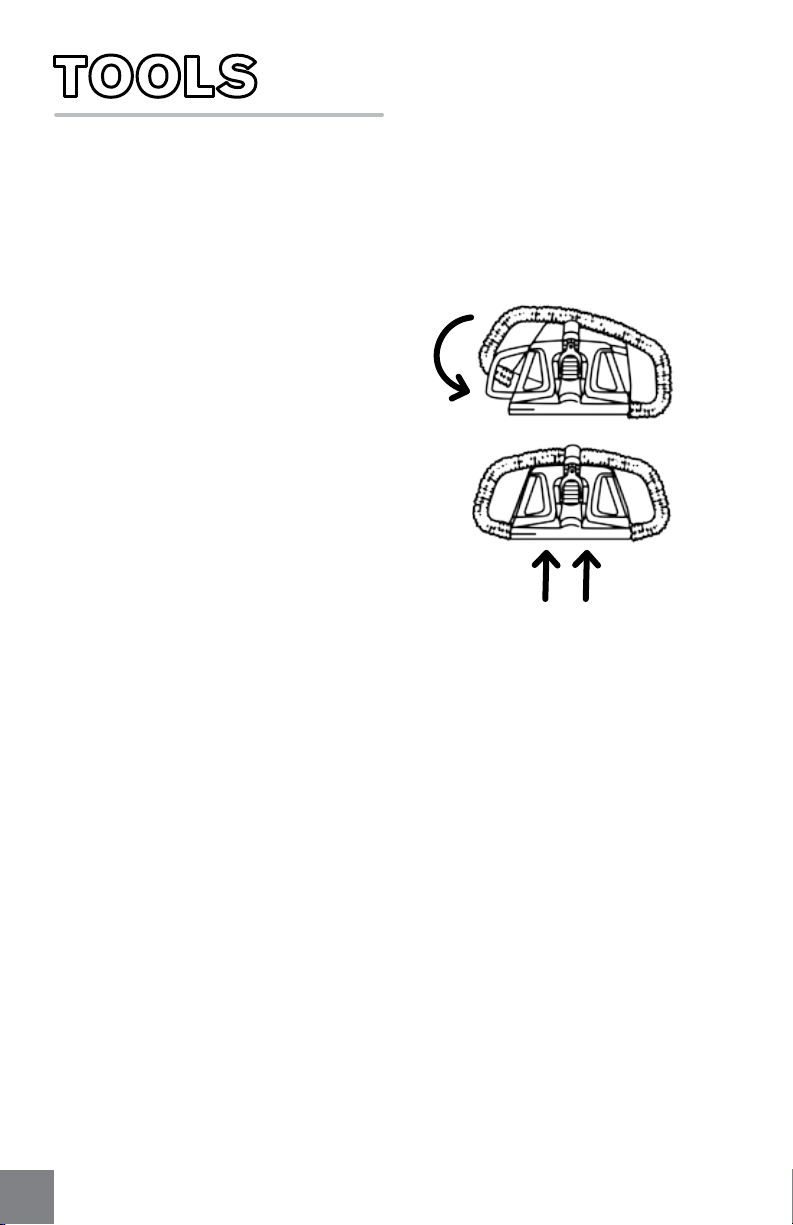

HARD FLOOR CLEANING WITH SWIPES™
Vac+Dust Floor Tool with SWIPES™ Washable Microfiber Dusting Pad
picks up dirt, dust, debris & pet hair. Your Power Duo™will get the rest.
1. Slide one side in pocket and
then the other.
2. The vacuum picks up dirt and
debris from your hard floors
while the Microfiber SWIPES™
pad picks up the rest.
SUCTION
