25-025 www.powercommander.com 2014-2016 CanAm Outlander 450 - PCV - 1

PARTS LIST

1 Power Commander

1 USB Cable

1 Installation Guide

2 Power Commander Decals

2 Dynojet Decals

2 Velcro strips

1 Alcohol swab

THE LATEST POWER COMMANDER

SOFTWARE AND MAP FILES CAN BE

DOWNLOADED FROM OUR WEB SITE AT:

www.powercommander.com

2014-2016 CanAm Outlander 450

Installation Instructions

PLEASE READ ALL DIRECTIONS BEFORE STARTING INSTALLATION

THE IGNITION MUST BE TURNED

OFF BEFORE INSTALLATION!

2191 Mendenhall Drive North Las Vegas, NV 89081 (800) 992-4993 www.powercommander.com

25-025 www.powercommander.com 2014-2016 CanAm Outlander 450 - PCV - 2

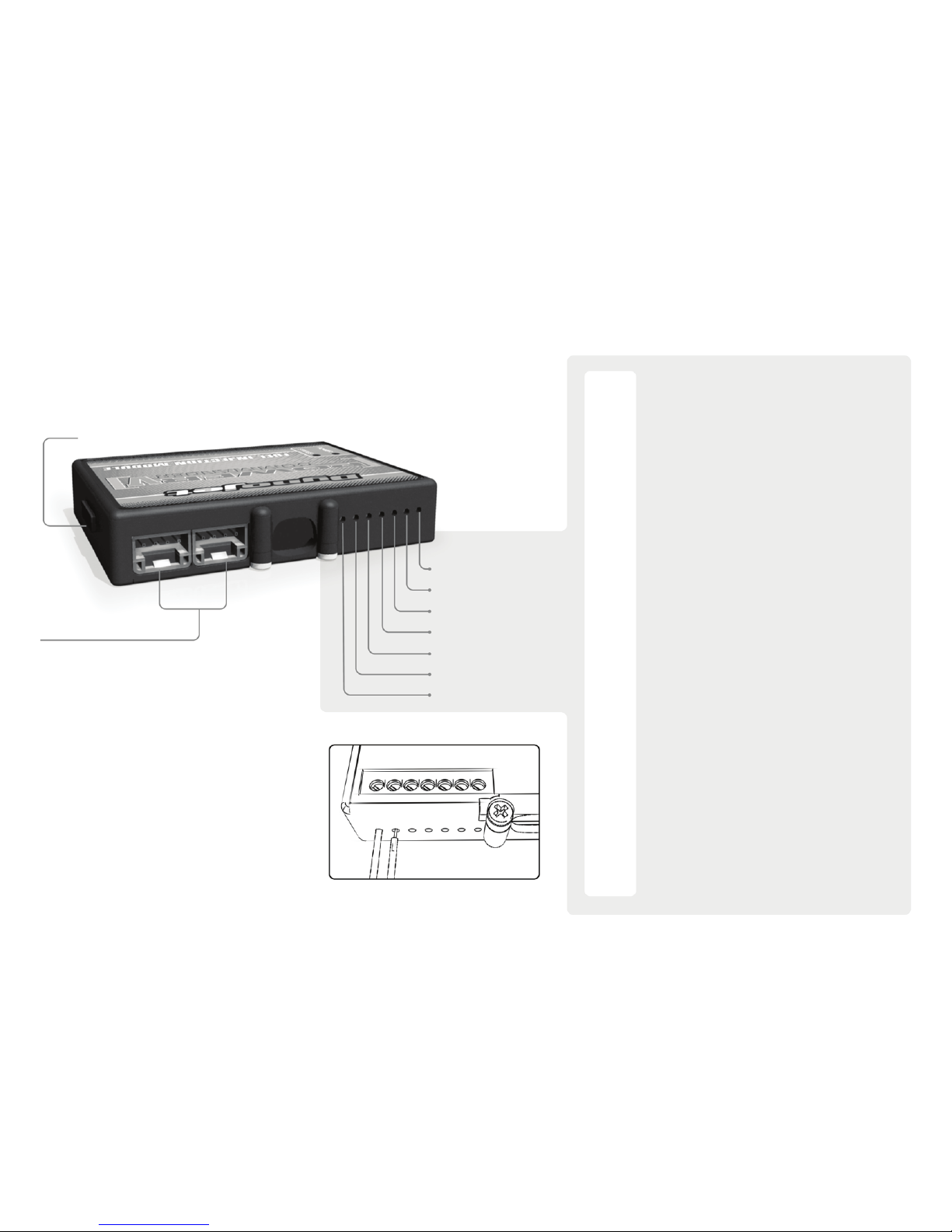

EXPANSION PORTS 1 & 2

Optional Accessories such as

POD-300 unit or Auto-tune kit.

POWER COMMANDER V

INPUT ACCESSORY GUIDE

Map - (Input 1 or 2) The PCV has the ability to hold

2 different base maps. You can switch on the

fly between these two base maps when you

hook up a switch to the MAP inputs. You can

use any open/close type switch. The polarity

of the wires is not important. When using the

Autotune kit one position will hold a base map

and the other position will let you activate the

learning mode. When the switch is “CLOSED”

Autotune will be activated. (Set to Switch

Input #1 by default.)

Shifter- (Input 1 or 2) These inputs are for use with the

Dynojet quickshifter. Insert the wires from the

Dynojet quickshifter into the SHIFTER inputs.

The polarity of the wires is not important. (Set

to Switch Input #2 by default.)

Speed- If your application has a speed sensor then

you can tap into the signal side of the sensor

and run a wire into this input. This will allow

you to calculate gear position in the Control

Center Software. Once gear position is setup

you can alter your map based on gear position

and setup gear dependent kill times when

using a quickshifter.

Analog- This input is for a 0-5v signal such as

engine temp, boost, etc. Once this input

is established you can alter your fuel curve

based on this input in the control center

software.

Crank- Do NOT connect anything to this port unless

instructed to do so by Dynojet. It is used to

transfer crank trigger data from one module to

another.

ACCESSORY INPUTS

Wire connections:

To input wires into the PCV first remove the rubber

plug on the backside of the unit and loosen the

screw for the corresponding input. Using a 22-24

gauge wire strip about 10mm from its end. Push the

wire into the hole of the PCV until is stops and then

tighten the screw. Make sure to reinstall the rubber

plug.

NOTE: If you tin the wires with solder it will make

inserting them easier.

CRANK

ANALOG

SPEED

INPUT 1 (Grnd)

INPUT 1

INPUT 2 (Grnd)

INPUT 2

USB CONNECTION

25-025 www.powercommander.com 2014-2016 CanAm Outlander 450 - PCV - 3

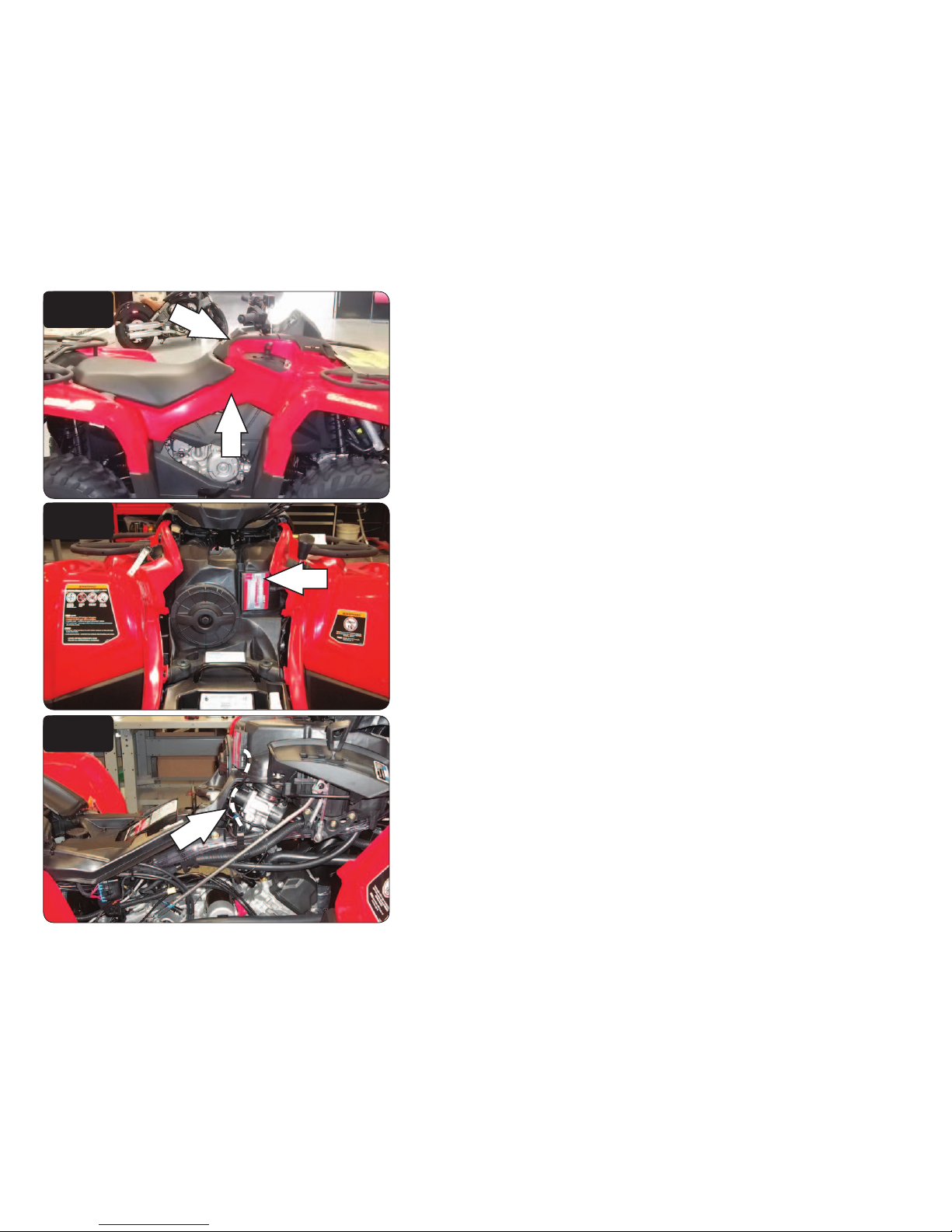

1 Remove the seat.

2 Remove both side panels and the center cover (Fig. A).

3 Using the supplied velcro secure the PCV to the back of the airbox (Fig. B).

Make sure to clean the surface with the alcohol swab before attaching.

4 Route the PCV harness down towards the throttle body (Fig. C).

FIG.A

FIG.C

Remove

Ground wire

FIG.B

25-025 www.powercommander.com 2014-2016 CanAm Outlander 450 - PCV - 4

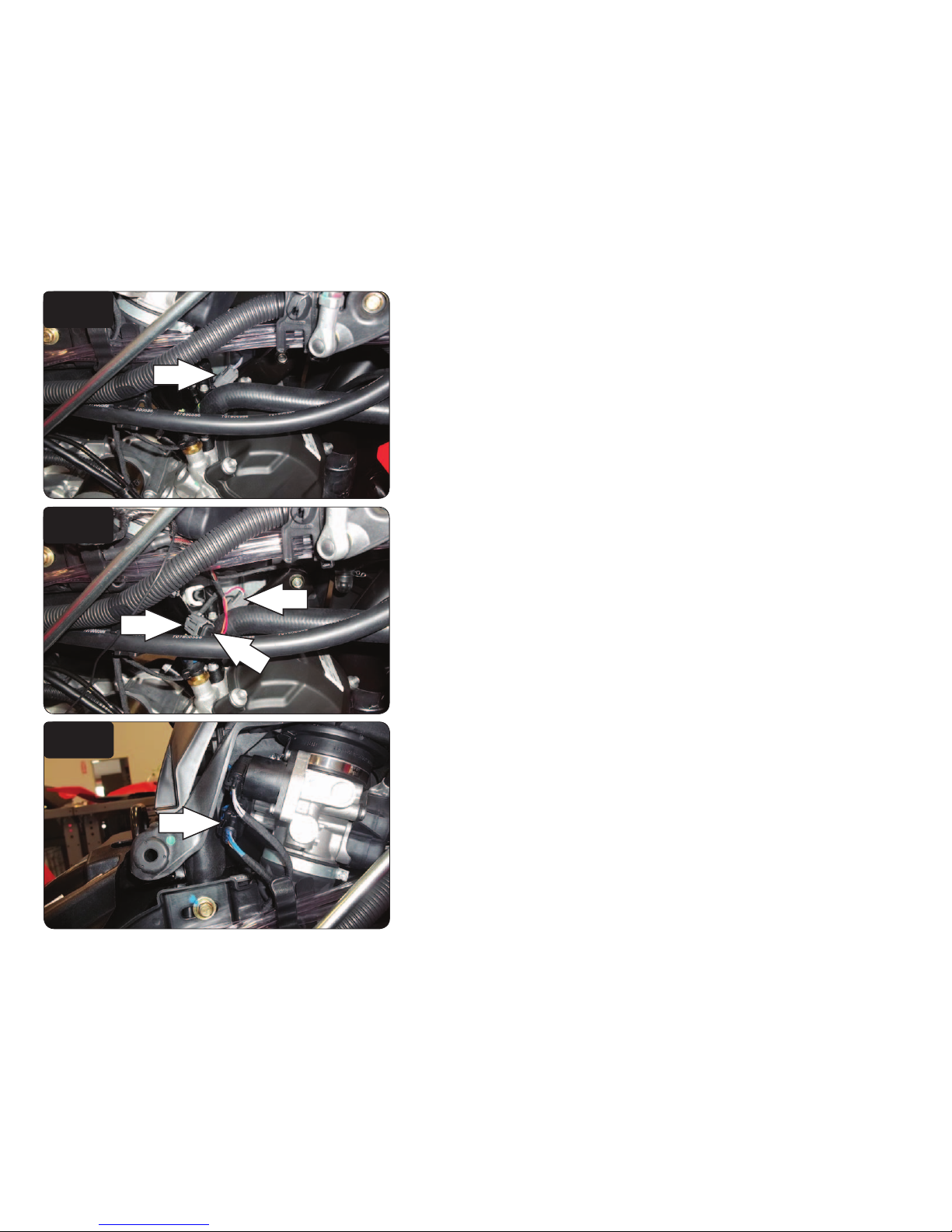

5 Unplug the stock fuel injector connector (Fig. D).

FIG.D

6 Plug the PCV in-line of the stock injector and wiring harness (Fig. E).

FIG.E

7 Unplug the stock Throttle Position Sensor connector (Fig. F).

FIG.F

PCV

Stk

25-025 www.powercommander.com 2014-2016 CanAm Outlander 450 - PCV - 5

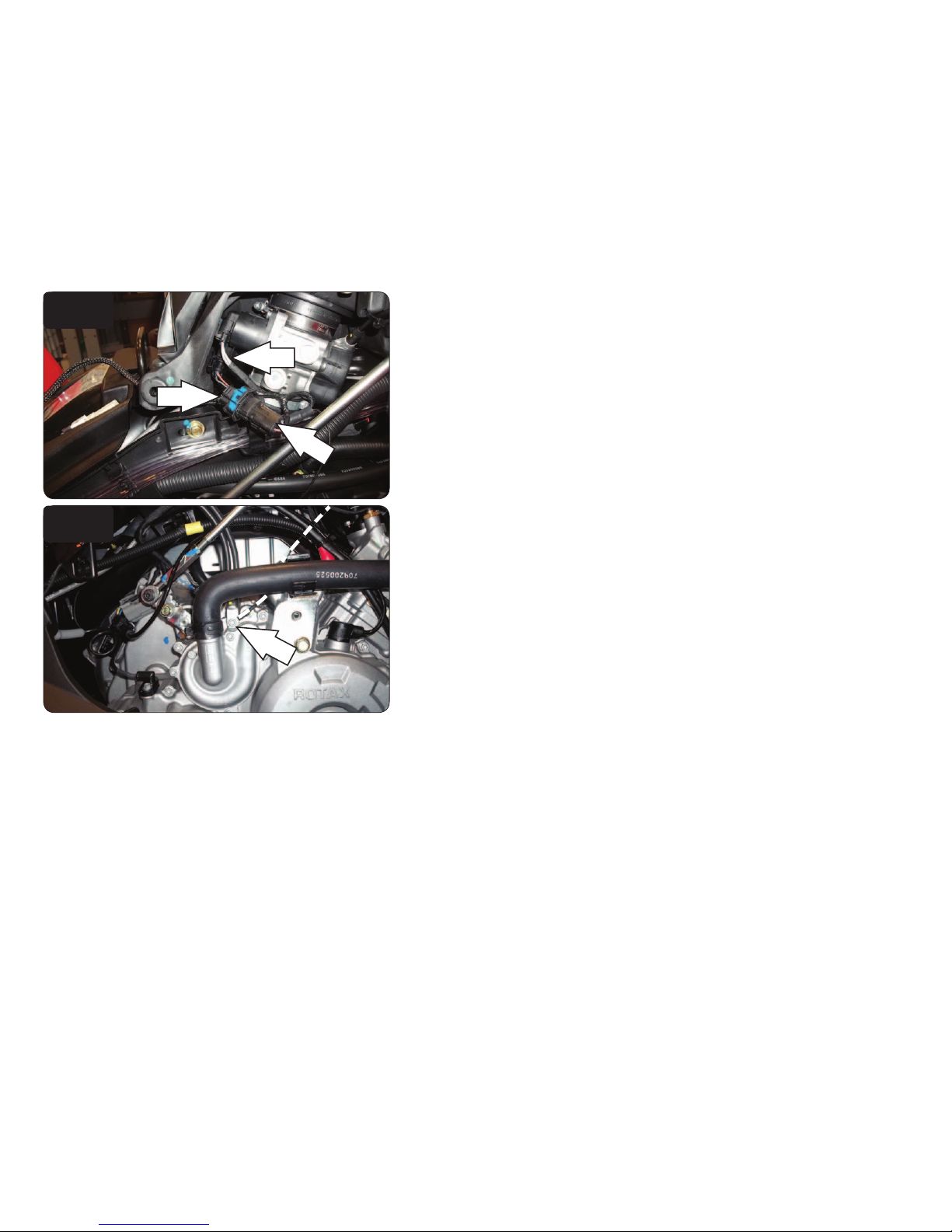

8 Plug the connectors from the PCV in-line of the TPS and stock wiring harness

(Fig. G).

FIG.G

FIG.H

9 Attach the ground wire from the PCV to the engine case bolt (Fig. H).

10 Reinstall the airbox and bodywork.

PCV

Stk

PCV
