MODEL # 2050TP ASSEMBLY INSTRUCTIONS

Earthway_2050TP Manual_ (002) PAGE 1

SIDE SPREAD CONTROL

The Side Spread Control is an innovation that eliminates the need to use a side deflector, which can adversely affect

your application rate, to prevent material from being spread into flowerbeds, on sidewalks, or driveways. The Side

Spread Control maintains the correct application rate while it is activated, giving you excellent results in seeding or

spreading while controlling the spread pattern on the left side of the spreader. The Side Spread Control is an

EarthWay®exclusive.

Thank you for selecting

EarthWay for your

spreader needs. Our

production team in

Northern Indiana takes

pride in building this

spreader. Our customer support team is

standing ready to ensure your success. Please

full line of commercial, lawn & garden tools.

Note: Your EarthWay spreader includes a

feature called side spread control. This

feature shuts off the left side of your spreader,

allowing only the right side to continue

spreading evenly. To activate this feature, slide

the lever below the hopper to the right (if

standing behind the spreader) and walk along

a sidewalk or flowerbed that is 12”-14” on

your left side. Fertilizer will not spread to the

left. This feature is better than a deflector as

no material is wasted by the deflector.

For spreading, please utilize the following

spreader settings:

OPERATING INSTRUCTIONS

Before filling hopper, become familiar with the operation

of this spreader.

▪Obtain proper setting for material to be used

from the SETTING MATRIX included with this

spreader.

▪Move stop bolt on rate gauge assembly to the

proper setting and tighten to secure.

▪While pulling spreader forward, push control

lever toward the spreader to the stop bolt. To

stop, pull lever forward to close flow holes

before you stop moving.

▪When finished, empty any remaining material

from hopper.

▪To prevent corrosion, spray a light oil or Fluid

Film inside the tubing of the chassis and on all

metal parts.

Assembly and Operation Instructions

Earthway_2050TP Manual_ (002) PAGE 2

SIDE SPREAD CONTROL OPERATION

The Side Spread Control lever is located on the back of the hopper at the bottom. To operate the Side Spread Control,

slide the control lever from the left, to the right. This will activate the Side Spread Control for a PARTIAL spread pattern

and prevent material from being spread to the left side of the spreader. Position the left wheel of your spreader 12”-

16” from the sidewalk, flowerbed, or driveway and spread as normal. When you have completed this spreading pass,

open the Side Spread Control by sliding the control lever from right to left, for a FULL spread pattern.

ASSEMBLY INSTRUCTIONS

▪Make sure #28 Wire Brace is under #15 CONTROL SUPPORT prior to attaching #15 CONTROL SUPPORT.

▪Attach #15 CONTROL SUPPORT to #11 using #7 Bolts and #16 Nuts—DO NOT TIGHTEN.

▪Using #13 Brace Clip and #7 Bolt and #16 Nut attach #28 Wire Brace to lower side of #15 CONTROL SUPPORT.

▪Tighten all hardware now.

3MPH Maximum towing speed

Assembly and Operation Instructions

Earthway_2050TP Manual_ (002) PAGE 3

HOW TO ORDER SPARE PARTS

All spare parts listed herein may be ordered direct from the manufacturer. Be sure to give the following information

when ordering.

1. Model Number

2. Part Number

3. Part Description

Assembly and Operation Instructions

Earthway_2050TP Manual_ (002) PAGE 4

You can contact us by calling (574) 848-7491 to place an order with a credit card, or purchase online at

www.Earthway.com. Questions? Email us at [email protected]

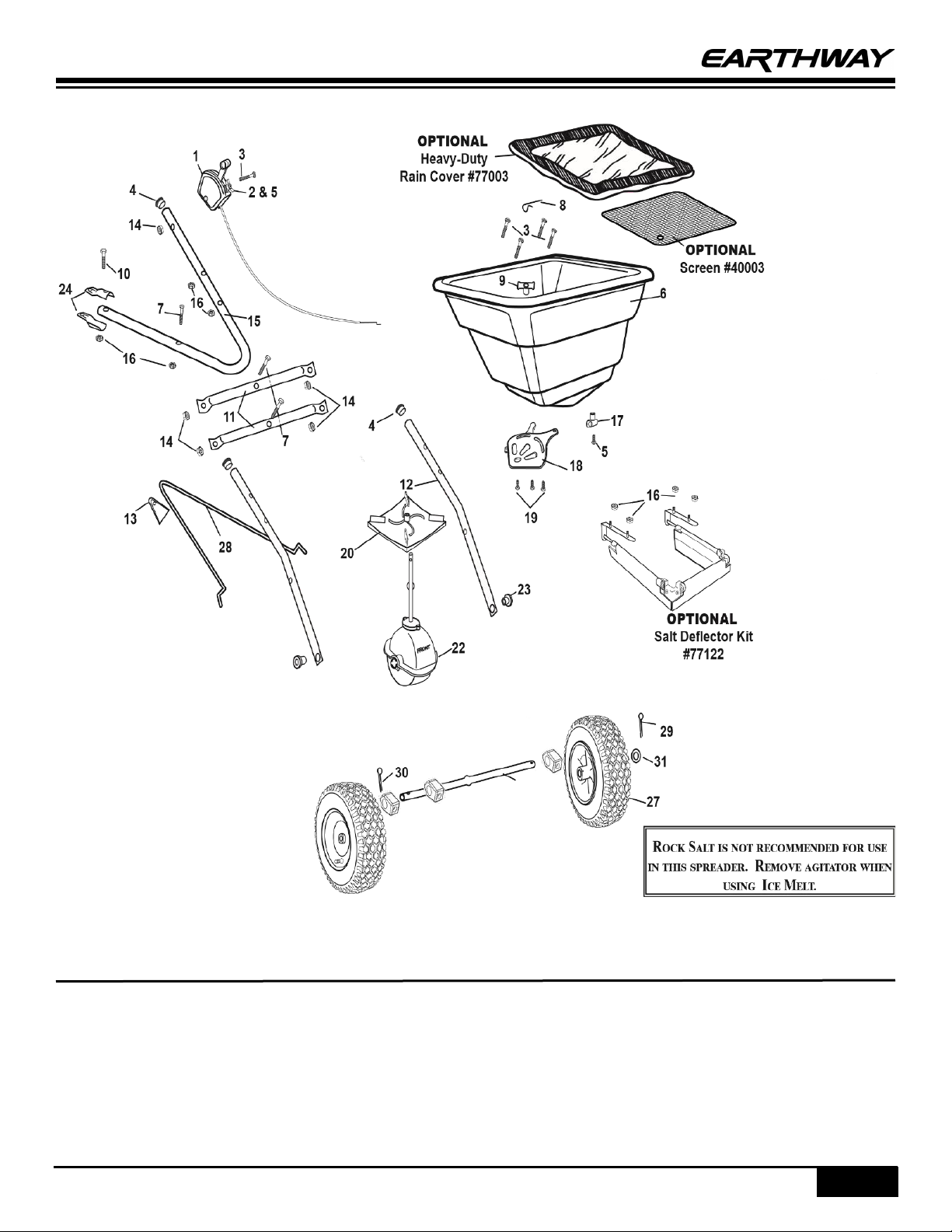

2050T/TP Parts List

Key #

Part #

Description

Key #

Part #

Description

Key #

Part #

Description

60514

CONTROL ASSEMBLY

(includes parts 2, 5)

32100

¼-20 HEX NUT ZINC

44215

HITCH PLATE

37108

1/4-20 X 1 3/4" CARRIAGE

BOLT

25227

CONTROL SUPPORT

70106

10” PNEUMATIC WHEEL

19132

7/8" TUBE PLUG

32103

1/4-20 NYLON INS LOCKNUT ZINC

43059

WIRE BRACE

60363

HOPPER ASSEMBLY

(includes parts 9, 18, 19)

12318

LOWER HOUSING CLIP

33106

1/8” X ¾” COTTER PIN

33117

AGITATOR

12221

SHUT OFF PLATE

33107

1/8” X 1-3/4” COTTER PIN

S.S

12209

HOPPER BUSHING

31138

#8 X 3/8” PMT HD COARSE BLACK

34103

1” OD X 17/32”ID X 1/32”

WASHER

31100

1/4-20 X 1 1/2 HHMS

12248

IMPELLER

P14634

AXLE COLLARS

25226

CROSS BRACE

23511

AXLE

OPTIONAL

77003

HEAVY DUTY RAINCOVER

13” X 18”

25225

FRAME LOWER

60404

GEAR BOX ASSEMBLY

OPTIONAL

40003

SQUARE SCREEN

12267

BRACE CLIP

12197

SPACER BEARING

OPTIONAL

77122

SALT DEFLECTOR KIT

HOW TO DETERMINE THE SETTING RATE

The settings furnished on the Rate Setting Matrix are intended as a guide only. Variations in physical characteristics of

material applied, walking speed, and roughness of ground surface may require slightly different spreader settings.

Due to the above conditions, EARTHWAY PRODUCTS, Inc. makes no warranty as to the uniformity of coverage actually

obtained from the settings listed.

GRASS SEED

GRAMS/SQ METER

LBS/1,000 SQ FT

SPREADER SETTING

10 Grams

2 LBS.

15 Grams

3 LBS.

20 Grams

4 LBS.

25 Grams

5 LBS.

Assembly and Operation Instructions

Earthway_2050TP Manual_ (002) PAGE 5

CUSTOMER SERVICE

SUPPORT@EARTHWAY.COM | 1009 Maple Street, Bristol, IN 46507

ONE YEAR WARRANTY

EarthWay Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year to the

end user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion

will repair or replace the part(s)/product at no charge provided the failure is not the result of incorrect installation, mishandling,

misuse, tampering, or normal wear and tear as determined by EarthWay.

EarthWay at its discretion may require that the part(s) or product be returned along with the original purchase receipt for

examination and compliance with the terms of this warranty. Do not return any product without first receiving authorization from

EarthWay Products, Inc.

To seek remedy under this warranty, contact EarthWay Products, Inc. at support@earthway.com or write to EarthWay

Products, Inc. 1009 Maple Street, Bristol, IN 46507 and describe the nature of the manufacturing defect. SPECIFIC

LIMITATIONS: This warranty covers only the part(s) or product; any labor charges associated with repair or replacement of

non-conformances are specifically excluded. Due to the corrosive nature of most fertilizers and ice melt products, EarthWay

Products, Inc. makes no warranty against and specifically excludes part(s) or product degradation or failure due to corrosion or

its effects.
