Earth Way PolarTech 90399 Montageanleitung
32103
Qty 9
32100
Qty 2
36300
Qty 6
12152
Qty 2 12148
Qty 2
33109
Qty 1
36214
Qty 4
33108
Qty 1
36210
Qty 2
31100
Qty 4
31106
Qty 2
31120
Qty 5
1. Remove and identify all loose parts from carton.
44249
13
16
17
31
24
28
23
25
26
9
11
12
40
29
(Qty 4 #36214)
1/4-20 X 1½”
Phillips Panhead
(Qty 4 #36300)
1/4-20 SS Locknut
2. Position hopper on side. Install frame using (4) 1/4-20 x 1-1/2”
Pan Head Phillips bolts and (4) 1/4-20 nylon insert locknuts. First put
bolts through holes in frame then through holes in bottom of hopper.
Secure with locknuts. TIGHTEN THESE LOCKNUTS NOW - DO NOT
TIGHTEN WITH POWER TOOLS. TIP: coat stainless steel bolts
with wax or grease before tightening to prevent them from seizing.
PAGE 1
90399 STAINLESS
HELPFUL HINTS: READ THE DIRECTIONS BEFORE ASSEMBLY
If your spreader does not spread evenly, be sure the FRONT on the gear box points to the front of the spreader.
The impeller must turn clockwise. Reversing the gearbox will cause the impeller to turn counter clockwise.
Clean the impeller plate after each use. Ice melt stuck on the impeller blades will cause uneven spreading.
Your spreader is designed to be pushed at three miles per hour, which is a brisk walking speed. Slower or
Clean and dry your spreader thoroughly after each use. Coat all metal surfaces (pay special attention to the
inside & outside of tubing - it’s easiest to do while assembling) with light oil, Fluid Film®or silicon spray
Do not use powdered
materials.
Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.
PLEASE CONTACT US IF YOU ARE MISSING ANY PARTS OR HAVE QUESTIONS REGARDING THE OPERATION OF
THIS SPREADER, VISIT THE EARTHWAY WEBSITE OR CONTACT SUPPORT AT:
.
PHONE: 574-848-7491 EMAIL: SUPPORT@EARTHWAY.COM
IF YOUR SPREADER COMES SEMI ASSEMBLED, SKIP TO STEP #7
ICE MELT SPREADER
ASSEMBLY & OPERATION
OCT 2019 REV
Axle
Bushing
Bearing
Frame brace
1/4-20 Locknut
Lower Handle
Bushing
Shut-Off
1/4-20 x 1-1/2”
Hex Head Bolt
STEP 5B
STEP 5C
1/4-20 x 2-1/4”
Hex Head Bolt
STEP 5A
Foot
3. Install impeller onto pinion shaft by pressing the impeller as
shown onto the pinion shaft and turning the impeller while holding
the pinion shaft to engage with the COINfully, and press down to
secure.
Next, insert Cross Brace thru the Gearbox Brace as shown above.
FR
ON
T
Impeller
Cross Brace
GEARBOX ASSEMBLY
Gearbox Brace
Pinion
Shaft
Press & turn
Impeller
to engage
Coin securely
Coin
F
R
ON
T
4. Install gearbox by inserting the pinion shaft into hole
in center of hoppers bottom. The word “FRONT” on the
gearbox must point to Front of the hopper. The EarthWay
logo is on the front of the hopper.
Axle Bearing
Flat
Side
Notch
NOW GO BACK AND TIGHTEN ALL NUTS AND BOLTS STARTING WITH FIRST STEP.
DO NOT OVER TIGHTEN.
PAGE 2

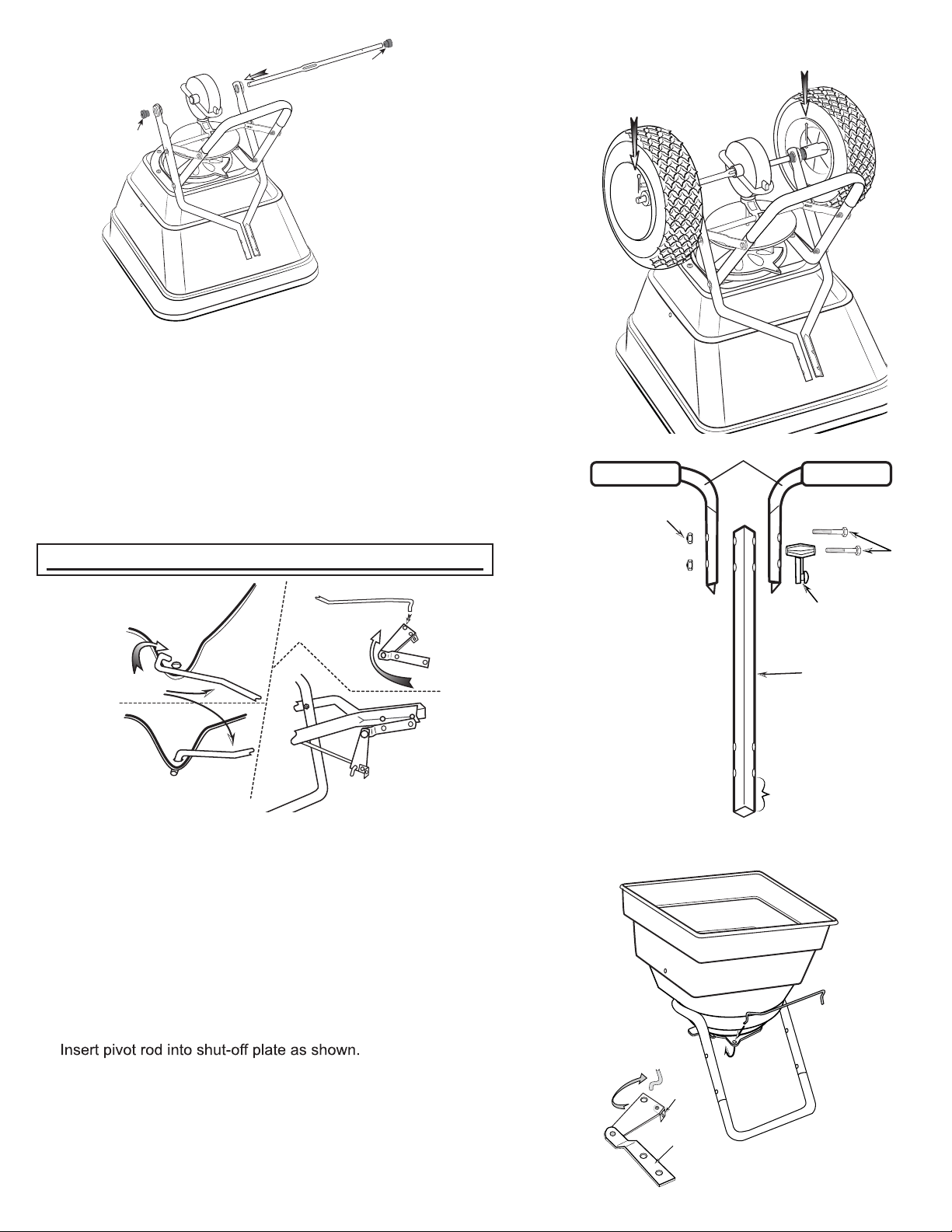

5. A - Install lower handles onto the
frame to both sides as shown. Insert 2¼”
bolt through second hole in lower handle
locknut. DO NOT TIGHTEN.
B -
hole in lower handle. Then through
frame brace. NOTE: Numbers on frame
brace must be facing toward gear box as
shown. Next into threaded connector in
cross brace. DO NOT TIGHTEN.
C-Next insert 1½” bolt through other
end of frame brace and through second
hole in frame install locknut.
6. Install the axle through the axle hole
in the lower handle and then through
the gearbox and then through the lower
handle on the other side as shown.
NOTE: Notch on bearings and lower
side of lower handle (from the outside to
the inside).
OCT 2019 REV
Bushing
Bushing
Install the axle
as shown above
7. Slide axle bushing over axle and into axle bearing to both sides as shown.
8. Install drive wheel onto the axle and align with the cotter pin hole nearest to
lower handles as shown. Insert 2” cotter pin through wheel and through axle.
Bend with pliers to prevent pin from falling out.
9. Install coast wheel onto the axle fully, then using outside cotter pin hole,
insert 1” cotter pin through axle (not thru the wheel). Bend with pliers to
prevent pin from falling out.
Coast wheel side
1” Cotter Pin
Drive wheel side
2” Cotter Pin
TURN SPREADER UPRIGHT ON TO WHEELS.
1/4-20 x 2”
Hex Head
Bolt
Gauge &
Lever Assembly
Upper Handles
1/4-20
Locknuts
Handle Shaft
Long end
Shut-Off
Plate
Pivot Rod
with extra bend
Rotate
Pivot
PAGE 3
Insert Pivot Rod
into Shut-Off
and rotate to secure
Angle
Attaching
Arm
Pivot
Rod
10. Insert 2” bolt through Gauge & Lever assembly, next through upper handle,
then the handle shaft and then the other upper handle and secure with locknut.
TIGHTEN ALL HARDWARE NOW
11.
Turn to lock in place.
12. Insert other end of pivot rod into pivot and bracket assembly as shown. Turn
to lock in place.
OCT 2019 REV
Control Rod
Tabbed Hole
Control Rod
Lever
Tension Nut
Gauge & Lever
30
1/4 - 20 Lock-nut
1/4 - 20 x 2” Bolt
Pivot Bracket
Long End
Holes are farther
from one end
Handle Shaft
14. Install (1) 1/4-20
Hex nut (not a locknut)
on to control rod as
shown.
15.
“0”. Align control rod with hole in pivot bracket, pull lever backward to insert control rod through hole in pivot bracket. Now
install 1/4-20 Hex nut on to control rod.
16.
full open position. REMEMBER SETTING “30” ON THE FLOW CONTROL LEVER MUST PLACE THE SHUT-OFF PLATE
IN THE FULL OPEN POSITION TO BE PROPERLY CALIBRATED. Now tighten the nuts against the pivot bracket to prevent
change in calibration.
17.
¼-20
Hex Nuts
Pivot
Bracket Control
Rod
Pivot
Rod
PAGE 4
13. Install handle shaft to lower handles and pivot & bracket assembly as shown. Using 1/4 -20 x 2”
bolts and locknuts. TIGHTEN BOLTS AND NUTS NOW.
1/4-20 x 1”
Hex Head Bolt
Stainless
1/4-20 Lock Nut
Stainless
18.
Install debris screen into hopper, then insert 1/4-20 x 1”
Stainless Steel Hex Bolt thru the hole in the side wall of the
hopper. Secure with Stainless Steel lock nut - TIGHTEN
OCT 2019 REV
PAGE 5
HOW TO ORDER SPARE PARTS
All spare parts listed herein may be ordered direct from the manufacturer. Be sure to give the following information when
ordering.
Model Number
Part Number
Part Description
You can contact us by calling (574) 848-7491 to place an order with a credit card, or purchase online at
www.earthway.com Questions? Email us at support@earthway.com
1 YEAR LIMITED WARRANTY
Earthway Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year
to the end user with the original purchase receipt. If a manufacturing non-conformance is found, Earthway Products, Inc.
at its discretion will repair or replace the part(s) or product at no charge provided the failure is not the result of incorrect
installation, mishandling, misuse, tampering, or normal wear and tear as determined by Earthway. Earthway at its
discretion may require that the part(s) or product be returned along with the original purchase receipt at owners’ expense for
from Earthway Products, Inc. To seek remedy under this warranty, contact Earthway Products, Inc. at 574-848-7491,
techsupport@earthway.com or write to Earthway Products, 1009 Maple St. Bristol, Indiana 46507 and describe the nature
of the manufacturing defect. SPECIFIC LIMITATIONS: This warranty covers only the part(s) or product; any labor charges
thoroughly after each use, as a preventative measure, coat all metal parts with a light oil or silicon spray.
OPERATING INSTRUCTIONS
Move stop bolt on rate gauge assembly to the proper setting.
While pushing spreader forward, pull control lever back to stop bolt.
Thoroughly wash spreader and dry before storing. A coating of light oil will help prevent corrosion.
Do not allow unused rock salt to remain in hopper. It will solidify and cause damage to the GEARBOX.
™ OPERATION
The ™ lever is located under the right side of the hopper. To operate the ™,
slide the control lever from the front to the back. This will activate the ™for a PARTIAL spread
pattern and prevent material from being spread to the left side of the spreader. Position the left wheel of your spreader 4”- 6”
control lever to “0”, and then open the ™ by sliding the control lever from back to the front, for a FULL
spread pattern.
The ™
™maintains the correct application rate while it is activated, giving you excellent results in seeding or
spreading while controlling the spread pattern on the left side of the spreader.
The ™is an
EarthWay
exclusive.
OCT 2019 REV
Place ice melt where it matters...
KEY # PART # DESCRIPTION KEY # PART # DESCRIPTION
1 40003 SQUARE SCREEN 22 12317SSC SHUT OFF PLATE
299335 HOPPER ASSEMBLY (2170/2170T) 23 25222-SS LOWER HANDLE SQ STAINLESS
360027 NUT 1/4 - 20 WING NUT 24 24111 FRAME - STAINLESS
4 12209 HOPPER BUSHING 25 42237 FRAME BRACE
5 36214 1/4-20 X 1 1/2" PHPMS S.S. 26 25228 CROSS BRACE (2150/2170/S25) 11.25”
6 36300 1/4-20 NYLON INS LOCKNUT STAINLESS 27 36205 1/4-20 X 2 1/4" HHCS ZINC
7 36210 1/4-20 X 1" HHMS STAINLESS. 28 12110 IMPELLER 9" Round Dished
836216 1/4-20 X 2" HHCS STAINLESS 29 25723-SS FRAME STAND - STAINLESS
9 60300 PIVOT & BRACKET ASSEMBLY 30 12274 GRIP (2150/2170) 7.5" LONG
10 12147 SPACER (PIVOT LINK) 31 60333 New Floating GEAR BOX
11 44251 PIVOT ROD 32 12148 AXLE BEARING
12 60298 GAUGE & LEVER ASSEMBLY 33 12152 AXLE BUSHING
13 60175-SS UPPER HANDLE SQUARE W/GRIP ea. 34 33103 3/16" X 2" COTTER PIN STAINLESS
14 24500 AXLE, COINED 35 70138 PNEUMATIC DRIVE WHEEL STUD
15 36200 1/4-20 X 1 1/2 HHMS STAINLESS 36 33104 3/16" X 1" COTTER PIN STAINLESS
16 25223-SS HANDLE SHAFT SQ STAINLESS 37 11927 SHUTOFF SUPPORT- LARGE
17 42256 CONTROL ROD 38 60027 WING NUT ASSEMBLY BLACK
18 31138 #8 X 3/8" PMT #8 HD COARSE BLACK 39 37100 1/4-20 X 1" CARRIAGE BOLT STAINLESS
1937100 1/4-20 NYLON INSERT LOCKNUT S.S.
20 36305 1/4-20 HEX NUT STAINLESS
21 36208 #6 X 3/8" TYPE 25 PHPS S.S.
60166R
OPTIONAL
3-Side Salt
Deflector Kit
EarthWay Products
Bristol, IN 46507
Phone: 574-848-7491
www.earthway.com
Bolt Identier
1-1/2”
1”
2”
2-1/4”
2-3/4”
44249
5
6
30 6
23
17
20
27
15 25
24
15
37
22 23
15
26
25
15
27
28
18
21
11
20
9
8
13
14
13
39
10
38
2
12
16
1
7
7
19
19
19
4
8
34
35
31
32
33
36
29
6
77002
OPTIONAL
Heavy-Duty
Rain Cover
60060R
OPTIONAL
Heavy-Duty
Rain Cover
&
Side Deflector Kit
90399 Ice Melt Spreader - Parts List
PAGE 6OCT 2019 REV
