Earth Way POLAR TECH 90365 Montageanleitung
HELPFUL HINTS: READ THE DIRECTIONS BEFORE ASSEMBLY
THIS SPREADER COMES PARTIALLY ASSEMBLED, REQUIRING YOU TO INSTALL THE WHEELS, HANDLE ASSEMBLY AND
CONTROL ROD. IT SHOULD TAKE APPROXIMATELY 10 MINUTES WITH THE USE OF TWO 7/16” WRENCHES AND 1 PAIR
OF PLIERS.
Clean the impeller plate after each use. Material build up on the impeller blades will cause uneven spreading.
Your spreader is designed to be pushed at three miles per hour, which is a brisk walking speed. Slower or faster speeds
Gears are permanently lubricated at the factory. Do not open the gearbox or dirt may enter.
When using Rock Salt remove salt from the hopper daily. Rock Salt will reconstitute back into a solid block over night
lubricant to prevent corrosion.
1. Open carton and remove the handle assembly, wheels, and spreader from
carton.
2. Turn spreader upside-down on to the hopper.
90365 ICE MELT SPREADER
S
L
I
D
E
GEARBOX &
AXLE ASSEMBLY
Lower
Handle
Frame
Brace
Cross Brace
Axle Bushing
Axle
Bearing
3. Ensure that the axle bearings are pushed into the axle
bushing on both sides as shown. Install drive wheel (both
wheels are interchangeable) to axle using pin hole nearest to
lower handles as shown. Insert 2” cotter pin through wheel and through axle. Bend with pliers to prevent pin from falling
out.
4. Install coast wheel to axle, then using outside pin hole as shown, insert 1” cotter pin through axle (not thru the wheel).
Bend with pliers to prevent pin from falling out.
2” Cotter Pin
1” Cotter Pin
Coast Wheel
Drive Wheel
PLEASE CALL IF YOU ARE MISSING ANY PARTS, HAVE ANY DIFFICULTY IN ASSEMBLY, OR HAVE ANY QUESTIONS
REGARDING THE SAFE OPERATION OF THIS SPREADER.
ASSEMBLY & OPERATION
2019 OCT REV PAGE 1
1/4 - 20 Lock-nut
1/4 - 20 x 2” Bolt
Pivot Bracket
5. Install handle shaft to lower handles and pivot & bracket assembly as shown.
Using 2” bolts and locknuts. TIGHTEN BOLTS AND NUTS NOW.
1/4-20 x 2”
Hex Head
Bolt
Gauge &
Lever Assembly
Upper Handles
1/4-20
Locknuts
Handle Shaft
Long end
6. Insert 2” bolt through Gauge & Lever assembly, next through upper
handle, then the handle shaft and then the other upper handle and secure
with locknut.
TIGHTEN ALL HARDWARE NOW
Gauge & Lever
Control Rod
Tabbed Hole
Control Rod
Lever
Tension Nut
¼-20
Hex Nuts
Pivot
Bracket Control
Rod
Pivot
Rod
7. Install Control Rod by inserting
Lever on Gauge as shown. Turn to lock in place. {Make sure that there is a
plain 1/4-20 Hex Nut threaded about halfway up the threads}
Push lever forward to full OPEN setting. Align and push the Control Rod
through the angle attached to the Pivot Bracket. Now install 1/4-20 regular
nut on to control rod. {One nut on either side of the angled plate}
the full open position and adjust the Hex Nuts on the Pivot Bracket angle
to secure the angled bracket. Now tighten the nuts against the pivot angled
bracket to prevent change in calibration.
2019 OCT REV PAGE 2
1 YEAR LIMITED WARRANTY
Earthway Products, Inc. warrants this product free of defects in original workmanship and materials for a period of 1 year
to the end user with the original purchase receipt. If a manufacturing non-conformance is found, Earthway Products, Inc.
at its discretion will repair or replace the part(s) or product at no charge provided the failure is not the result of incorrect
installation, mishandling, misuse, tampering, or normal wear and tear as determined by Earthway. Earthway at its
discretion may require that the part(s) or product be returned along with the original purchase receipt at owners’ expense for
from Earthway Products, Inc. To seek remedy under this warranty, contact Earthway Products, Inc. at 574-848-7491,
support@earthway.com or write to Earthway Products, Inc.1009 Maple Street, Bristol, Indiana 46507. Describe the nature
of the manufacturing defect. SPECIFIC LIMITATIONS: This warranty covers only the part(s) or product; any labor
Clean and dry your spreader thoroughly after each use, as a
preventative measure, coat all metal parts (inside and outside of the steel tubing) with a light oil or silicon spray.
HOW TO ORDER SPARE PARTS
All spare parts listed herein may be ordered direct from
the manufacturer. Be sure to give the following informa-
tion when ordering.
Model Number
Part Number
Part Description
Call (574) 848-7491 to place an order
OPERATING INSTRUCTIONS
this spreaders because it is not intended for use with these materials. If you have any questions please contact Earthway.
Move stop bolt on gauge assembly to the proper position for the material being applied.
While pushing spreader forward, push control lever forward to stop bolt.
Thoroughly wash and dry your spreader and recoat with WD-40 before storing.
DO NOT RETURN TO DEALER FOR REPAIR
EARTHWAY PRODUCTS, INC.
1009 Maple Street
Bristol, IN 46507
FOR YOUR RECORDS
Date Purchased
Store Name
2019 OCT REV PAGE 3

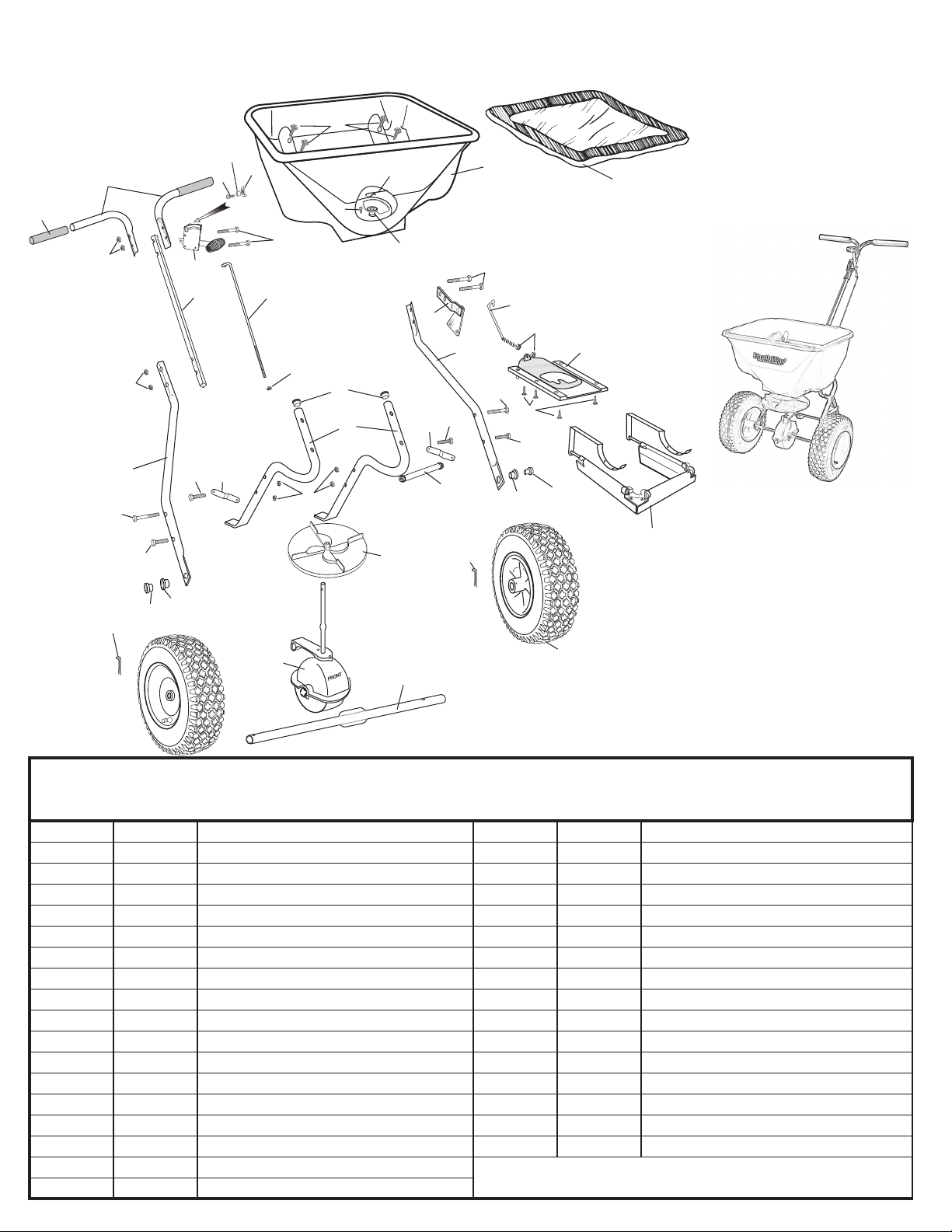

90365 ICE MELT SPREADER PARTS LIST
KEY # PART # DESCRIPTION KEY # PART # DESCRIPTION
1 60245 HOPPER ASSEMBLY 19 25222 LOWER HANDLE
2 33117 AGITATOR 20 25724 FRAME
3 31141 #14 X 3/4" TYPE "AB" HWHS ZINC 21 44292 FRAME BRACE
4 12220 HOPPER BUSHING 22 25228 CROSS BRACE
5 31122 #8 X 5/8" PHPS TYPE A BLACK 23 12110 IMPELLER 9" DIA DISHED
6 32100 1/4-20 HEX NUT ZINC 24 24500 AXLE
7 19132 7/8" TUBE PLUG 25 12274 GRIP 7.5" LONG
8 60300 PIVOT & BRACKET ASSEMBLY 26 60333 GEAR BOX
9 32103 1/4-20 NYLON INS LOCKNUT ZINC 27 12148 AXLE BEARING
10 42259 LOWER CONTROL ROD 2130 28 12152 AXLE BUSHING
11 60499 GAUGE & LEVER ASSEMBLY 2130 29 33109 3/16" X 2" COTTER PIN ZINC
12 60175 UPPER HANDLE W/GRIP 30 70138 PNEUMATIC DRIVE/COAST WHEEL
13 12147 SPACER 31 33108 3/16" X 1" COTTER PIN ZINC
14 31121 1/4-20 X 1 1/4" HHCS ZINC 32 60027 WING NUT ASSEMBLY
15 25223 HANDLE SHAFT 33 37100 1/4-20 X 1" CARRIAGE BOLT ZINC
16 42256 CONTROL ROD
17 31120 1/4-20 X 2" HHCS ZINC
18 12354 SHUTOFF ASSEMBLY
2
3
5
19
19
12
10
6
20
16
15
21
22
26
27 28
30
27
28
11
23
25
21
17
14
14
8
6
9
17
32
33
13
9
29
24
31
9
17
7
4
1
17
14
1414
18
5
77003
OPTIONAL
Heavy-Duty
Rain Cover
60184
OPTIONAL
Salt Deflector Kit
.
2019 OCT REV PAGE 4
