POWERWARE®5115A USB

User’s Guide

500-1400 VA

www.powerware.com.au

5115AUSBManual.qxd Rev 1

Powerware is a registered trademark and Advanced Battery Management (ABM) is a trademark of Powerware Corporation.

Where the brand name “Powerware” is used,

the term refers to Eaton’s Powerware Division, trading in Australia

as Eaton Power Quality Pty Ltd

POWERWARE®5115A USB

500-1400 VA

User’s Guide

www.powerware.com.au

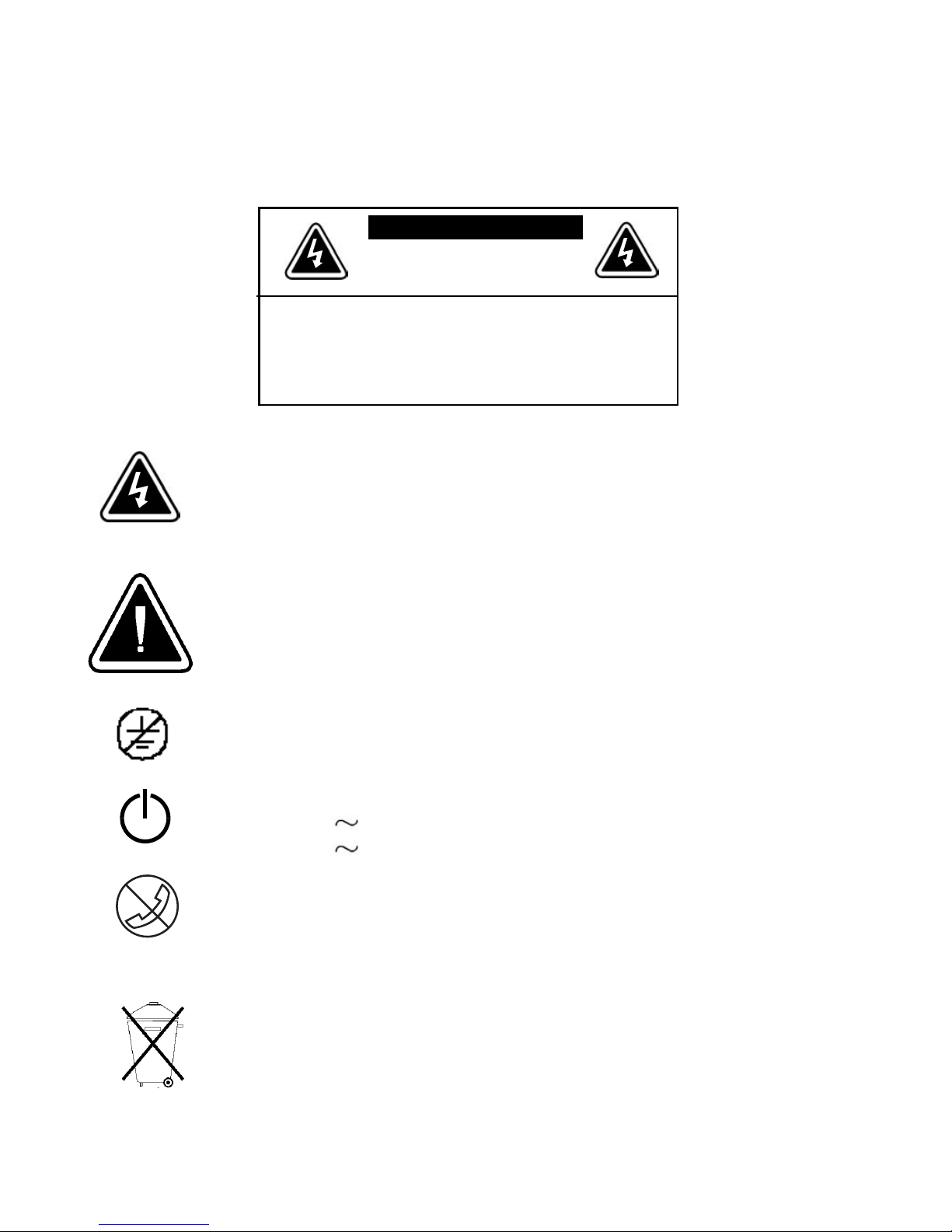

Special Symbols

The following are examples of symbols used on the UPS to alert you to important information.

CAUTION To reduce the risk of electric shock,

Do not remove cover (or back)

No user-serviceable parts inside

Refer servicing to the factory

CAUTION

Risk of Electric Shock

Do Not Open Cover

RISK OF ELECTRIC SHOCK - Indicates that a risk of electric shock is

present and the associated warning should be observed.

CAUTION: REFER TO OPERATOR’S MANUAL - Refer to your operator’s

manual for additional information, such as important operating and

maintenance instructions.

SAFETY EARTHING TERMINAL - Indicates the primary safety ground.

LOAD ON/OFF - Press the button with this symbol to energise the output

receptacles ( indicator illuminates) or to de-energise the output

receptacles ( is off).

RJ-45 RECEPTACLE - This receptacle provides network interface

connections. Do not plug telephone or telecommunications equipment into this

receptacle.

This symbol indicates that you should not discard the UPS or the UPS

batteries in the trash. The UPS may contain sealed, lead-acid batteries.

Batteries must be recycled.

TABLE OF CONTENTS

1 Powerware 5115 -Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

2 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Inspecting the Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Installing the UPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

UPS Rear Panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

3 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Turning the UPS On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Starting the UPS on Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Turning the UPS Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Standby Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

UPS Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Initiating the Self-Test . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

4 Additional UPS Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Communication Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

USB Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Network Transient Protector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

5 UPS Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

UPS and Battery Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Storing the UPS and Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Replacing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Testing New Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Recycling the Used Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

6 Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

7 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Audible Alarms and UPS Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Silencing an Audible Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Service and Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

8 Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Powerware®5115A USB User’s Guide • www.powerware.com.au

Figure 1. Powerware 5115

CHAPTER 1

POWERWARE 5115 - INTRODUCTION

The Powerware 5115 uninterruptible power system (UPS) protects your sensitive

electronic equipment from power problems such as power failures, power sags, power

surges, brownouts, and line noise.

Power failure can occur when you least expect it and power quality can be erratic.

Power problems have the potential to corrupt critical data, destroy unsaved work

sessions and damage hardware - causing hours of lost productivity and expensive

repairs.

With the Powerware 5115, you can safely eliminate the effects of power disturbances

and guard the integrity of your equipment. The Powerware 5115’s flexibility to handle an

array of network devices makes it the perfect choice to protect your LANs, servers,

workstations and other electrical equipment.

2Powerware®5115A USB User’s Guide • www.powerware.com.au

Powerware 5115 - Introduction

Because an integral part of power protection is power management software, the

Powerware 5115 comes fully equipped with a communication port, USB port, serial

cable and a CD containing both LanSafe III for networked systems and FailSafe III for

standalone systems.

Providing outstanding performance and reliability, the Powerware 5115’s unique benefits

include the following:

• Advanced Battery Management (ABM ™) doubles battery service life, optimises

recharge time and provides advanced warning before the end of battery life.

• Buck and Boost voltage regulation ensures consistent voltage to your load by

correcting voltage fluctuations.

• Hot-swappable batteries simplify maintenance by allowing you to replace

batteries safely without powering down the critical load.

• Network Transient Protector guards your modem, fax machine and other network

communications equipment from surges.

• Start-on-battery capability allows you to power up the UPS even if utility power

is not available.

• The Powerware 5115 is backed by worldwide agency approvals.

Powerware®5115A USB User’s Guide • www.powerware.com.au

CHAPTER 2

INSTALLATION

This section explains

• Equipment inspection

• Safety precautions

• UPS Installation

• UPS rear panels

Inspecting the Equipment

If the UPS has been damaged during shipment, contact your vendor immediately.

Safety Precautions

Read the following precautions before you install the UPS.

SAVE THESE INSTRUCTIONS.

This manual contains important instructions that you should follow during installation and

maintenance of the UPS and batteries. Please read all instructions before operating the

equipment and save this manual for future reference.

IMPORTANT SAFETY INSTRUCTIONS

WARNING

• This UPS contains its own energy source (batteries). The output receptacles

may carry live voltage even when the UPS is not connected to an AC supply.

• Do not remove or unplug the input cord when the UPS is turned on. This

removes the safety ground from the UPS and the equipment connected to the

UPS.

• To reduce the risk of fire or electric shock, install this UPS in a temperature and

humidity controlled, indoor environment, free of conductive contaminants.

Ambient temperature must not exceed 40oC. Do not operate near water or

excessive humidity (95% max).

• To comply with international standards, the sum of earth leakage current from

the load connected to the UPS must not exceed 1.5 mA.

4Powerware®5115A USB User’s Guide • www.powerware.com.au

Installation

Installing the UPS

The following steps explain how to install the UPS. Figure 2 shows a typical installation

only. See “UPS Rear Panels” on page 6 for the rear panel of each model.

1. If you are installing power management software, connect your computer

to the USB port of UPS communication port using the supplied

communication cable.

2. Plug the power cord supplied into the input connector on the UPS rear

panel.

3. Plug the UPS power cord into a power outlet.

Figure 2. Typical UPS Installation
