Electrolux Beam Alliance Bedienungsanleitung

BEAM Alliance

Operation Manual

TABLE OF CONTENTS

Important Safeguards 3

Grounding/Earthing Instructions 4

General Information 5

1.0 Installation 5

1.1 Planning 5

1.2 Central Vacuum Location 5

1.3 Central Vacuum Installation 6

1.4 Intake Flange 6

1.5 Muffler Installation 7

1.6 Optional HEPA Filter Intallation 7

1.7 Exhaust 8

1.8 Optional Bag Adapter 8

1.9 System Test / Operation 8

2.0 Maintenance 9

2.1 Motor 9

2.2 Dirt Bucket and Bag Adapter 9

2.4 Optional Disposable Bag 9

2.5 Optional HEPA Filter Maintenance 9

3.0 Trouble-Shooting 10

3.1 Automatic Shut-Off 10

3.2 Partial Loss of Suction 10

3.3 Total Loss of Suction 10

3.4 Motor Refuses to Start 10

4.0 Instructions: BEAM Alliance LED/LCD Screens 11

4.1 Power Button 11

4.2 Communication Link 11

4.3 Screen Saver 11

4.4 Variable Speed Indicator 11

4.5 Empty Bucket Indicator 12

4.6 Performance Bars 12

4.7 Empty/Flashing Performance Bars 12

4.8 Motor Fault Indicators 13

4.9 Error Codes 13

4.10 Set Clock on Power Unit 13

4.11 Navigation Buttons 13

5.0 Instructions: BEAM Alliance Hose Handle 14

5.1 Power Button 14

5.2 Variable Speed Control 14

5.3 System Indicator 14

5.4 Variable Speed Indicator 14

6.0 Service Information 15

6.1 Service Warranty 15

Congratulations! You are now the proud owner of a BEAM Central Vacuum

System... the ultimate in cleaning equipment.

Say “good-bye” to old fashioned sweepers. You’ll never have to lug a heavy, awkward

vacuum again. Your BEAM Central Vacuum System will change your cleaning

routine. From its ease of use and versatility, to its quiet and dust-free operation,

your BEAM will help eliminate the drudgery of vacuuming and give you a cleaner,

healthier indoor environment. Before using your BEAM Central Vacuum System,

read this manual to learn the proper way to use this cleaning system. It will help give

you years of trouble-free cleaning performance.

IMPORTANT SAFEGUARDS

When using an electronic appliance, basic safety precautions should always be followed, including

those listed below.

READ ALL INSTRUCTIONS BEFORE USING THIS VACUUM SYSTEM.

SAVE THESE INSTRUCTIONS

WARNING

To reduce the risk of re, electric shock or injury:

• This vacuum cleaner is intended for dry pick up only. Do not use on wet surfaces or pick

up any liquids, hot debris or any ammable items that would cause harm to the vacuum

cleaner.

• Keep cord away from heated surfaces.

• Do not allow vacuum to be used as a toy. Close supervision is necessary when this vacuum

is used by or near children.

• Use this vacuum only for its intended use as described in this manual. (Use of attachments

not recommended by manufacturer may cause re, electric shock, injury or damage to

system components.)

• Connect to a properly grounded (earthed) outlet only. See grounding (earthing) instructions.

• Mount unit at least 30 cm (12 inches) from the oor, ceiling and corner sidewall to insure

adequate ventilation for motor.

• Never operate this vacuum if it has a damaged cord or plug, if it is not working properly, or if

it has been dropped or damaged. Return to authorized dealer/distributor for repair.

• Never disconnect plug by pulling cord. To disconnect from outlet, grasp the plug, not the

cord.

• Do not put any object into openings. Do not use with any opening blocked. Keep free of

dust, lint, hair and anything that may reduce air ow/suction. Lack of air ow will cause the

motor to overheat.

• This vacuum cleaner creates suction. Keep hair, face, ngers, all body parts and loose

clothing away from any openings.

• Never operate without dust bag and/or lter in place.

• Turn off all controls before unplugging.

• Never handle plug, cord or power unit with wet hands.

• Use extra care when cleaning on stairs.

• Do not locate the power unit in a high temperature area or where it is inaccessible, for

example, an attic or crawl space.

• Do not use extension cords or outlets with inadequate current carry capacity.

• Do not pick up anything that is burning or smoking, such as cigarettes, matches or hot

ashes.

• Do not use on wet surfaces.

• Do not vacuum drywall dust or baking our as it may cause damage to your vacuum.

• This appliance is not intended for use by persons, (including children), with reduced

physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they

have been given supervision or instruction concerning use of the appliance by a person

responsible for their safety.

• If the power cord is damaged, it must be replaced by a special cord available from the

authorized local dealer/distributor.

• Keep your work area well lighted.

• Unplug electrical appliances before vacuuming them.

• Do not pick up ammable or combustible liquids such as gasoline, or use in areas where

they may be present.

GROUNDING/EARTHING INSTRUCTIONS

Waste of Electrical and Electrical Equipment (WEEE). The symbol on the product or on its packaging

indicates that this product may not be treated as household waste. Instead it should be handed over to

applicable collection point for the recycling of electrical and electrical equipment. By ensuring this product is

disposed of correctly, you will help prevent potential negative consequences for the environment and human

health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed

information about this product, please contact your local waste disposal service or the local authorized

dealer/distributor where you purchased the product.

This vacuum must be grounded (earthed). If it should malfunction or breakdown, grounding (earthing)

provides a path of least resistance for electric current to reduce the risk of electric shock. This vacuum

is equipped with a cord having an equipment-grounding conductor and grounding (earthing) plug. The

plug must be inserted into an appropriate outlet that is properly installed and grounded (earthed) in

accordance with all local codes and ordinances.

WARNING: Improper connection of the equipment grounding (earthing) conductor can result in a risk of

electric shock. Check with a qualied electrician or service person if you are in doubt as to whether the

outlet is properly grounded (earthed). Do not modify the plug provided with the appliance – if the plug will

not t the electrical outlet, have a proper outlet installed by a qualied electrician.

220/230/240V Models

This vacuum is for use on a circuit having a nominal rating at 220/230/240 volts and is provided with

a specic cord and plug to permit connection to a proper electrical circuit. Make sure the vacuum is

connected to an outlet having the same conguration as the plug. No adaptor should be used with this

vacuum. If the plug will not t the electrical outlet, have a proper outlet installed by a qualied electrician.

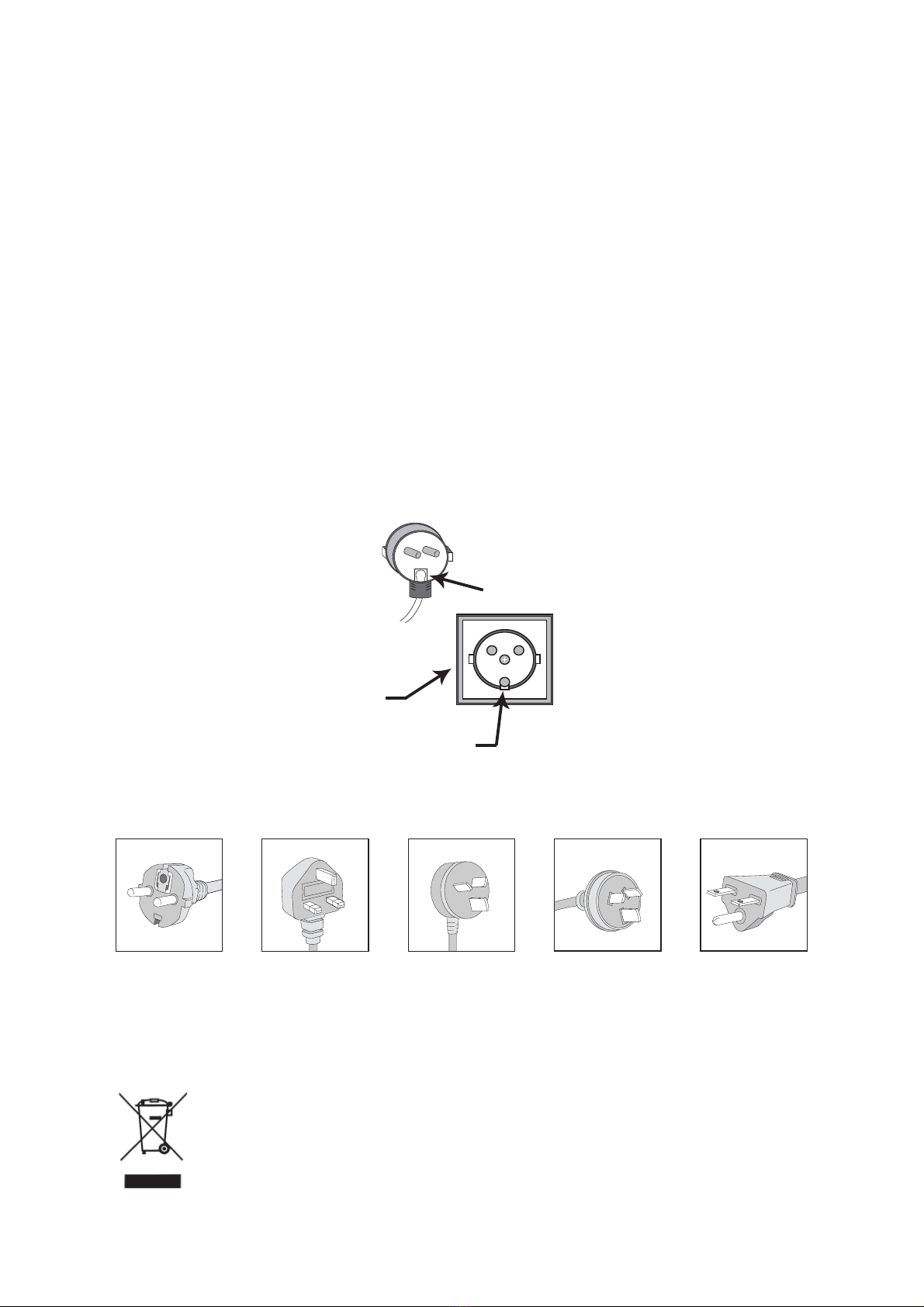

Plug Types

Type E Type G Type H Type I Nema 6-15 R

Grounded

Outlet

Grounding

Grounded Pin

Bucket

GENERAL INFORMATION

1.0 INSTALLATION

1.1 Planning

If your home already has a system of plastic pipes and inlet valves, you are ready to install the power

unit, (refer to Install Central Vacuum section 1.3). If not, you can contract a professional to have the

central vacuum system installed. Contact your local authorized dealer/distributor if you have any

questions.

1.2 Central Vacuum Location

The central vacuum should be located away from

the general living area, yet accessible so you can

remove the dirt bucket and inspect the vacuum. A

typical location would be in a garage or utility area

where emptying the dirt bucket would be more

convenient. Other suitable locations are in the

basement, laundry room or a ventilated storage

room.

1.3 Central Vacuum Installation

The vacuum hangs on the mounting bracket

which is screwed to the wall. The center of

the mounting bracket should be about 122 cm

(48 inches) from the oor to allow convenient

removal of the dirt bucket. Mount unit at least 30

cm (12 inches) from the oor, ceiling and corner

sidewall to insure adequate ventilation for motor. If

mounting on plaster or panel walls, ensure screws

enter studs. If mounting on concrete wall, drill the

wall with a masonry bit and insert the appropriate

wall anchors (refer to Figure 2).

The central vacuum system is designed for dry pick up of household dirt and dust and is not intended

to pick up liquids. Avoid picking up hard or sharp objects with the system to prevent hose and plastic

pipe damage or clogs. This central vacuum system is intended for household use only.

Service Information

The instructions in this booklet serve as a guide

to routine maintenance. For additional information,

contact your local authorized dealer/distributor.

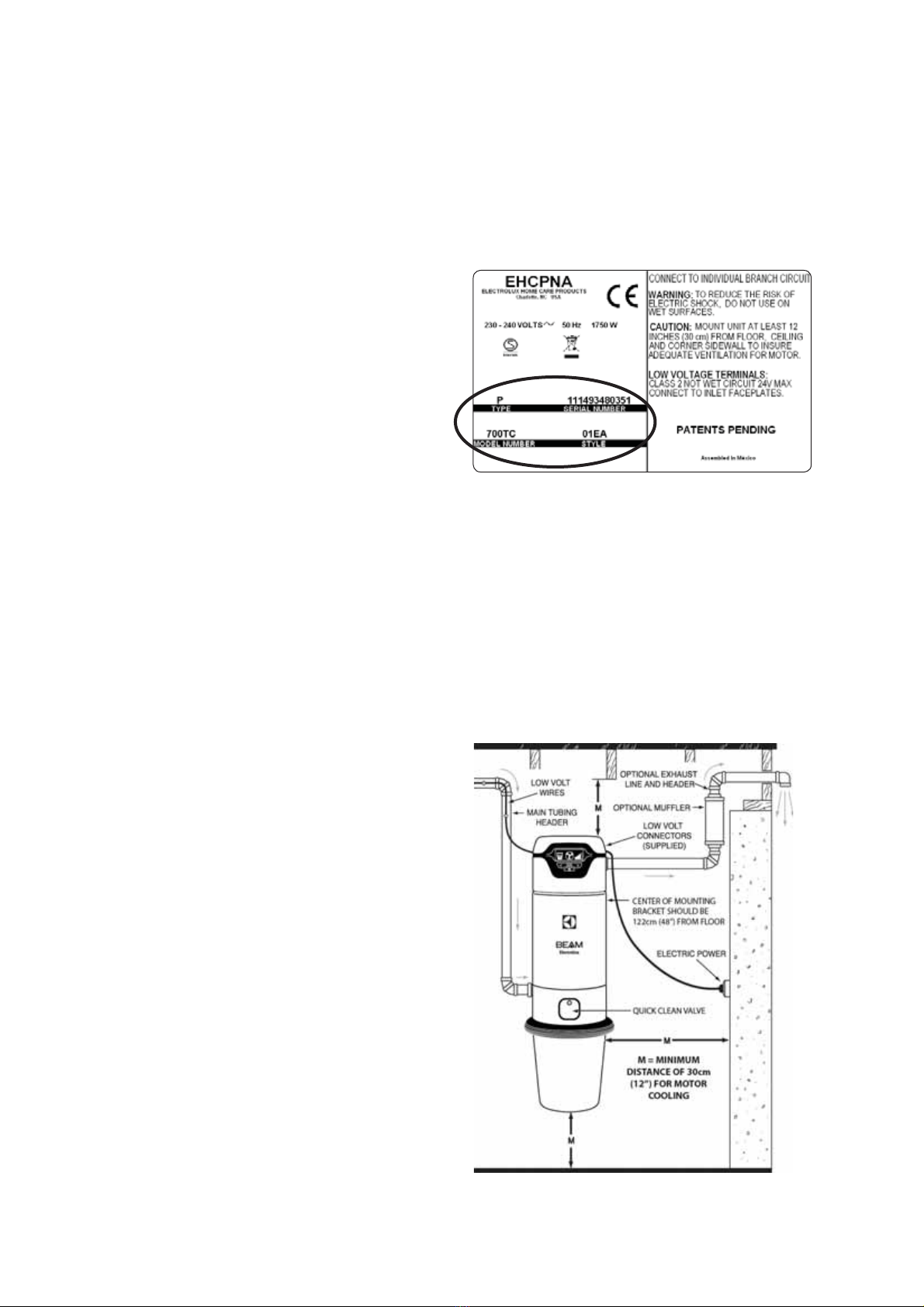

Rating Plate

The style, model and serial numbers are indicated

on the rating plate located on back left side of

power unit. For prompt and complete service

information, always refer to these numbers when

inquiring about service (refer to Figure 1).

Figure 1

Figure 2

Before hanging the power unit on the wall ensure the intake

ange on the power unit is positioned in the correct direction

(see section 1.4); muffler is installed correctly (see section

1.5), optional HEPA lter is installed correctly (see section

1.6); and optional bag adaptor is installed correctly (see

section 1.8).

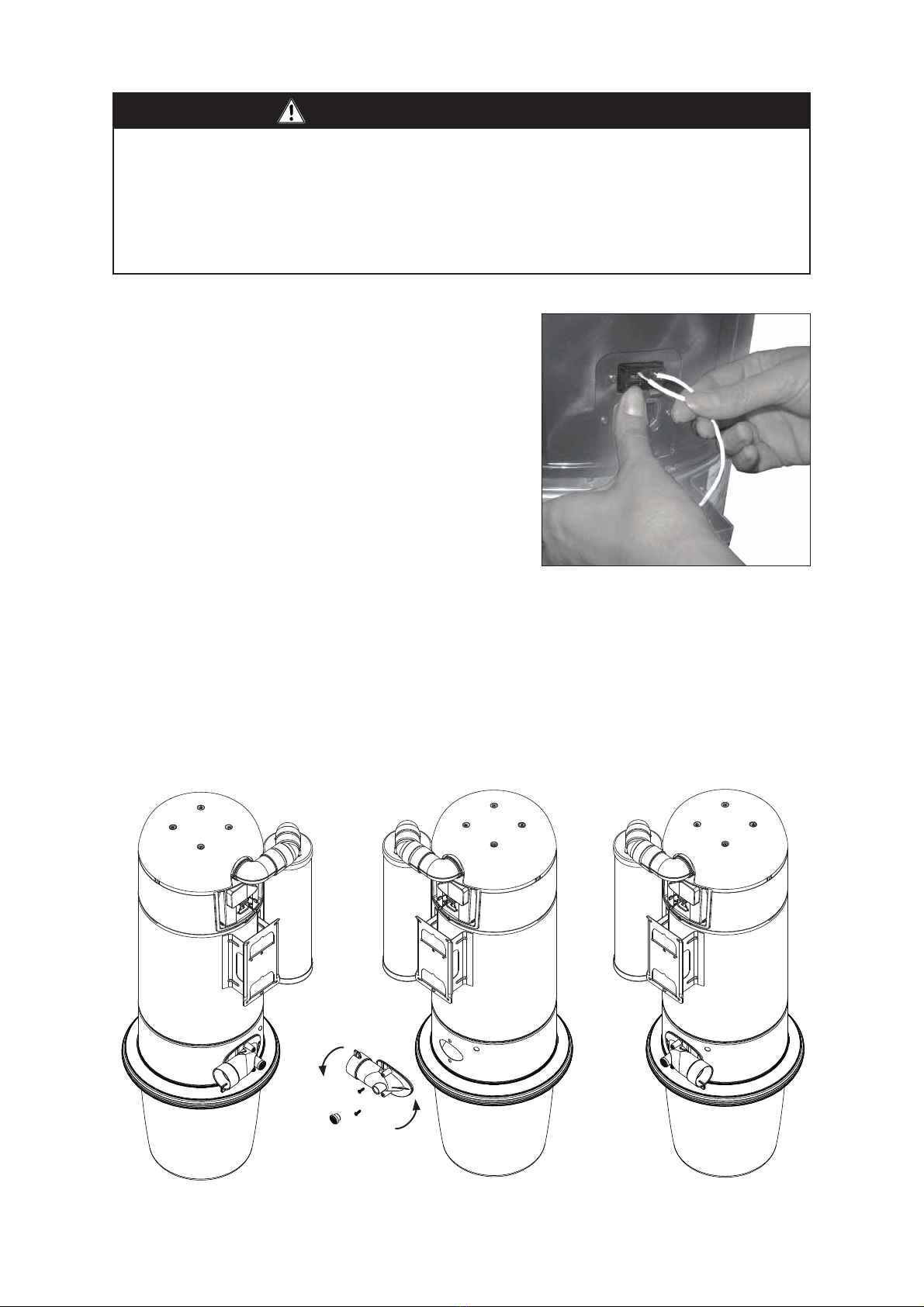

Strip the low-voltage wires that were installed with the

main trunk line. Connect the wires to the spring-loaded

connectors on the back of the power unit (refer to Figure 3).

Hang the power unit on the bracket. Connect the main tube

line to the intake ange of the vacuum with the connector

and clamp provided.

DO NOT glue the main tube line to the power unit so that

the power unit may be removed for future maintenance or

service.

WARNING

• WARNING: Do not block the exhaust pipe. Lack of ventilation will cause the motor to

overheat.

• WARNING: Do not locate the power unit in a high temperature area where it is

inaccessible for example, an attic or crawl space.

1.4 Intake Flange

Your power unit has been designed for either a left or right pipe intake. If the pipe from your house is

located on the right side of the power unit, you will need to change the direction of the intake ange.

To do this, remove the two Torx 20 screws located on the intake ange and turn the intake ange 180°.

Secure the intake ange with the same two Torx 20 screws previously removed (refer to Figure 4).

Figure 3

Figure 4

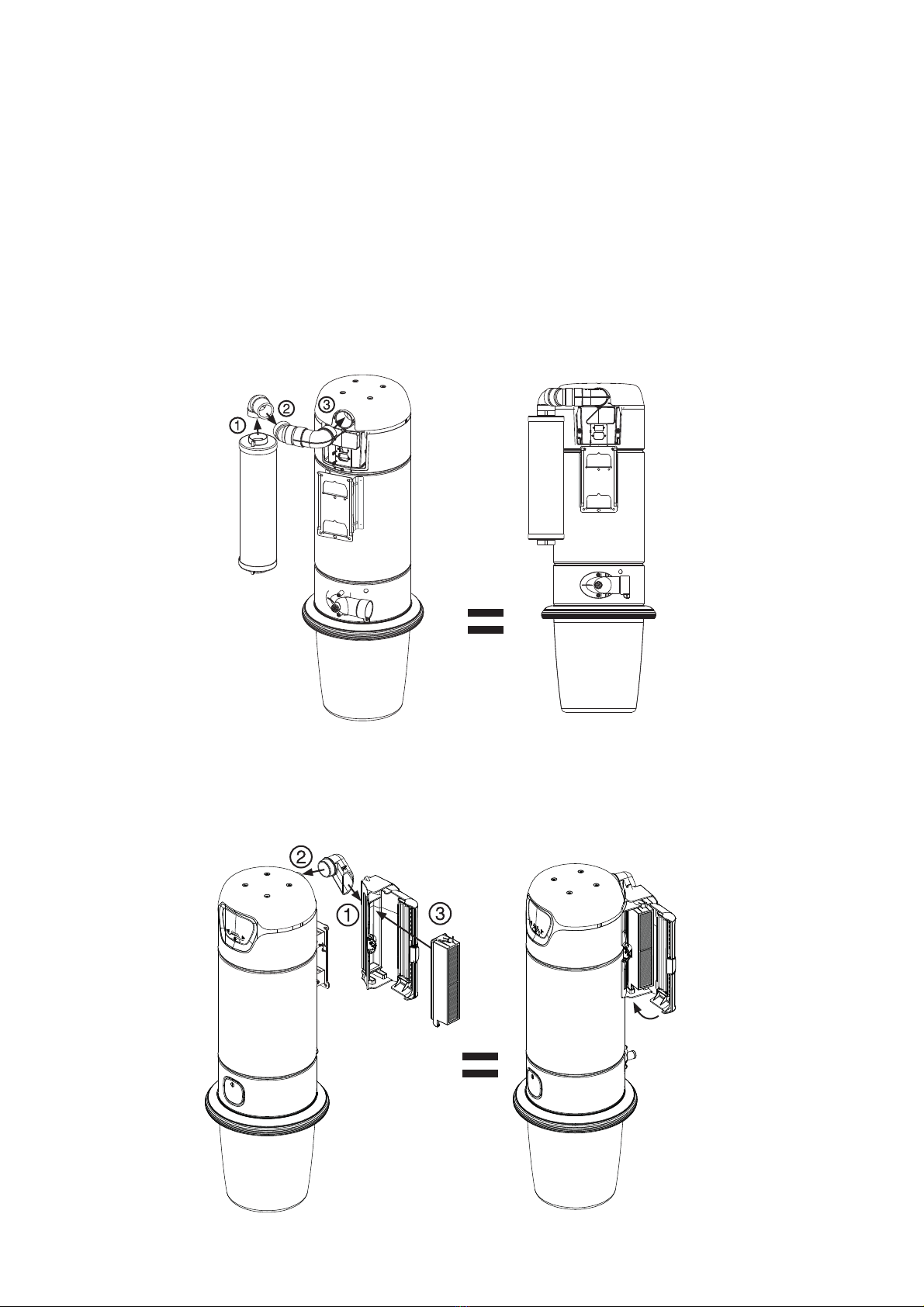

1.5 Muffler Installation

1. To install the muffler on the power unit, connect one end of the short 90° elbow to the muffler as

indicated in Figure 5.

2. Glue the opposite end of the short 90° elbow to the WIDE open end of the long pipe adaptor.

Before connecting the short 90° elbows and long pipe adaptor, conrm the direction of the

intake ange located on the bottom, back of the power unit. Ensure the muffler is located on the

opposite, OPEN end, of the intake ange as illustrated in Figure 5. Otherwise, the muffler will

interfere with the pipe intake.

3. Connect both the long pipe adaptor and muffler assembly to the back of the power unit, securing

the muffler with the Torx 20 screws provided.

NOTE: DO NOT glue the muffler pipe adaptor to the central vacuum unit.

1.6 Optional HEPA Filter Installation

1. To properly install the optional HEPA lter, secure the 90° elbow to the body of the HEPA lter with

the Torx 20 screw provided.

Figure 5

Figure 6a

2. Secure both the 90° elbow and HEPA lter to the back of the power unit using the second Torx 20

screw provided.

3. Insert the HEPA lter with its two plastic tabs on the bottom of lter cartridge into the cavity of the

HEPA lter and snap into place. Close the HEPA door gently. If the door does not close easily,

remove and re-insert lter.

The HEPA lter can only be installed on the right side of the power unit and will not interfere with the

intake pipe on either side of the unit (refer to Figure 6a).

1.7 Exhaust

If the optional muffler or HEPA lter are not utilized and the power unit is exhausted to the outside,

the long muffler pipe adaptor must be installed directly to the exhaust pipe away from the wall. Do not

operate the vacuum vented directly into the wall as it could cause damage to the wall and/or vacuum.

See Section 1.5 for adaptor instructions.

NOTE: One elbow must be installed if the muffler or the HEPA lter is not used,

(refer to Figure 6b).

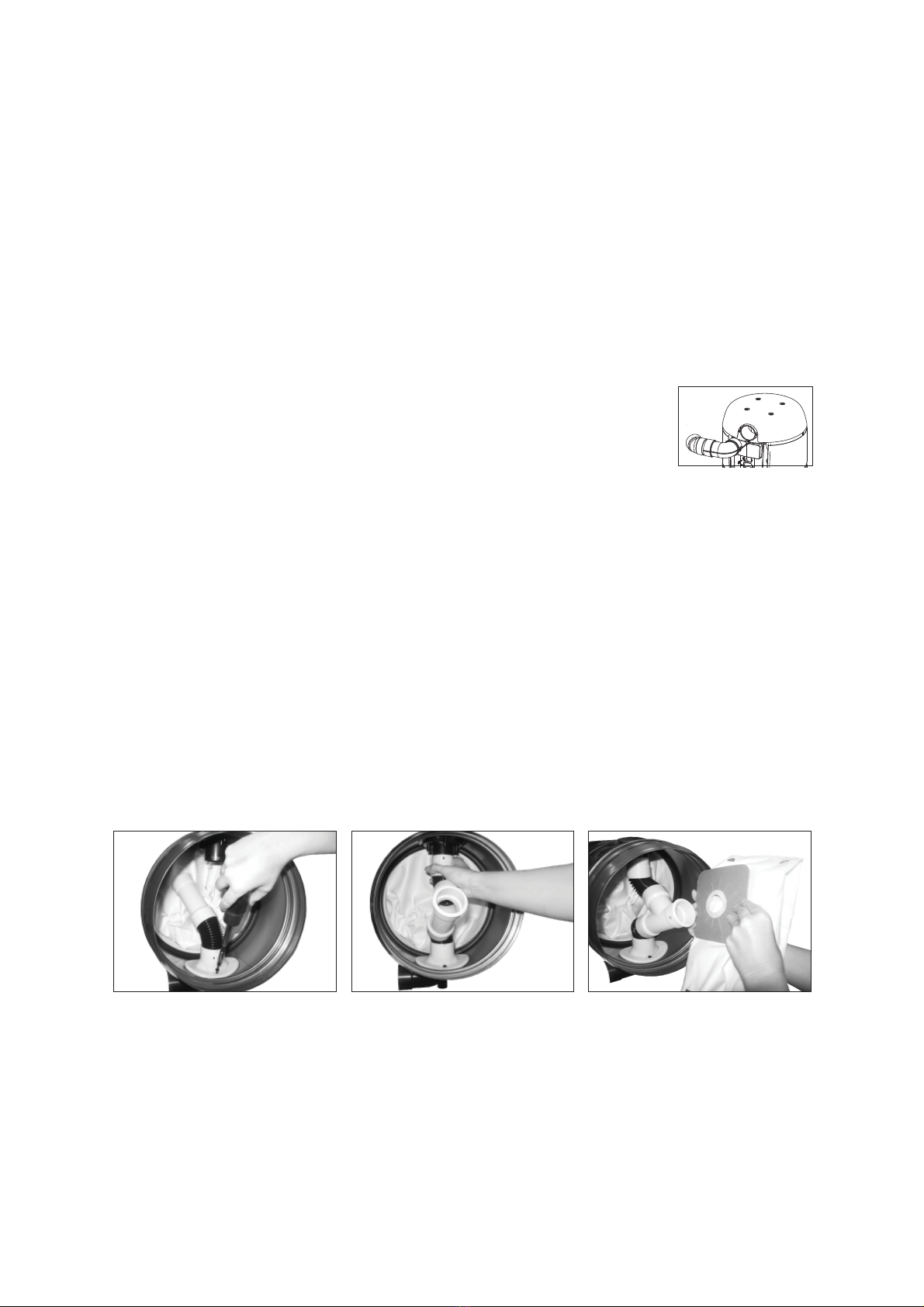

1.8 Optional Bag Adaptor

The optional bag adaptor is easy to install prior to placing the central vacuum unit on the wall with

the dirt bucket removed. The bag adaptor has three unique ends, each connecting to a specic

component.

1. Using the two Torx 20 screws, secure end “A” to the intake ange on the back inside body of the

central vacuum unit (refer to Figure 7A).

2. Secure end “B” to the Quick Clean Valve from the inside of the central vacuum unit by aligning and

locking the tabs into place (refer to Figure 7B).

3. Push the cardboard collar from the lter bag on to the open hanging end “C” of the bag adaptor

(refer to Figure 7C).

4. Reconnect the dirt bucket to the central vacuum unit and ensure the lter bag is completely sealed

in both the central vacuum unit and dirt bucket.

1.9 System Test / Operation

Be certain to comply with local electrical codes and regulations. Plug the unit into an electrical

outlet. You are now ready to check the vacuum installation:

• Be sure the dirt bucket is properly secured to the vacuum.

• Plug the hose into each inlet valve and turn on the central vacuum system with the power button

on the handle ensuring the electrical contacts operate properly.

Figure 7

7A 7B 7C

Figure 6b

• The central vacuum system can also be turned on/tested by pressing the power button on the

power unit.

• Check each inlet valve for air leaks.

• Check each pipe connection for air leaks.

WARNING: Do not use extension cords or outlets with inadequate current carrying capacity. Connect

the power cord to a dedicated branch circuit.

Before hanging the power unit on the wall, install either the muffler or the HEPA lter supplied with the

unit.

2.0 MAINTENANCE

Instructions in this book serve as a guide to routine maintenance. Proper airow and suction are

maintained by keeping the dirt bucket and lter clean, plastic tubing and hose free from clogs.

2.1 Motor

The BEAM Alliance central vacuum system is equipped with a ow-thru motor and will never need

lubrication. Should you experience any motor problems, please contact your local authorized dealer/

distributor.

2.2 Dirt Bucket and Bag Adaptor

Reduced airow or suction indicates the central

vacuum system is not operating at maximum

efficiency. If the dirt bucket is full and the lter is

clogged, air cannot pass through the unit limiting

performance.

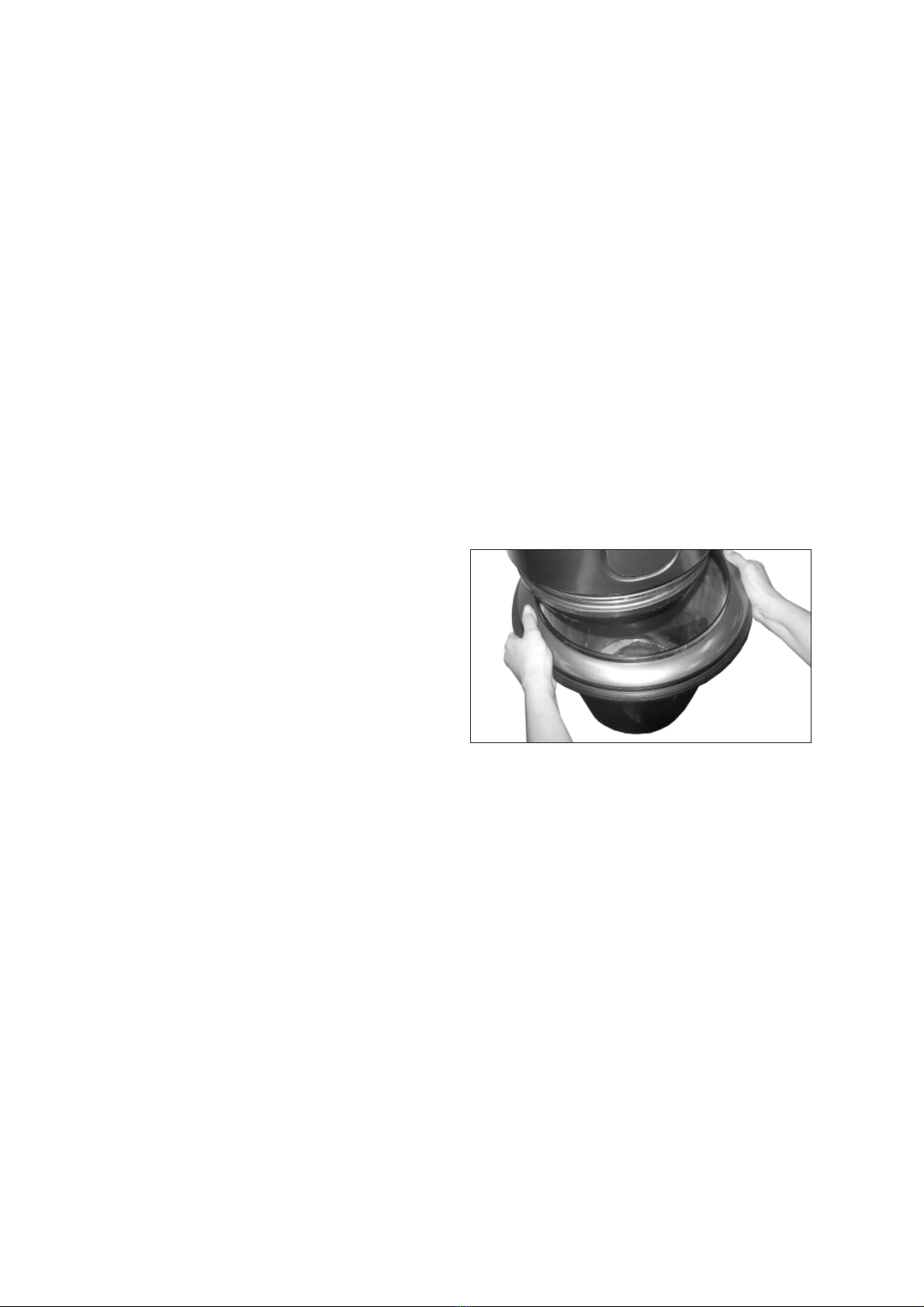

To remove the Press & Release Bucket, clasp

opposing positions on the bucket ring, press with

thumbs and pull down to remove bucket and

empty contents. (refer to Figure 8).

To re-install dirt bucket, lift the bucket back in to place until you hear a “click”. The central vacuum

system will not operate properly if the dirt bucket is not installed correctly.

2.3 Optional Disposable Bag

Your vacuum may be equipped with a disposable lter bag, which can be discarded when full. A

full lter bag will reduce vacuum and minimize performance. Empty the lter bag 2-3 times a year

depending, on how much dirt is collected. Replacement lter bags may be purchased from a local

authorized dealer/distributor.

How to change the Filter Bag:

1. Remove the dirt bucket.

2. Remove the lter bag from the bag adaptor.

3. Put new lter bag in place.

4. Turn the lter bag’s opening to secure lter bag.

5. Re-install the dirt bucket.

Figure 8.

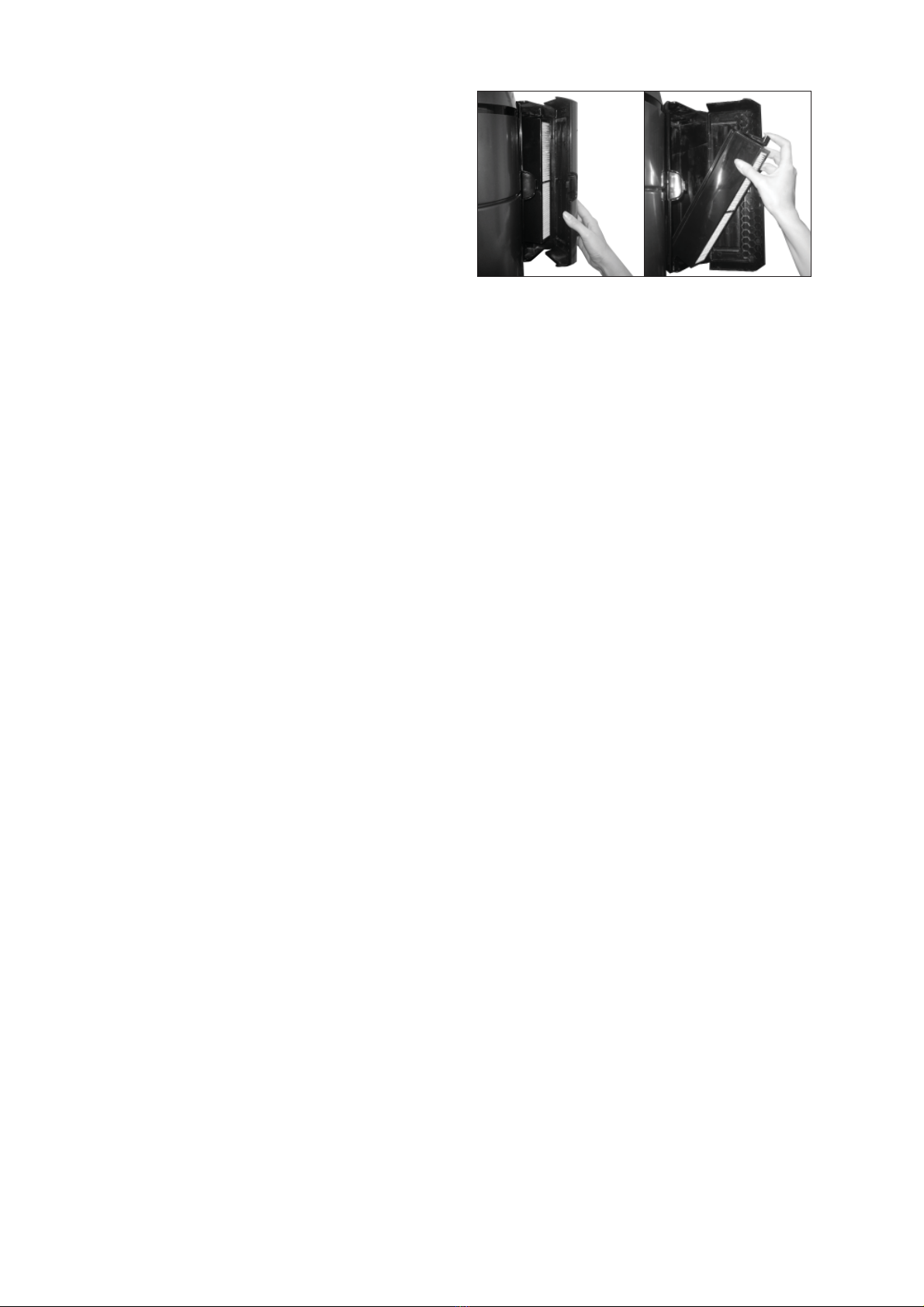

2.4 HEPA Filter Maintenance

We recommend changing the HEPA lter after the

dirt bucket has been emptied three times, or after

being used for one year, whichever comes rst. To

replace your HEPA lter:

1. Open the HEPA lter door with button located

on the side, center of door.

2. Press down on tab at top of lter and discard

the entire lter.

3. Insert the HEPA lter by inserting the two

plastic tabs at bottom of lter cartridge into the cavity of the HEPA lter. Snap into place (refer to

Figure 9).

4. Close HEPA door gently, without force. If the door does not close easily, re-insert lter.

3.0 TROUBLE-SHOOTING

3.1 Automatic Shut-Off

If the central vacuum power unit is unintentionally left ON for a prolonged period, the operating

system has an automatic 30-minute shut-off timer. The shut-off timer will automatically reset

when the system is turned on by the hose or power unit.

To protect the power unit from over heating, the operating system has a thermal protection shut-

off and will automatically turn OFF the vacuum. In the event an automatic shut-off occurs, a

motor fault icon will appear on the power unit screen and a red fan blade will ash on the hose

handle. Please allow the unit to cool for approximately 5 minutes so it can reset itself. After

5-minutes, turn the power unit on. If the power unit does not turn ON, let the unit cool down for

an additional 5 minutes. If the power unit still does not operate, please contact your authorized

dealer/distributor.

3.2 Partial Loss of Suction

1. Empty dirt bucket. Inspect lter.

2. Turn ON vacuum and check the suction at each inlet. If suction is not the same at each inlet, the

line is partially clogged. To locate the clog, start with the inlet closest to the vacuum and check the

suction. Continue checking each successive inlet until you locate the inlet where a suction loss is

occurring. The clog will be between that inlet and the previous one checked. To remove the clog,

call your local authorized dealer/distributor.

3.3 Total Loss of Suction (with motor running)

1. Check for power light on screen.

2. If you have good suction at the unit, but no suction in the hose then there is a clog in the pipes or

hose. To remove the clog, call your local authorized dealer/distributor.

3.4 Motor Refuses to Start

1. Ensure central vacuum is plugged into an electrical outlet.

2. Check for power.

3. If problem persists, call your authorized local dealer/distributor.

Figure 9.

Andere Handbücher für Beam Alliance

Inhaltsverzeichnis

Andere Electrolux Staubsauger Handbücher

Electrolux

Electrolux Z2250 Series Bedienungsanleitung

Electrolux

Electrolux Intensity upright series Bedienungsanleitung

Electrolux

Electrolux Rapido ZB404WD Bedienungsanleitung

Electrolux

Electrolux ULTRAPERFORMER ZUP3820RP Bedienungsanleitung

Electrolux

Electrolux ultrasilencer Bedienungsanleitung

Electrolux

Electrolux ultrasilencer Bedienungsanleitung

Electrolux

Electrolux ZAC 6807 Bedienungsanleitung

Electrolux

Electrolux Dolphin Bedienungsanleitung

Electrolux

Electrolux Ultrasilencer deepclean Bedienungsanleitung

Electrolux

Electrolux EL7055 Bedienungsanleitung

Electrolux

Electrolux Twin Tech ZT7740 Bedienungsanleitung

Electrolux

Electrolux ultraperformer Bedienungsanleitung

Electrolux

Electrolux ZT3510UK Bedienungsanleitung

Electrolux

Electrolux ultrapower Bedienungsanleitung

Electrolux

Electrolux Rapido ZB412C Bedienungsanleitung

Electrolux

Electrolux Beam Alliance Bedienungsanleitung

Electrolux

Electrolux ZCX 6201 Bedienungsanleitung

Electrolux

Electrolux Sanitaire C5800 Series Bedienungsanleitung

Electrolux

Electrolux Ergorapido Li-30 Bedienungsanleitung

Electrolux

Electrolux Loopie Z2950 Series Bedienungsanleitung

Electrolux

Electrolux UltraPower ZB5020 Bedienungsanleitung

Electrolux

Electrolux PURE i9 Bedienungsanleitung

Electrolux

Electrolux T8 BAGLESS ZT3520 Bedienungsanleitung

Electrolux

Electrolux ultracaptic Bedienungsanleitung

Beliebte Staubsauger Handbücher anderer Marken

Bissell

Bissell LittleGreen Proheat 1425 Series Bedienungsanleitung

Panasonic

Panasonic MC-YL637S147-AE Bedienungsanleitung

NEFF

NEFF N17XH10 0 Series Bedienungsanleitung

LG A9 Series Bedienungsanleitung

Oreck

Oreck Cordless Captura BK51700 Series Bedienungsanleitung

Kogan

Kogan KAVACROBVWA Bedienungsanleitung

Kränzle

Kränzle VENTOS 50 ID Benutzerhandbuch

EVVO

EVVO Ai35 Bedienungsanleitung

DeWalt

DeWalt DWH200D Bedienungsanleitung

Pontec

Pontec Pondomatic Vacuum Cleaner Bedienungsanleitung

Cleanmaxx

Cleanmaxx PC-P007E Bedienungsanleitung

Exido

Exido 240-114 Bedienungsanleitung

RIDGID

RIDGID WD1685AU0 Bedienungsanleitung

Ezviz

Ezviz RE4P Bedienungsanleitung

STG global

STG global TANVAC HDV3000 Bedienungsanleitung

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Bedienungsanleitung

Factory

Factory M3340 Bedienungsanleitung

Shop-Vac

Shop-Vac VN92 SERIES Bedienungsanleitung
