Elma Instruments ElmaFlex 460 Bedienungsanleitung

ElmaFlex 460

User manual

EAN: 5706445630042

ElmaFlex 460 side 16

English usermanual

Safety information

To ensure safe operation and service of the meter, follow these instructions.Failure to

observe warnings can result in severe Injury.

Warning:

Identify hazardous conditions and actions that could cause BODILY HARM or DEATH

•Individual protective equipment should be used if HAZARDOUS LIVE parts in the

installation where measurement is to be carried out could be ACCESSIBLE.

•If the equipment is used in a manner not specified by the manufacturer, the

protection provided by the equipment may be impaired.

•To reduce the risk of fire or electric shock, do not expose this product to rain or

moisture.

•Verify the Meter operation by measuring a known Current. If in doubt, have the

Meter serviced.

•Do not apply more than the rated voltage/ Current, as marked on Meter.

•To avoid false readings that can lead to electric shock and injury, replace battery as

soon as low battery indicator.

•Do not use Meter around explosive gas or vapor.

•Do not use a flexible current sensor if the inner copper wire of the flexible cord is

visible.

•De-energize the installation under test or wear suitable protective clothing during

fitting a removal of the Flexible Current Probe.

•Do not apply around or remove from UNINSU LATED HAZARDOUS LIVE

conductors, which may render electric shock, electric burn, or arc flash.

Caution:

Identify conditions and actions that could cause DAMAGE the meter or equipment under

test.

Do not expose Meter to extremes in temperature of high humidity.

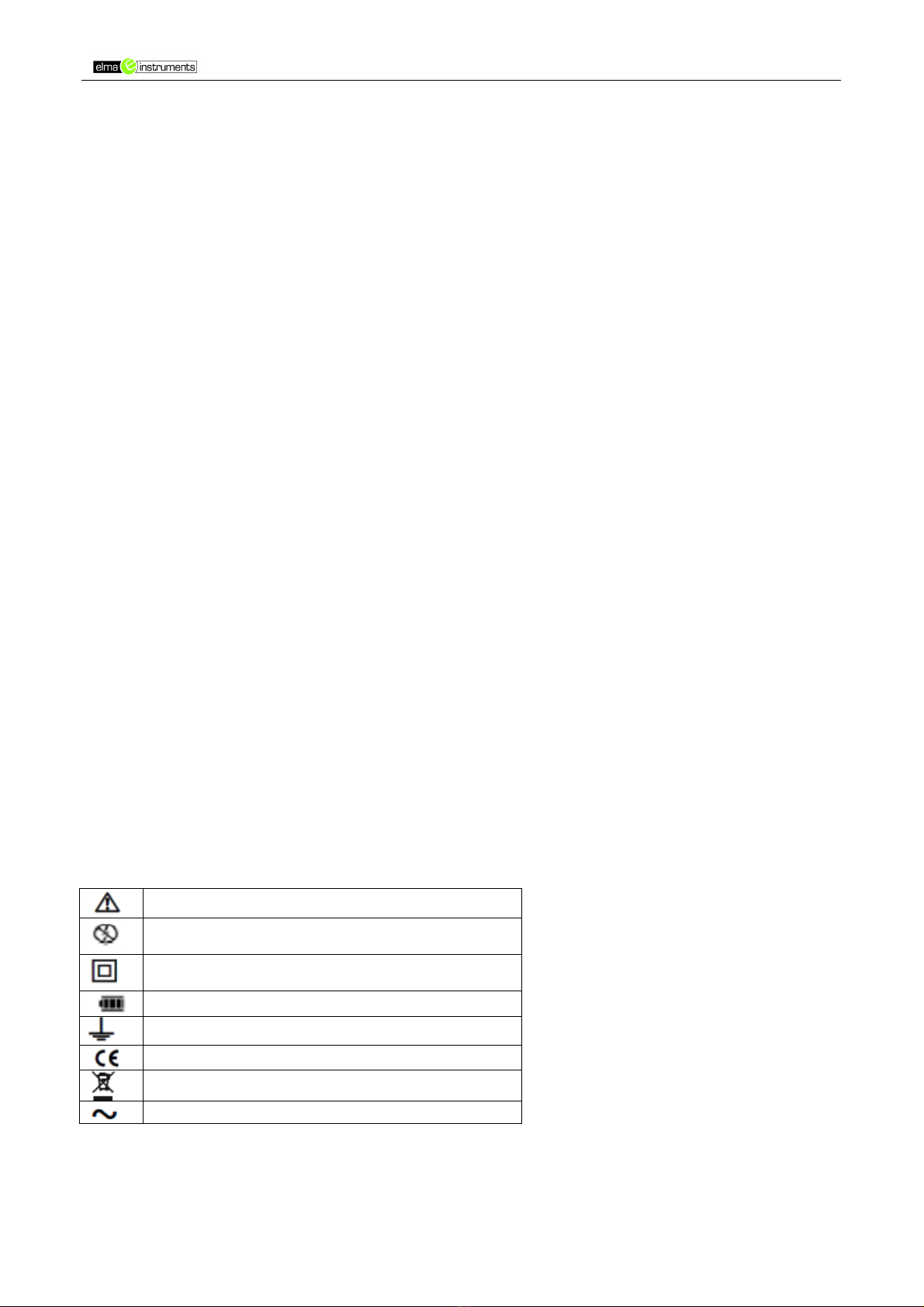

Symbols as marked on the meter and Instruction card

See instruction manual.

Do not apply to or remove from hazardous live

conductors..

Equipment protected by double or reinforced

insulation.

Battery.

Earth.

Conforms to EU directives.

Do not discard this product or throw away.

AC measurement.

ElmaFlex 460 side 17

Maintenance

Do not attempt to repair this Clamp Meter.

It contains no user-serviceable parts.

Repair or servicing should only be performed by qualified personnel.

Cleaning

Periodically wipe the case with a dry cloth and detergent. Do not use abrasives or

solvents.

Power on/off

ElmaFlex 460 side 18

Flexible AC current probe

Auto power off function

The meter automatically turns the power off after powering up and no operation for

20 minutes ± 30 seconds.

ElmaFlex 460 side 19

Disable Auto Power off Function

Press “Power” button, and during the LCD shows battery capacity, press “backlight”

button until the LCD shows “AoFF” to disable Auto Power Off Function.

Backlight

ElmaFlex 460 side 20

Data hold

Replacing Batteries

Caution:

Remove Meter from conductor and turn off power before opening the battery cover or

meter case. http://www.elso.sk/product.php?id_product=3203

ElmaFlex 460 side 21

General Specifications

Display : 3000 counts.

Over range Display : "OL"

Dimensions (W x H x D) : 10" coil : Approx. 120mm x 280mm x 25mm

18" coil : Approx. 130mm x 350mm x 25mm

Weight(without Battery) : 10" coil : 170g

18" coil : 200g

Power Requirements : AAA Size Battery x 2

Battery Life : 200 hours ALKALINE Battery

Low Batteries Indication : Voltage drops below operating voltage,

will flash.

Maximum Conductor Size : coil size

Safety Standard : EN61010-1, EN61010-2-032, EN61326-1

CAT IV 600V, CAT III 1000V

Conversion Rate : 4 times/second

Environmental Specifications

Indoor Use.

Pollution Degree: 2

Maximum operating altitude: 2000m (6562 ft)

Operating temperature

& Relative Humidity: 0°C - 30°C, ≦80%RH

30°C - 40°C, ≦75%RH

40°C - 50°C, ≦45%RH

Storage temperature: -20°C - 60°C, 0 to 80% RH (no batteries).

Temperature coefficient: 0.2 x (Specified accuracy) / °C, < 18°C, > 28°C

Shock vibration: Sinusoidal vibration MIL-PRF-28800F

(5-55 Hz, 3g max.)

Drop Protection: 4 feet drop to hardwood on concrete Floor

Electrical Specifications

Accuracy is given as ±(% of reading + counts of least significant digit) at 23°C ± 5°C, with

relative humidity Less than 80% R.H.

Accuracy is specified for a period of one year after calibration.

Position Error of Clamp:

Accuracy and position error assumes centralized primary conductor at optimum position,

no external electrical or magnetic field, and within operating temperature range.

ElmaFlex 460 side 22

AC Current

LCD displays 0 counts when the reading < 10 counts.

Frequency Response : 45 - 500Hz (Sine Wave)

AC Function

ACA specifications are ac coupled, true R.M.S. For non-sinusoidal waveforms, Additional

Accuracy by Crest Factor (C.F.):

Add 3.0% for C.F. 1.0 - 2.0.

Add 5.0% for C.F. 2.0 - 2.5.

Add 7.0% for C.F. 2.5 - 3.0.

Limited Warranty

This Meter is warranted to the original purchaser against defects in material and

workmanship for two years from the date of purchase. During this warranty period,

manufacturer will, at its option, replace or repair the defective unit, subject to

verification of the defect or malfunction. This warranty does not cover fuses, disposable

batteries, or damage from abuse, neglect, accident, unauthorized repair, alteration,

contamination, or abnormal conditions of operation or handling.

Any implied warranties arising out of the sale of this product, including but not limited to

implied warranties of merchantability and fitness for a
