EverFocus Nevio ENVS1600 Bedienungsanleitung

t’

’s

•This Quick Start Guide

•ENVS Server PC

•USB Keyboard

•USB Mouse

•Power Cord (US style)

•Software Licence S/N Document

•NVR software installation package. Located on the PC desktop under folder \EverFocus NVR, if needed

to modify/repair the NVR software

•This Installation and Operation Manual on PC desktop

•Genuine Windows OS CD-ROM

•Genuine Windows Label with Product Key (on PC).

Please Note: If an item appears to have been damaged in shipment, replace it properly in its carton and notify the

shipper. If any items are missing, notify your EverFocus Electronics Corp. Sales Representative or Customer

Service. The shipping carton is the safest container in which the unit may be transported. Save it for possible

future use.

After unpacking the equipment, and determining an appropriate installation location free from dust, moisture and

shock/vibration, please connect the keyboard, mouse and monitor(s) to the unit; please refer to diagram for

applicable connector(s). Next, verify that the voltage selector switch is in the correct position for the local voltage

supply.

Firewire Audio Video 1 Power Input

USB Kbd/Mouse eSATA USB In/Out Video 2 Voltage Selector

USB Ports Gb Ethernet Video 3

Do not use

Connect an appropriate LAN cable from the Gb Ethernet jack on the rear of the ENVS to the local network. Note:

Activation of the IP license(s) will be simplified if the ENVS has access to the Internet during setup. Please see

the Installation and Operation Manual (provided on the desktop) Appendix 9 Online License Procedures for

more information.

Turn on the attached monitor(s); connect the power cord to the power input jack and to a (recommended) surge

protected, UPS supplied voltage source matching your voltage selection setting above.

With factory default user settings the NVR will boot automatically and start the NVR software application without

requiring Windows Login andApplication login. The NVR should start immediately after power is applied. If

necessary, push the front power switch to start the NVR. By default, the NVR application starts with administrator

user rights level. With these settings the NVR will also enter the record mode in case of a restart after power loss.

For setup of user accounts including passwords please refer to Installation and Operation Manual Chapter 5.4.6

"UserAccount Settings".The default login is admin with no password.

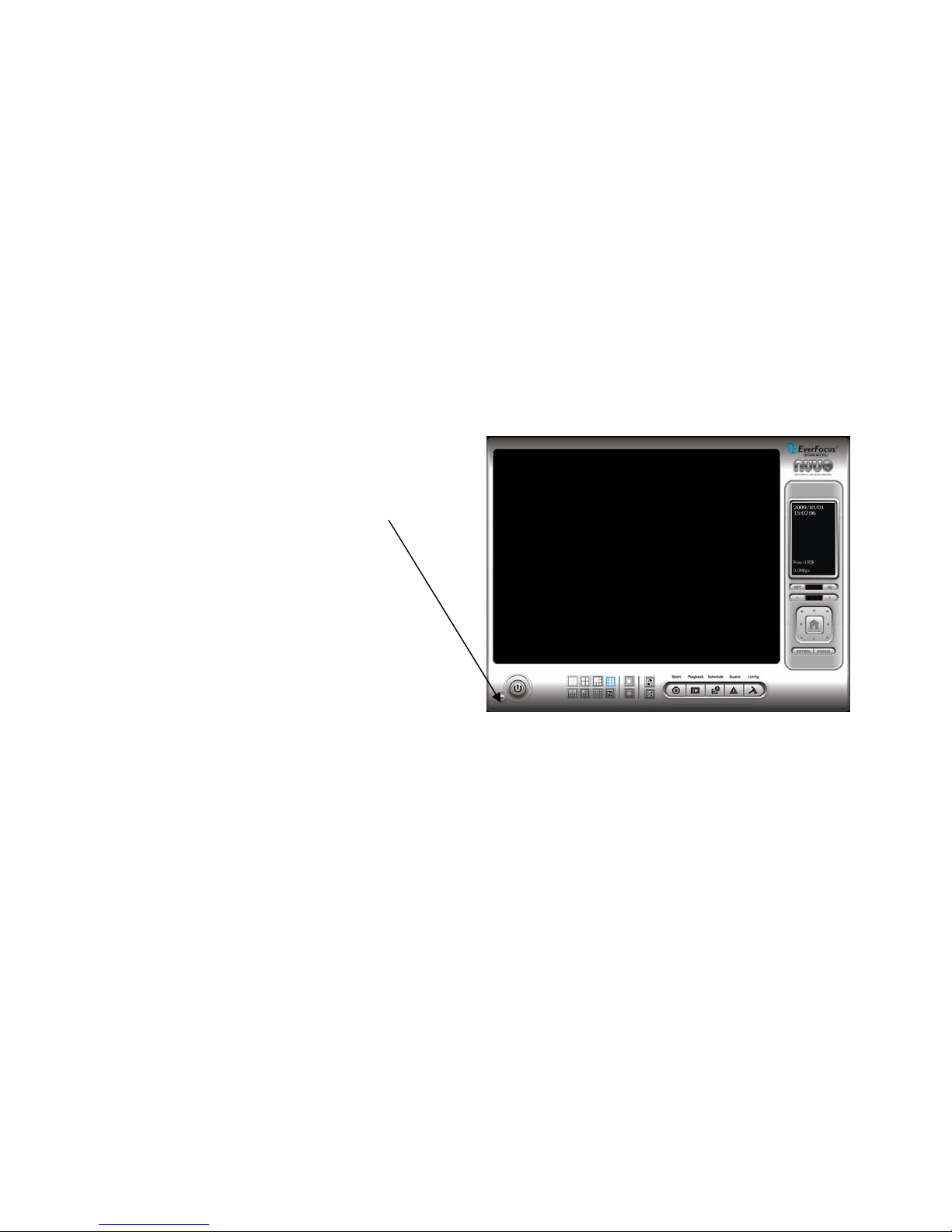

For access to the desktop, it is not necessary to exit the

NVR application. Click on the “minimize” button on the

lower left corner of the Main Console to access the

desktop or other windows and applications.

To return to the NVR Application, click on the

Main Console application in the Task Bar or

use CTL+TAB to switch.

Please see the Installation and Operation Manual

Section 5 to enable camera licenses, and cameras

to the system, and configure live views and recording.
