EW-72
Owner’s Manual
www.ewheelsdealers.com
(888) 305-0881
1
Table of Contents
1. Before You operate your scooter…………………..….. 2
2. Scooter initial operation………………………….…...….. 2
3. Technical specification……………………………….…….. 3
4. Mirror Assembly……………………………………………….. 4
5. Safety Instruction……………………………………………… 5-7
6. Environment Condition……………………………………… 7
7. Seat Adjustment……………………………………………….. 8
8. Instrument Panel………………………………………………. 9
9. Storage Compartment………………………………………. 10
10. Key Fob…………………………………………….………………. 10
11. Batteries and Charger………………………………………… 11-12
12. EMC Statement…………………………………………………. 12
2
Before you operate the scooter
Locate the below listed materials in rear basket:
Set of mirrors
Electric charger
Scooter Key
Owner’s manual
IT IS VERY IMPORTANT TO READ OWNER’S MANUAL BEFORE SCOOTER
OPERATION
Scooter Initial Operation
Read Owner’s manual
Buckle seat belt
Insert key into ignition (or activate scooter using key fob)
Set variable speed dial to lowest setting
Turn lights on
Adjust mirrors to desired positions
Place both hands on black hand grips
Twist the throttle slowly with your right hand
Enjoy the ride!
Turn off scooter by simply turning key to off position
3
Technical Specifications
Model
EW-72
Weight Capacity
500Lbs.
Seat: Type/Size
19”
Front Wheel
14”x 2.125
Rear Wheel
16” x 2.5
Maximum Speed
15 MPH
Battery Specifications
48 Volt
Battery Range
43 Miles
Charger Type
Off Board
Motor Type
700 Watt
Weight w/ Battery
221 lbs.
Turning Radius
52”
Suspension
Full
Length
53”
Width
29”
Height
42”
Seat Width
19”
Seat Height
25”
Seat Depth
17”
Back Height
22”
Wheel Base
37.5”
Ground Clearance
8.5”
Footrests
18”
4
Mirror Assembly
Your power scooter is shipped partially disassembled for protection
during shipping. After unpacking, please check whether you have
received the following main components as our standard
specification (See Fig 1)
1. Mirrors
Mirror Post
Fig 1
To attach the mirrors simply place each mirror threaded end into
the mirror post. Turn mirror clockwise and fasten mirror to scooter.
5

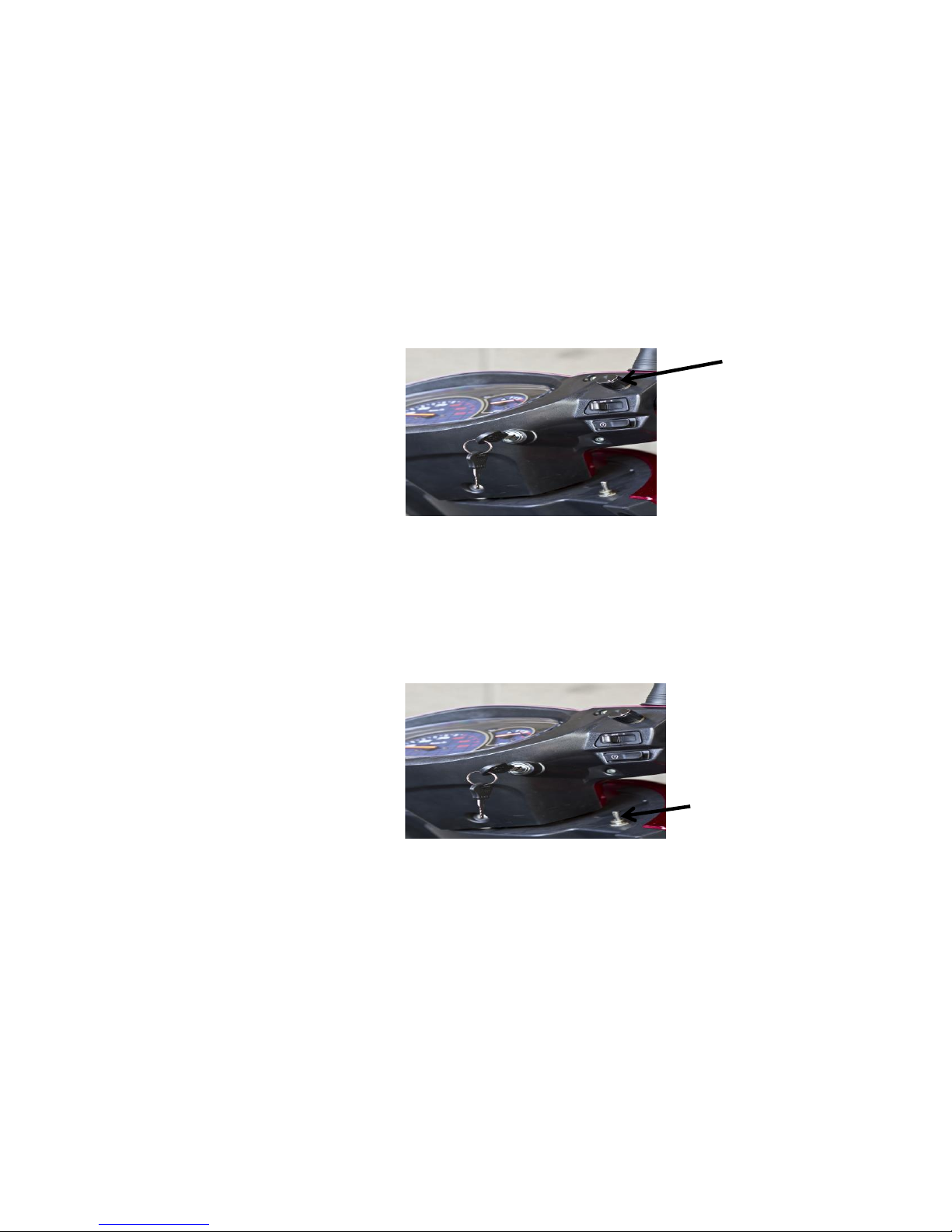

Operation of Scooter:
1. To prevent injury to yourself or others, always ensure that the power
is switched off when getting on or off the scooter.
2. Always check that the variable speed control is set to the desired
speed setting.
Variable Speed Dial
3. Always check you have selected the correct forward or reverse button
when about to drive.
Forward/Reverse switch
4. Always reduce your speed when making sharp turns.
5. Do not switch off the power when the scooter is still moving forward
6. Use 12 volt batteries only.
6
Ramps and Curbs
1. Also check that ramp surface is toughened to prevent slipping. Never
drive across a slope of turn sharply on a slope.
2. When driving up curbs, always check the height of the curb to ensure
that it does not exceed 4” height.
General
1. Always use a seatbelt, and keep your feet on the scooter all the time.
2. Do not over load the scooter with its maximum weight capacity of
500lbs.
3. Do not attempt to lift or move a power scooter by any of its
removable parts. Personal injury and damage to the power chair may
result.
4. Never try to use your scooter beyond its limitations as described in the
manual.
5. Do not operate your vehicle if it is not functioning properly.
6. Do not connect any electrical or mechanical device to the scooter.
Failure to obey this instruction may result in injury and will void
the warranty.
7. Never use electronic radio transmitters such as CB, walkie-talkies,
portable computers or cellular phones while using the vehicle without
first turning off the scooter.
7
Use While Under the Influence of Medication or Alcohol
1. Check with your physician if you are taking any medication that may
affect your ability to operate your powered scooter safely.
2. Do not operate your scooter while you are under the influence of
alcohol as this may impair your ability to operate your power scooter
in a safe manner.
Environment Condition
Rain, Sleet and Snow
If exposed to water, your power scooter is susceptible to damage to
electronic or mechanical components. Water can cause electronic
malfunction or promote premature corrosion of electrical components and
frame.
Warranty
For valid warranty claims E-Wheels will, at their discretion,
replace/repair/refund items mutually agreed to be defective.
E-Wheels warranty as following:
1. Frame: (2) Year limited warranty
2. Electronic components and charger: (3) Year limited warranty
3. Controllers: (3) Year limited warranty
4. Batteries: Not warranted
5. Consumables: Wheel Tires, arm pads and seat cushions: Not
warranted
6. Labor costs are NOT covered by warranty
8
Any damage or defect of any nature occurring from the misuse of the
product is not to be covered. The warranty is to start from the date of
arrival of our products.

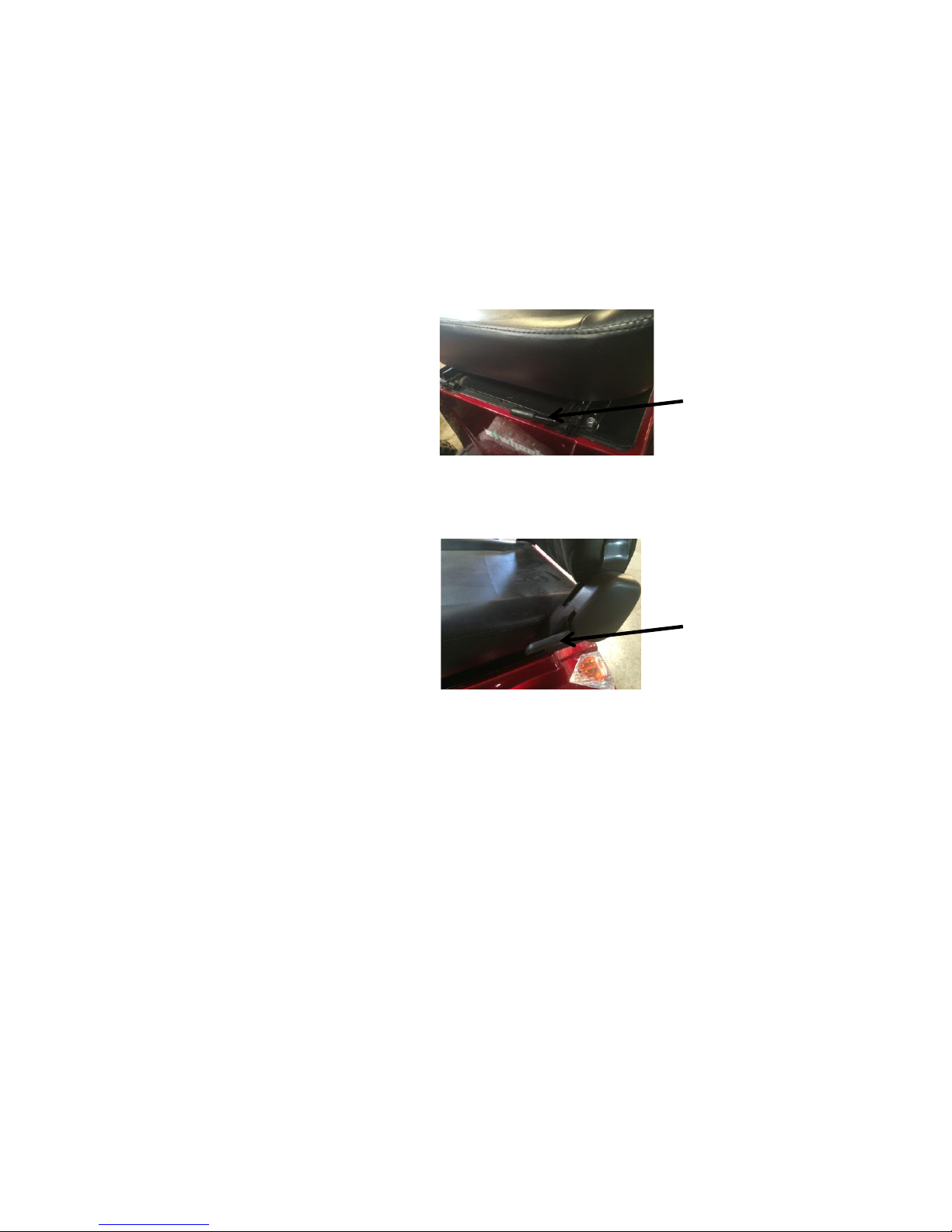

Seat Adjustment
1. Locate forward/reverse seat handle located under the seat
Forward/Reverse Handle
2. Locate the reclining seat lever located on side of seat.
Tilt Lever
Seat arm rest can be in an upright position or a down position.
9

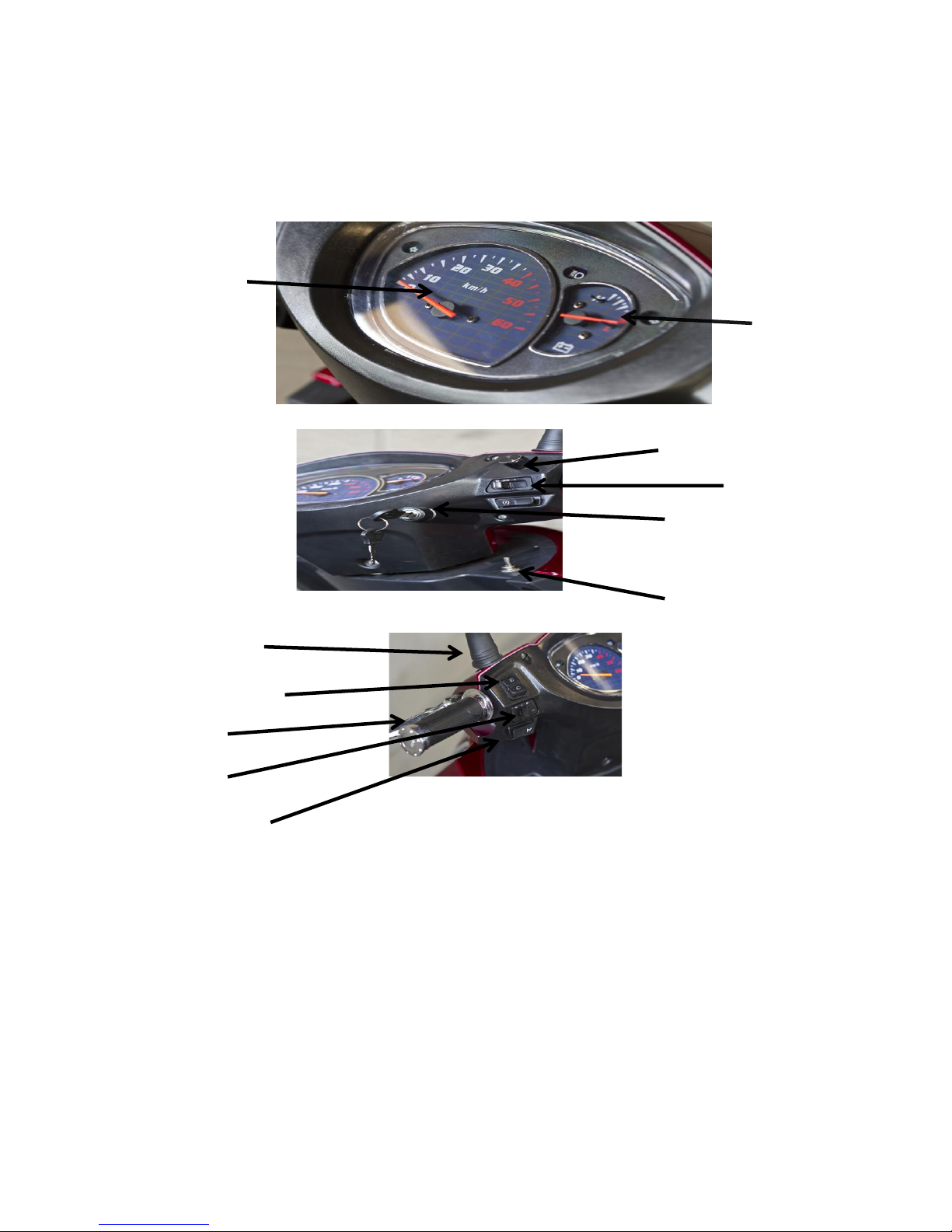

Instrument Panel
Speedometer and Battery level indicator
Speedometer
Battery Indicator
Speed Control
Lights on/off
Key Ignition
Forward/Rev Switch
Mirror Post
High/Low Beam Light
Brake Lever
Turn Signal
