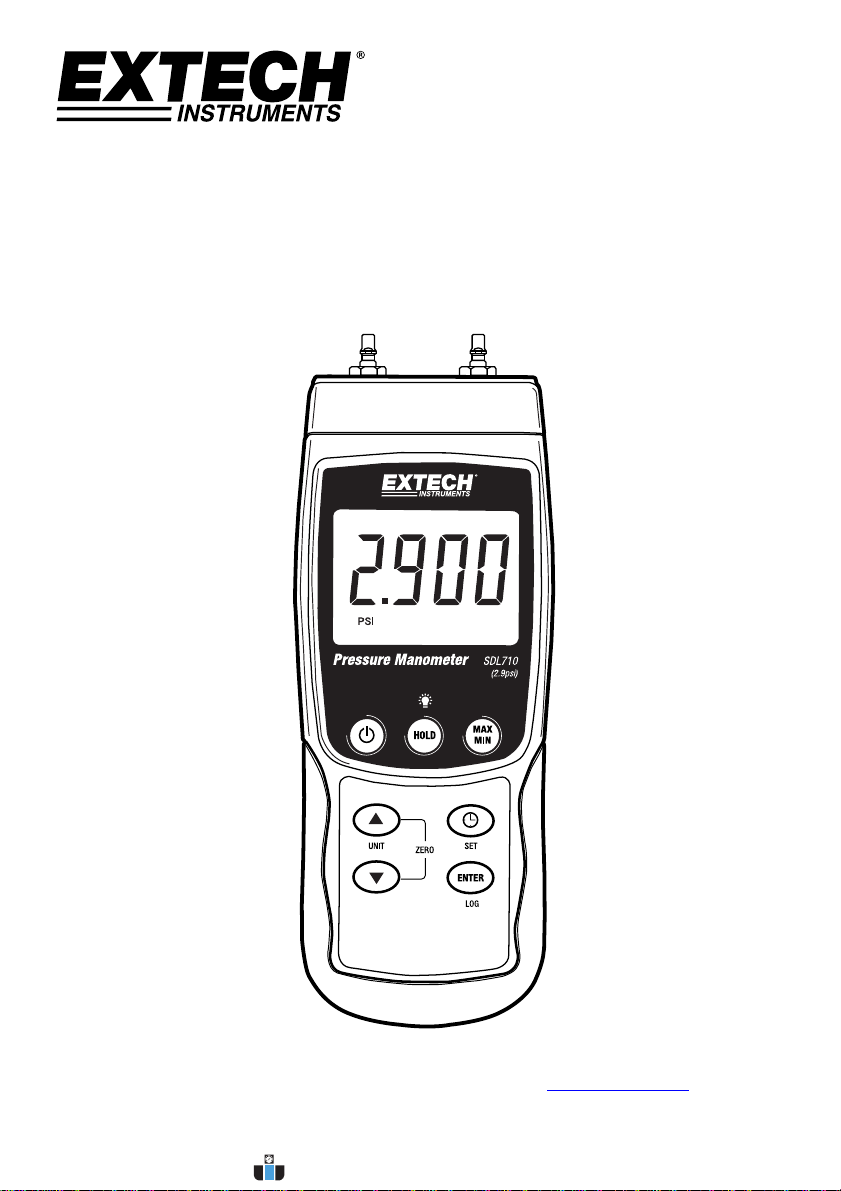

Extech Instruments SDL710 Bedienungsanleitung

UserManual



HeavyDutyDifferentialPressure

Manometer



ModelSDL710



AdditionalUserManualTranslationsavailableatwww.extech.com

www.calcert.com sales@calcert.com1.888.610.7664 0

2SDL710-en-GB_V1.0 12/16

Introduction

CongratulationsonyourpurchaseoftheExtechSDL710PressureManometer.Thisdevice

measuresgaugeanddifferentialpressureintherangeof±2.9psi.Supportedmeasurementunits

arembar,psi,Kg/cm2,mmHg,inchHg,metersofH2O,inchesofH2O,atmosphere,hPA,and

kPA.LoggeddatareadingsarestoredonanSDcardfortransfertoaPC.Thismeterisshipped

fullytestedandcalibratedand,withproperuse,willprovideyearsofreliableservice.Pleasevisit

ourwebsite(www.extech.com)tocheckforthelatestversionofthisUserManual,other

TranslationsofthismanualandCustomerSupport.



Safety

InternationalSafetySymbols

Thissymbol,adjacenttoanothersymbolorterminal,indicatestheusermustrefertothe

manualforfurtherinformation.



MeterDescription

1. P1Input(positive+)

2. P2Input(negative‐)

3. LCDDisplay

4. HOLDandBacklightkey

5. MAX‐MINkey

6. SETandClock key

7. RS232outputjack

8. Resetbutton

9. PowerAdaptorjack

10. SDcardslot

11. ENTERandLOGkey

12. Downarrow▼key

(Press▼&▲keyatsametimetozerometer)

13. Uparrow▲/UNITkey

(Press▼&▲keyatsametimetozerometer)

14. PowerON‐OFFkey

Notes:Items7,8,and9arelocatedbehindthesnap‐offcompartmentcoveronmeter’srightside.

Batterycompartment,tiltstand,andtripodmountarelocatedontherearoftheinstrument.

www.calcert.com sales@calcert.com1.888.610.7664 0

3SDL710-en-GB_V1.0 12/16

GettingStarted

PowerON‐OFF

Powerthemeterbypressingandholdingthepowerbuttonforatleast1.5seconds.

Pressandholdthepowerbuttonforatleast1.5secondstopowerOFFthemeter.

Thismeterispoweredbysix(6)1.5VDC‘AA’batteriesorbyoptionalACadaptor.Ifthe

meterwillnotswitchONpleasecheckthatfreshbatteriesareinstalledintherearbattery

compartmentor,inthecaseoftheACadaptor,checkthattheadaptorisconnected

correctlytothemeterandtoanACsource.

DisplayBacklight

ToturnthedisplaybacklightONorOFF,pressandholdthebacklight buttonforatleast1.5

seconds.ThemeterwillbeepwhenswitchingthebacklightONorOFFunlessthebeeperis

disabled.

UnitsofMeasure

Thecurrentlyselectedunitofmeasureisshownbelowthemeasurementvalueonthemeter’s

LCD.Tochangetheunitofmeasure,pressandholdtheUNITbuttonuntilthedesiredunitof

measureappearsandthenreleasetheUNITbutton.Themeterbeginsscrollingthroughthe

availableunitsofmeasure(seetablebelow)aftertheUNITbuttonhasbeendepressedforat

least1.5seconds.



UNITDISPLAYINDICATOR

psiPSI

InchHgInHg

InchH2OInH2O

hPAhPA

kPA_PA

BarbAr

Kg/cm2_gC2

mmHg‐‐Hg

MetersH2O‐tH2O

AtmospheresAtP

ZEROAdjustment

Tonull,orzero,thedisplayforaconnectedsensor,pressandholdtheupanddownarrow

keys foratleast1.5seconds.ThemeterwillshowCAL0onthebottomleftofthescreen.

DataHold

TofreezeadisplayedreadingontheLCD,momentarilypresstheHOLDbutton(theHOLDicon

willappearabovethereading).ToexitHOLD,presstheHOLDbuttonagain.

www.calcert.com sales@calcert.com1.888.610.7664 0

4SDL710-en-GB_V1.0 12/16

SetupMode

Basicsettingsataglance

Toviewthecurrentconfigurationofthemeterwithregardtotime,date,anddatalogging

samplingratepresstheSETbuttonmomentarily.Themeterwillnowdisplaytheconfigurationin

quicksuccession.Iftheinformationismissedonthefirsttry,simplypresstheSETbuttonagain

untilalloftheinformationisnoted.

AccessingtheSetupmode

1. PressandholdtheSETbuttonforatleast1.5secondstoaccesstheSetupmenu.

2. PresstheSETbuttonmomentarilytostepthroughtheavailableparameters.Theparameter

typeisshownonthebottomoftheLCDandthecurrentselectionforthattypeisshown

aboveit.

3. Whenaparameterisdisplayedthatistobechanged,usethearrowkeystochangethe

setting.PresstheENTERbuttontoconfirmachange.

4. PressandholdtheSETbuttonforatleast1.5secondstoexittheSetupmode.Notethatthe

meterautomaticallyswitchesoutoftheSetupmodeifnokeyispressedwithin7seconds.

TheavailableSetupparametersarelistedbelow.Additionaldetailedinformationis

providedbelowthislist:



dAtE

Settheclock(Year/Month/Date;Hours/Minutes/Seconds)

SP‐t

Setthedataloggersamplingrate(Hours/Minutes/Seconds)

PoFF

Automaticpower‐offmanagement(Enableordisabletheauto‐poweroff

function)

bEEP

SetthebeepersoundON/OFF

dEC

Setthenumericalformat;USA(decimal:20.00)orEuropean(comma:20,00)

SdF

FormattheSDmemorycard

SettingtheClockTime

1. AccessthedAtEparameter.

2. Usethearrowkeystochangeavalue

3. UsetheENTERbuttontostepthroughtheselections

4. PressandholdtheSETbuttonforatleast1.5secondstoexittothenormaloperationmode

(orsimplywait7secondsforthemetertoautomaticallyswitchtothenormaloperating

mode).

5. Theclockwillkeepaccuratetimeevenwhenthemeterisswitchedoff.However,ifthe

batteryexpirestheclockwillhavetoberesetafterfreshbatteriesareinstalled.



SettingtheDataloggerSamplingTime(Rate)

1. AccesstheSP‐tparameter.

2. Thesamplingratecanbesetfrom‘0’seconds(manuallogmode)upto8hours,59minutes,

and59seconds.

(Datalosemayoccurwhenloggingata1secondrate)



3. UsetheENTERbuttontomovethroughtheHours,Minutes,andSecondsdigitgroupsand

usethearrowkeystochangethedigitvalues.

PresstheENTERbuttontoconfirmtheentry.



5. PressandholdtheSETbuttonforatleast1.5secondstoexittothenormaloperationmode

(orsimplywait7secondsforthemetertoautomaticallyswitchtothenormaloperating

mode).

www.calcert.com sales@calcert.com1.888.610.7664 0

5SDL710-en-GB_V1.0 12/16



Enabling/DisablingtheAutoPowerOFFFeature

1. AccessthePoFFparameter.

2. UsethearrowbuttonstoselectONorOFF.WiththeAutoPowerOFFfeatureenabled,the

meterwillautomaticallyswitchOFFafter10minutesofinactivity.

3. PressENTERtoconfirmsetting.

4. PressandholdtheSETbuttonforatleast1.5secondstoexittothenormaloperationmode

(orsimplywait7secondsforthemetertoautomaticallyswitchtothenormaloperating

mode).

SettheBeeperSoundONorOFF

1. AccessthebEEPparameter.

2. UsethearrowbuttonstoselectONorOFF.

3. PressENTERtoconfirmsetting.

4. PressandholdtheSETbuttonforatleast1.5secondstoexittothenormaloperationmode

(orsimplywait7secondsforthemetertoautomaticallyswitchtothenormaloperating

mode).

NumericalFormat(commaordecimal)

EuropeanandUSAnumericalformatsdiffer.ThemeterdefaultstoUSAmodewhereadecimal

pointisusedtoseparateunitsfromtenths,i.e.20.00;TheEuropeanformatusesacomma,i.e.

20,00toseparateunitsfromtenths.Tochangethissetting:

1. AccessthedECparameter.

2. UsethearrowbuttonstoselectUSAorEUro.

3. PressENTERtoconfirmsetting.

4. PressandholdtheSETbuttonforatleast1.5secondstoexittothenormaloperationmode

(orsimplywait7secondsforthemetertoautomaticallyswitchtothenormaloperating

mode).

SDCardFORMATTING

1. AccesstheSdFparameter.

2. UsethearrowbuttonstoselectYEStoformatthecard(selectNOtoabort).Notethatall

dataonthecardwillbelostifformattingisattempted.

3. PressENTERtoconfirmselection.

4. PressENTERagaintore‐confirm.

5. Themeterwillautomaticallyreturntothenormaloperatingmodewhenformattingis

complete.Ifnot,pressandholdtheSETbuttonforatleast1.5secondstoexittothe

normaloperationmode.

SystemReset

Ifthemeter’skeysbecomeinoperableorifthedisplayfreezestheResetbuttoncanbeusedto

resettheinstrument.

Useapapercliporsimilaritemtomomentarilypresstheresetbuttonlocatedonthelower

rightsideoftheinstrumentunderthesnap‐offcompartmentcover.

AfterpressingtheResetbutton,switchtheinstrumentONbypressingandholdingthe

POWERkeyforatleast1.5seconds.Ifusingthepoweradaptorunplugtheadaptorandthen

plugitbackinagaintopowerthemeter.

www.calcert.com sales@calcert.com1.888.610.7664 0

6SDL710-en-GB_V1.0 12/16

Max‐MinReadingRecord

Foragivenmeasurementsession,thismetercanrecordthehighest(MAX)andthelowest(MIN)

readingsforlaterrecall.

1. PresstheMAX‐MINbuttonmomentarilytoaccessthismodeofoperation(RECicon

appears)

2. ThemeterisnowrecordingtheMAXandMINreadings.

3. PresstheMAX‐MINbuttonagaintoviewthecurrentMAXreadings(MAXiconappears).

ThereadingsonthedisplayarenowthehighestreadingsencounteredsincetheRECicon

wasswitchedon(whentheMAX‐MINbuttonwasfirstpressed).

4. PresstheMAX‐MINbuttonagaintoviewthecurrentMINreadings(MINiconappears).The

readingsonthedisplayarenowthelowestreadingsencounteredsincetheRECiconwas

switchedon(whentheMAX‐MINbuttonwasfirstpressed).

5. ToexittheMAX‐MINmode,pressandholdtheMAX‐MINbuttonforatleast1.5seconds.

Themeterwillbeep,theREC‐MAX‐MINiconswillswitchoff,theMAX‐MINmemorywill

clear,andthemeterwillreturntothenormaloperatingmode.

FittingsConnection

ConnecttubingtotheP1(+),P2(‐),orbothinputport(s).Ifbothinputsareused(differential

mode),themeterdisplaysapositivepressurereadingiftheP1(+)pressureisgreaterthanP2(‐)

andanegativereadingifP2(‐)isgreaterthanP1(+).



Datalogging

TypesofDataRecording

ManualDatalogging:Manuallylogupto99readingsontoanSDcardviapush‐buttonpress.

AutomaticDatalogging:AutomaticallylogdataontoanSDmemorycardwherethenumber

ofdatapointsisvirtuallylimitedonlybythecardsize.Readingsareloggedataratespecified

bytheuser.

SDCardInformation

InsertanSDcard(from1Gsizeupto16G)intotheSDcardslotatthebottomofthemeter.

Thecardmustbeinsertedwiththefrontofthecard(labelside)facingtowardtherearofthe

meter.

IftheSDcardisbeingusedforthefirsttimeitisrecommendedthatthecardbeformatted

andthelogger’sclocksettoallowforaccuratedate/timestampingduringdatalogging

sessions.RefertotheSetupModesectionforSDcardformattingandtime/datesetting

instructions.

EuropeanandUSAnumericalformatsdiffer.ThedataontheSDcardcanbeformattedfor

eitherformat.ThemeterdefaultstoUSAmodewhereadecimalpointisusedtoseparate

unitsfromtenths,i.e.20.00.TheEuropeanformatusesacomma,i.e.20,00.Tochangethis

setting,refertotheSetupModesection.

www.calcert.com sales@calcert.com1.888.610.7664 0

7SDL710-en-GB_V1.0 12/16

ManualDatalogging

InthemanualmodetheuserpressestheLOGbuttontomanuallylogareadingontotheSDcard.

1. Setthesamplingrateto‘0’secondsasdescribedintheSetupModesection.

2. PressandholdtheLOGbuttonforatleast1.5secondsandtheDATALOGGERiconwill

appearontheLCD;thelowerportionofthedisplaywillshowp‐n(n=memoryposition

number1‐99).NotethatifPSIissetastheunitofmeasureitappearsasP51(wherea‘5’is

usedasan‘S’)inthesameareaoftheLCDwherememorylocationsareshown.Thiscanbe

disorientingatfirst.

3. MomentarilypresstheLOGbuttontostoreareading.TheDATALOGGERiconwillflashand

thebeeperwillsound(ifsettoON)eachtimeadatapointisstored.

4. Usethe▲and▼buttonstoselectoneofthe99datamemorypositionsinwhichtorecord.

5. Toexitthemanualdataloggingmode,pressandholdtheLOGbuttonforatleast1.5

seconds.TheDATALOGGERiconwillswitchoff.

AutomaticDatalogging

Inautomaticdataloggingmodethemetertakesandstoresareadingatauser‐specifiedsampling

rateontoanSDmemorycard.Themeterdefaultstoasamplingrateoftwoseconds.Tochange

thesamplingrate,refertotheSetupModesection(thesamplingratecannotbe‘0’for

automaticdatalogging):

1. SelectthesamplingrateintheSetupModetoavalueotherthanzero.

2. PressandholdtheLOGbuttonforatleast1.5seconds.Themeterwillflashthe

DATALOGGERiconattheselectedsamplingrateindicatingthatreadingsarenowbeing

automaticallyrecordedtotheSDcard.

3. Ifacardisnotinsertedorifthecardisdefective,themeterwilldisplayEMPTYandexitthe

DATALOGGERmode.Inthiscase,switchthemeterOFFandtryagainwithavalidSDcard.

4. PausethedataloggerbypressingtheLOGbuttonmomentarily.TheDATALOGGERiconwill

stopflashingandthesampleratewilldisplayforashorttime.Toresumeloggingsimply

presstheLOGbuttonagainmomentarily.

5. ToterminatethedataloggingsessionpressandholdtheLOGbuttonforatleast1.5

seconds.

6. WhenanSDcardisusedforthefirsttimeafolderiscreatedonthecardandnamed

PMA01.Upto99spreadsheetdocuments(eachwith30,000readings)canbestoredinthis

folder.

7. WhendataloggingbeginsanewspreadsheetdocumentnamedPMA01001.xlsiscreatedon

theSDcardinthePMA01folder.ThedatarecordedwillbeplacedinthePMA01001.xls

documentuntil30,000readingsarereached.

8. Ifthemeasurementsessionexceeds30,000readings,anewdocumentwillbecreated

(PMA01002.xls)whereanother30,000readingscanbestored.Thismethodcontinuesfor

upto99documents,afterwhichanotherfolderiscreated(PMA02)whereanother99

spreadsheetdocumentscanbestored.Thisprocesscontinuesinthissamefashionwith

foldersPMA03throughPMA10(lastallowablefolder).

www.calcert.com sales@calcert.com1.888.610.7664 0

8SDL710-en-GB_V1.0 12/16

SDDataCardtoPCDataTransfer

1. Completeadataloggingsessionasdetailedaboveintheprevioussections.Hint:Forthe

firstfewtests,simplyrecordasmallamountoftestdata.Thisistoensurethatthe

dataloggingprocessiswellunderstoodbeforecommittingtocritical,largescale

datalogging.

2. WiththemeterswitchedOFF,removetheSDCard.

3. PlugtheSDCarddirectlyintoaPCSDcardreader.IfthePCdoesnothaveanSDcardslot,

useanSDcardadaptor(availablewherecomputeraccessoriesaresold).

4. PowerthePCandrunaspreadsheetsoftwareprogram.Openthesaveddocumentsinthe

spreadsheetsoftwareprogram(seeexamplespreadsheetdatascreenbelow).



Spreadsheetdataexample



ACPowerAdaptor

Thismeterisnormallypoweredbysix(6)1.5V‘AA’batteries.Anoptional9Vpoweradaptoris

available.Whentheadaptorisused,themeterispermanentlypoweredandthepowerbutton

willbedisabled.



www.calcert.com sales@calcert.com1.888.610.7664 0

9SDL710-en-GB_V1.0 12/16

HoseCouplings

Thismeterissuppliedwithapairofhosecouplings.Theyfit4.0mm(0.157”)tubing.

Seediagramonhowtoconnectthesecouplingstothehoseandthemeter.



www.calcert.com sales@calcert.com1.888.610.7664 0

10 SDL710-en-GB_V1.0 12/16

BatteryReplacementandDisposal

Whenthelowbatteryicon appearsontheLCD,thebatteriesmustbereplaced.Several

hoursofaccuratereadingsarestillpossibleinthiscondition;however,batteriesshouldbe

replacedassoonaspossible:

Removethetwo(2)Phillipsscrewsfromtherearofthemeter(directlyabovethetopofthe

tiltstand).

Removeandsafelyplacethebatterycompartmentandscrewswheretheywillnotbe

damagedorlost.

Replacethesix(6)1.5V‘AA’batteriesobservingcorrectpolarity.

Replacethebatterycompartmentcoverwiththetwo(2)Phillipsscrews.



Neverdisposeofusedbatteriesorrechargeablebatteriesinhouseholdwaste.

Asconsumers,usersarelegallyrequiredtotakeusedbatteriestoappropriate

collectionsites,theretailstorewherethebatterieswerepurchased,orwherever

batteriesaresold.

Disposal:Donotdisposeofthisinstrumentinhouseholdwaste.Theuserisobligatedtotakeend‐

of‐lifedevicestoadesignatedcollectionpointforthedisposalofelectricalandelectronic

equipment.



OtherBatterySafetyReminders

oNeverdisposeofbatteriesinafire.Batteriesmayexplodeorleak.

oNevermixbatterytypes.Alwaysinstallnewbatteriesofthesametype.





www.calcert.com sales@calcert.com1.888.610.7664 0

Inhaltsverzeichnis

Andere Extech Instruments Messgerät Handbücher

Extech Instruments

Extech Instruments LT40 Bedienungsanleitung

Extech Instruments

Extech Instruments 407750 Bedienungsanleitung

Extech Instruments

Extech Instruments AM300 Bedienungsanleitung

Extech Instruments

Extech Instruments EA30 Bedienungsanleitung

Extech Instruments

Extech Instruments RH300 Bedienungsanleitung

Extech Instruments

Extech Instruments 407510 Bedienungsanleitung

Extech Instruments

Extech Instruments 451181 Bedienungsanleitung

Extech Instruments

Extech Instruments 380803 Bedienungsanleitung

Extech Instruments

Extech Instruments Oyster-10 Bedienungsanleitung

Extech Instruments

Extech Instruments RPM10 Bedienungsanleitung

Extech Instruments

Extech Instruments 380976-K Bedienungsanleitung

Extech Instruments

Extech Instruments 407735 Bedienungsanleitung

Extech Instruments

Extech Instruments MO260 Bedienungsanleitung

Extech Instruments

Extech Instruments MO257 Bedienungsanleitung

Extech Instruments

Extech Instruments 421509 Bedienungsanleitung

Extech Instruments

Extech Instruments 380460 Bedienungsanleitung

Extech Instruments

Extech Instruments SL10 Bedienungsanleitung

Extech Instruments

Extech Instruments PH220-C Bedienungsanleitung

Extech Instruments

Extech Instruments FM300 Bedienungsanleitung

Extech Instruments

Extech Instruments VB400 Bedienungsanleitung

Extech Instruments

Extech Instruments HD750-NIST Bedienungsanleitung

Extech Instruments

Extech Instruments NON-DISPLAY PORTABLE Bedienungsanleitung

Extech Instruments

Extech Instruments MA1500 Bedienungsanleitung

Extech Instruments

Extech Instruments MultiScope 381270 Bedienungsanleitung

Beliebte Messgerät Handbücher anderer Marken

Suaoki

Suaoki D40 Bedienungsanleitung

Elster

Elster BK-G1.6 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Deltabar FMD71 Handbuch

Duratool

Duratool D03128 Bedienungsanleitung

Vega

Vega VEGAPULS 65 Bedienungsanleitung

Tonghui

Tonghui TH2618B Bedienungsanleitung

Tenmars

Tenmars TM-801 Bedienungsanleitung

MSR

MSR 145 Bedienungsanleitung

TPS

TPS WP-82 Bedienungsanleitung

ELMETRON

ELMETRON CP-511 Bedienungsanleitung

PCB Piezotronics

PCB Piezotronics 003C30 Bedienungsanleitung

Tenma

Tenma 72-10465 Bedienungsanleitung

Endress+Hauser

Endress+Hauser Proline Promag 50 Technische Daten

Siemens

Siemens SITRANS F Coriolis FCT030 Stücklistenhandbuch

KLINGER

KLINGER CMF V Series Bedienungsanleitung

EXFO

EXFO FTB-2 Bedienungs- und Wartungshandbuch

Keysight

Keysight M8290A Bedienungsanleitung

ADTEK

ADTEK MW-5 Bedienungsanleitung
