FeiYu Tech FY WG2 Bedienungsanleitung

FY WG2 3 Axis Wearable Gimbal

and cameras with similar dimensions

GuiLin FeiYu Technology Incorporated Company

V 1.0ENInstructio n Manual

Usage Scenario Demonstration

Guidelines For Usage

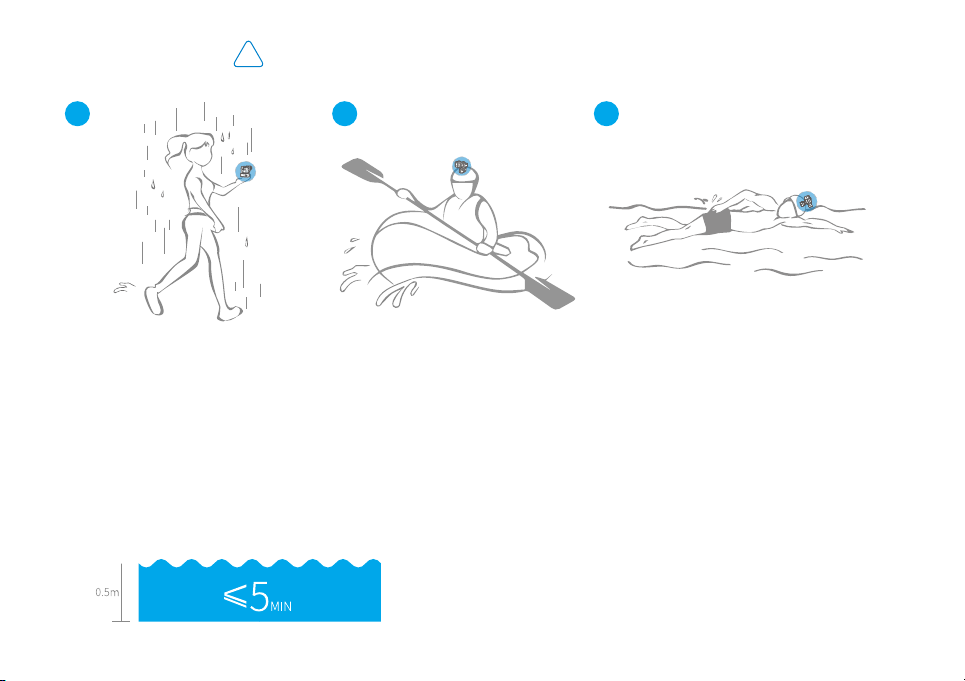

WG2 has precision machinery transmission mechanism, water proof design can completely use in raining and water

splash scene, it can be used in the water under certain conditions, please follow the requirements below when use in

the water, otherwise, there are risks of damage.

1.Please ensure the usb plug has been covered before

using underwater, dry it and place in a ventilated place

to dry before charging.

3. Used in sea water environment at risk of damage

that is not recommended.

2. When use under water, depth of water should be less

than 0.5m, and time of continuous use less than 5mins.

4.When it is splashed by sea water, please wash it with

fresh water immediately, and soak it in fresh water for

3mins, otherwise, the rotation of gimbal will be blocked

by the salt crystals after the sea water dried.

※It is normal phenomenon if there is a small amount of liquid

ﬂow from gimbal or the gimbal is smelly, the liquid is waterproof

paint, a few pungent smells.

Drift Swimming

21Rainy

Fixed block

User Guide

1Install the Camera

Hero5

Hero4

Remove ﬁxed block,install the camera on retainer plate,

then ﬁx the camera with retainer bar and screws.

Loosen the knob ring and adjust

the arm length to ﬁt the diﬀerent

cameras.

Knob ring

Cross

arm

Attention!

(1) Please install the camera before powering

on the gimbal.

(2 )When not in use, turn oﬀ the gimbal and then

remove the camera.

2Power on / oﬀ

Power On: Press and hold function button

until the green light is on.

Power Oﬀ: Press and hold function button

until the red light changes from quick

ﬂashing to always on.

Attention: Make sure the camera is secure

before powering on the gimbal.

In case of low battery, the red LED

indicator ﬂashes for three times for

every 5 seconds.Please charge WG2.

Reference

point

Session

Knob ring

Tilting axis

Rolling axis

Panning axis

USB port

1/4 inch

screw hole

Screw hole

Product Overview

* The showing sports camera is only for reference

1/4 inch

screw hole

T-Clamp

screw Hole

Indicator

status

Thumb screw Waterproof

Bluetooth

Function button

Cross arm

Camera in right

Forward

Camera in left Camera in left

Camera in right

Inverted

Camera in right

Vertical

Camera in left

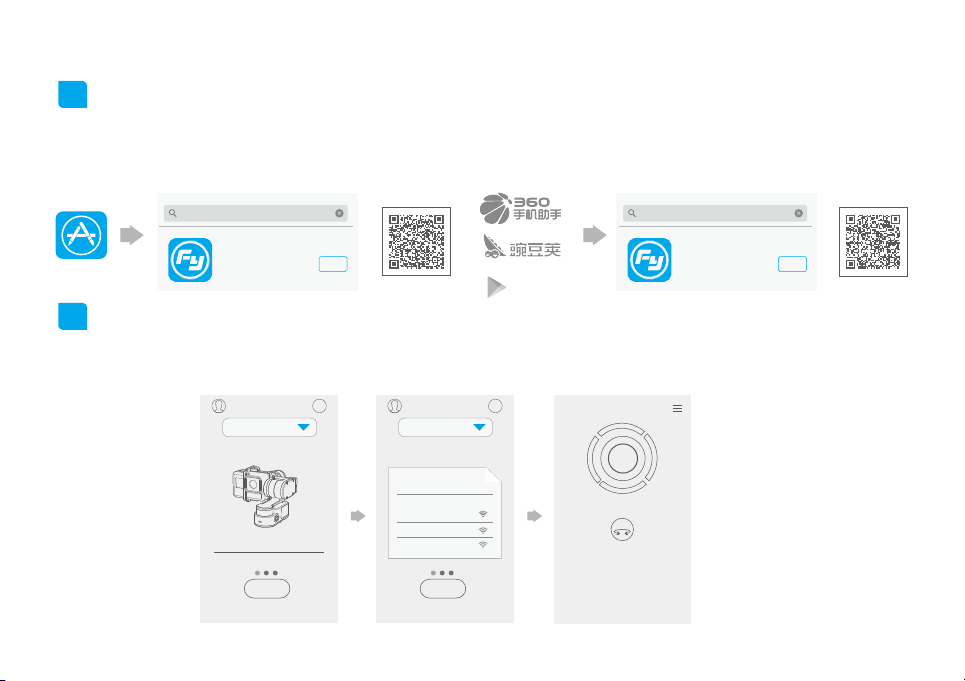

App download and connect

Connecting App

Start the App on your smartphone,follow the instructions to connect the smartphone with gimbal

via bluetooth.

App Store

Download App

Download "Feiyu ON" and install it.

(1) iOS version: (2) Android version:

Google play

WG 2

Connect

WG 2

Connect

360°

FY_WG 2_XX

Choose a gimbal

FY_XXX_XX

Feiyu ON

Download

GuiLin FeiYu Technology Incorporated Company

Feiyu ON

Download

GuiLin FeiYu Technology Incorporated Company

Feiyu ON

*Please scan the two-dimensional code via the browser.

Mode /Function

The orientation of the

camera is ﬁxed.

Panning Mode

Tilting and rolling direction

are ﬁxed, and the cameralens

moves according to the hand

movement of the user.

Panning and Tilting Mode

The rolling direction is ﬁxed,

and the camera lens moves

according to the hand

movement of the user.

Lock Mode

Reset

Reset the tilting axis of the

gimbal to initial orientation

and initialmode.

Mode /Function Operation Instructions

Indicator Status

Mode / Status

Blue light ﬂashes once

Blue light ﬂashes twice

Panning

Panning and tilting mode

Lock mode / Initializing Blue light on steadily

Blue light keeps ﬂashing Initialization failure /

Malfunction

Low battery Red light ﬂashes three times

Red light keeps ﬂashing Turning oﬀ

Function Button

Double tap

Single tap

Mode /Function Explanation

Panning Mode / Lock Mode

Panning and tilting mode

Triple tap

Single tap to switch between panning mode and lock mode

When in panning and tilting mode, press once to switch to lock mode

Rotate 180°in horizontal Make the camera lens rotate 180 °

Quadruple tap Quadruple tap to enter autototation mode

Autorotation Mode

Fifth tap Single tap again to awake the gimbal, or triple tap to initialize the gimbalInitialization

Autorotation Mode

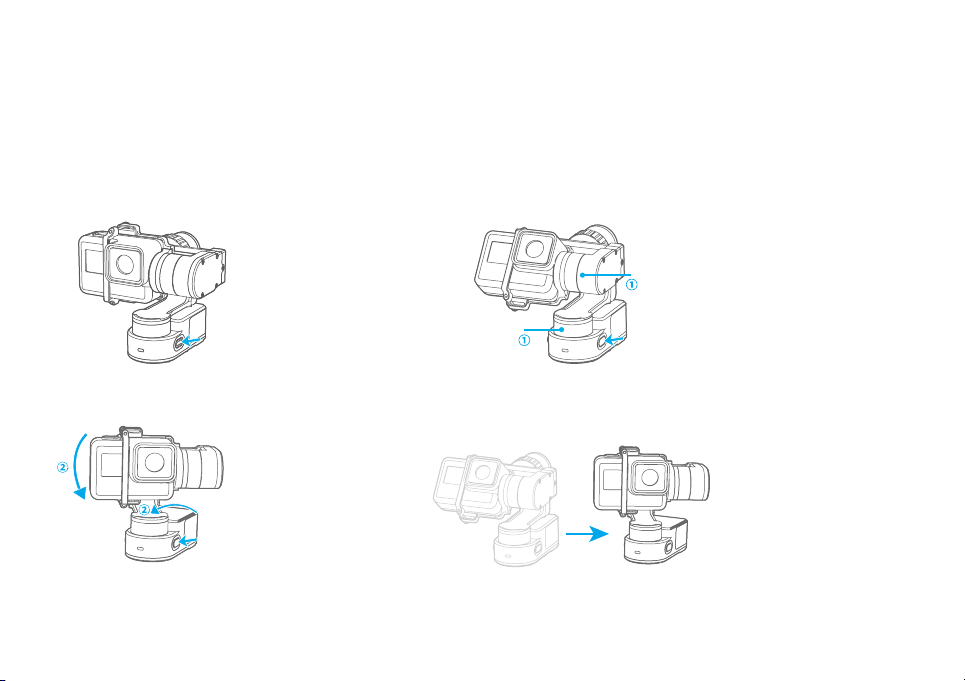

2. Turn the panning axis

and tilting axis to the

position ① and hold for

half a second.Click on

function button,

record the position ①.

1.Four times clicks on

function button, gimbal

will access the autorotation

mode setting.

4.Gimbal will recover to

position ① automatically.

Tilting axis and panning

axis turn to position ②

at constant speed.The gimbal

is automatically reset after

the end.

3 .Turn the panning axis

and tilting axis to the

position ② and hold for

half a second .Lick on the

function button again,

record the position ②.

Tilting

Panning

Four times clicks on function button, gimbal will access the autorotation mode setting. Manually turn the

gimbal to an initial position, then click again on function button for recording it.Manually turn the gimbal

to end position, then click the functionbutton again for recording it. Gimbal will turn to the initial position

and begin autorotation.

Manual Lock

Manual lock ，pull to the speciﬁed angle to stay half

a second can be lock the current angle.(The tilting

axis and panning axis in the lock mode can be

manual lock and the tilting axis can be manual lock

in the panning mode.)Take the tilting axis as an

example:

Hold the camera and change its angle in tilting axis

direction.

Keep this position for half second, the current angle

will be locked manually.

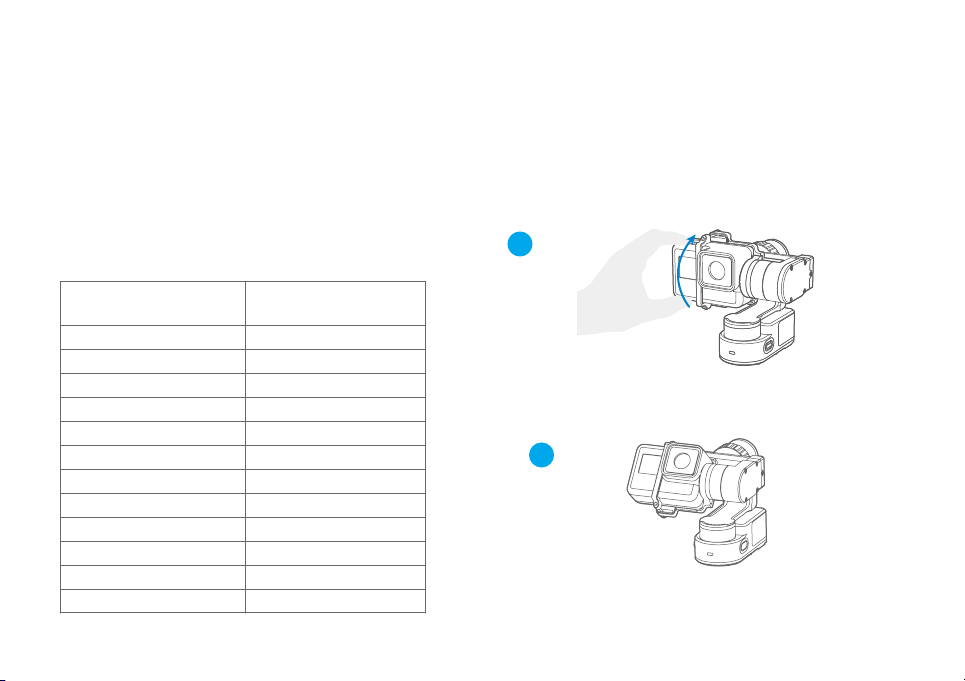

Annexed parameter table：

Gimbal speed setting and theory time adaptation reference

table.

Combined use of gimbal autorotation function and

motion camera time-lapse photography function will

make the camera achieve the excellent eﬀect of

time-lapse photography.Theoretical time and gimbal

autorotation speed adaptation eﬀect is better,

Feiyu ON APP can set the autorotation speed.

WG2 theory time

4 (default)

8 hours / turn

4 hours / turn

2 hours / turn

1 hours / turn (default)

30 minutes / turn

15 minutes / turn

2 minutes / turn

4 minutes / turn

8 minutes / turn

30 seconds / turn

15 seconds / turn

1 minutes / turn

WG2 speed setting

USB cable

Upgrade........

Please visit the oﬃcial website www.feiyu-tech.com to download the relevant software for upgrading,

including USB driver,ﬁrmware upgrade software and product ﬁrmware, and install the relevant software,

decompress the ﬁrmware ﬁles .

Feiyu ON

Option 1: connect the gimbal with PC via micro USB cable, and then upgrade the ﬁrmware.

Option 2: connect the gimbal with smartphone via bluetooth, and then upgrade the ﬁrmware.

(1)

(2)

Charge with micro USB cable.

*Please make sure

the battery is fully

charged before you

use the gimbal for

the ﬁrst time.

Firmware Upgrade

（equipped by user）

Firmware

Upgrade

Charging

The current used version 1.7.2,

new ﬁrmware is available,

do you want to upgrade?

Later Download

and install it.

new ﬁrmware is available,

do you want to upgrade?

Firmware upgrade

Yes No
