Flashforge ADVENTURER 3 Bedienungsanleitung

本手册仅适用于闪铸科技 Adventurer3 3D打印机

This guide is only applicable to FLASHFORGE Adventurer3 3D printer

1. Hot! Avoid touching the heating nozzle and heatingbuild platein operation.

Please refer to FlashForge official website www.flashforge.com to download

the newest User's Guide, Software and Instruction Videos.

(Support-Support Center-Select a Product)

2. Moving parts inprintermaycause injury. Do not wear gloves or other

sources of entanglement in operation.

Download

1. 高温危险！打印机喷嘴和打印平台在工作时会被加热，请避免接触!

2. 可动部件可能造成卷入挤压和切割伤害。操作机器时请不要佩戴手套或缠绕物。

前往闪铸科技官方网站 www.sz3dp.com ，可以在[ 技术支持 ] 页面下载用户使

用手册、切片软件等资料，或查看相关操作视频。

资料下载

SZ16-ZN/EN-A06

快速启动指南

ADVENTURER 3 /冒险家 3

Quick Start Guide

中文P10

All manuals and user guides at all-guides.com

3D Printer Filament After-sales

service card

Allen WrenchScrewdriverQuick Start Guide Unclogging Pin Tool

Power Cable

Kit Contents

本手册仅适用于闪铸科技 Adventurer3 3D打印机

快速启动指南

Thisguide is only applicable to FLASHFORGEAdventurer3 3D printer

ADVENTURER3 发明家3

SZ16-ZN/EN-A01

1. 高温危险！打印机喷嘴和打印平台在工作时会被加热，请避免接触!

1.Hot! Avoid touching the heating nozzle and heating build plate in operation.

Pleaserefer to FlashForge official websitewww.flashforge.com to download

thenewest User Guide and Quick Start Guide.

(SUPPORT-SupportCenter - Select a Product)

2.Moving parts in printer may cause injury. Do not weargloves or other

sourcesof entanglement in operation.

2. 可动部件可能造成卷入挤压和切割伤害。操作机器时请不要佩戴手套或缠绕物。

最新版本说明书请前往闪铸科技官方网站www.sz3dp.com下载。

（技术支持 - 下载中心 - 说明书/快速启动指南下载）

Grease

All manuals and user guides at all-guides.com

Getting to know your Adventurer 3

1. Filament guide tube 2. Filament guide tube joint 3. Extruder base 4.Cooling Fan

5. Removable nozzle 6. Extruder cables 7. Clip 8. Led light

9. Wind guide nose 10. Front door 11.Y-Axis sliding slot 12.Platform base

13. Removable build plate 14.Touch-screen 15.USB stick input 16.Power switch

17. Power input 18. Spool holder 19.Filament cover 20. Filament cover handle

21. Moto 22. Filament intake 23.Filament feeding wheel 24. Top cover

25. Air outlet 26. Ethernet input

14 15

All manuals and user guides at all-guides.com

Unpacking

KEEP DRY

HANDLE

WITH CARE

FRAGILE

ThePeople's Insurance Companyof China

KEEP DRY

HANDLE

WITH CARE

FRAGILE

ThePeople's Insurance Companyof China

KEEP DRY

HANDLE

WITH CARE

FRAGILE

1. Open the box. 2. Take out the wrapping paper box

on the top.

3. Be careful! Filament, tools kit and power

cable are all placed inside the wrapping

paper box.

4. Take out the printer from the box.

All manuals and user guides at all-guides.com

7. Open the front door, take out the paper box inside

the printer, printer unpacking completed.

6. Click [tools]-[setting] in turn to enter page like this, turn to page two, click [move].

Click the upper arrow in the moving page to make the extruder raises for removing the

paper box on the bottom easier.

Power Switch

5. Plug the power cable into the input on the

back and turn on the power switch, the touch

screen is turned on.

X: 20.00 Y: 45.00 Z: 36.00

Status Language

Calibration Home

Move Camera

FilamentCheck Led

1/3

2/3

All manuals and user guides at all-guides.com

Power Switch

Plug the power cable into the input on the

back and turn on the power switch, the touch

screen is turned on.

1. Open the filament cover, insert the filament into the

filament intake, push filament into the feeding wheel

until some resistance is sensed.

Note: Please make sure filament has been pushed into

the feeding wheel!

First Print

Load Filament

All manuals and user guides at all-guides.com

2. Tap [Filament]--Tap [Load]--After Load completed--Tap [OK]

3. Load completed when you see filament come out of extruder, Tap [OK].

Put the spool of filament on the spool holder, close the filament cover.

Build

Tools

Filament

Load

Change

200 /235℃

Heating extruder...

Cancel

235 /235℃

Preheat completed,

Begin loading...

235 /235℃

Press ok when new color appears

Mind the loading direction of filament, make sure

to be clockwise as the picture showed.

All manuals and user guides at all-guides.com

1. Tap [Build], choose the file path: Print from local memory card.

2. Locate the model file in the model list, Tap on its right to start printing;

or tap model file picture or file name to enter model details page, tap to start printing.

3. Extruder will heat up and printer will start printing after heating completed. After model

printing finished, printer will sound a beep and pop out notice on touch screen.

Model Print

Build

Tools

Filament

6.67GB

No job

Not Available

1/3

...

0h10 min

Time Remaining

7.49

20mm_Box-

PLA.gx

20mm_Box-PLA.gx

20mm_Box-P...

0 h 10 min

0.70M

Build completed!

All manuals and user guides at all-guides.com

Model Remove

1. As showed in picture, press down dotted line area and draw out the

removable build plate.

When printing completed, extruder and build plate may still hot,

please start operating after cooling down!

2. Bend the build plate, the plate will produce certain deformation, seperating the

plate away from the bottom of model (Please use a scraper to assist removing

when model is too small or big).

Notices

All manuals and user guides at all-guides.com

Heating extruder...

1. Tap [Filament]--Tap [Change], extruder will start preheating.

2. Pull out the filament as the picture

showed above.

4. When new filament come out of extruder steadily, replace is completed, Tap [OK].

3. Insert new filament into the filament intake

and push the filament into the feeding wheel

until resistance is sensed.

Load

Change

200/235℃

Cancel

220/235℃235/235℃

235/235℃

Unloading the filament,

please wait...

Pull out filament,

feed new filament, press [OK]

Press ok when new color appears

Change Filament

All manuals and user guides at all-guides.com

Andere Handbücher für ADVENTURER 3

Inhaltsverzeichnis

Andere Flashforge 3D-Drucker Handbücher

Flashforge

Flashforge Guider II Bedienungsanleitung

Flashforge

Flashforge Creator 3 Pro Bedienungsanleitung

Flashforge

Flashforge Adventurer 4 Pro Bedienungsanleitung

Flashforge

Flashforge Creator Pro Bedienungsanleitung

Flashforge

Flashforge ADVENTURER 3 Bedienungsanleitung

Flashforge

Flashforge DREAMER Bedienungsanleitung

Flashforge

Flashforge Inventor Bedienungsanleitung

Flashforge

Flashforge Creator Pro Bedienungsanleitung

Flashforge

Flashforge Finder 3 Bedienungsanleitung

Flashforge

Flashforge THOR500T Bedienungsanleitung

Flashforge

Flashforge Finder Montage- und Wartungsanleitung

Flashforge

Flashforge Inventor II Bedienungsanleitung

Flashforge

Flashforge Guider II Bedienungsanleitung

Flashforge

Flashforge Adventurer 5M Bedienungsanleitung

Flashforge

Flashforge Creator 3 Bedienungsanleitung

Flashforge

Flashforge ADVENTURER 3 Bedienungsanleitung

Flashforge

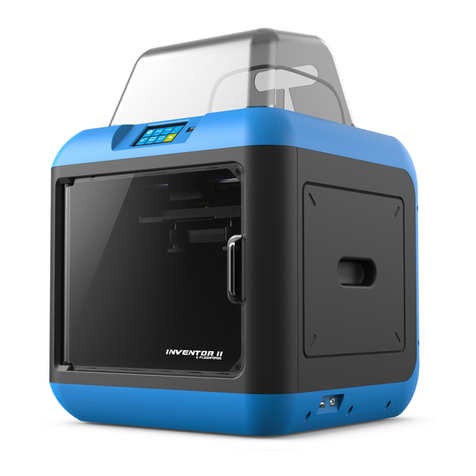

Flashforge Invertor II Bedienungsanleitung
