Flashforge Guider 2 Bedienungsanleitung

SZ11S-ZN/EN-A02 Guider 2 / Guider 2s

引领者 2 / 引领者 2s

This guide is only applicable to FLASHFORGE Guider 2/Guider 2s 3D printer

P14

本指南仅适用于闪铸科技引领者2/引领者2s 3D打印机

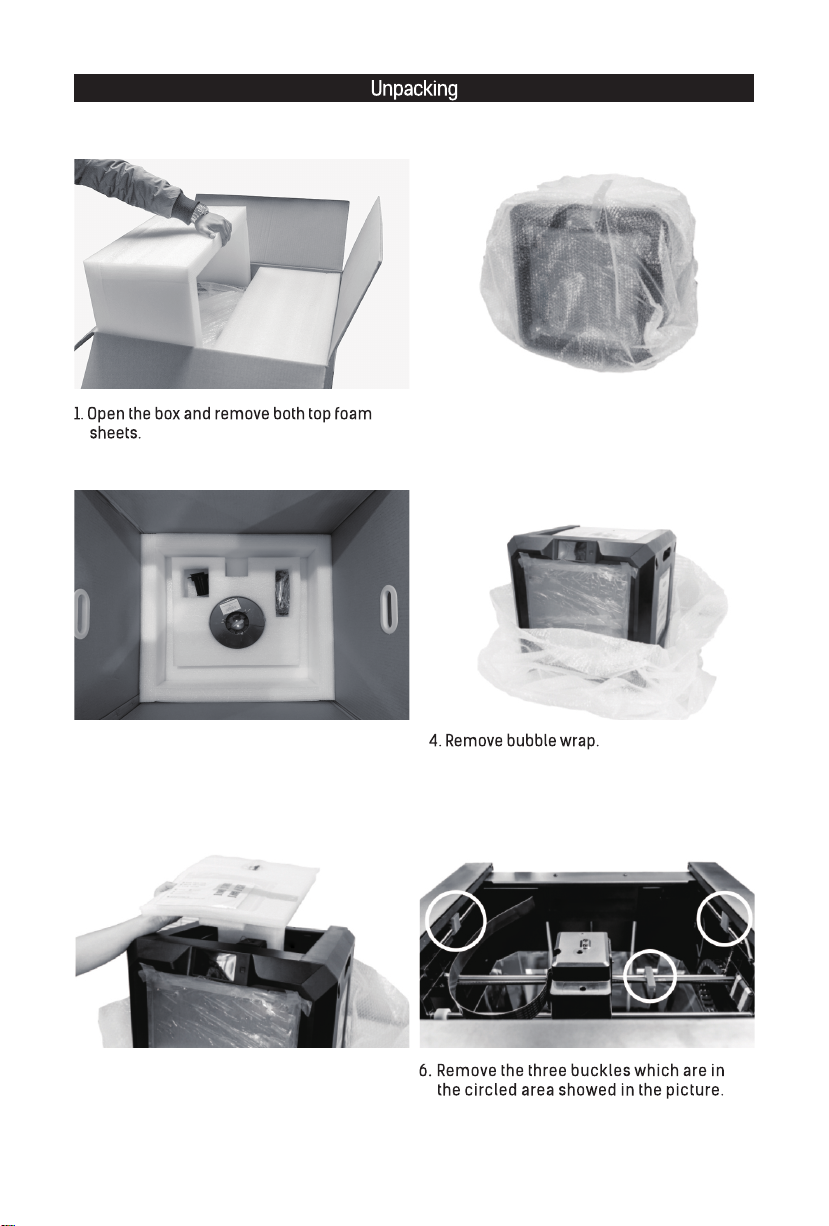

3. The bottom PE foam should contain: a spool of

PLA filament, a spool holder, a solid glue, a USB

cable, a filament guide tube and a accessories

bag.

5. Remove the top PE foam piece, which

contains one power cable, one USB Stick,

one Quick start guide and a After-sales

service card.

2. Take your 3D printer out of the box.

9. Tap [Tools].

Build

Power Switch

12. Remove both bottom foam pieces. Tear off

the stretch wrap.

11. Tap [Z-] to partially elevate the build plate.

Tap touch screen button on the right side of

touch screen, go back to home screen.

7. Tear off tape and the stretch wrap of front door.

Squeeze top lid slightly from both sides to the

middle so as to take top lid successfully.

Remove the stretch wrap of top lid.

Tear off the

stretch wrap

3. Y-Axis Guide Rod 4. X-Axis Guide Rod1. Z-Axis Guide Rod 2. Filament Intake

7. Build Plate 8. Nut5. Touch Screen 6. Touch Screen Button

11. Nozzle 12. Turbo Fan Baffle9. Servo 10. Turbo Fan

15. USB Cable Input 16. Spool Holder Slot13. Network Interface 14. USB Stick Input

17. Power Switch 18. Power Input

Getting to Know Your Guider 2

3. Air-Filter 4. Y-Axis Guide Rod1. Z-Axis Guide Rod 2. Filament Intake

7. Touch Screen Button 8. Build Plate5. X-Axis Guide Rod 6. Touch Screen

11. Servo 12. Turbo Fan9. Nut 10. Camera

(Inside the printer)

15. Network Interface 16. USB Stick Input13. Nozzle 14. Turbo Fan Baffle

17. USB Cable Input 18. Spool Holder Slot 19. Power Switch 20. Power Input

Getting to Know Your Guider 2S

5. After filament goes through guide tube, press

spring presser on the left side of extruder, and

insert filament vertically into filament intake.

1. Locate the spool holder. Install the spool holder

into the left quadrangular opening on the back.

6. After inserting into filament intake, insert guide

tube into extruder filament intake to fix.

Press here Filament intake

How to use the nuts

Rotate the nuts clockwise

Raise the build plate to reduce the distance

between the nozzle and build plate.

Lower the build plate to increase the distance

between the nozzle and build plate.

Rotate the nuts Anticlockwise

Build plate goes up

Build plate goes down

Leveling Build Plate

1. Tap [Tools].

Build

2. Tap [Level].

Berfore leveling, let's learn the funciton of nuts.

0403

0201

Tools

7. If the distance is appropriate, tap [ok] to next

step. If the diastance still not appropriate, please

follow the prompts on the touch screen to

adjust till you see [ok].

Tap the [OK] button to move to

the next leveling point.

Congartulations

Screw the three nuts under the platform

counterclockwise until they are tight,

then tap the [OK] button.

3. Please wait while the extruder and platform finish initial movements. Screw three nuts under the

platform anticlockwise, then tap [OK] button.

Attention: three nuts may be tightened up before going out, please skip this step if you find

three nuts have been tightened up, and continue to following steps

4. After tapping [OK] button, the extruder will

move towards the first point and the plate will

move up and down to verify the distance

between nozzle and plate.

6. Then tap the [Verify] button to check whether

the distance is appropriate.

5. If the distance between the nozzle and plate

is too large, rotate the three nuts underneath

the platform clockwise for the same rounds

until you hear a steady beep.

8. After first leveling point completed, start the other two leveling points.

Attention: when starting the second and the third leveling points, just need to adjust one

corresponding nut under extruder.

9. Follow the prompts on the touch screen to adjust the corresponding nut till you hear a steady

beep.

Turn the corresponding nut under

the platform clockwise until

you hear the beep.

Distance Too Small

Turn the corresponding nut under

the platform anticlockwise until

you hear the beep.

10. If the distance is appropriate, tap [ok] to next

step. If the diastance still not appropriate,

please follow the prompts on the touch

screen to adjust till you see [ok].

11. Start the third leveling point according to the

method of the second leveling point.

After leveling completed, tap return arrow to

go back to home screen.

Tap the [OK] button to move to

the next leveling point.

Congartulations

Leveling completed!

Finish
