Front Runner FAJK003 Bedienungsanleitung

ENG

Jeep Wrangler JKU 4 Door (2007-Current)

Front Support arms

IMPORTANT WARNING!

FAJK003

FRONT RUNNER CAN NOT RECOMMEND A MAXIMUM LOAD CARRYING CAPACITY. PLEASE REFER TO YOUR VEHICLE MANUFACTURER'S RECOMMENDATIONS. IT IS CRITICAL

THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN

AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS

TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU

MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU

DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE

INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

Thank you for purchasing Front Runner Jeep Wrangler JKU 4 door Front Support Arms .

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

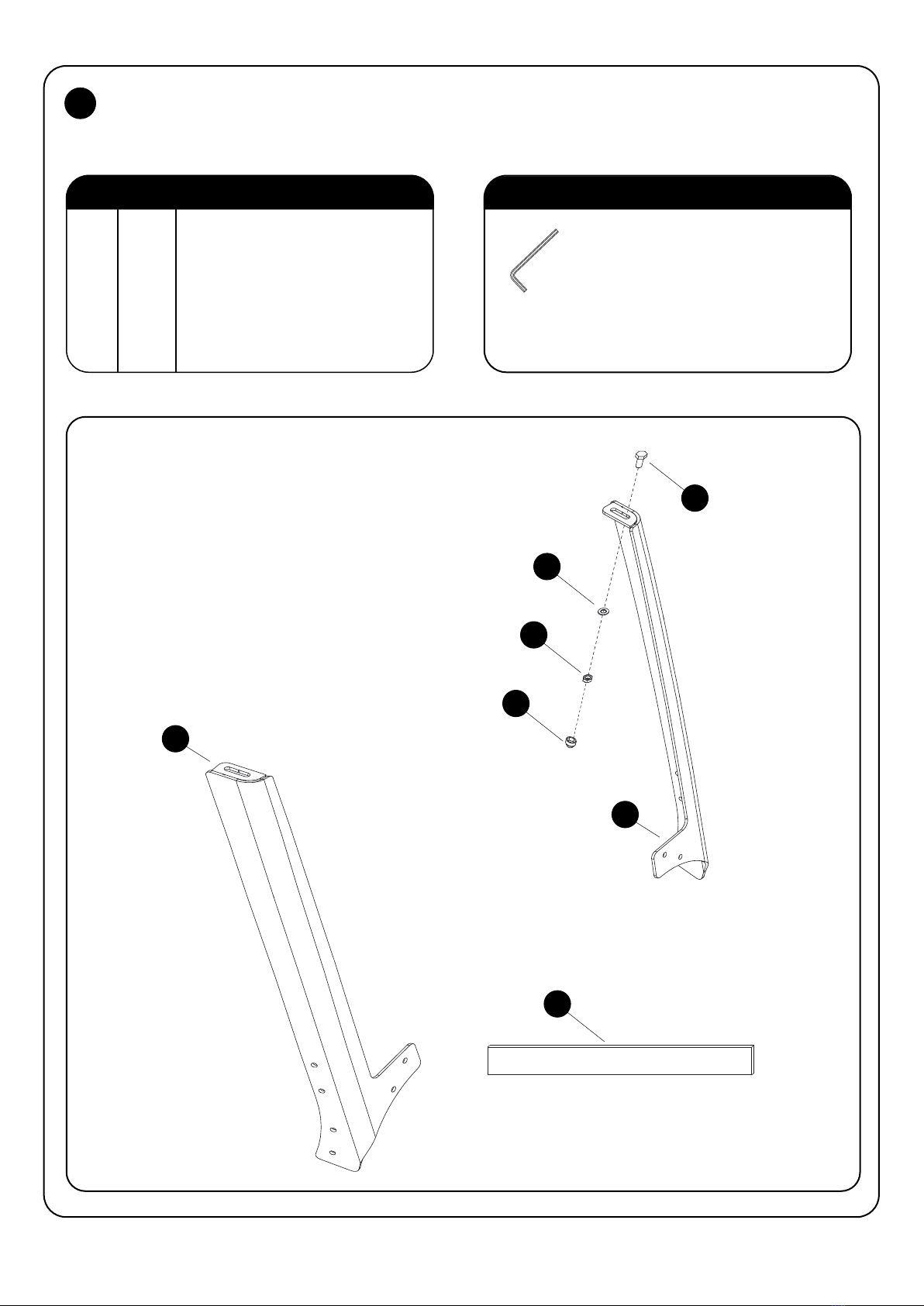

IN THE BOX

FIGURE 1.1

1 2 X M8 x 20 Hex Bolt

2 2 X M8 x 19 x 2SS Flat Washer

3 2 X M8 Nyloc Nut

4 2 X Front Support Arm - 1Left + 1Right

5 2 X M8 Nut Cap

6 1 X Rubber Strip 600mm

IN THE BOX TOOLS NEEDED

IN THE BOX

1GET ORGANIZED

T40

4RH

4LH

FAJK003_REV_A01

4LH

PREP FOR RACK INSTALL (FULL RACK)

13mm

2.1

2.2

2.3

If not already assembled, assemble your

Tray as per the Universal Tray Assembly

Instructions (Document RRSTUNI)

Using a T40 Torx Wrench, remove the six

bolts holding the Window Corner Plates in

place. Be careful not to let the plate fall

when removing the last bolt as this may

result in damage to the paintwork of the

part or your vehicle.

Before removing the paper backing from

the Rubber Strip (Item 6), cut ﬁve pieces

of 60mm long and apply it to the inside of

each Front Support Arm as shown.

Tighten the Front Support Arms (Item 4LH

& 4RH) over the window corner plates

using the original bolts.

T40

NOTE: Before ﬁtting the Wind

Deﬂector, insert two M8 x 16 Hex

Bolts (Item 16 from FAJK006) or

(Item 1 from FAJK003) into the ﬁrst

slat (Combined Slat), using the

Machined slots. Slide a bolt to each

of the outer corners.

FAJK003_REV_A01

MOUNT YOUR TRAY

13mm

2.4

2.5

With the help of a friend, ﬂip the Tray

end over end so that it is in the upright

position. (The Tray is ﬂipped end over

end so that bolts and brackets do not

slide left and right).

With one of you on either side of the

Tray, lift the Tray and walk it into

position above the vehicle, approaching

from either the front or the rear of the

vehicle.

Line up the Front Support Arms (Items

4L & 4R) with the two M8 x 16 Hex Bolts

(Item 1) either side of the wind deﬂector

and hand tighten the front of the Tray to

the arms using M8 Nyloc Nuts and M8 x

19 x 2SS Flat Washers (Items 2 & 3).

Full Rack Shown

FAJK003_REV_A01

COMPLETION

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or online.

3.1

Congratulations! You did it. Take a step back and admire your work!

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:
