Front Runner LALD004 Bedienungsanleitung

LALD004

ENG

IMPORTANT WARNING!

Ladder

land rover discovery 3 / 4

FRONT RUNNER CAN NOT RECOMMEND A MAXIMUM LOAD CARRYING CAPACITY. PLEASE REFER TO YOUR VEHICLE MANUFACTURER'S RECOMMENDATIONS. IT IS CRITICAL

THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD RESULT IN AN

AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT RUNNER PRODUCTS

TO YOUR VEHICLE. CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND DAMAGE. THEREFORE YOU

MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO INSTALLATION OR USE. IF YOU

DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY FAMILIAR WITH THE

INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

Thank you for purchasing a Front Runner 40" LED Light Bar Brackets.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

LALD004_REV_A02

TOOLS NEEDED

1 1 X Ladder

2 1 X Z-Clamp

3 1 X Foam Rubber 600mm Long

IN THE BOX

FIGURE 1.1

T30

10MM 13MM

GET ORGANIZED

LALD004_REV_A02

PREPARE FOR LADDER FITMENT

2.1

2.2

2.3

Remove the screw inside the door handle.

Open the top rear door and remove the four

Torx Bolts (T30) as indicated by the arrows.

You will need to lift the rubber door seal in

order to remove the far left Torx Bolt.

Remove the trim around the door stricker.

T30

LALD004_REV_A02

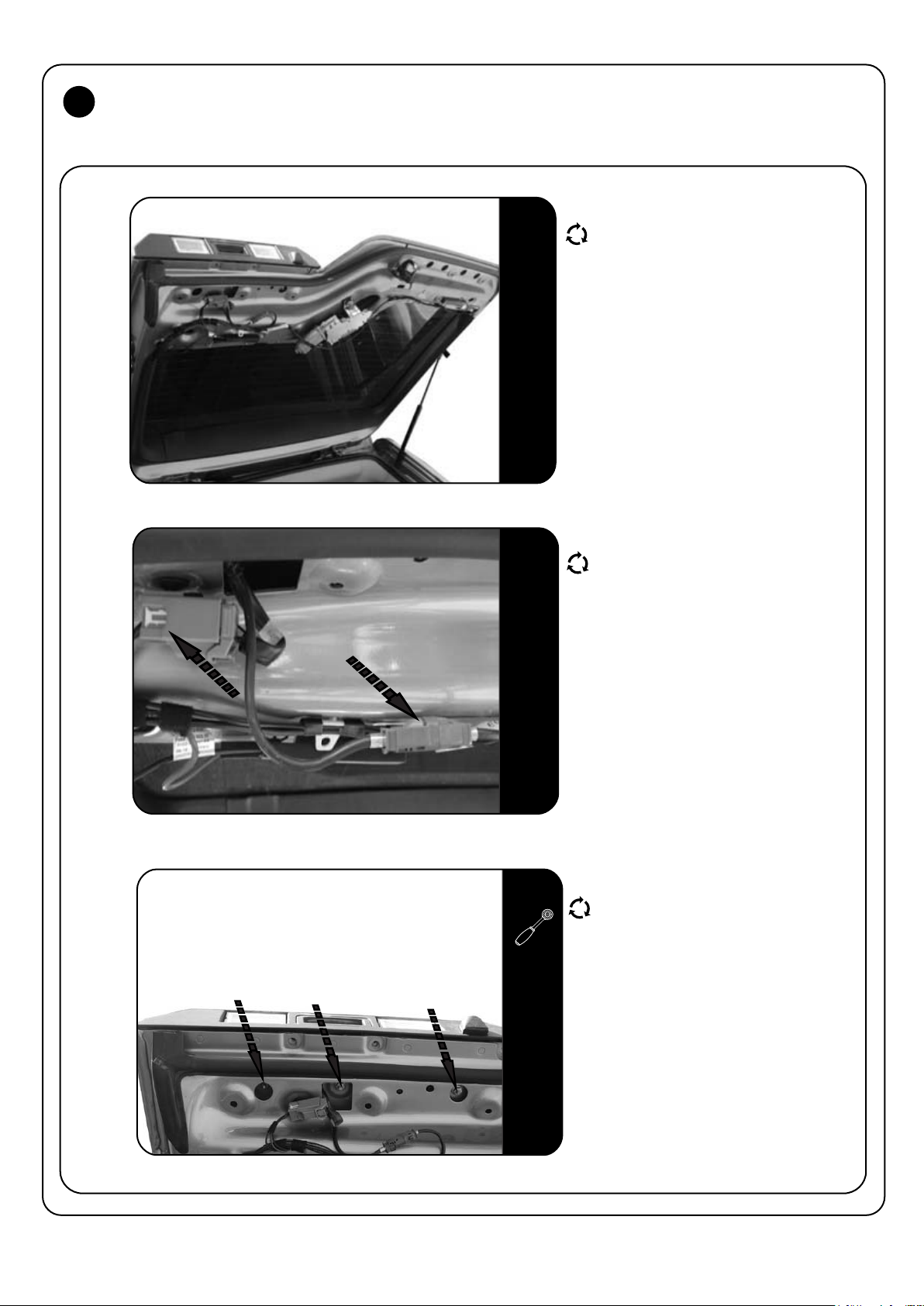

PREPARE FOR LADDER FITMENT

2.4

2.5

2.6

Disconnect the electrical connecter as

indicated (Including rear camera if ﬁtted).

Remove the interior trim panel by pulling it

away from the vehicle's body. Take care not

to damage any of the plastic retaining clips.

Loosen and remove the three hex nuts shown.

10MM

LALD004_REV_A02

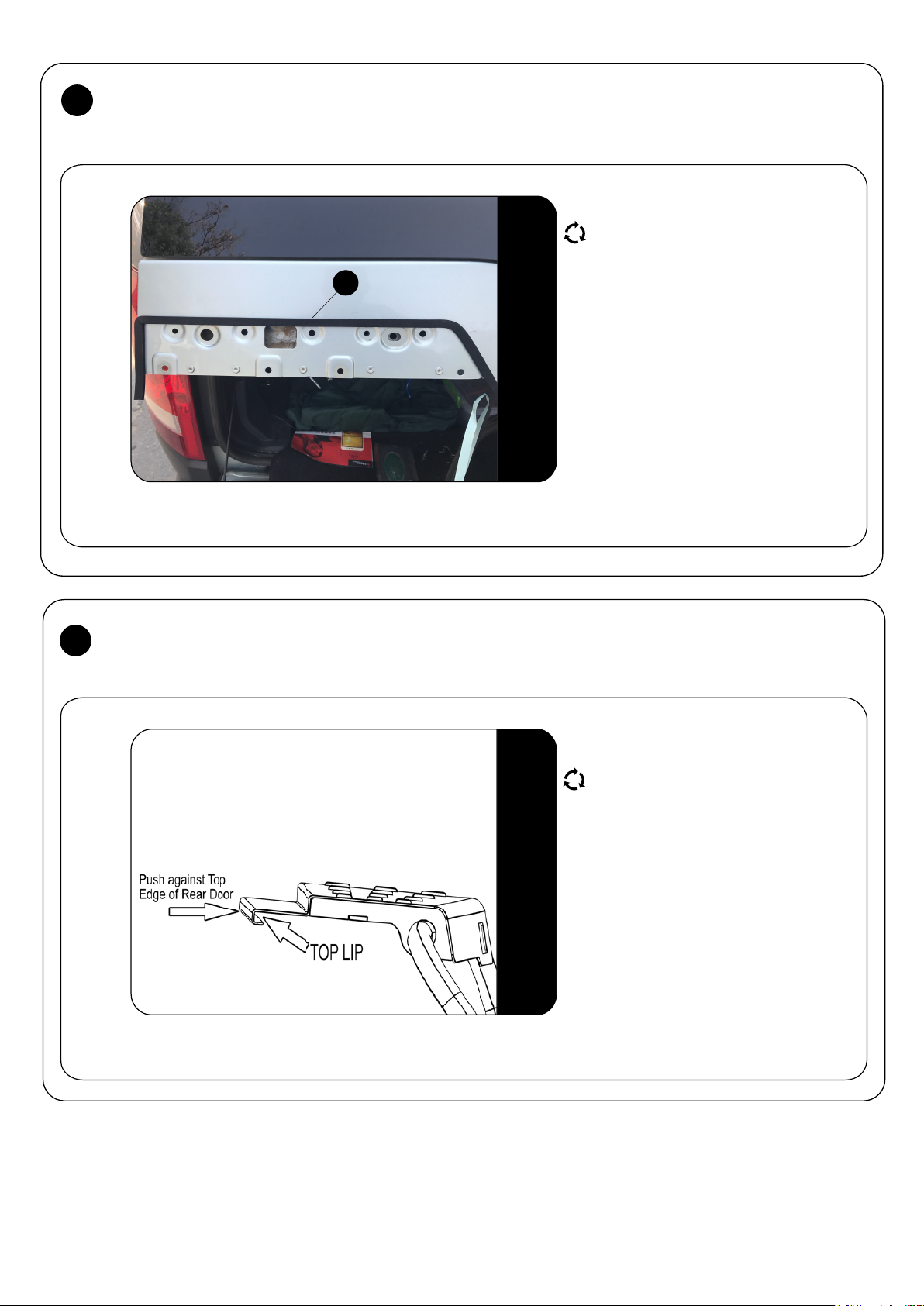

PREPARE FOR LADDER FITMENT

LADDER FITMENT

2.7

Remove the rear number plate light cluster

from the vehicle.

Before removing the protective backing on

the Foam Rubber (Item 3) make sure

that the surface where it will be adhered

is clean.

Follow the outer line of the number plate light

cluster and adhere the Foam Rubber

accordingly. See Step 2.7.

Open the bottom rear door and close the top

rear door, so as to not accidentally lock the

rear door.

3.1

Hook the lip at the top of the Ladder over the

top edge of the Rear Door through the gap

between the door and the vehicle's roof. See

Step 3.2.

Push the top lip against the top edge of the

rear door.

LADDER FITMENT

3.2

3.3

3.4

Open the top rear door and remove the outer

hex bolt on the rear left hand side door hinge.

Ensure the top lip from the Ladder is against

the top edge of the rear door (Refer to Step

3.1), Place the Z-Clamp (Item 2) over the

top lip, lining up the hole in the Z-Clamp

with the bolt hole. Secure the Z-Clamp to the

vehicle using the hex bolt removed.

Reconnect the electrical plugs removed in

Step 2.5, Reﬁt the trim revoved in Steps 2.2 to

2.4 and fasten the torx bolts removed in

Step 2.1.

Align the holes in the bottom of the Ladder

with the holes in the vehicle's body (behind

the rear number plate light cluster removed

earlier).

Place the rear number plate light cluster over

the bottom of the Ladder and secure using the

hex nuts removed in Step 2.6.

13MM

T30

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

Now's the time to visit your favorite Front Runner Dealer in person or Online.

COMPLETION

4.1

10mm

Congratulations! You did it. Take a step back and admire your work!

4.1
