Front Runner SSDS102 Bedienungsanleitung

TOYOTA FJ CRUISER

dECK cOMPLETION SET

front runner

SSDS102

ENG

Thank you for purchasing a Front Runner Deck Completion Set.

Before you start, take a moment to familiarize yourself with the Fitting Instructions and the components received.

Refer to Page 2 for a list of all the components, quantities and tools required.

READ ME !

IMPORTANT WARNING!

IT IS CRITICAL THAT ALL FRONT RUNNER PRODUCTS BE PROPERLY AND SECURELY ASSEMBLED AND ATTACHED TO YOUR VEHICLE. IMPROPER ATTACHMENT COULD

RESULT IN AN AUTOMOBILE ACCIDENT, AND COULD CAUSE SERIOUS BODILY INJURY OR DEATH. YOU ARE RESPONSIBLE FOR ASSEMBLING AND SECURING ALL FRONT

RUNNER PRODUCTS TO YOUR VEHICLE, CHECKING THE ATTACHMENTS PRIOR TO USE, AND PERIODICALLY INSPECTING THE PRODUCTS FOR ADJUSTMENT, WEAR AND

DAMAGE. THEREFORE, YOU MUST READ AND UNDERSTAND ALL OF THE INSTRUCTIONS AND PRECAUTIONS SUPPLIED WITH YOUR FRONT RUNNER PRODUCT PRIOR TO

INSTALLATION OR USE. IF YOU DO NOT UNDERSTAND ALL OF THE INSTRUCTIONS AND CAUTIONS, OR IF YOU HAVE NO MECHANICAL EXPERIENCE AND ARE NOT THOROUGHLY

FAMILIAR WITH THE INSTALLATION PROCEDURES, YOU SHOULD HAVE THE PRODUCT INSTALLED BY A PROFESSIONAL INSTALLER OR OTHER QUALIFIED PERSONNEL.

NOTE: Front Runner will not be responsible for any damage caused by the failure to install the product according to these instructions.

Please call us if you have any questions about the installation of this product.

TOOLS NEEDED

FIGURE 1.1

GET ORGANIZED

IN THE BOX

1LH

1RH

4LH

4RH

1 2 X Side Deck - 1LH + 1RH

2 2 X Rear Deck (Symmetrical)

3 1 X Rear Support

4 6 X Side Wings - 3LH + 3RH

5 2 X Front Face - 1LH + 1RH - (With Knockouts)

6 2 X 37mm Laser Cut Carabiner

7 2 X M6 x 25 Countersink Bolt

8 2 X M6 Finishing Washer

9 4 X M6 x 16 Button Head Bolt

10 8 X M6 x 19 x 1SS Flat Washer

11 8 X M6 SS Spring Washer

12 8 X M6 x 16 Hex Bolt

13 2 X Front Face 1LH + 1RH

4mm

10mm

4LH

4RH

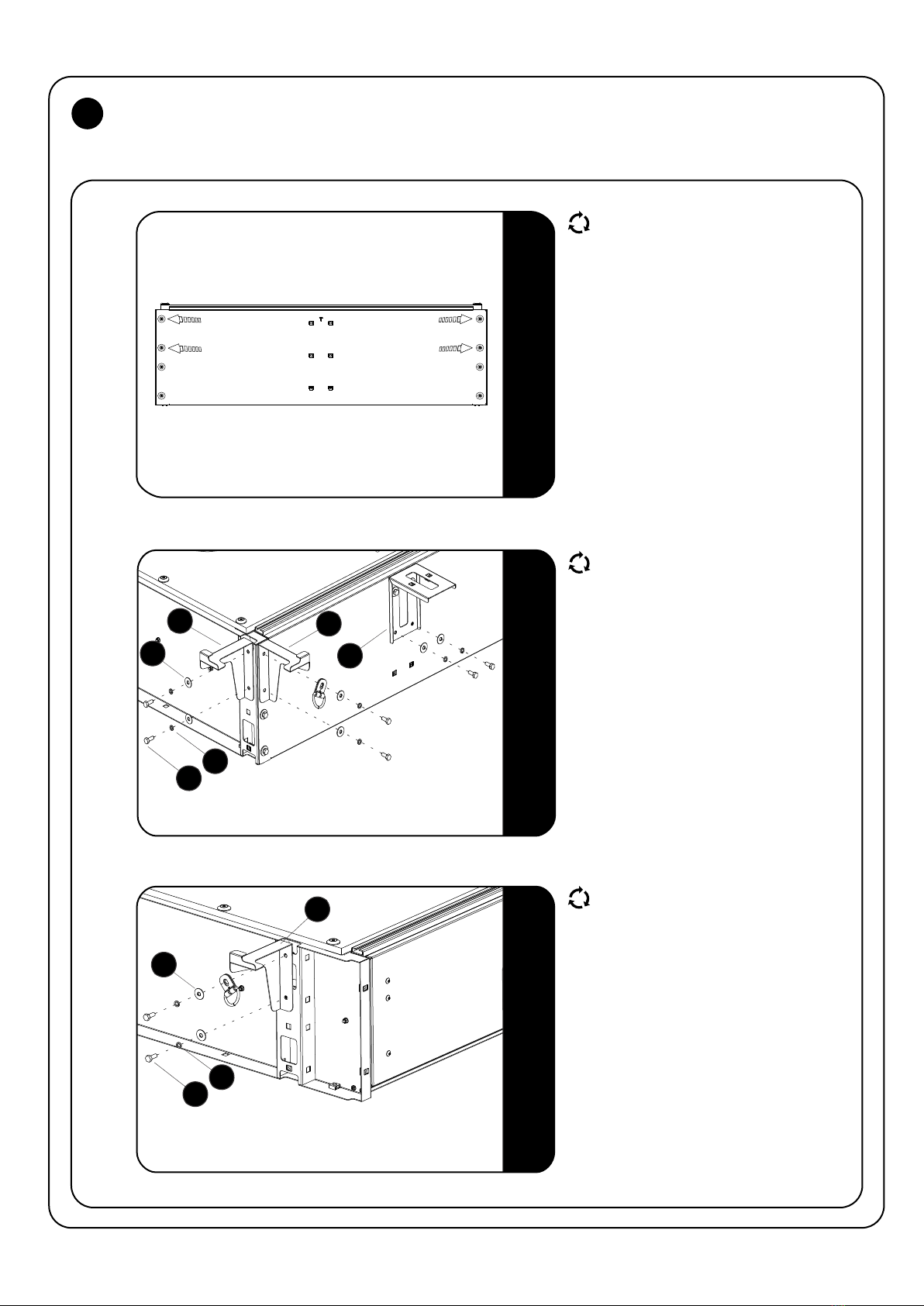

FIT AND SECURE2

2.1

2.2

2.3

Looking at the rear of the Drawer System,

remove the fasteners as indicated by the

arrows. Keep the fasteners safe as they will

be used in Step 2.2.

Assemble the Rear Support using M6 x 16

Hex Bolts, M6 SS Spring Washers and M6 x

19 x 1SS Flat Washers (Items 10, 11 & 12)

as shown.

Assemble two Side Wings (Item 4LH & 4RH)

on each of the rear left and right corner

of the Drawer System using the fasteners

removed in Step 2.1 together with D-Rings

(supplied with SSDR011) and M6 x 16 Hex

Bolts, M6 SS Spring Washers and M6 x 19

x 1SS Flat Washer (Items 10, 11 & 12) as

shown.

Assemble two Side Wings (Item 4LH & 4RH)

on the left and right side of the Drawer

together with D-Rings (supplied with

SSDR011) using M6 x 16 Hex Bolts, M6 SS

Spring Washers and M6 x 19 x 1SS Flat

Washer (Items 10, 11 & 12) as shown.

4RH

4RH 4LH

10mm

FIT AND SECURE2

2.4

2.5

2.6

Place the Drawer System into the vehicle.

Position the Drawer 45mm in from the

plastic tread section and center the Drawer

left to right.

Before securing the Drawer down, assemble

a Wing Nut to each of the four Turnbuckles.

(Wing Nuts and Turnbuckles supplied with

SSDR011).

Loosely secure the rear of the Drawer

System to the tie down points found behind

the vehicles rear seats using Turnbuckles

and 60mm Carabiners (supplied with

SSDR011) as shown.

Loosely secure the front of the Drawer

System to the tie down points found at the

rear of the vehicles using Turnbuckles

and (supplied with SSDR011) and 37mm

Carabiner (Item 6) as shown.

Tighten all the Turnbuckles making sure

that the Drawer System remains centered

left to right and 45mm in from the plastic

tread section. Tighten the Wing Nuts to lock

the Turnbuckles in place..

Assemble the two Front Faces (Item 5 or 13)

to the Drawer System using M6 x 16 Button

Head Bolts (Item 9).

INSTALL OTHER VEHICLE AND RACK ACCESSORIES

5Now's the time to visit your favorite Front Runner Dealer in person or online.

Be sure to tag us. We love to see our gear in action! #FrontRunnerOutfitters #BornToRoam

Share your adventures on:

COMPLETION

Congratulations! You did it. Take a step back and admire your work!

FIT AND SECURE2

2.7

Place the Rear and Side Decks (Items 1 & 2)

into position. Secure the center of the Rear

Decks to the Rear Support (Item 3) using

M6 x 25 Countersink Bolts and M6 Finishing

Washers (Items 7 & 8) as shown.

4RH

FITTING ELECTRICAL SOCKETS

Twist the pre cut knock outs to remove.

These cut outs can then be used to ﬁt Front

Runners range of electrical sockets.

(Sold Separately)

ECOM117 - Amp

ECOM118 - USB

ECOM119 - 12/24V

ECOM120 - Merit

ECOM121 - Engel

ECOM124 - Volt

3.1

1LH
