SP1120\1125\1130 Consumable Replacement and Cleaning

Instructions

CG00002-291501

SP1120\1125\1130

SP1120\1125\1130 Consumable Replacement and Cleaning

Instructions

CG00002-291501

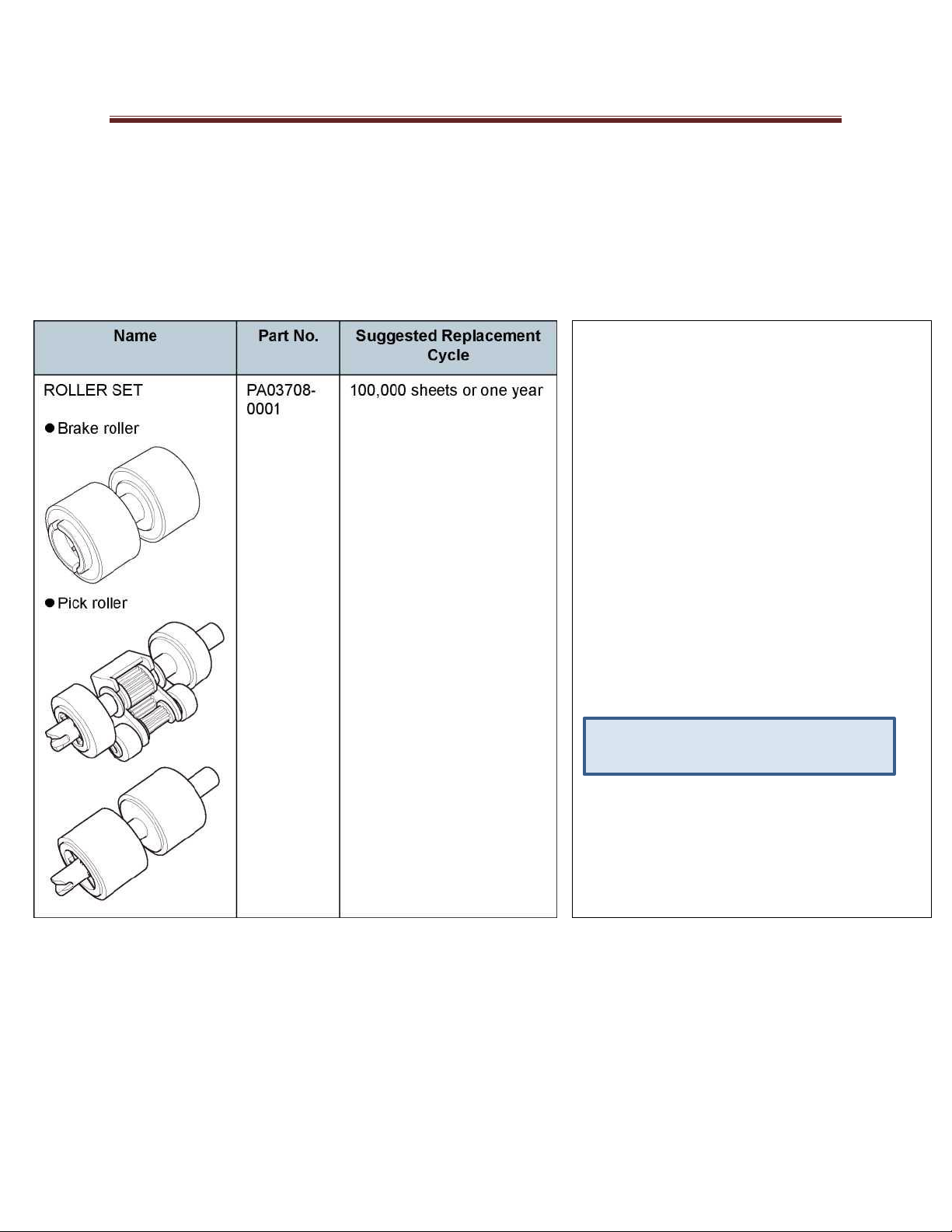

Consumables and Replacement Cycles

Consumables need to be replaced

periodically. It is recommended that you

keep a stock of new consumables for

replacement before it reaches the end of its

life. The scanner records the number of

sheets scanned after replacing the

consumables, which allows you to check the

status of the consumables.

Note that the suggested replacement cycles

are references for using A4 (80 g/m2(20 lb)

wood-free or wood-containing paper, as

these cycles vary depending on the type of

documents scanned and how often the

scanner is used and cleaned.

HINT

Only use the specified consumables.

To purchase the consumables, contact your

FUJITSU scanner dealer or an authorized

FUJITSU scanner service provider.

SP1120\1125\1130 Consumable Replacement and Cleaning

Instructions

CG00002-291501

Replacing the Roller Set

The roller set consists of a brake roller and a pick roller. Replace each roller in the following

procedure.

5. Attach a new brake roller on the shaft

1Remove all documents from the ADF paper chute (feeder).

Open the ADF.

Remove the brake roller.

a. Press the cover bushing of the brake roller to open the cover in the

direction of the arrow.

CAUTION

Be careful not to have your fingers caught

when the ADF closes.

b. Pull out the left side of the brake roller shaft, and then pull out the right side of the shaft from the hole.

4. Remove the brake roller from its shaft

Brake Roller

Brake Roller Shaft

SP1120\1125\1130 Consumable Replacement and Cleaning

Instructions

CG00002-291501

Insert the protrusion on the shaft into the slot.

6. Attach the shaft.

a. Attach the notch, which is on the brake roller shaft, to the slot on the right then attach the left side of

the shaft.

b. Close the cover.

ATTENTION

Confirm that the brake roller is installed properly. Otherwise, it may cause feeding errors such as paper

jams.

Notch

Brake Roller

Protrusion

Brake Roller Shaft

SP1120\1125\1130 Consumable Replacement and Cleaning

Instructions

CG00002-291501

7. Remove the pick roller.

a. Open the side guide fully to both sides. Then place your finger into the depression and open the sheet

guide in the direction of the arrow.

b. Slide the pick roller and remove it from the top.

Side Guide

Depression

Side Guide

Sheet Guide

SP1120\1125\1130 Consumable Replacement and Cleaning

Instructions

CG00002-291501

8. Attach a new pick roller from the bottom.

a. Check the direction of the notch on the pick roller and of the small roller, and insert it in the hole.

b. Close the sheet guide.

ATTENTION

Check that the pick roller is installed properly. Otherwise, it may cause feeding errors such as paper jams.

9. Close the ADF.

Be careful not to have your fingers caught when the ADF closes.

10.Reset the roller set counter.

Start the Software Operation Panel and reset the counter.

Notch

Small Roller

CAUTION

SP1120\1125\1130 Consumable Replacement and Cleaning

Instructions

CG00002-291501

Checking and Resetting the Sheet Counters

Checking the sheet counters

The status on each consumable part can be checked to determine when to replace the

consumables.

When a consumable needs to be replaced soon, the background color of the counter for the

consumable changes. The background color of the roller set counter turns light yellow when the

number of sheets scanned reaches 95,000, and turns yellow when it reaches 100,000.

Start the Software Operation Panel

Check that the scanner is connected to the computer, then turn on the scanner.

Display the [Software Operation Panel] window.

Windows Vista/Windows Server 2008/Windows 7

oSelect the [Start] menu - [All Programs] –[SP Series] - [Software

Operation Panel].

Windows Server 2012/Windows 8

oRight-click the Start screen, and select [All apps] on the app bar - [Software

Operation Panel] under [SP Series].

Windows Server 2012 R2/Windows 8.1

Select [|] on the lower left side of the Start screen - [Software Operation Panel] under [SP

Series]

From the listing on the left, select

[Device Setting].

SP1120\1125\1130 Consumable Replacement and Cleaning

Instructions

CG00002-291501

Resetting the sheet counters

When you have replaced or cleaned a consumable part, reset the corresponding counter by

using the following procedure.

1Click the [Clear] button for the consumable that you replaced.

2Click the [OK] button in the Software Operation Panel.

A confirmation message appears.

3Click the [OK] button.

The settings are saved.

SP1120\1125\1130 Consumable Replacement and Cleaning

Instructions

CG00002-291501

Cleaning Materials and Locations that Require Cleaning

Notes

Part No.

Name

Cleaning Materials

Cleaner F1

PA03950-

0352

1 bottle (100 ml)

Moisten a cloth or Cleaning

Paper with this liquid to

wipe the scanner clean.

It may take a long time to

dry if an excessive amount

is used. Use it in small

quantity. Wipe off the

cleaner completely to leave

no residue on the cleaned

parts.

Cleaning

Paper

CA99501-

0012

1 pack (10 sheets)

Use this non-woven sheet

with Cleaner F1.

Cleaning Wipe

PA03950-

0419

1 box (24 packets) Pre-moistened

with Cleaner F1. It can be used

instead of moistening a cloth with

Cleaner

CLEANING SWAB

(100 / PK)

CG90000-

120601

CLEANING CLOTH

(25/PK)

ATTENTION

In order to use the cleaning materials safely and correctly, read

the precautions on each product thoroughly.

For more information about the cleaning materials, contact your

FUJITSU scanner dealer or an authorized FUJITSU scanner

service provider.

CG90000-

120001

SP1120\1125\1130 Consumable Replacement and Cleaning

Instructions

CG00002-291501

Location and Frequency

Location

Frequency

ADF

Brake roller

Every 3,000 sheets

Pick roller

Plastic idler roller

Glass

Ultrasonic sensor

Feed roller

Eject roller

ATTENTION

Cleaning cycles may vary depending on the condition of the

documents. Also, cleaning must be performed more frequently when

the following types of documents are scanned:

•Smooth-faced documents such as coated paper

•Documents with printed text/graphics that almost cover the entire

surface

•Documents containing a large amount of calcium carbonate

•Documents written in lead pencil

•Documents on which the toner is not sufficiently fused
